C1155

C1155 BRAKE FLUID LEVEL SWITCH





DTC Logic

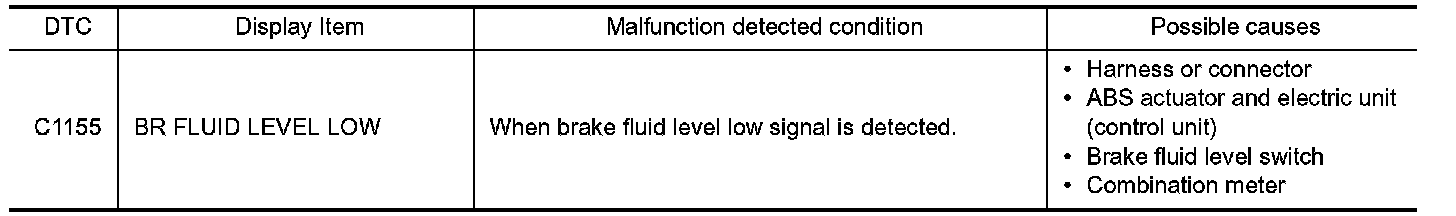

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.CHECK DTC DETECTION
With CONSULT-III.
1. Turn the ignition switch OFF to ON.
2. Perform self-diagnosis for "ABS".
Is DTC "C1155" detected?
YES - Proceed to diagnosis procedure. SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK BRAKE FLUID LEVEL
1. Turn the ignition switch OFF.
2. Check brake fluid level. Inspection.
Is the inspection result normal?
YES - GO TO 2.
NO - Refill brake fluid. Refilling.
2.CHECK BRAKE FLUID LEVEL SWITCH HARNESS
1. Disconnect brake fluid level switch harness connector.
2. Disconnect combination meter harness connector.

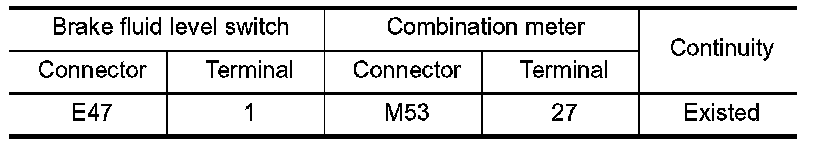

3. Check continuity between brake fluid level switch harness connector and combination meter harness connector.

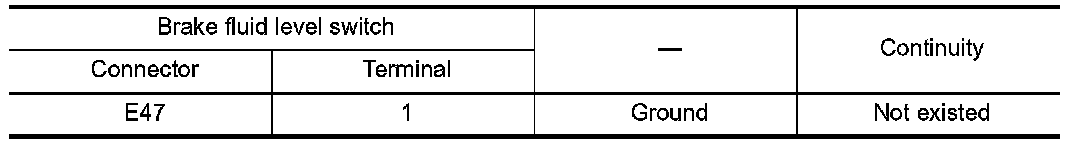

4. Check continuity between brake fluid level switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace error-detected parts.
3.CHECK BRAKE FLUID LEVEL SWITCH GROUND

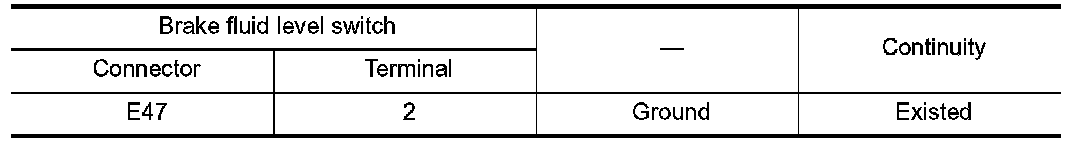

Check continuity between brake fluid level switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace error-detected parts.
4.CHECK BRAKE FLUID LEVEL SWITCH
Check brake fluids level witch. SEE Component Inspection.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace reservoir tank. Overhaul.
5.CHECK COMBINATION METER
Check combination meter. Scan Tool Testing and Procedures.
Is the inspection result normal?
YES - GO TO 6.
NO - Repair or replace combination meter. Removal And Installation.
6.CHECK TERMINAL
- Check brake fluid level switch pin terminals for damage or loose connection with harness connector.
- Check combination meter pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit). Removal And Installation.
NO - Repair or replace error-detected parts.




Component Inspection
1.CHECK BRAKE FLUID LEVEL SWITCH
1. Turn the ignition switch OFF.
2. Disconnect brake fluid level switch harness connector.

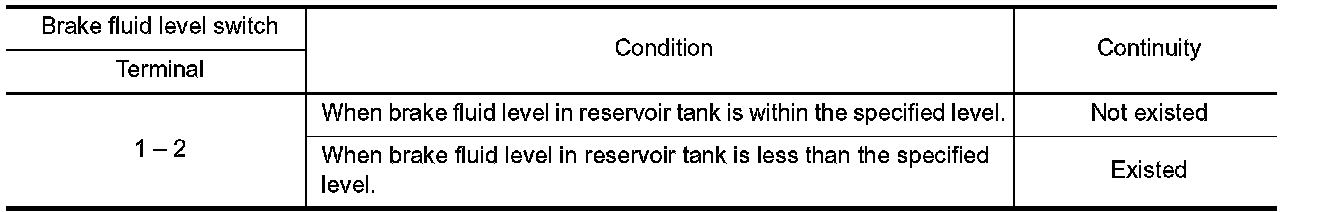

3. Check continuity between terminals of brake fluid level switch.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace reservoir tank. Overhaul.
