C1140

C1140 ACTUATOR RELAY SYSTEM





DTC Logic

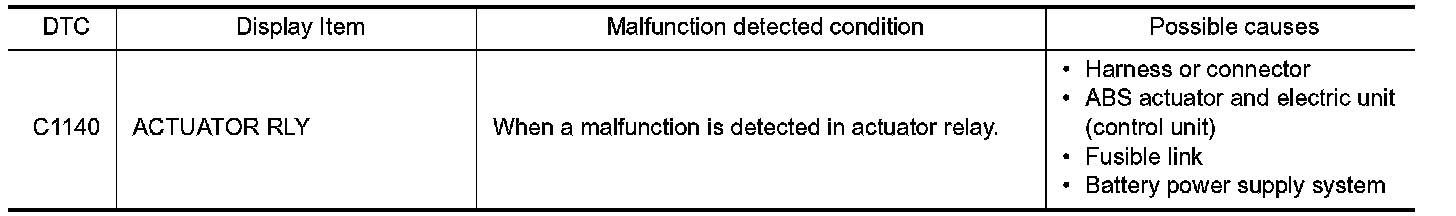

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.CHECK DTC DETECTION
With CONSULT-III.
1. Turn the ignition switch OFF to ON.
2. Perform self-diagnosis for "ABS".
Is DTC "C1140" detected?
YES - Proceed to diagnosis procedure. SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK ACTUATOR RELAY POWER SUPPLY
1. Turn the ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) harness connector.

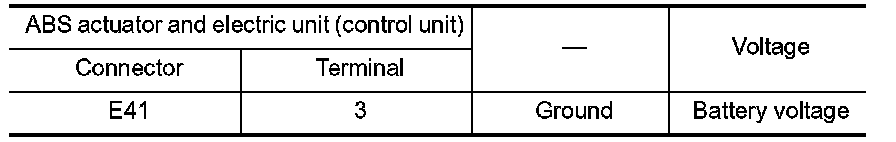

3. Check voltage between ABS actuator and electric unit (control unit) harness connector and ground.





4. Turn the ignition switch ON.

CAUTION:
Never start engine.

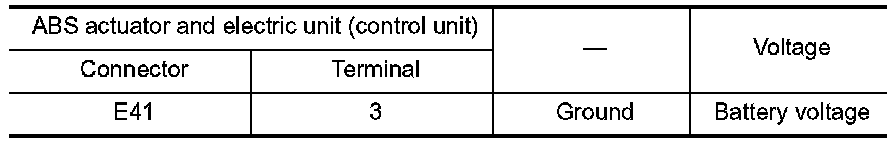

5. Check voltage between ABS actuator and electric unit (control unit) harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK ACTUATOR RELAY POWER SUPPLY CIRCUIT
1. Turn the ignition switch OFF.
2. Check 30 A fusible link (M).
3. Check continuity and short circuit between ABS actuator and electric unit (control unit) harness connector terminal (3) and 30 A fusible link (M).
Is the inspection result normal?
YES - Perform trouble diagnosis for battery power supply. Battery Power Supply, "Wiring Diagram - BATTERY
POWER SUPPLY -".
NO - Repair or replace error-detected parts.
3.CHECK ACTUATOR RELAY GROUND CIRCUIT
1. Turn the ignition switch OFF.

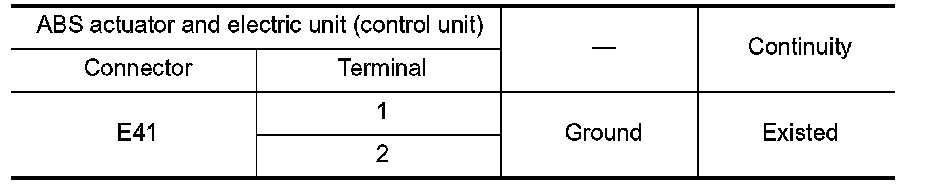

2. Check continuity between ABS actuator and electric unit (control unit) harness connector and the ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace error-detected parts.
4.CHECK TERMINAL
Check ABS actuator and electric unit (control unit) pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit). Removal And Installation.
NO - Repair or replace error-detected parts.
