C1109

C1109 POWER AND GROUND SYSTEM





Description
Ignition power supply is supplied to ABS actuator and electric unit (control unit).




DTC Logic

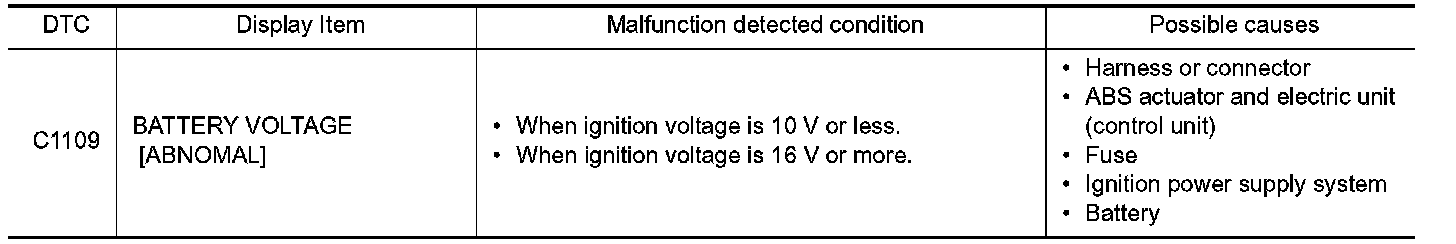

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.CHECK DTC DETECTION
With CONSULT-III.
1. Turn the ignition switch OFF to ON.
2. Perform self-diagnosis for "ABS".
Is DTC "C1109" detected?
YES - Proceed to diagnosis procedure. SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) IGNITION POWER SUPPLY
1. Turn the ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) harness connector.
3. Check voltage between ABS actuator and electric unit (control unit) harness connector and ground.





4. Turn the ignition switch ON.

CAUTION:
Never start engine.
5. Check voltage between ABS actuator and electric unit (control unit) harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) IGNITION POWER SUPPLY CIRCUIT
1. Turn the ignition switch OFF.
2. Check 10 A fuse (#46).
3. Disconnect IPDM E/R harness connector.
4. Check continuity between ABS actuator and electric unit (control unit) harness connector and IPDM E/R harness connector.

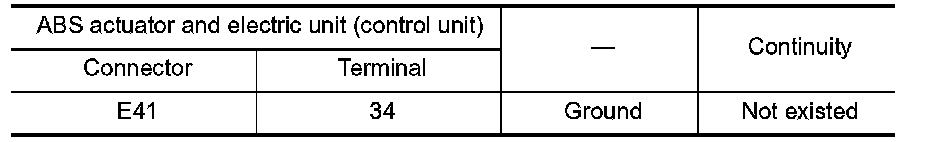

5. Check for continuity between ABS actuator and electric unit (control unit) harness connector and the ground.





Is the inspection result normal?
YES - Perform trouble diagnosis for ignition power supply. Ignition Power Supply, "Wiring Diagram - IGNITION
POWER SUPPLY -".
NO - Repair or replace error-detected parts.
3.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT
1. Turn the ignition switch OFF.

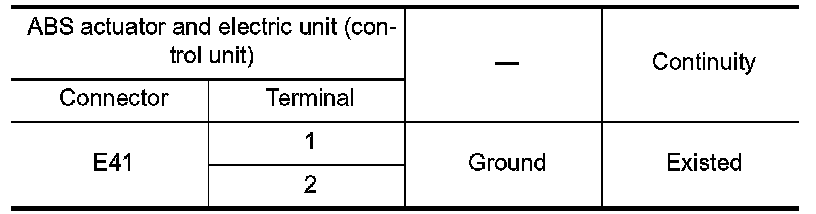

2. Check continuity between ABS actuator and electric unit (control unit) harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace error-detected parts.
4.CHECK TERMINAL
- Check ABS actuator and electric unit (control unit) pin terminals for damage or loose connection with harness connector.
- Check IPDM E/R pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit). Removal And Installation.
NO - Repair or replace error-detected parts.
