Removal and Installation

CONDENSER


Removal and Installation


REMOVAL
1. Remove the rear seat cushion and the rear seatback. Removal and Installation
2. Remove the rear kickplate, rear wheel well garnish and the rear pillar finisher. Removal And Installation

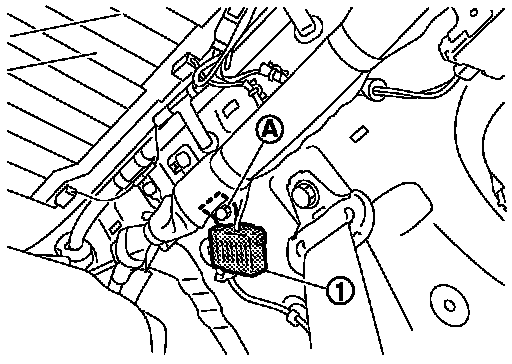

3. Remove bolt (A), and then remove condenser (1) from the vehicle body.

INSTALLATION
Install in the reverse order of removal.
