Component Function Check

PARKING BRAKE SWITCH


Component Function Check

1.CHECK PARKING BRAKE SWITCH OPERATION

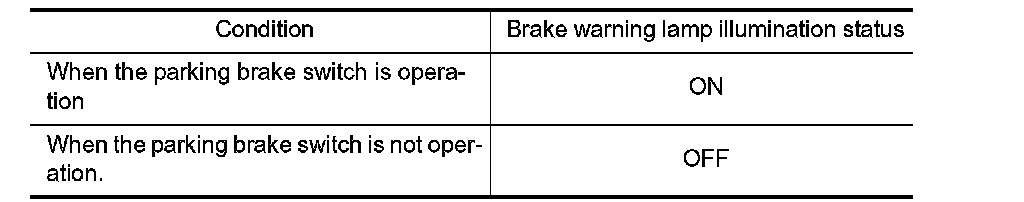

Operate the parking brake lever (M/T models) or the parking brake pedal (A/T models). Then check that the brake warning lamp in the combination meter turns on/off correctly.





Is the inspection result normal?
YES - INSPECTION END
NO - Go to diagnosis procedure. Refer to Diagnosis Procedure.
