AWD Control Unit Input/Output Signal Reference Value
AWD CONTROL UNIT INSPECTION TABLE

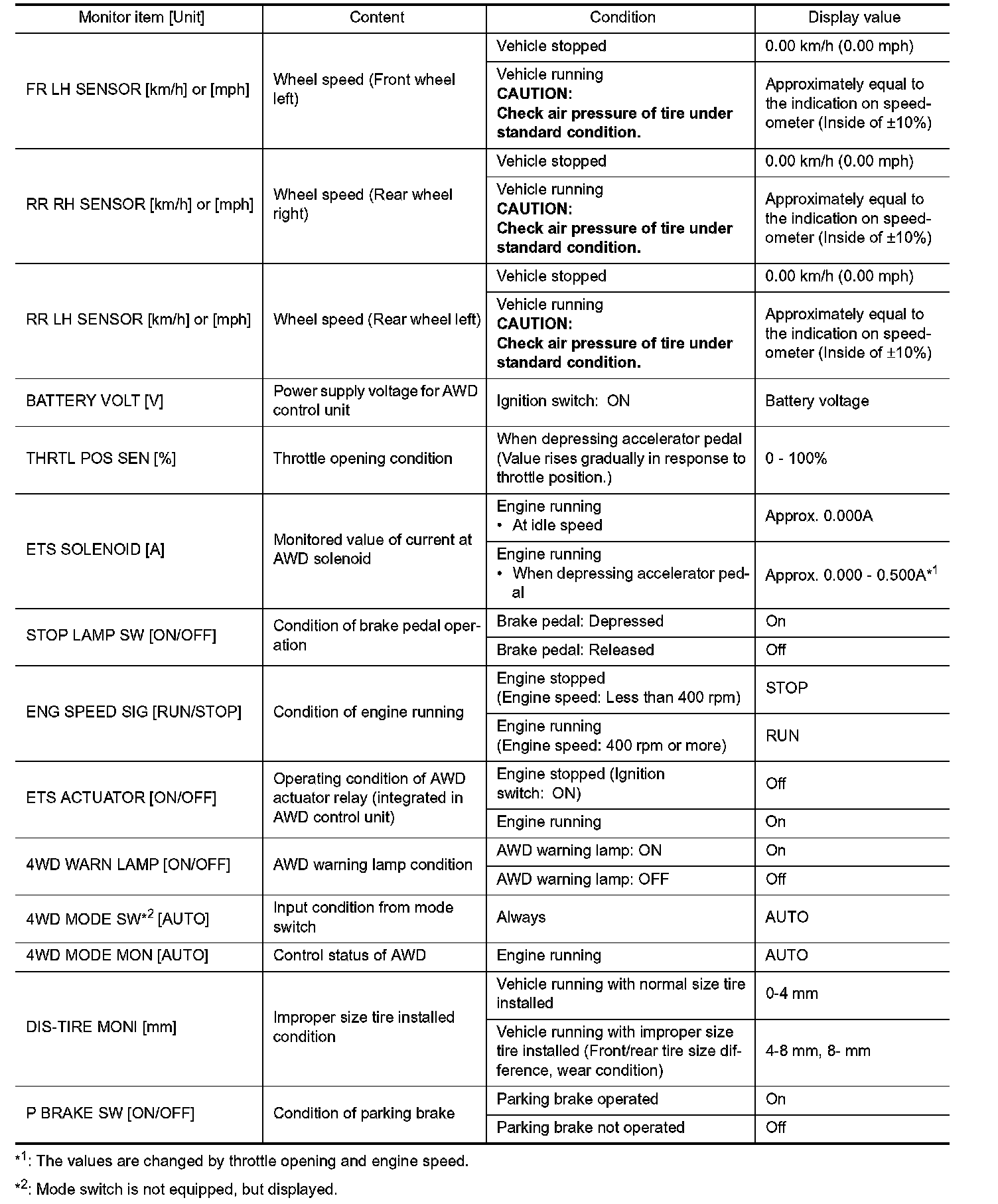

Specifications with CONSULT-III (Part 1):
Specifications with CONSULT-III (Part 2):
