Home >> Infiniti >> 2008 >> M45x AWD V8-4.5L (VK45DE) >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Module >> Testing and Inspection >> Component Tests and General Diagnostics >> Check Push-Button Ignition Switch (Ignition Switch) System

Check Push-Button Ignition Switch (Ignition Switch) System

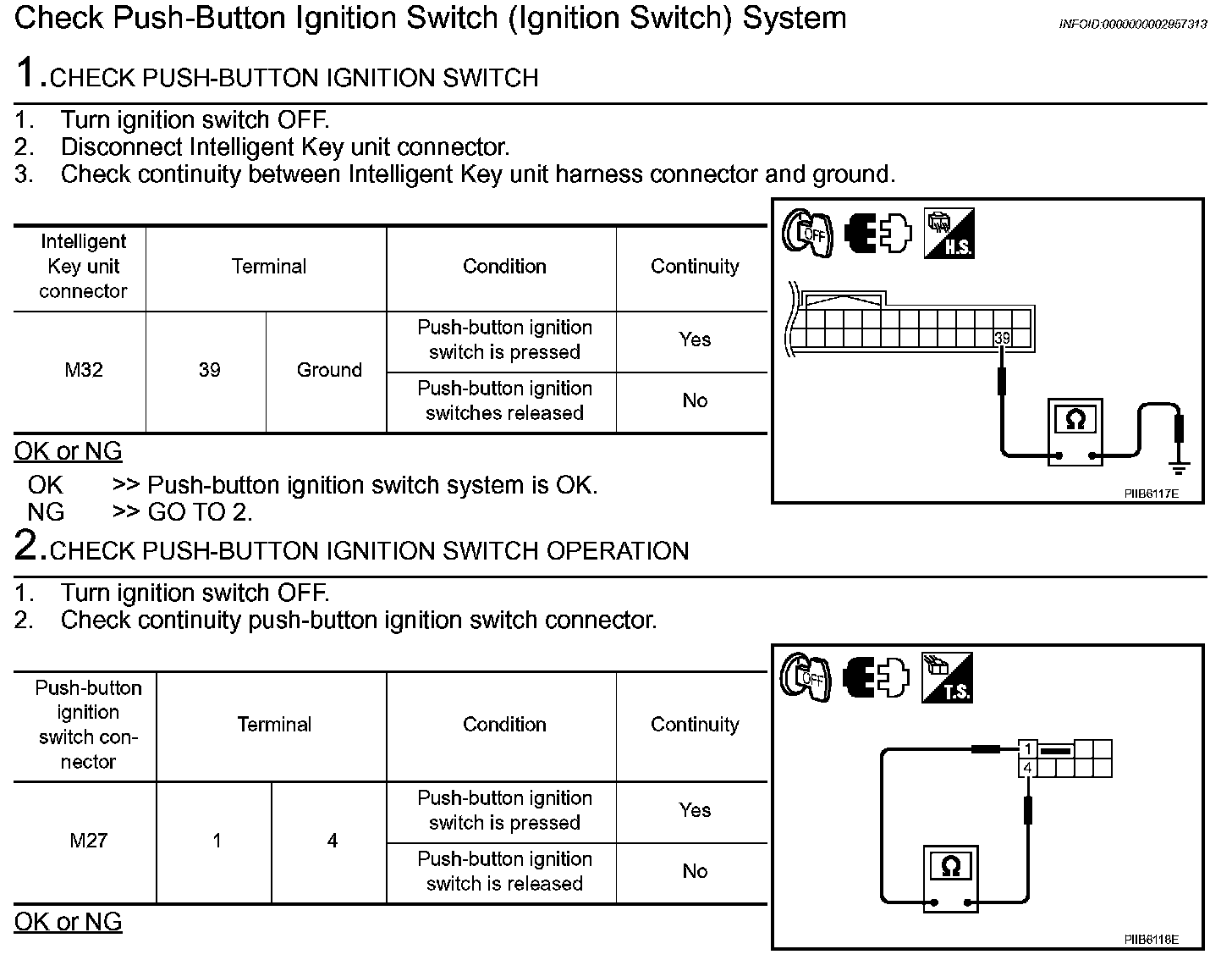

Step 1-2:

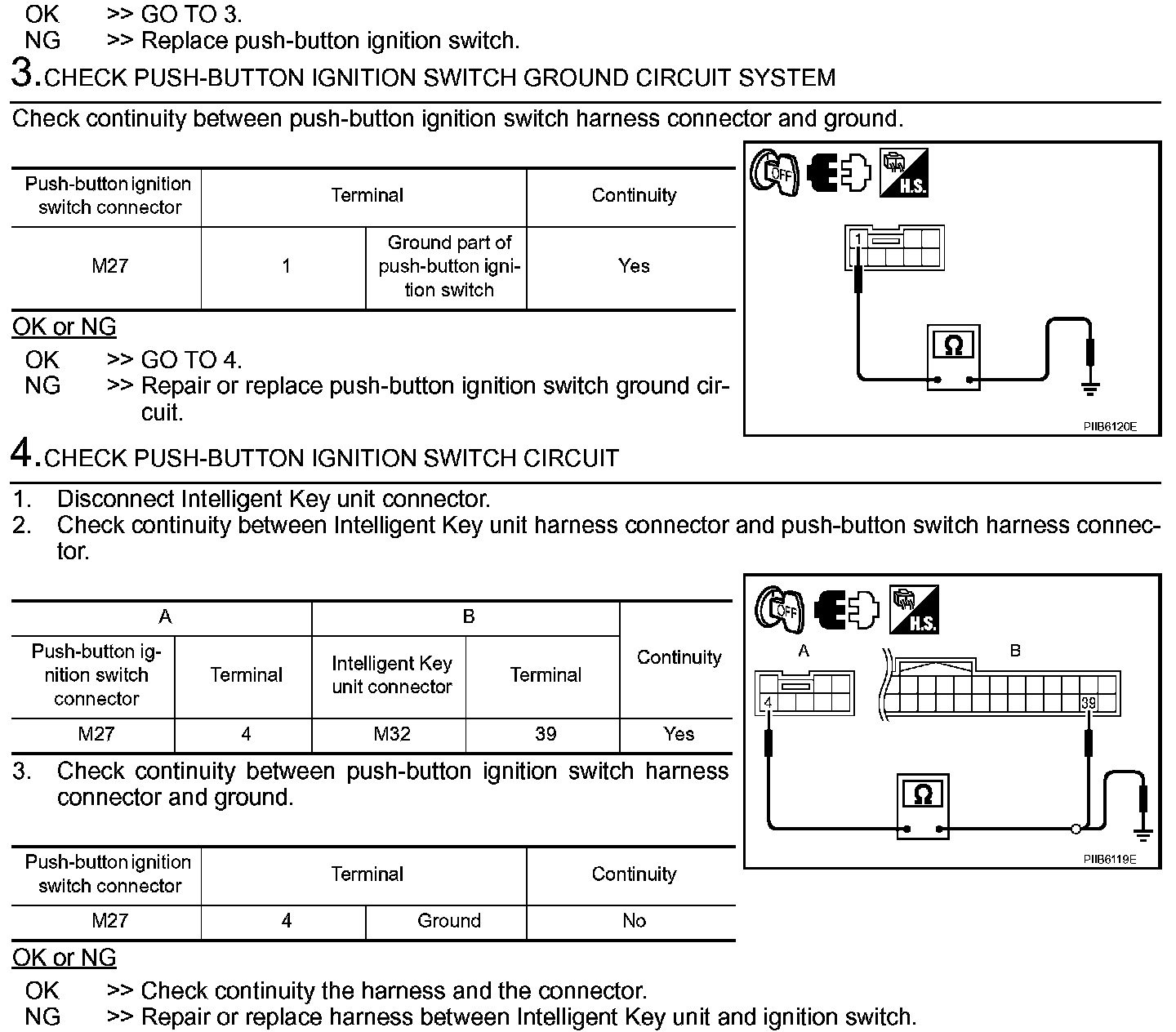

Step 2 (Continued)-4:
