CONSULT-III Application Item

CONSULT-III Application Item

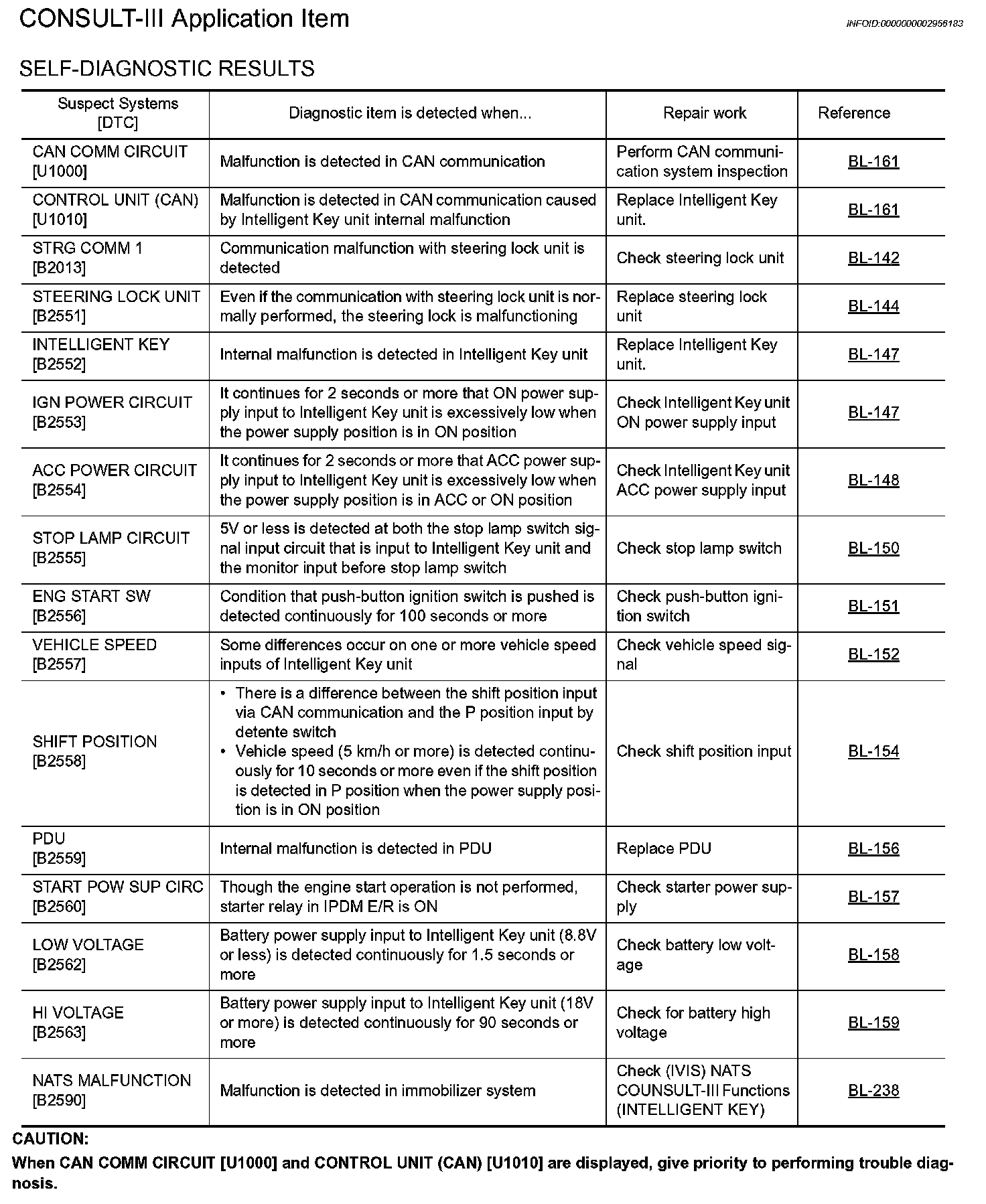

SELF-DIAGNOSTIC RESULTS

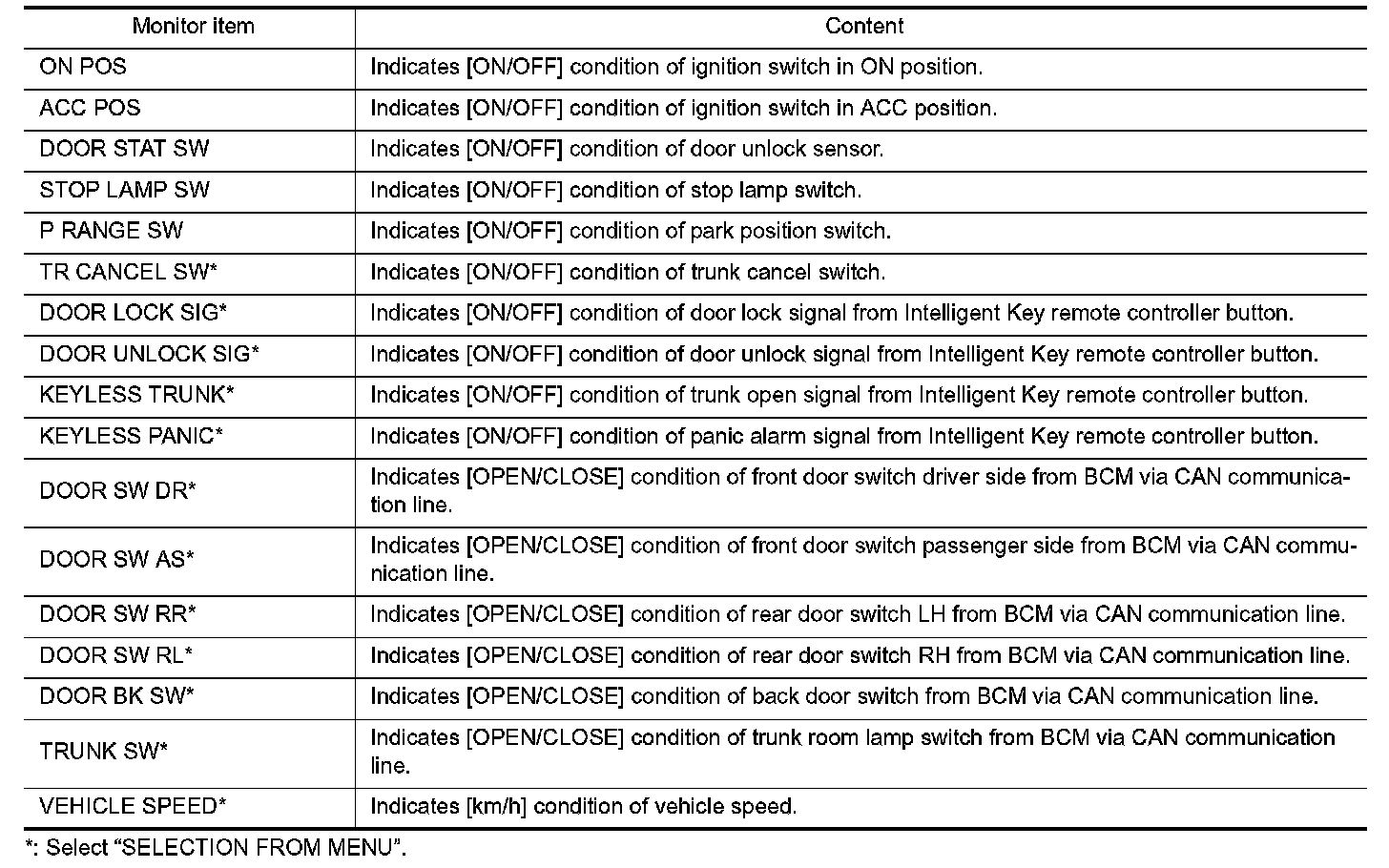

DATA MONITOR

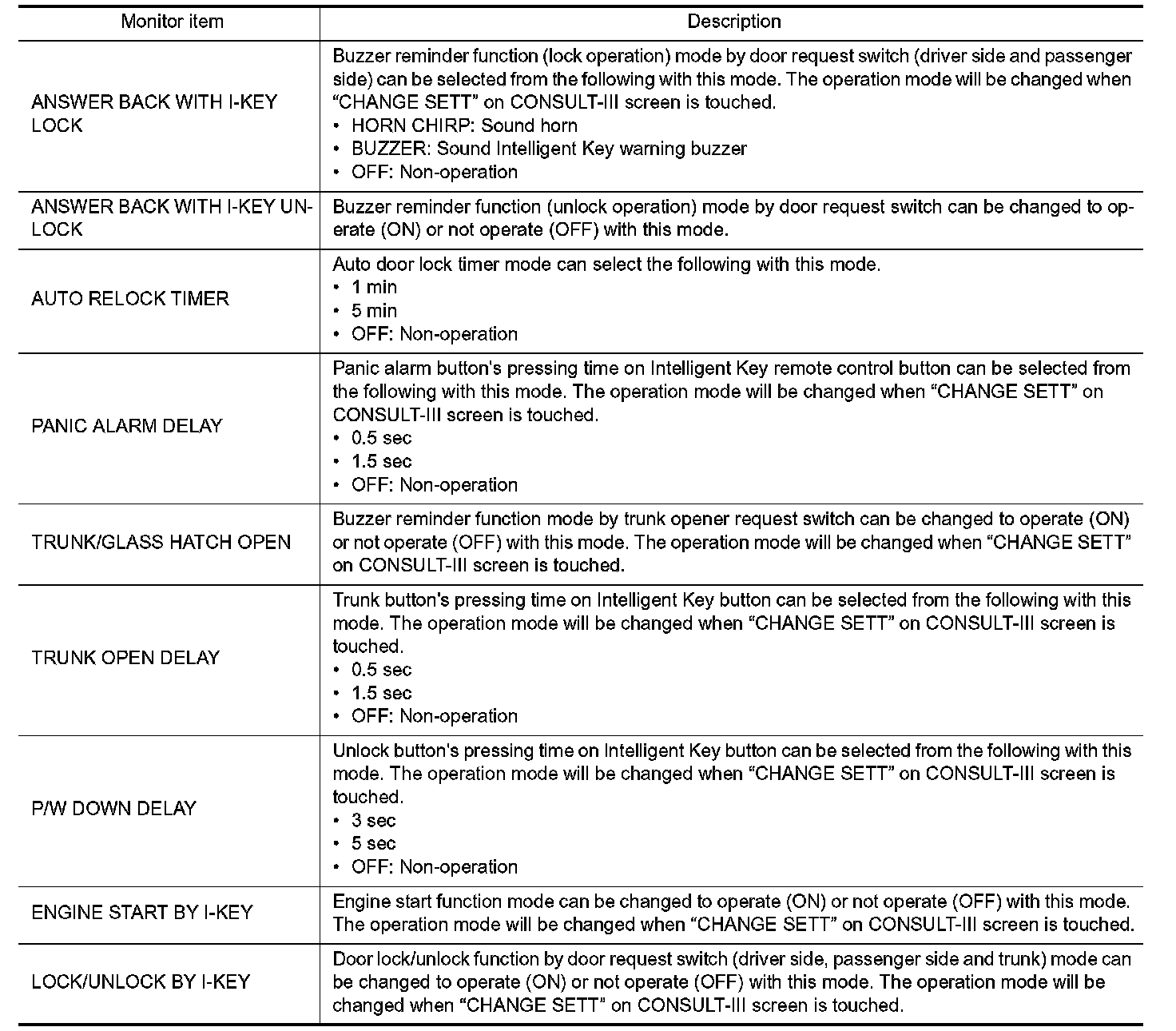

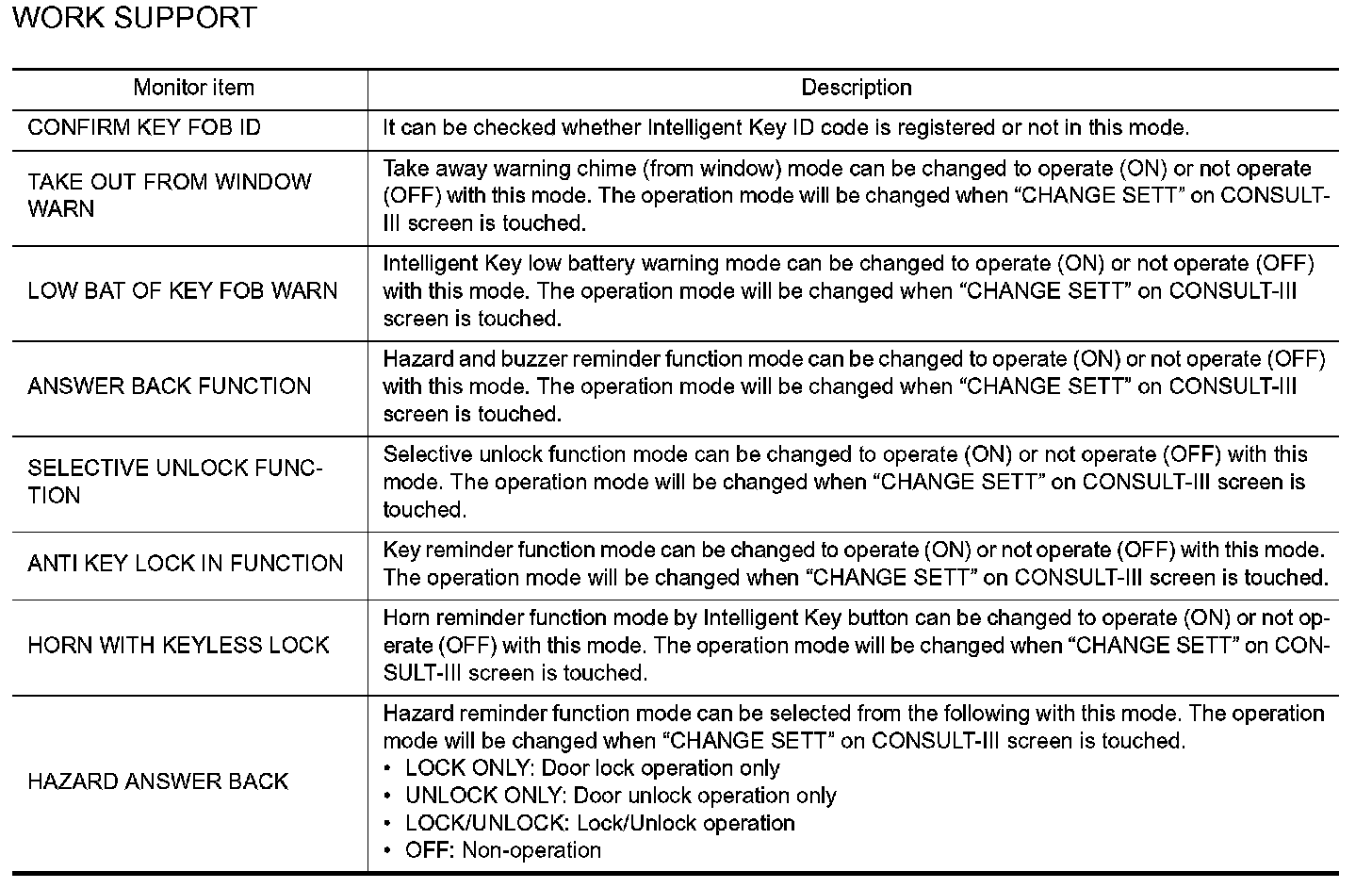

WORK SUPPORT

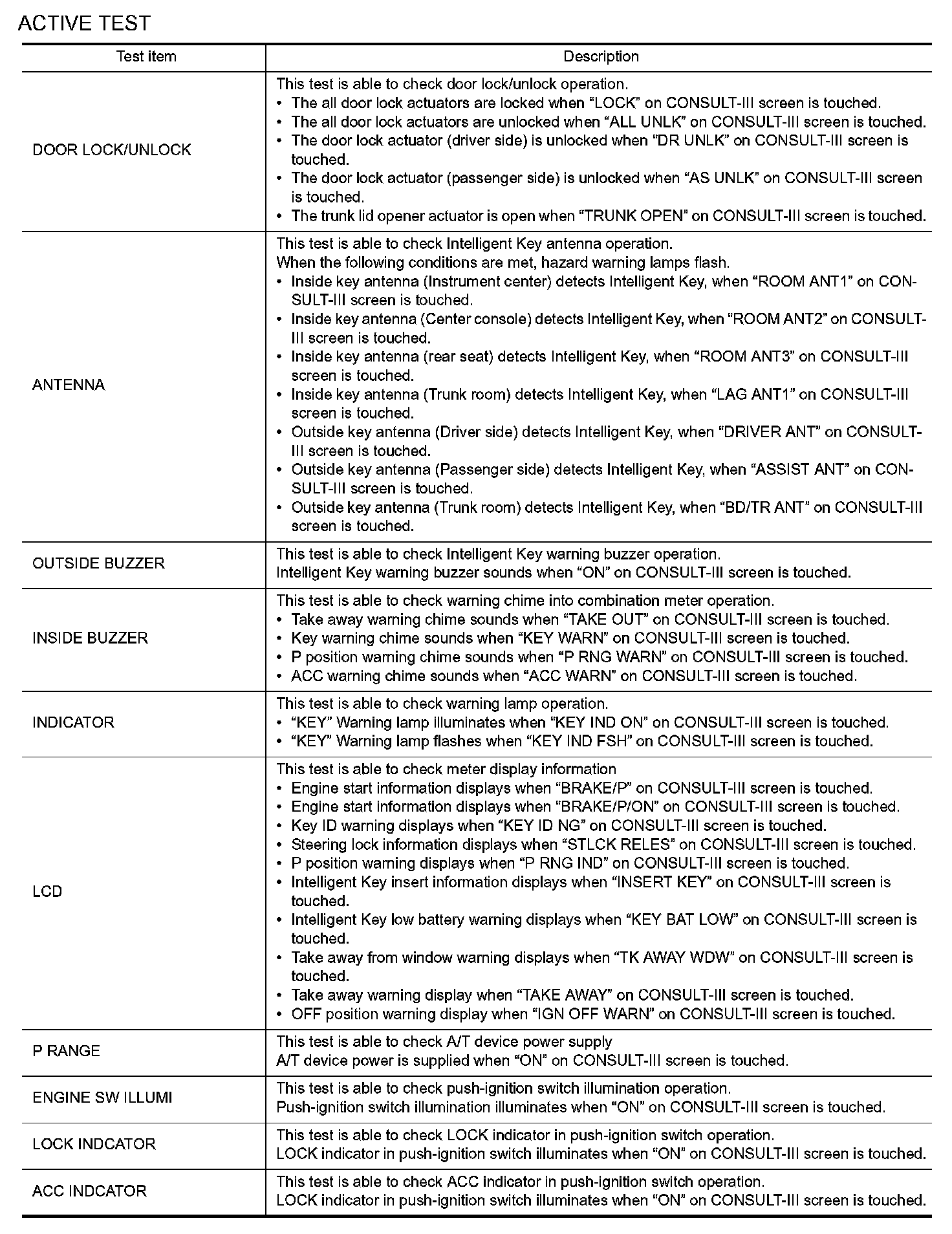

ACTIVE TEST
