Home >> Infiniti >> 2008 >> M45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Intelligent Key System/Engine Start Function

Intelligent Key System/Engine Start Function

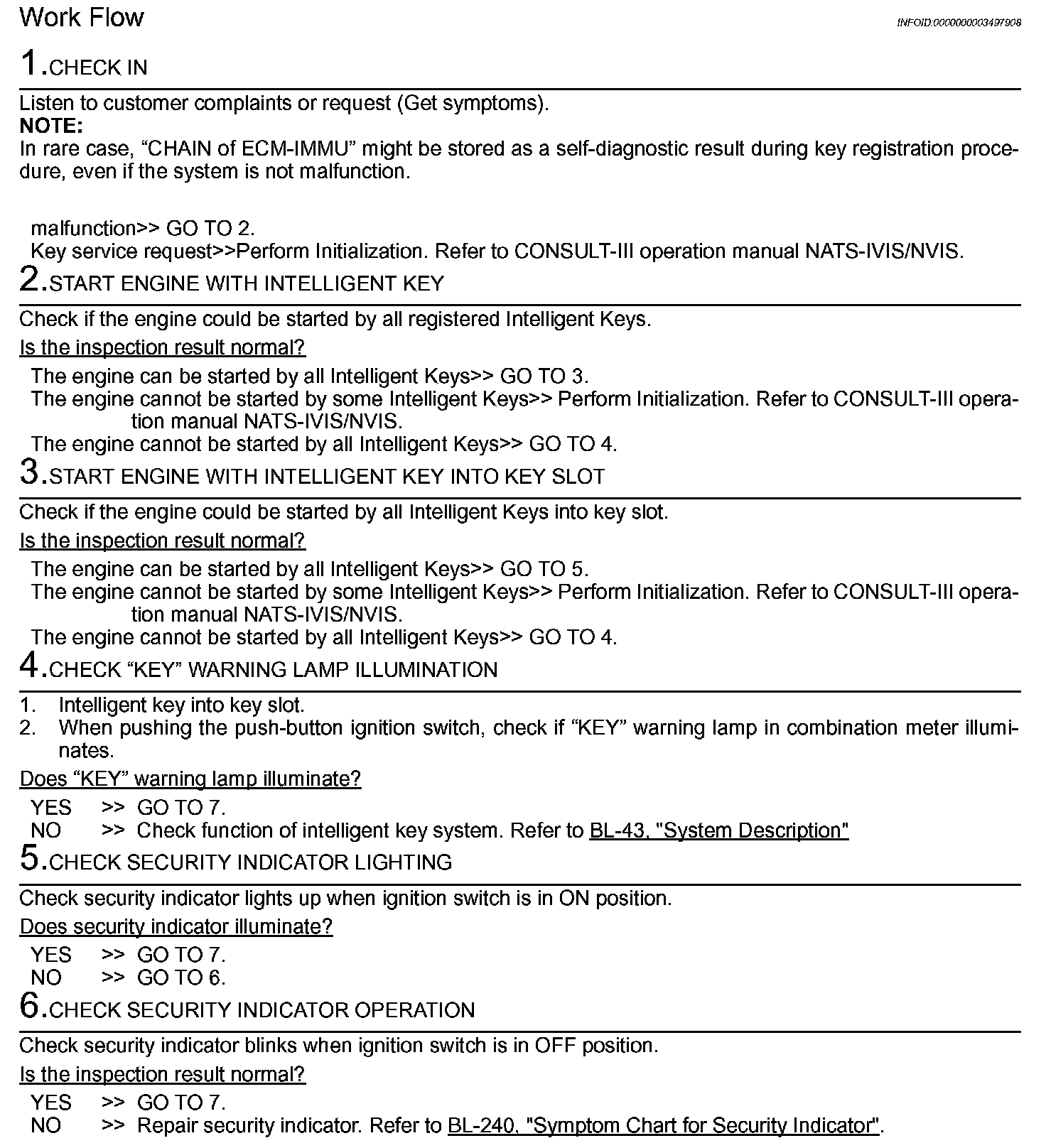

Step 1-6:

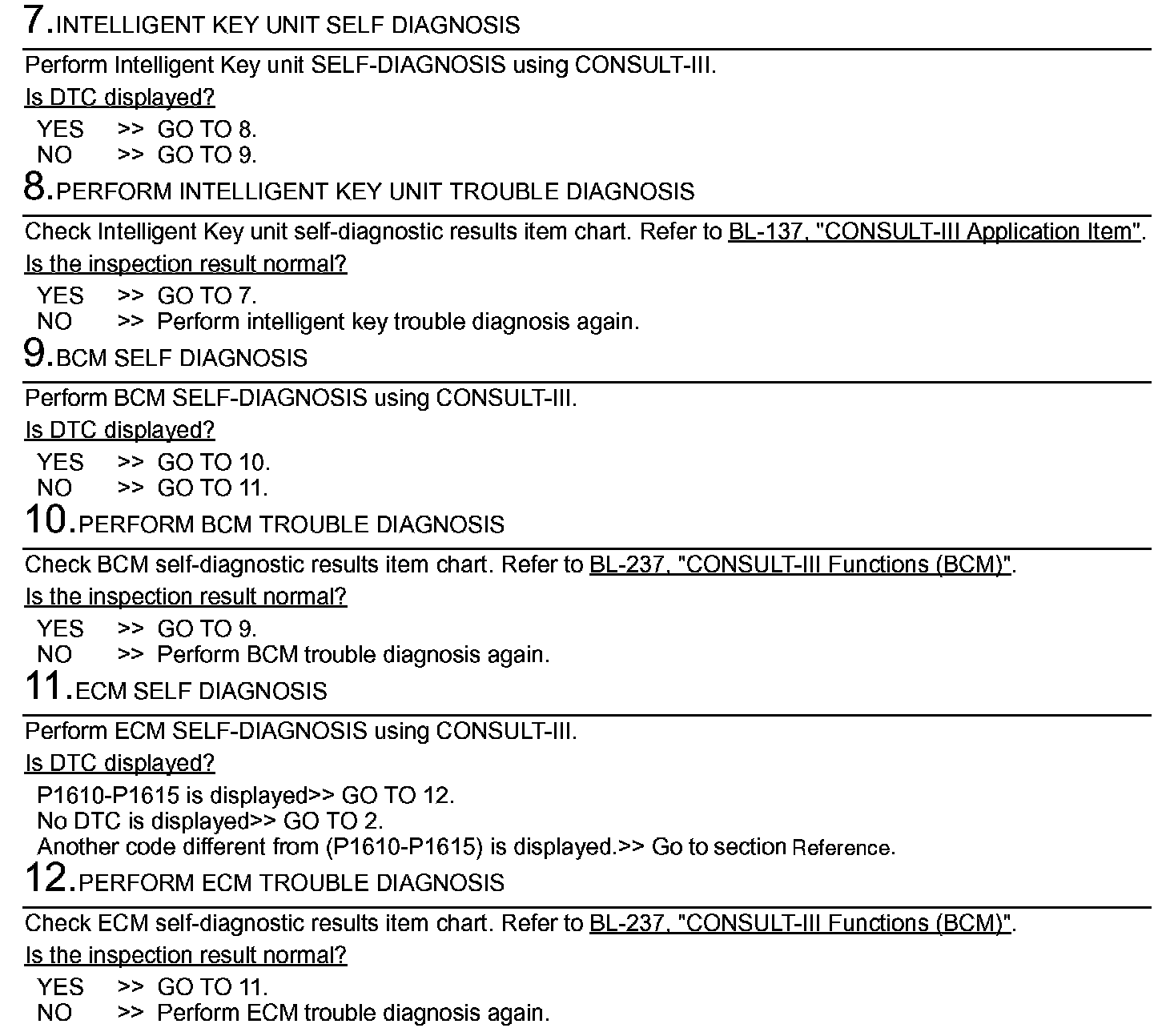

Step 7-12:
