G35x Sedan AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>

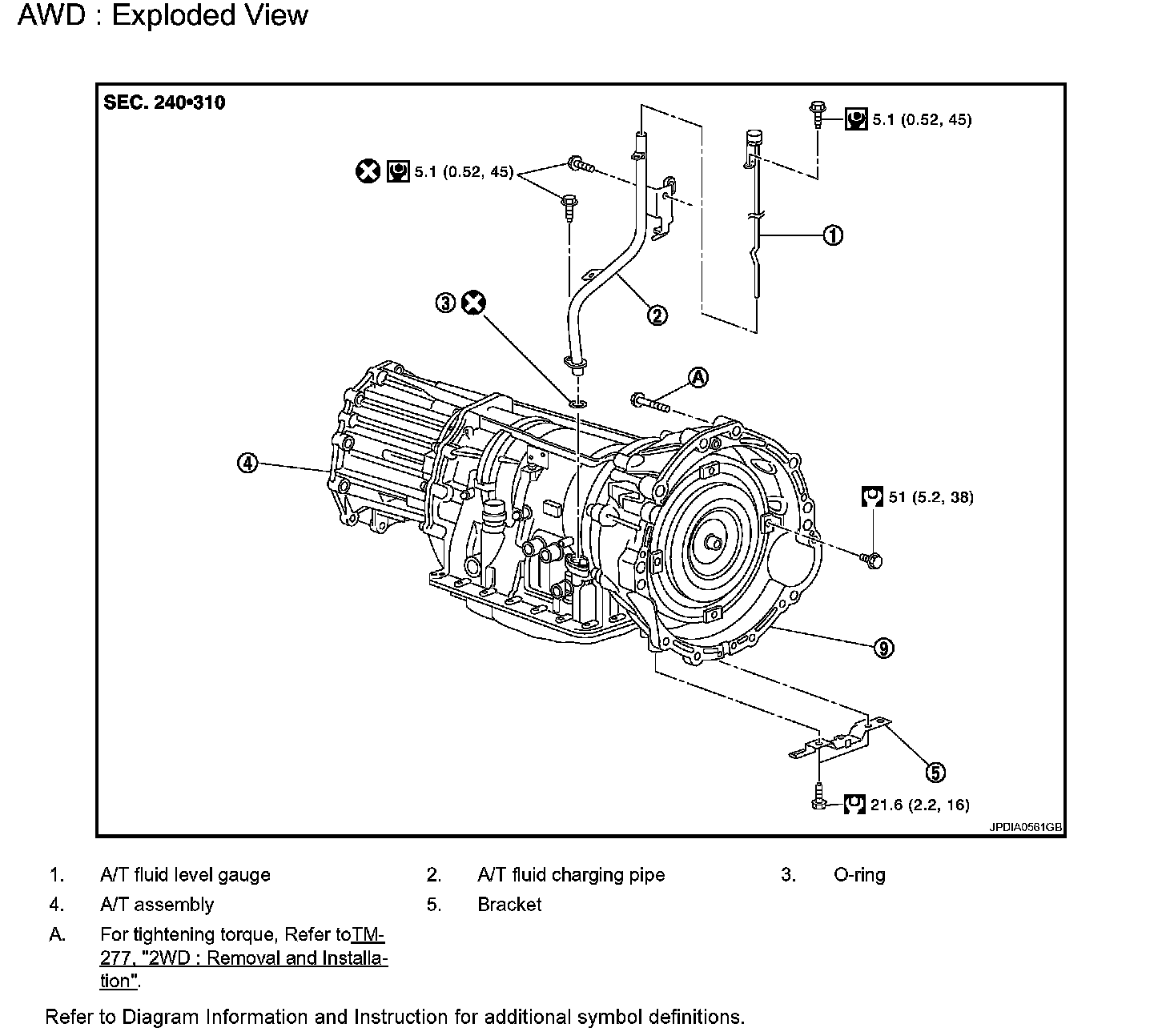

Exploded View
Exploded View
TM-280 Exploded View:
