Home >> Infiniti >> 2008 >> G35 Sedan V6-3.5L (VQ35HR) >> Repair and Diagnosis >> Power and Ground Distribution >> Testing and Inspection >> Scan Tool Testing and Procedures >> BCM (Body Control Module)

BCM (Body Control Module)

BCM (BODY CONTROL MODULE)

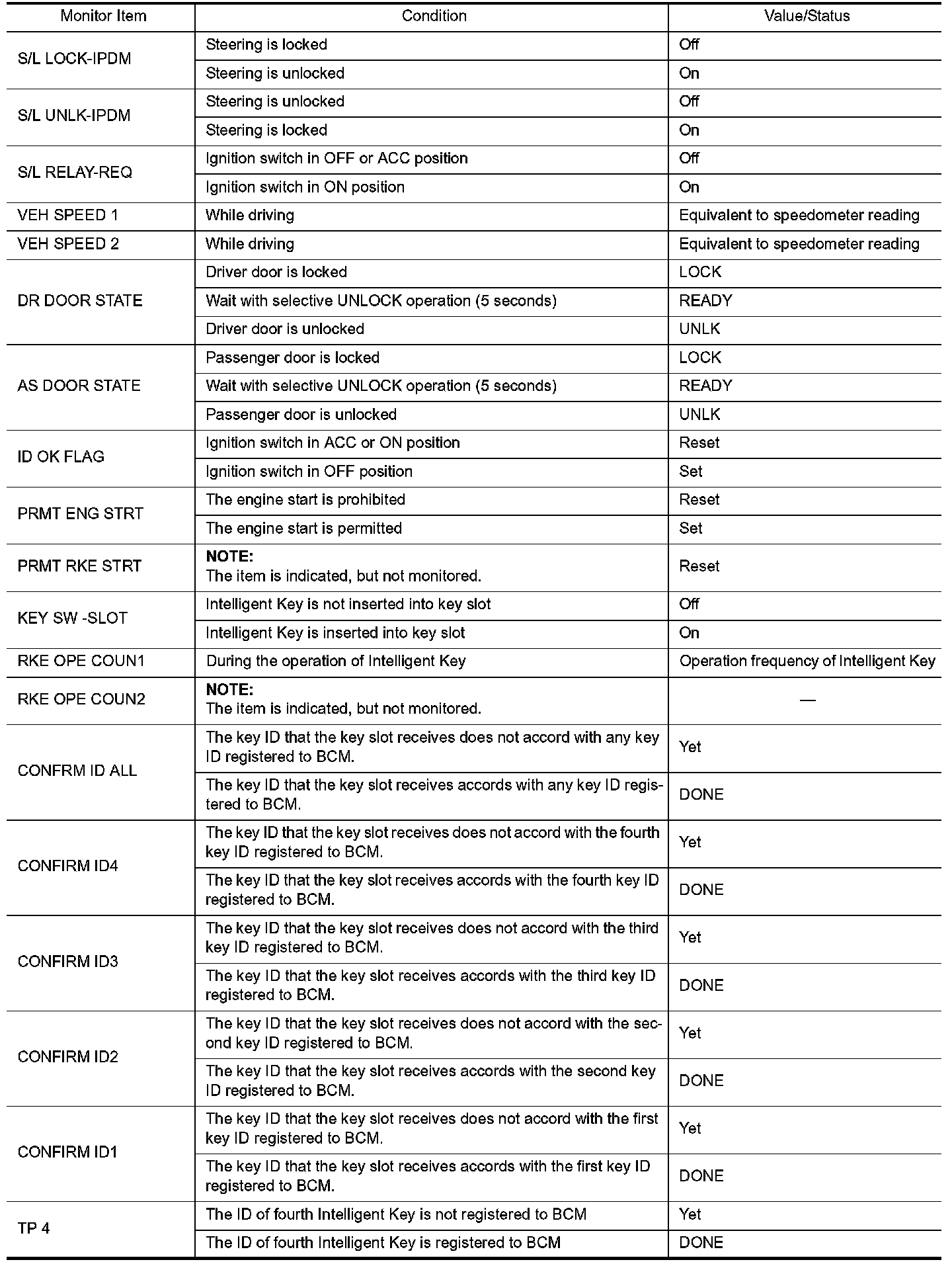

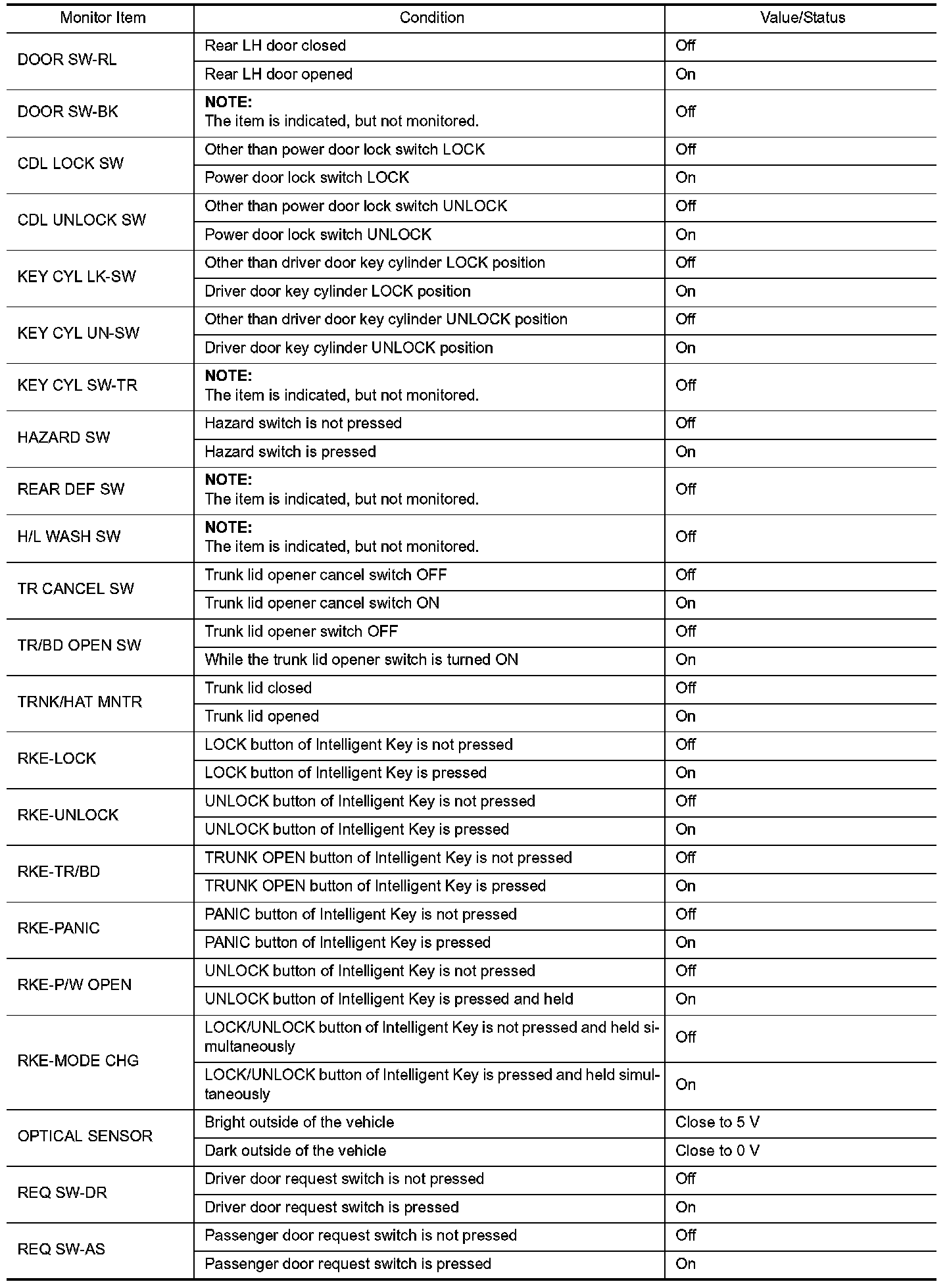

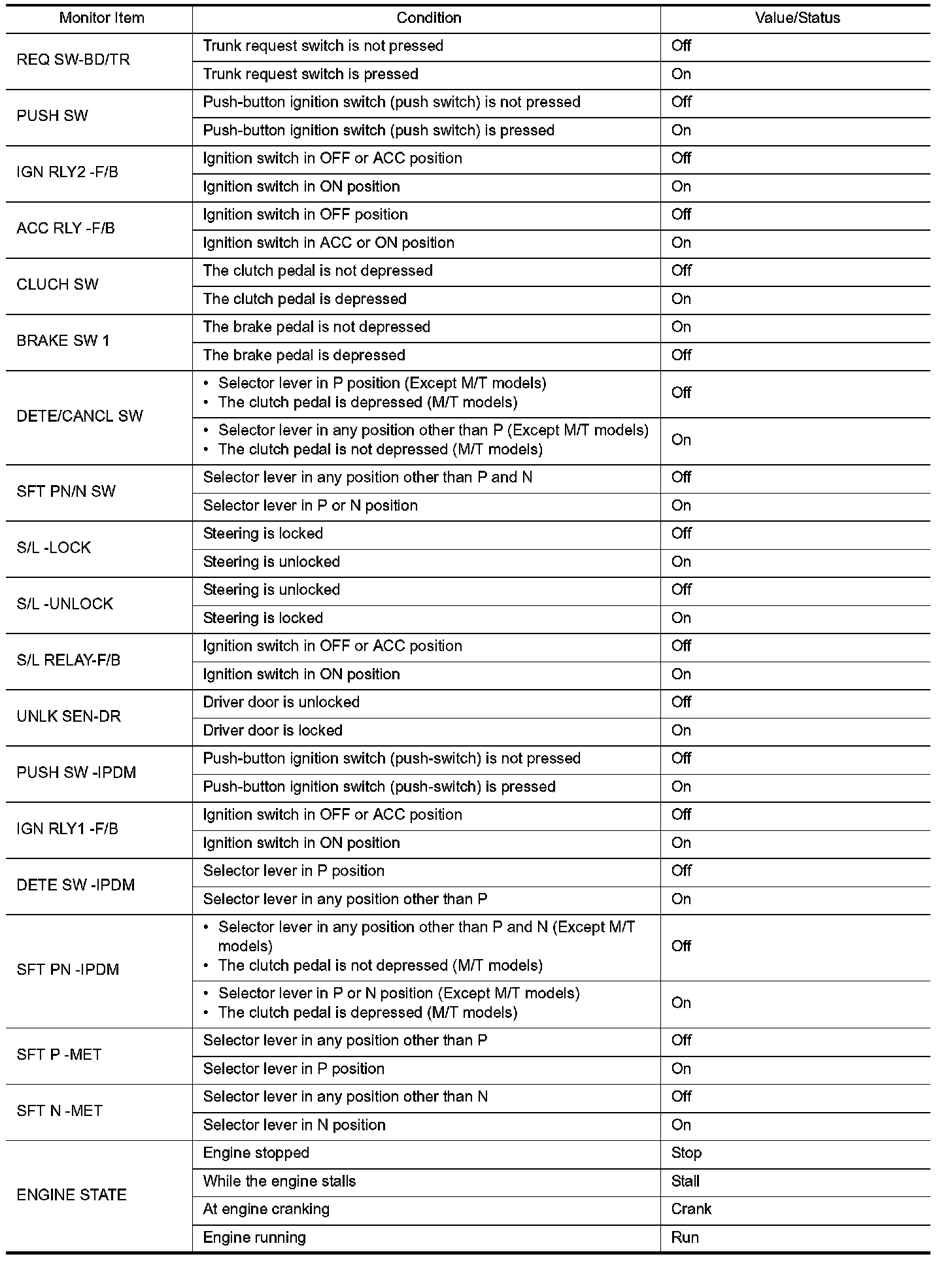

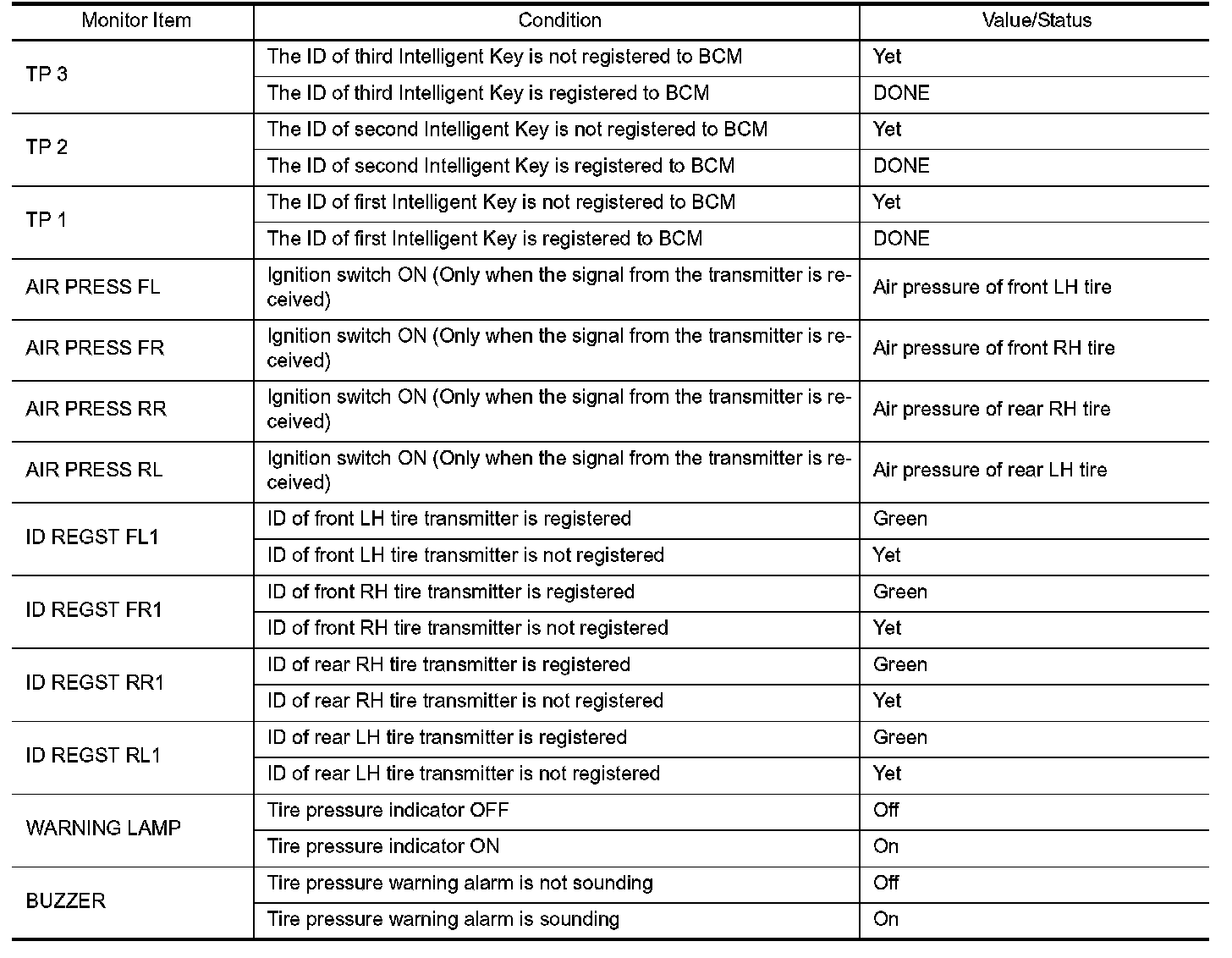

Reference Value

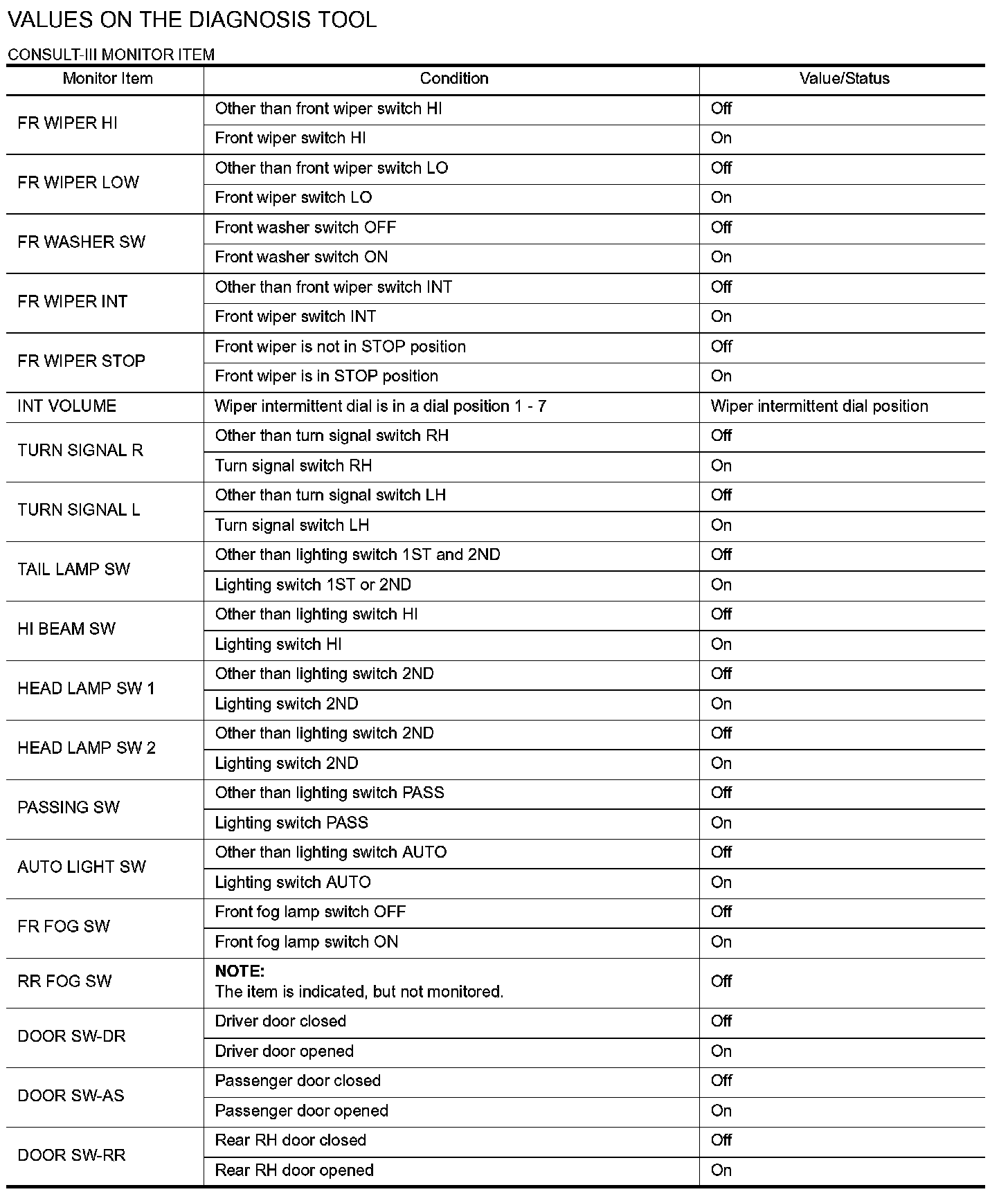

VALUES ON THE DIAGNOSIS TOOL
