Pinout Values and Diagnostic Parameters

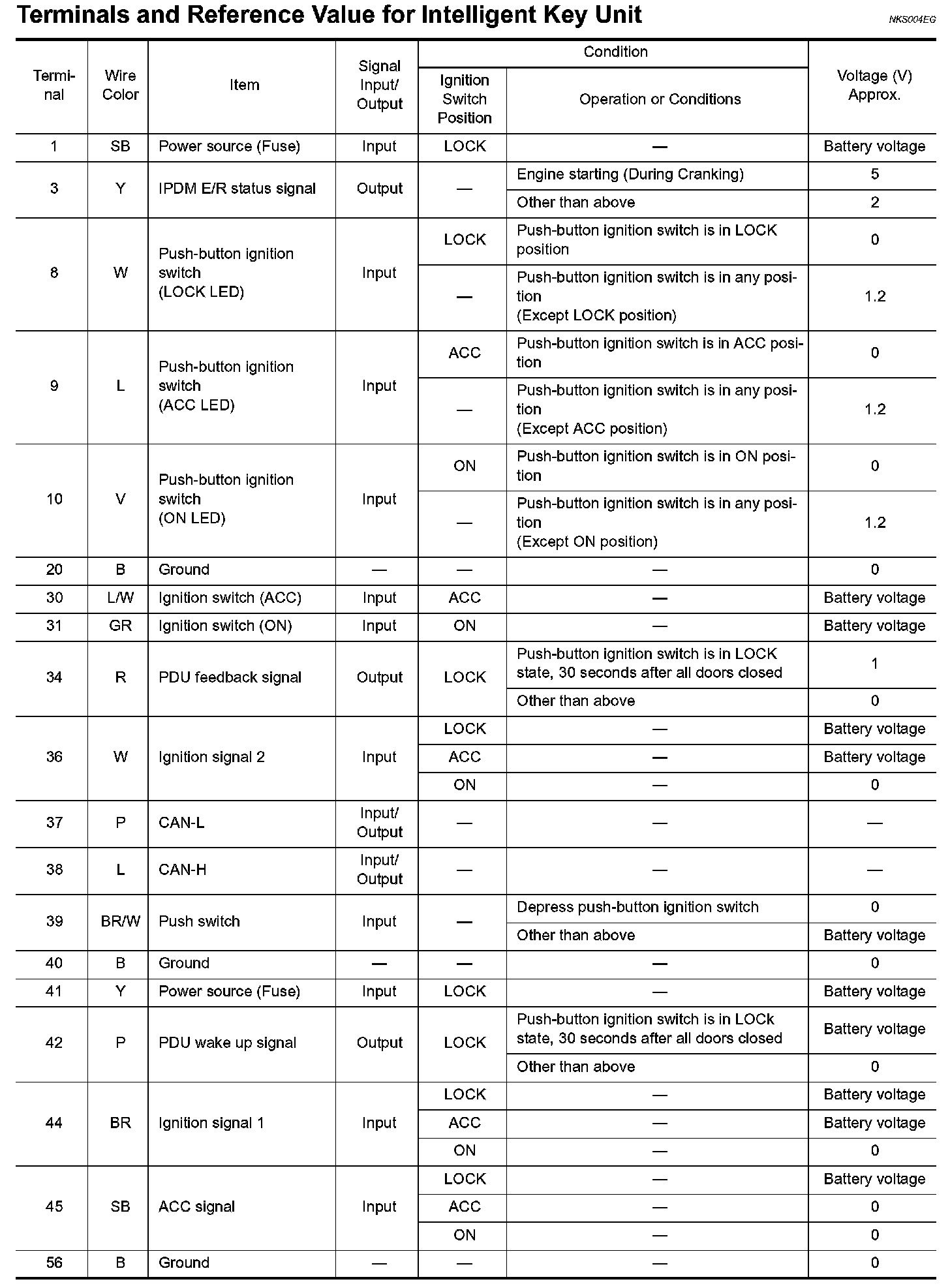

Terminals And Reference Value For Intelligent Key Unit (Part 1):



Terminals And Reference Value For Intelligent Key Unit (Part 2):

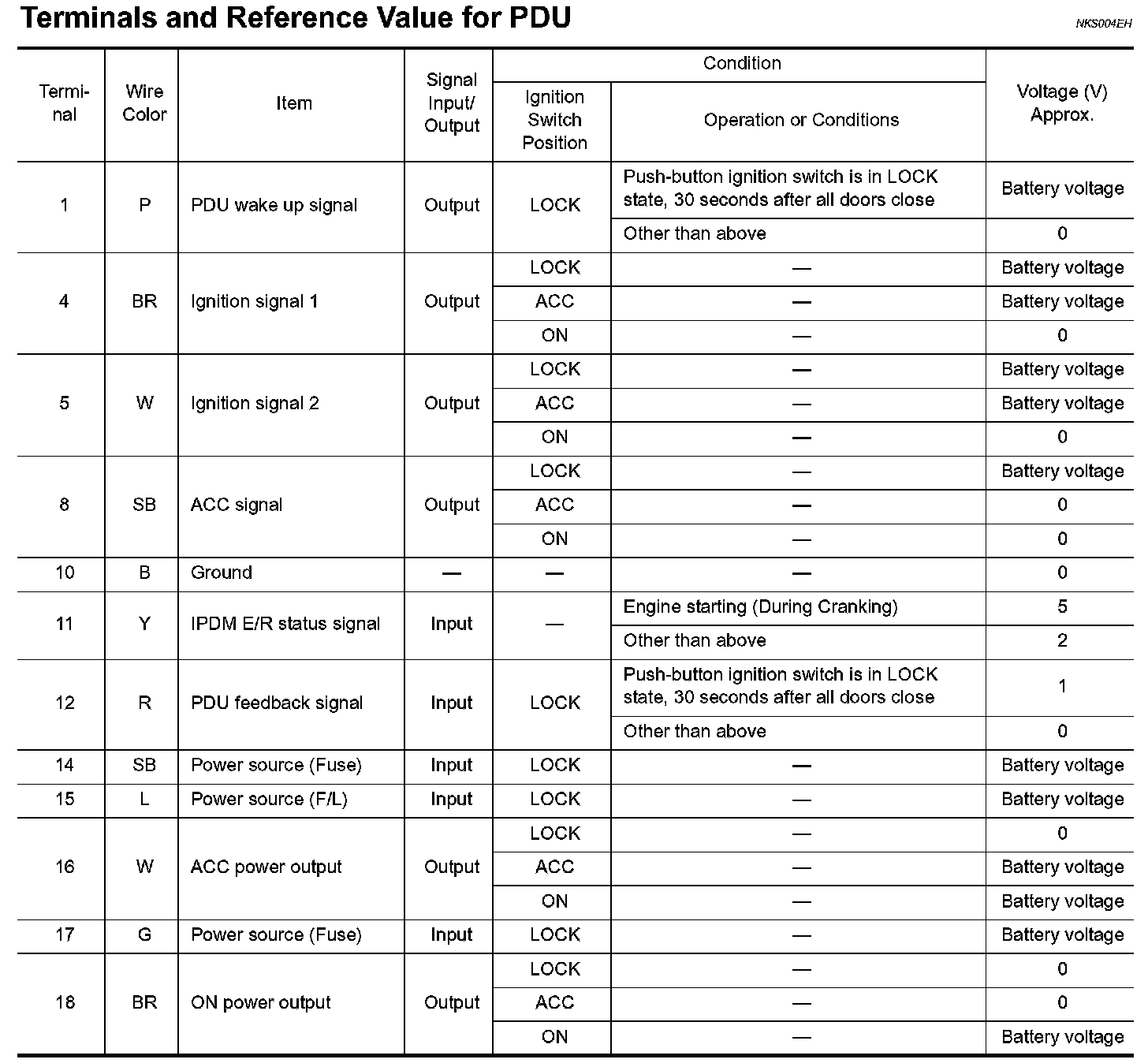

Terminals And Reference Value For PDU:
