Home >> Infiniti >> 2007 >> M35x AWD V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations >> Intelligent Key System/Engine Start Function

Intelligent Key System/Engine Start Function

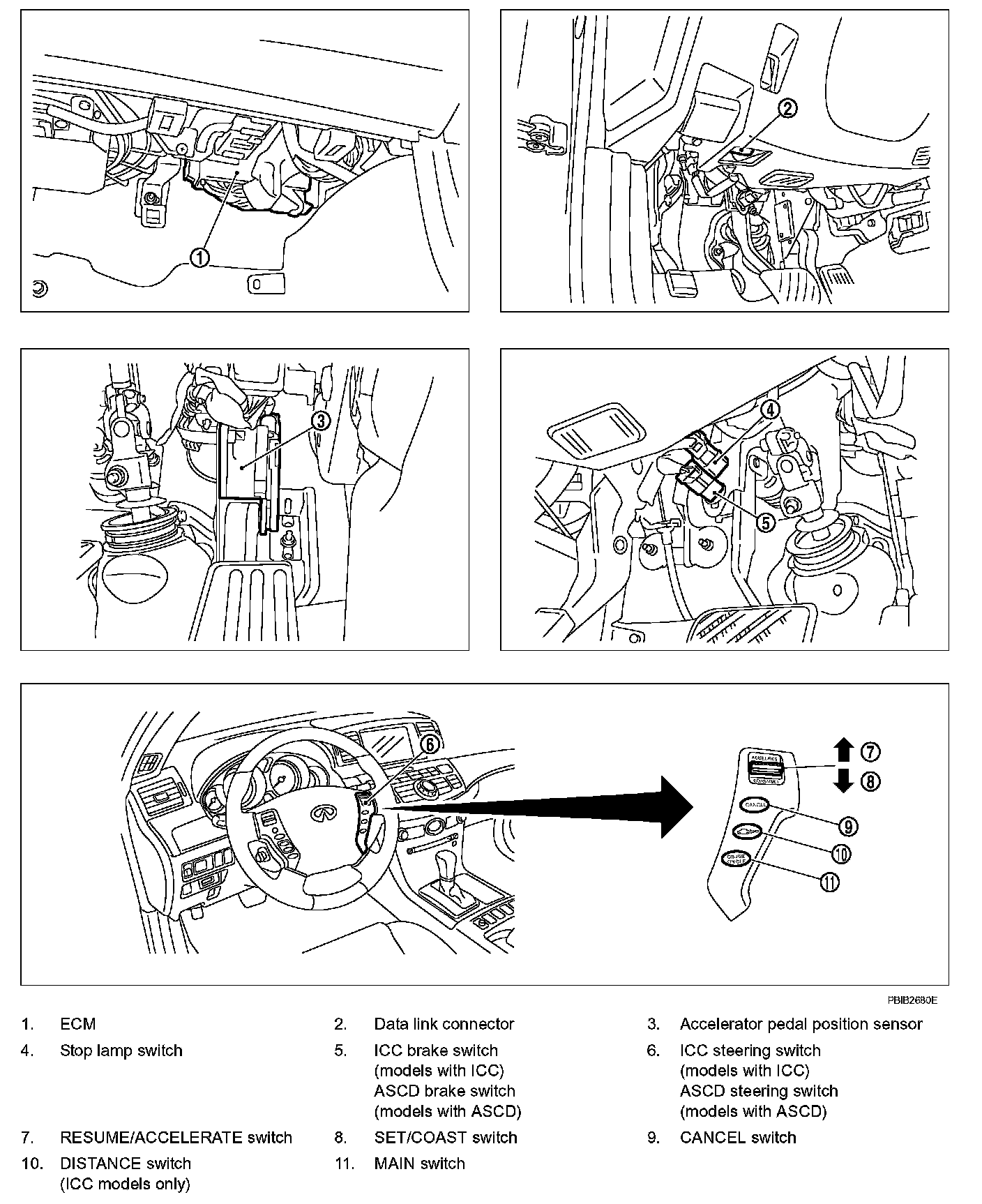

Engine Control Component Parts Location:

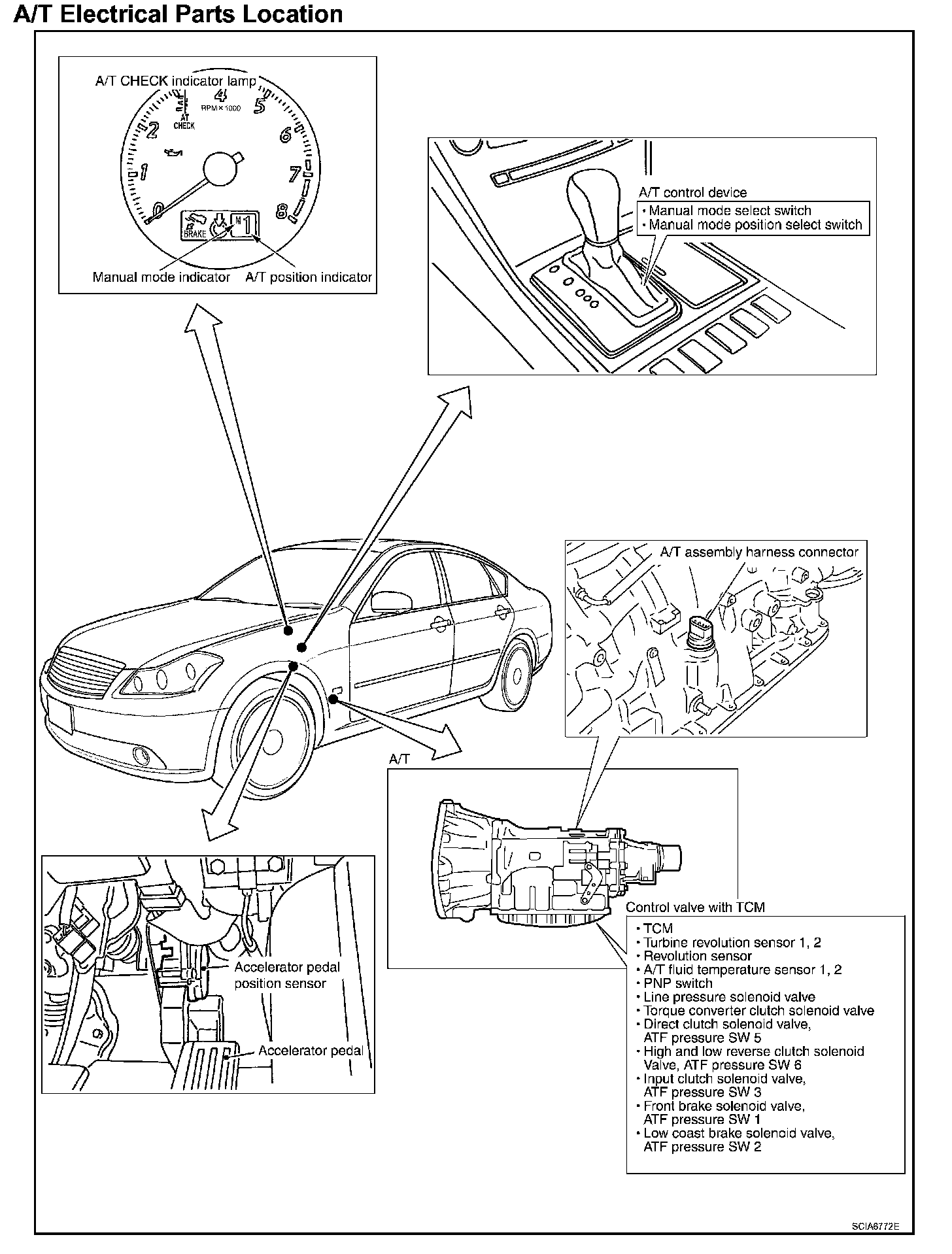

A/T Electrical Parts Location:
