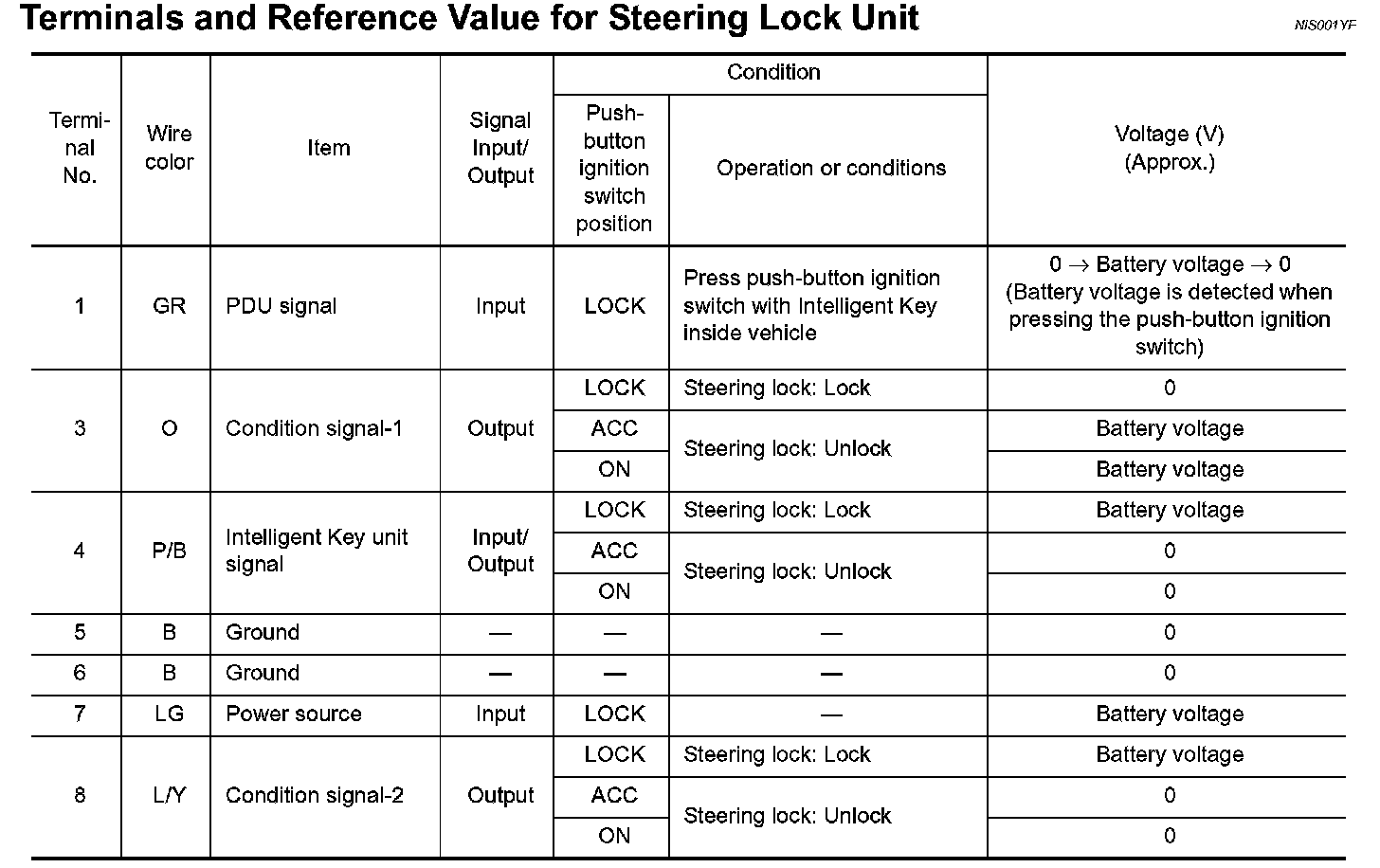

Terminals and Reference Value For Steering Lock Unit

Terminals And Reference Value For Steering Lock Unit:
