Engine Control System

FUNCTION DIAGNOSIS

ENGINE CONTROL SYSTEM

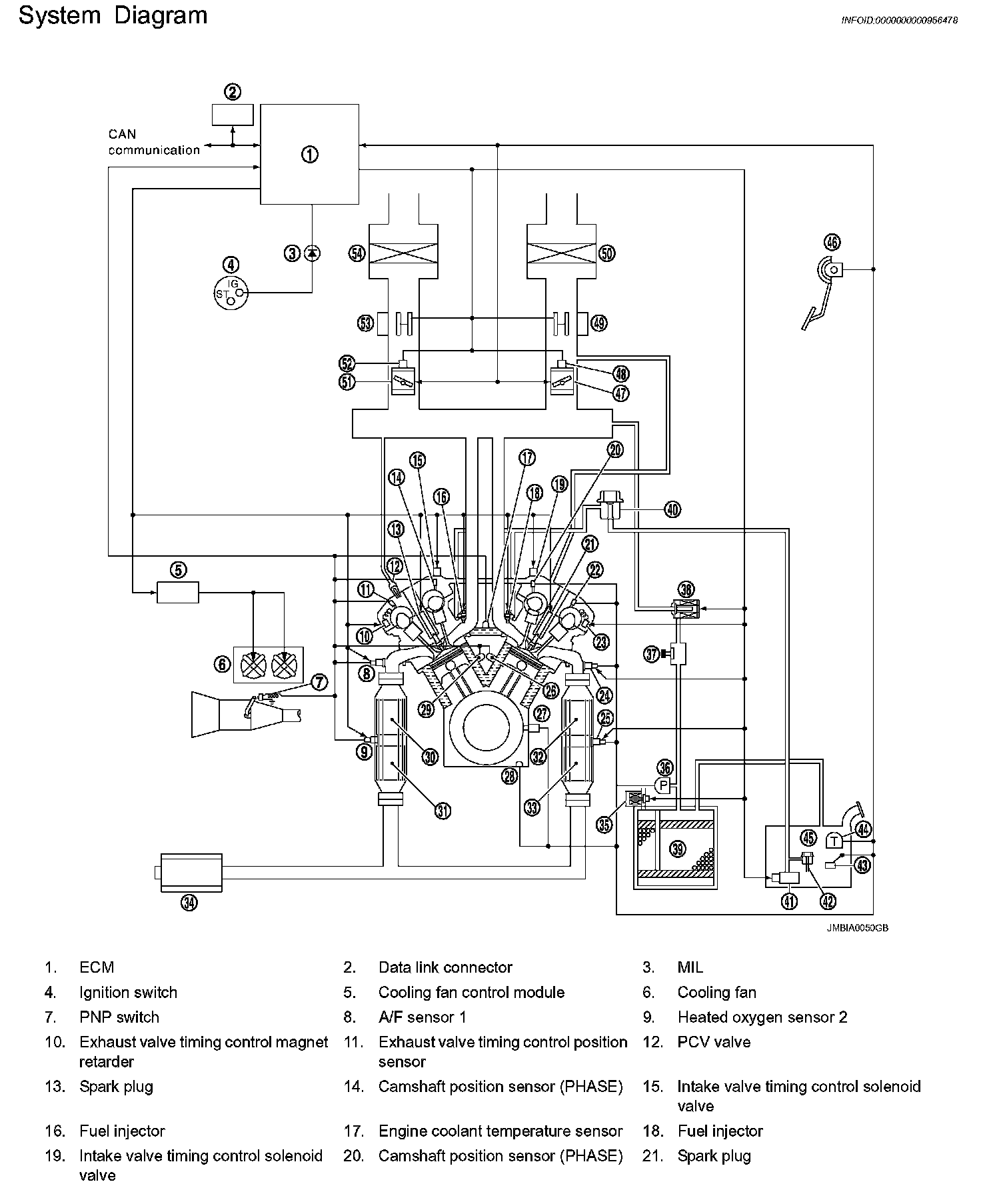

Engine Control System Diagram (Part 1):

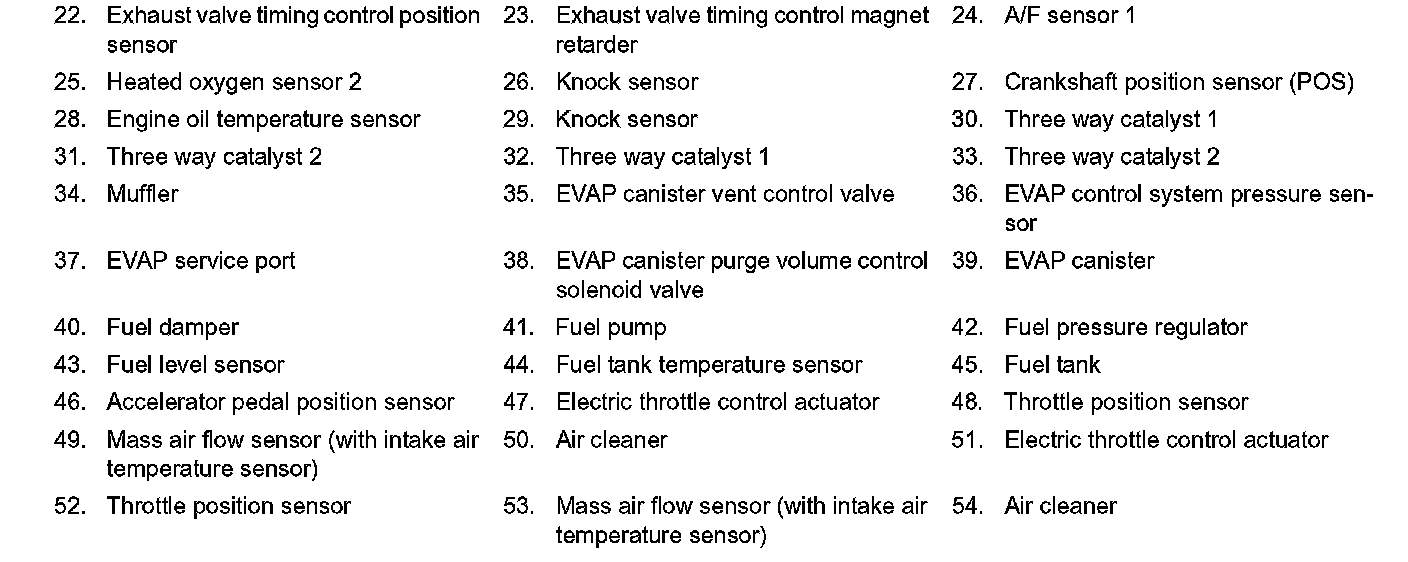

Engine Control System Diagram (Part 2):

System Diagram

System Description
ECM performs various controls such as fuel injection control and ignition timing control.
