Check Push-Button Ignition Switch (Indicator Circuit) System

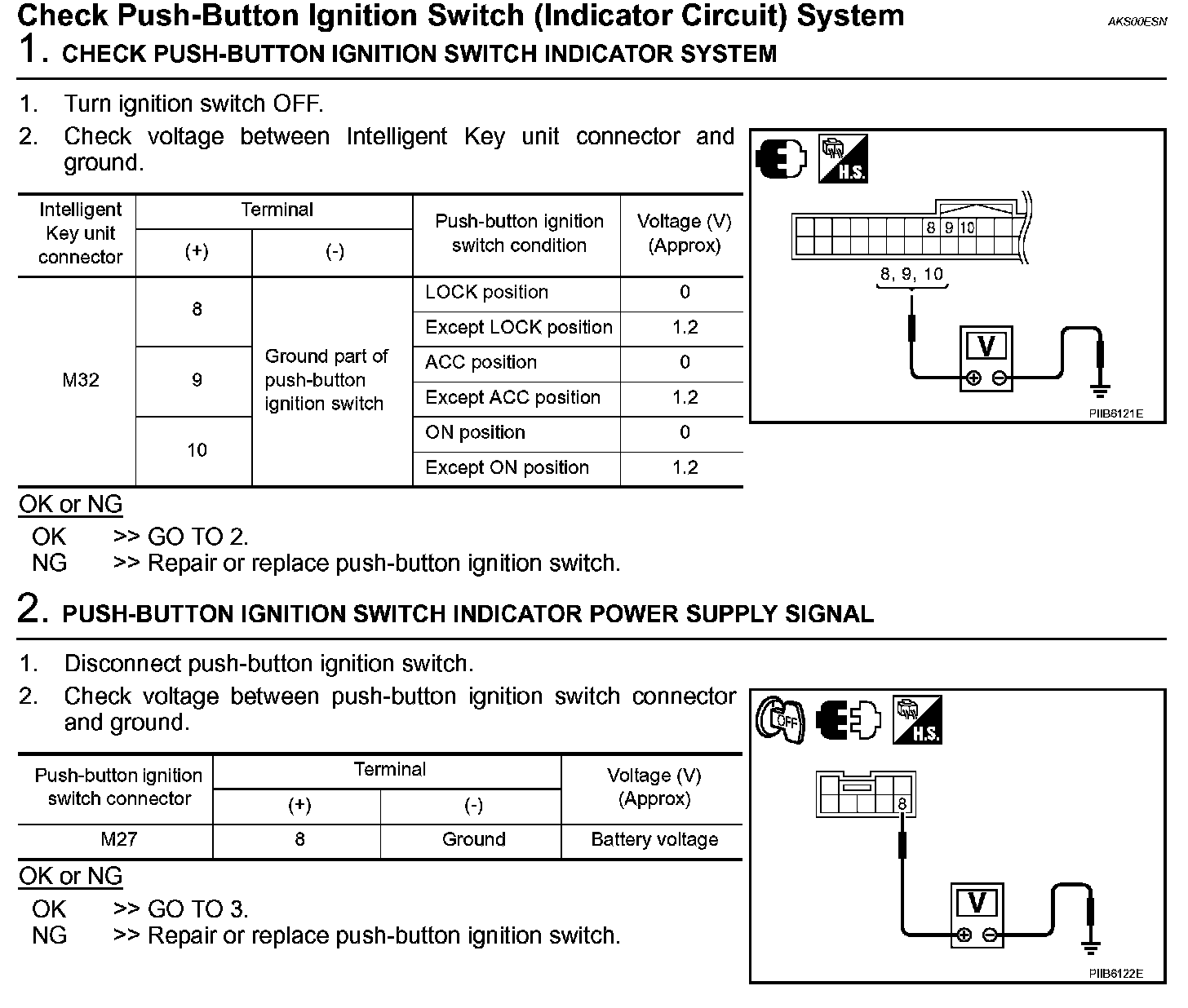

Check Push-Button Ignition Switch (Indicator Circuit) System (Steps 1 - 2):

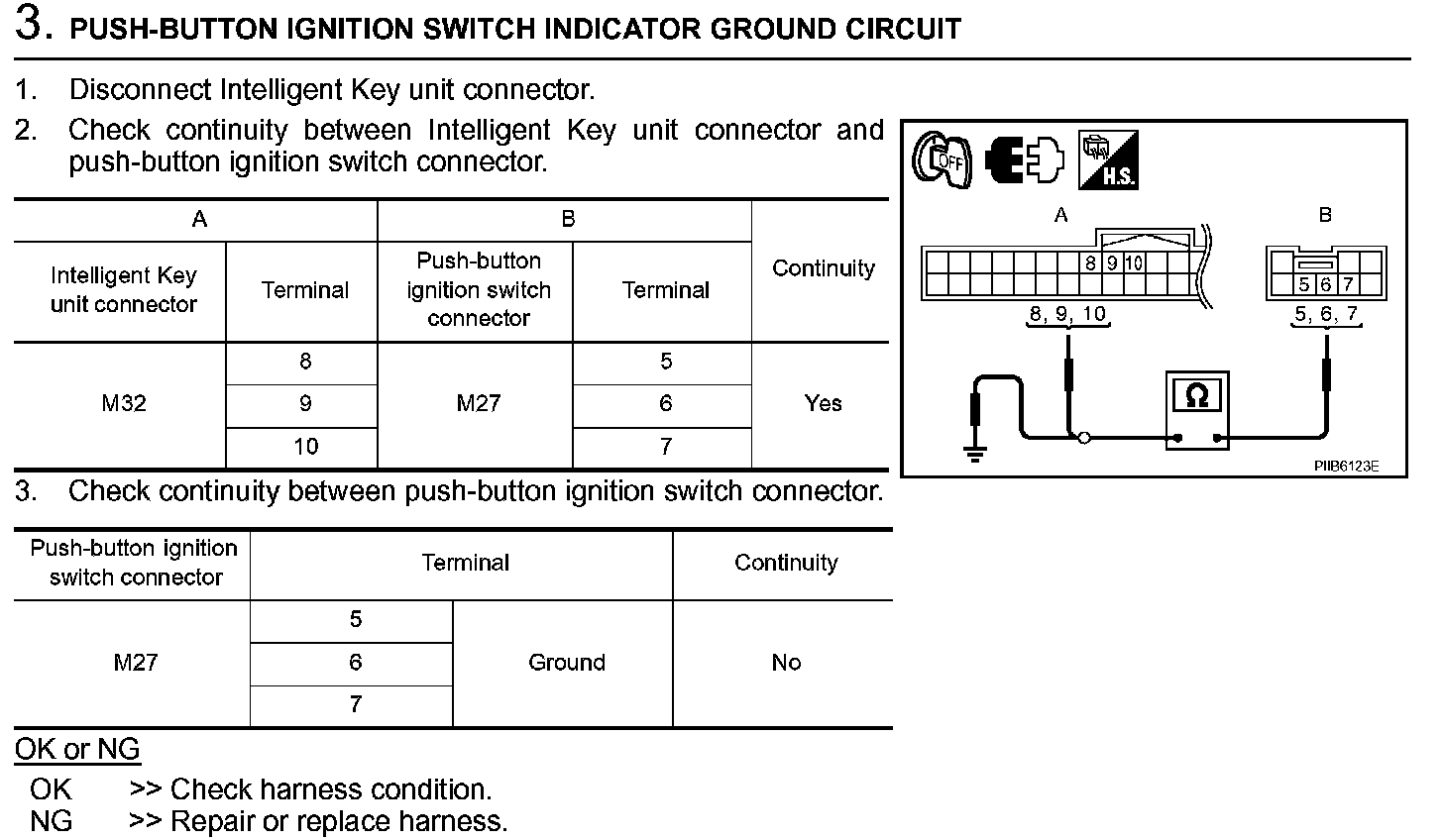

Check Push-Button Ignition Switch (Indicator Circuit) System (Step 3):
