Check Push-Button Ignition Switch (Ignition Switch) System
Check Push-Button Ignition Switch (Ignition Switch) System
Check Push-Button Ignition Switch (Ignition Switch) System (Step 1):

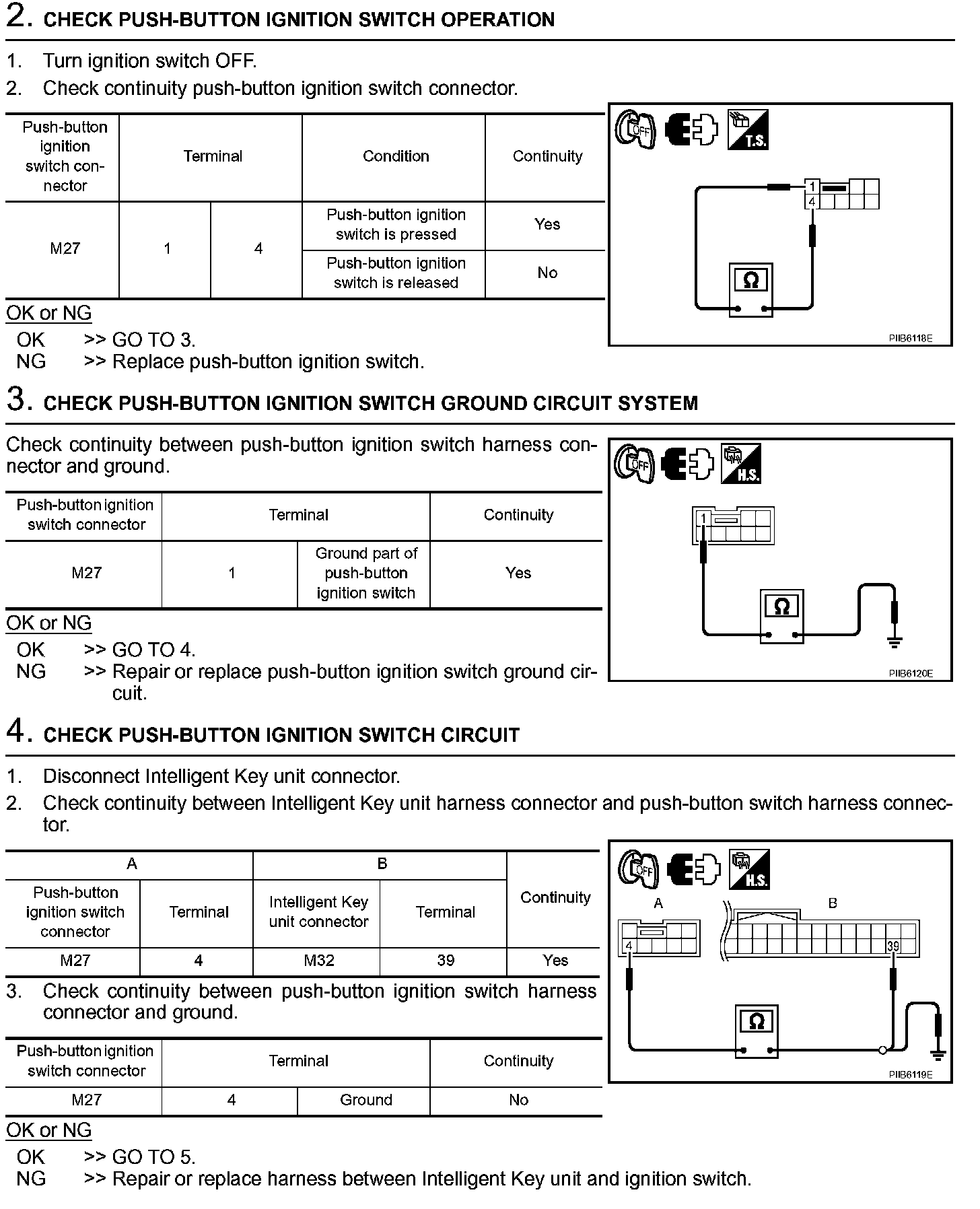

Check Push-Button Ignition Switch (Ignition Switch) System (Steps 2 - 4):
