Terminals and Reference Values For BCM

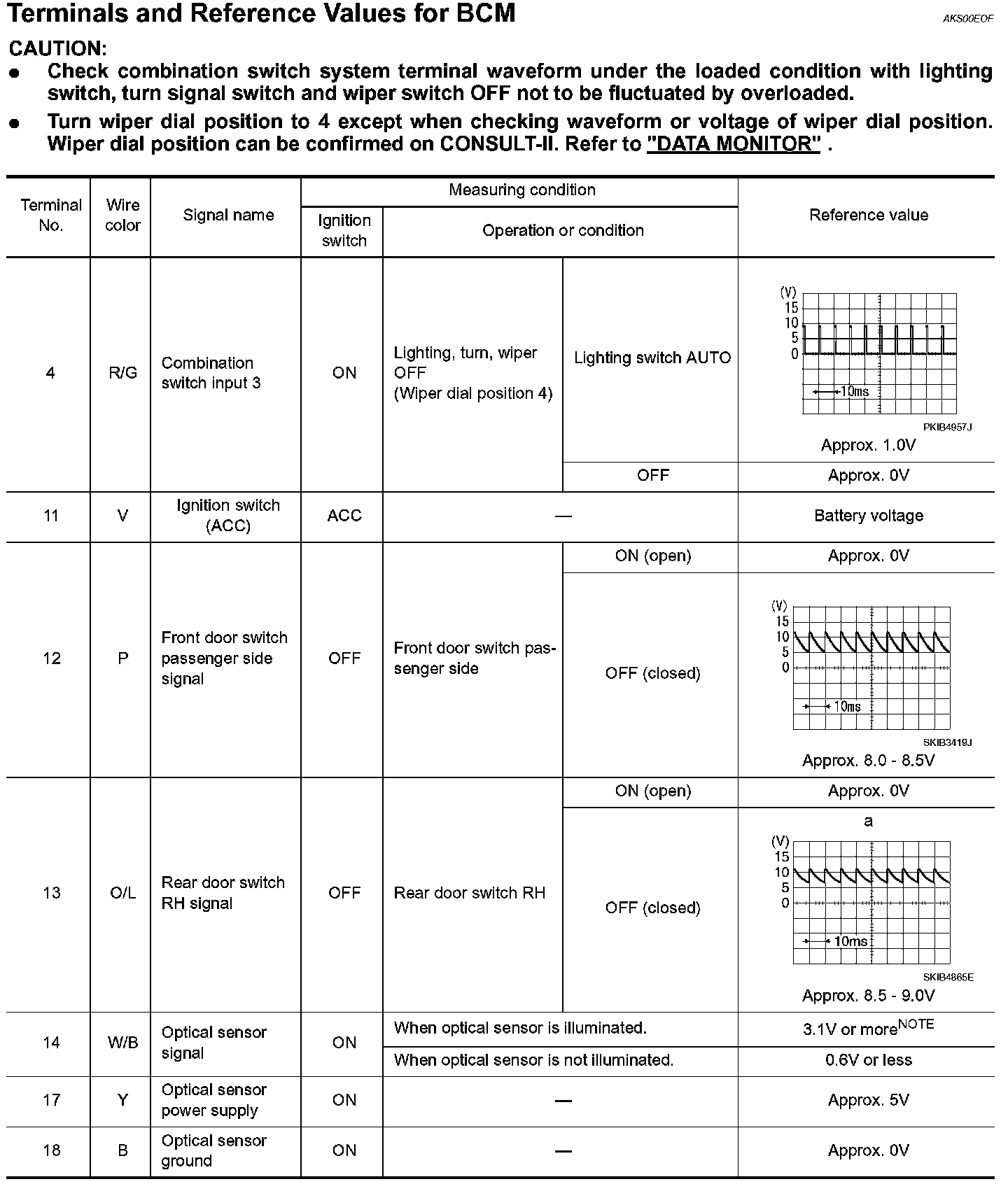

Terminals And Reference Values For BCM Part 1:

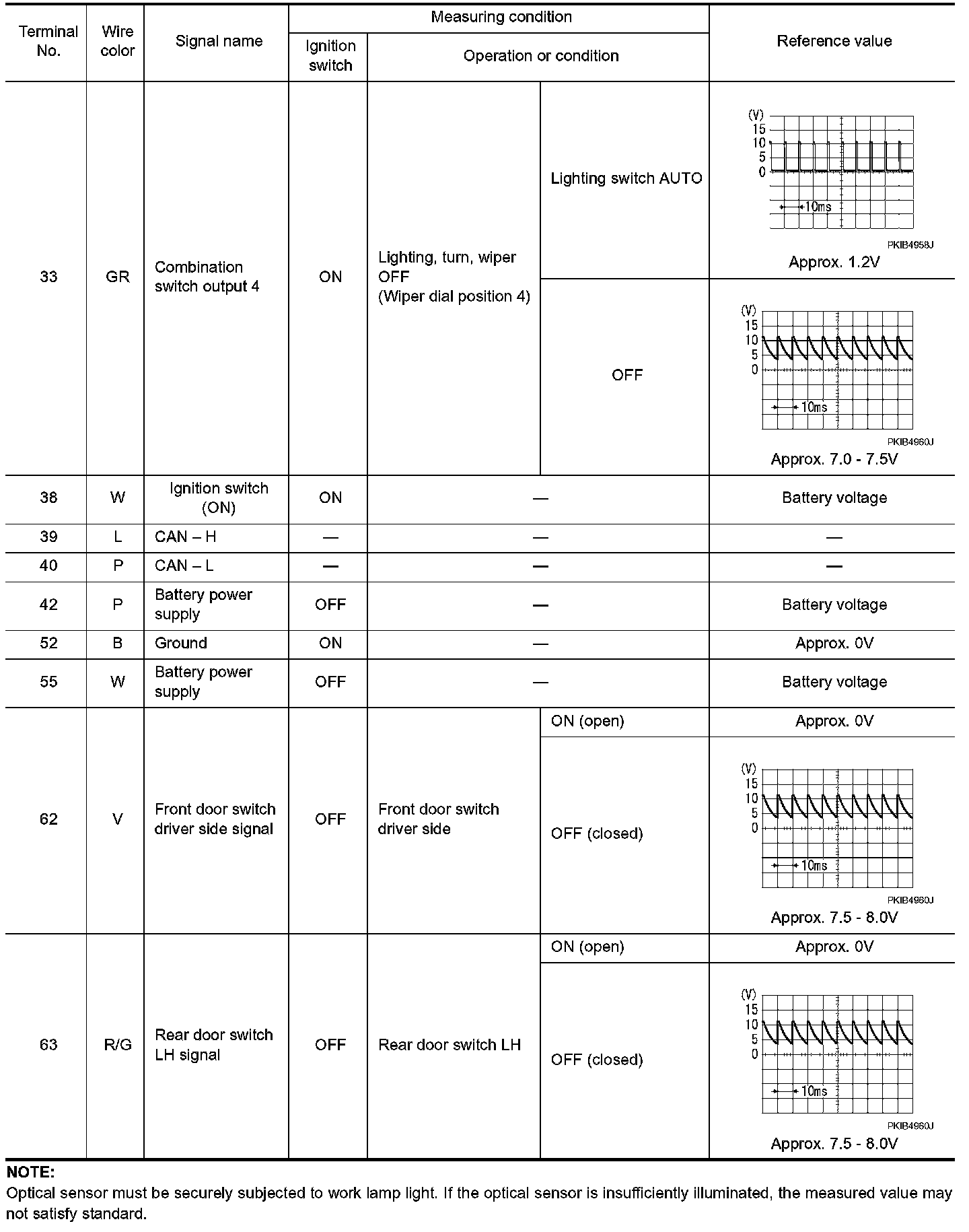

Terminals And Reference Values For BCM Part 2:
