Home >> Infiniti >> 2006 >> M45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Intelligent Key System >> Component Tests >> Check Remote Keyless Entry Receiver

Check Remote Keyless Entry Receiver

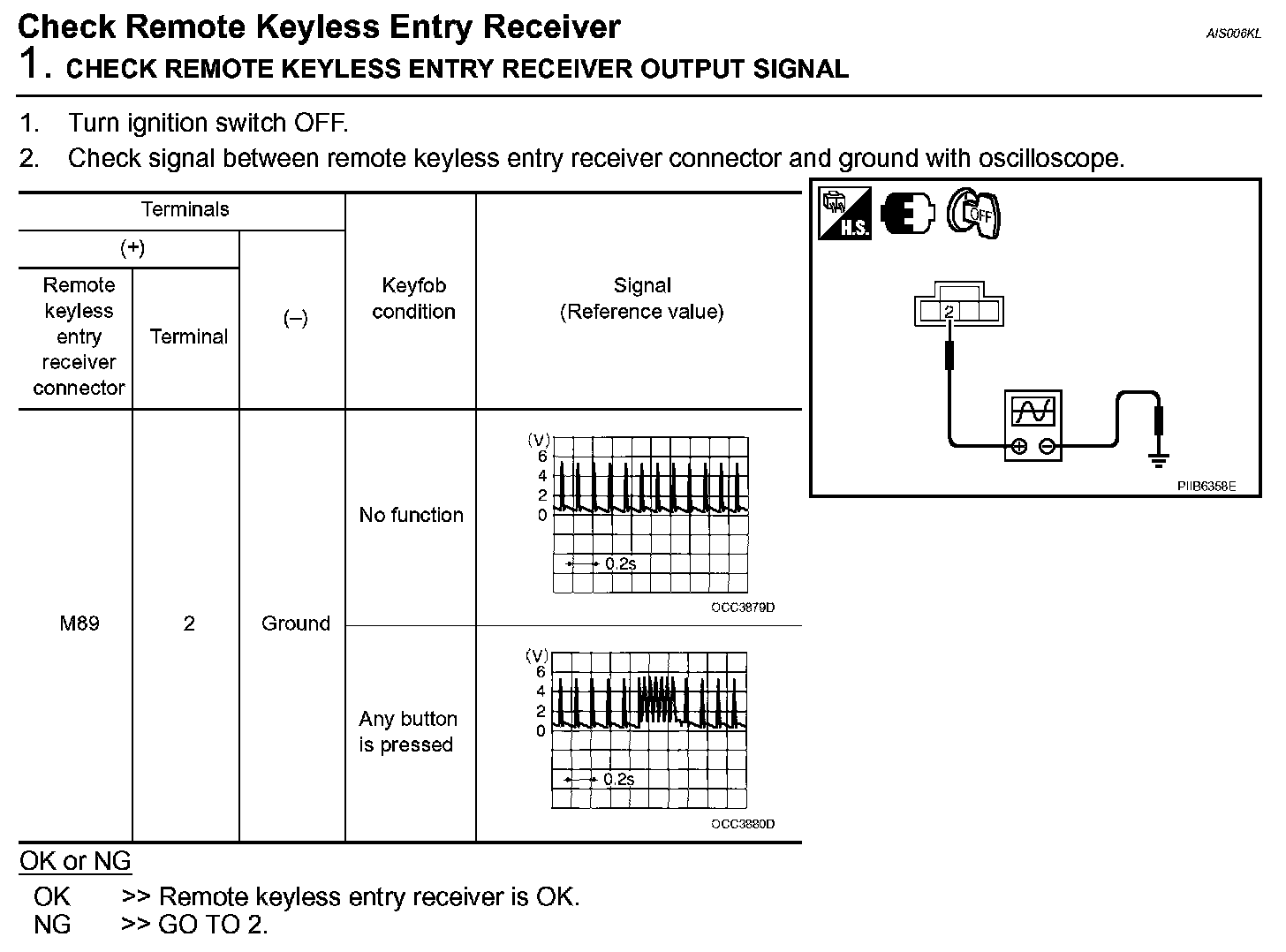

Check Remote Keyless Entry Receiver (Step 1):

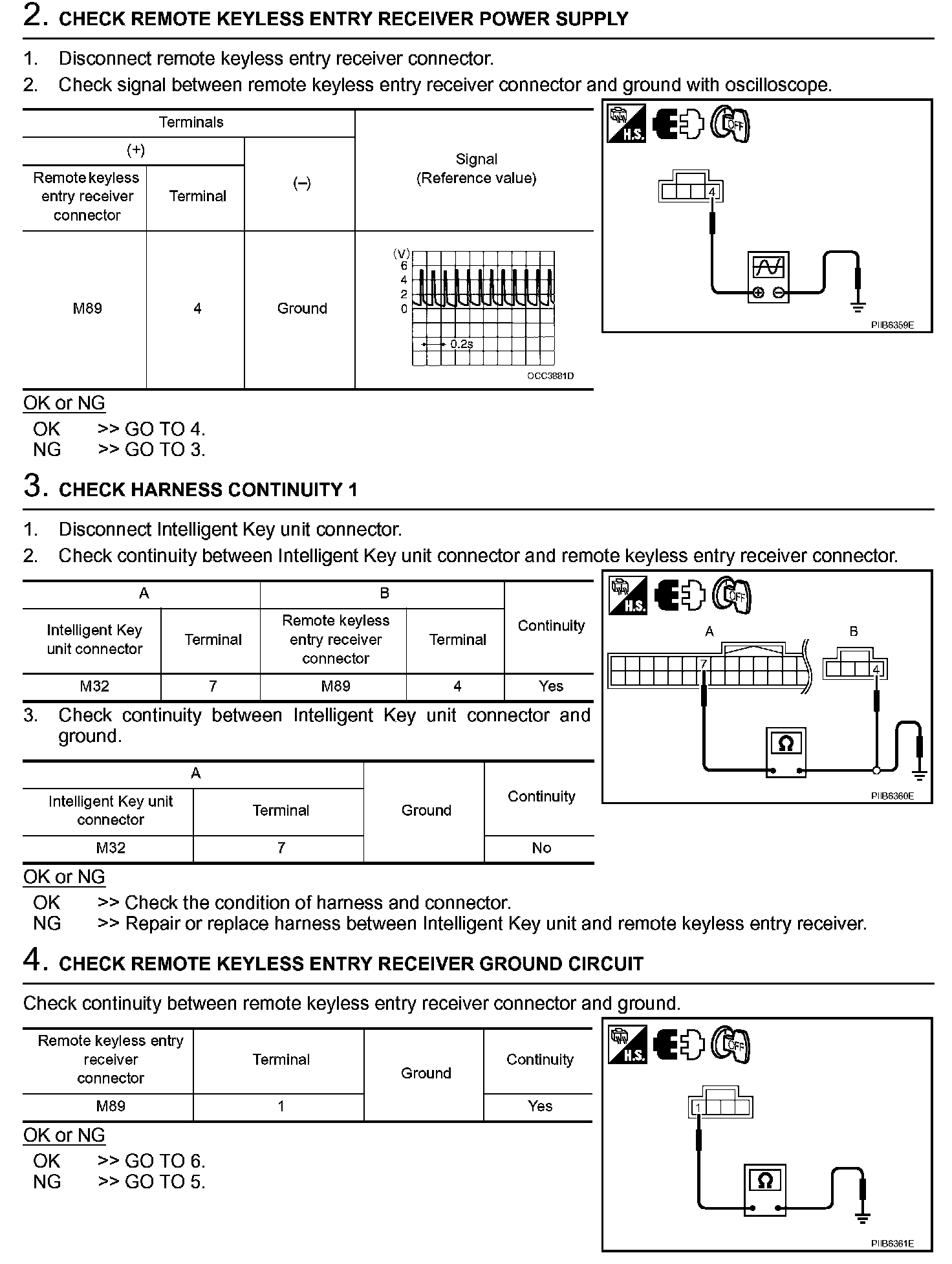

Check Remote Keyless Entry Receiver (Steps 2 - 4):

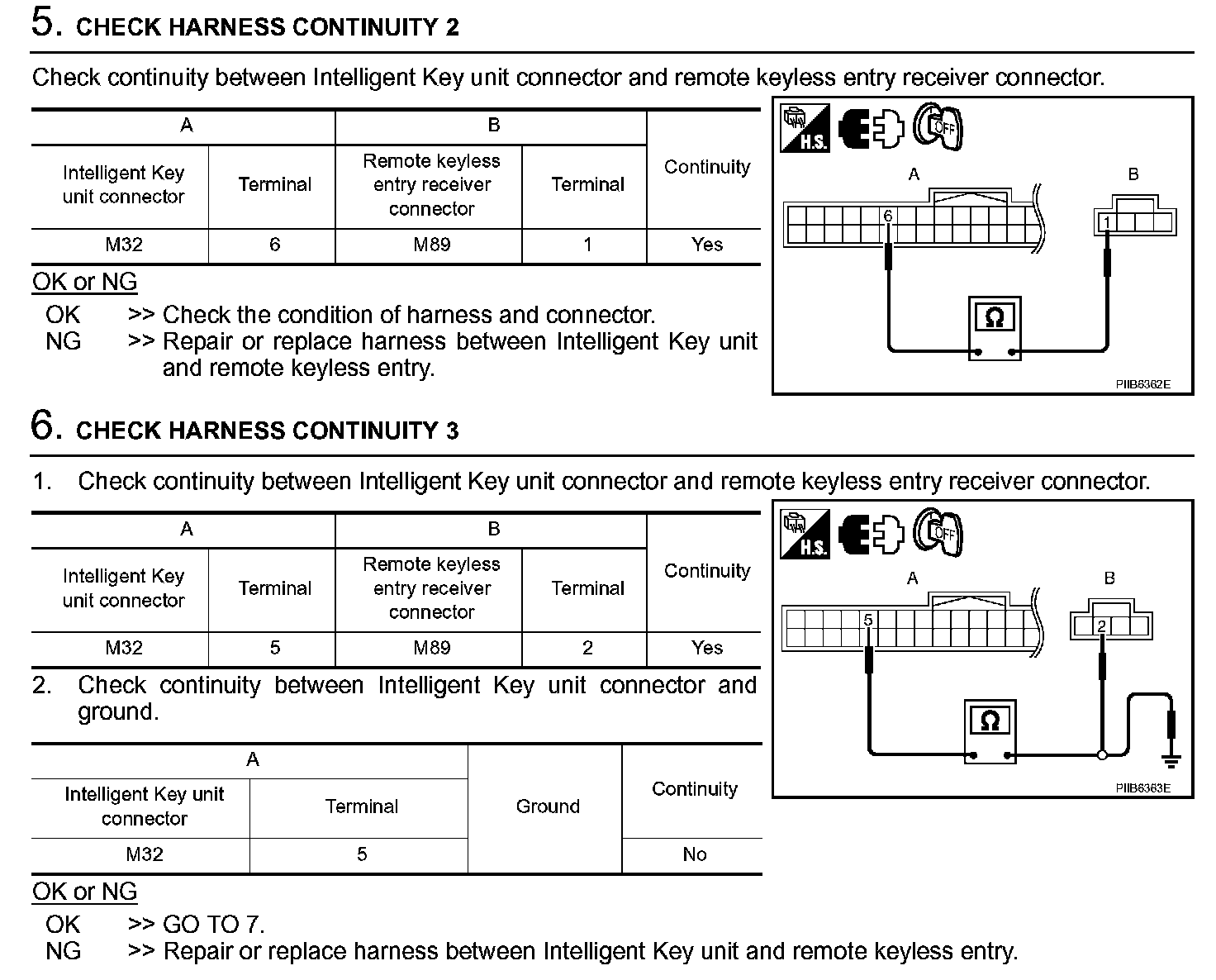

Check Remote Keyless Entry Receiver (Steps 5 - 6):

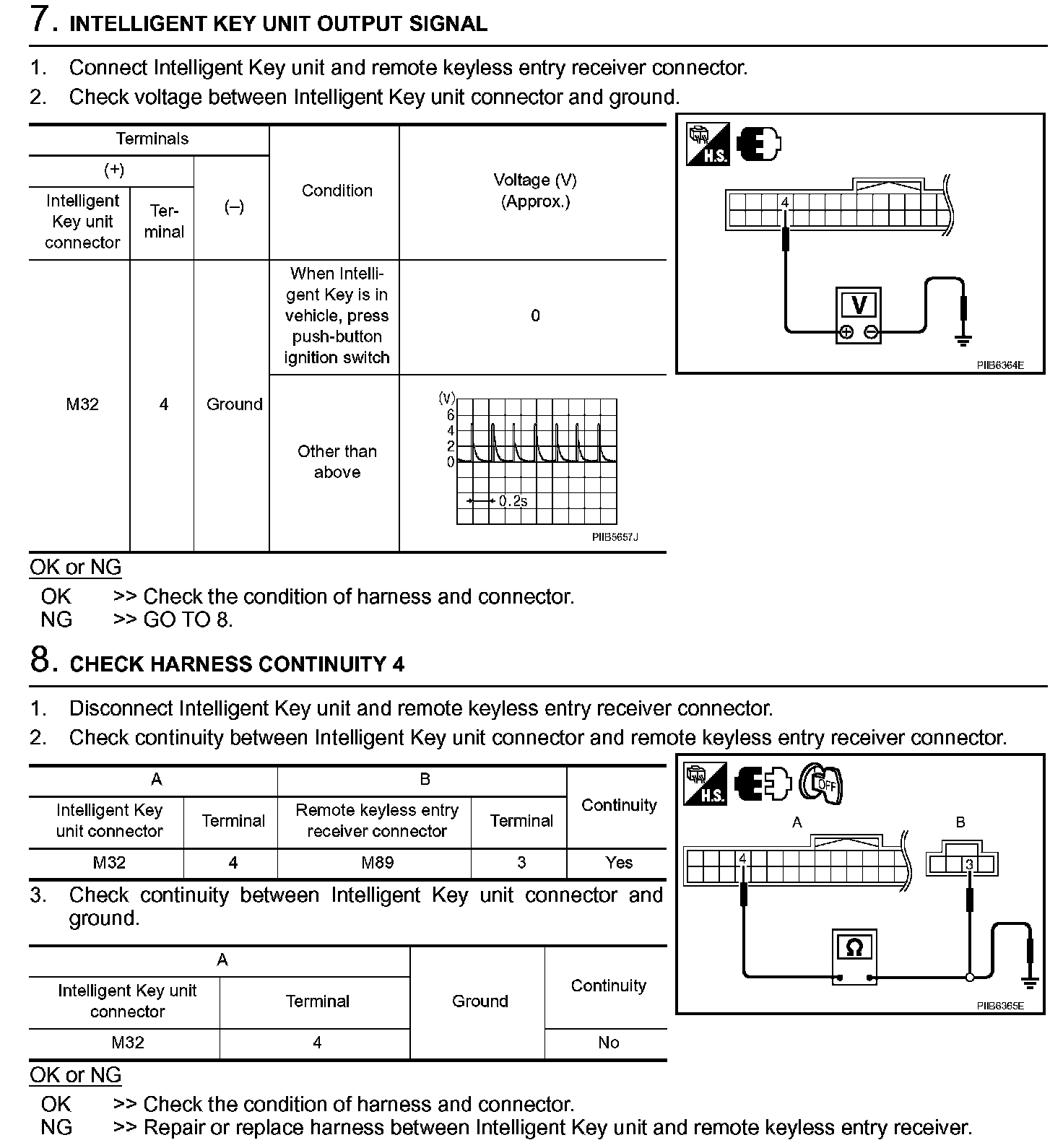

Check Remote Keyless Entry Receiver (Steps 7 - 8):
