Check Inside Key Antenna

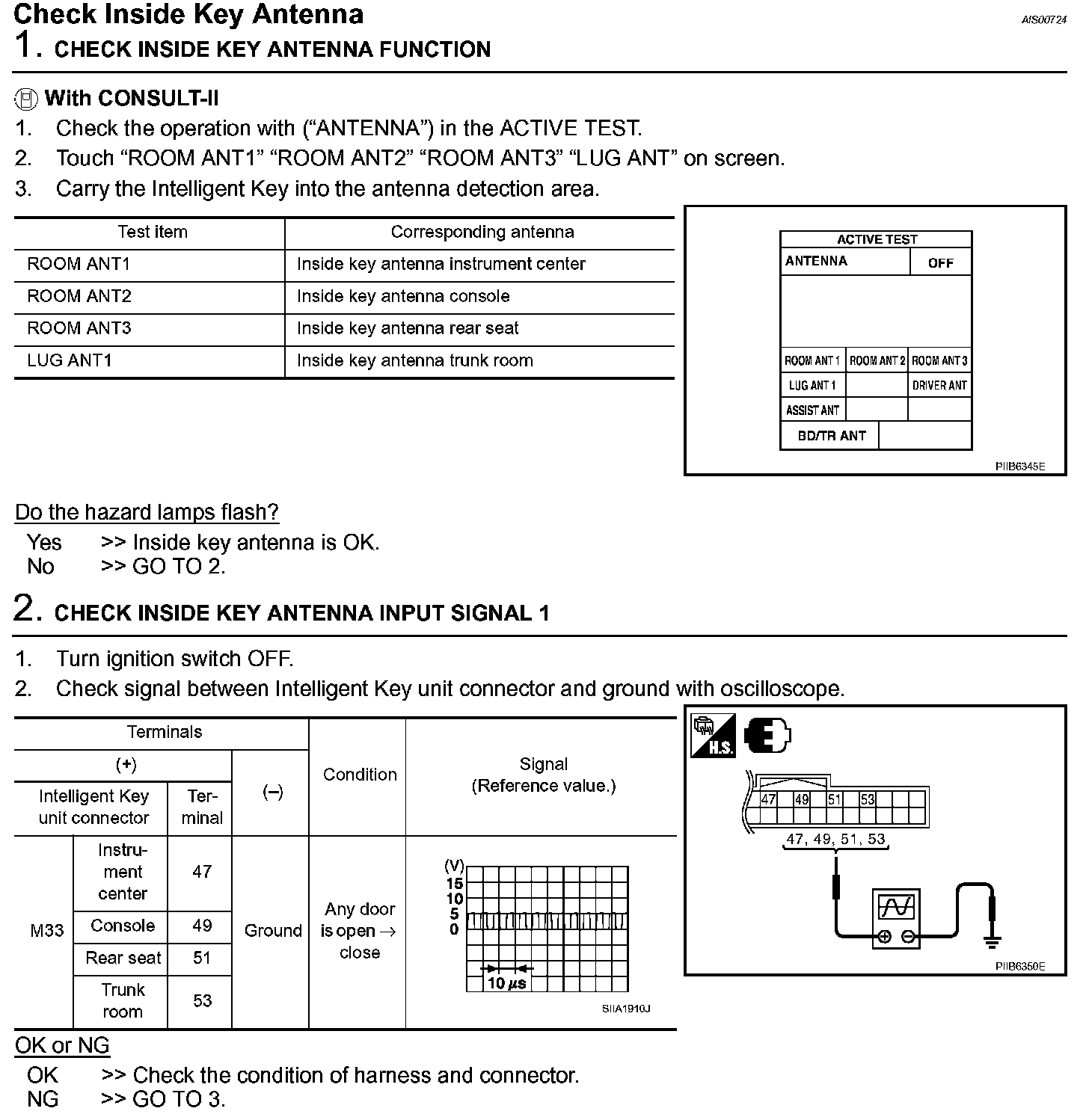

Check Inside Key Antenna (Steps 1 - 2):

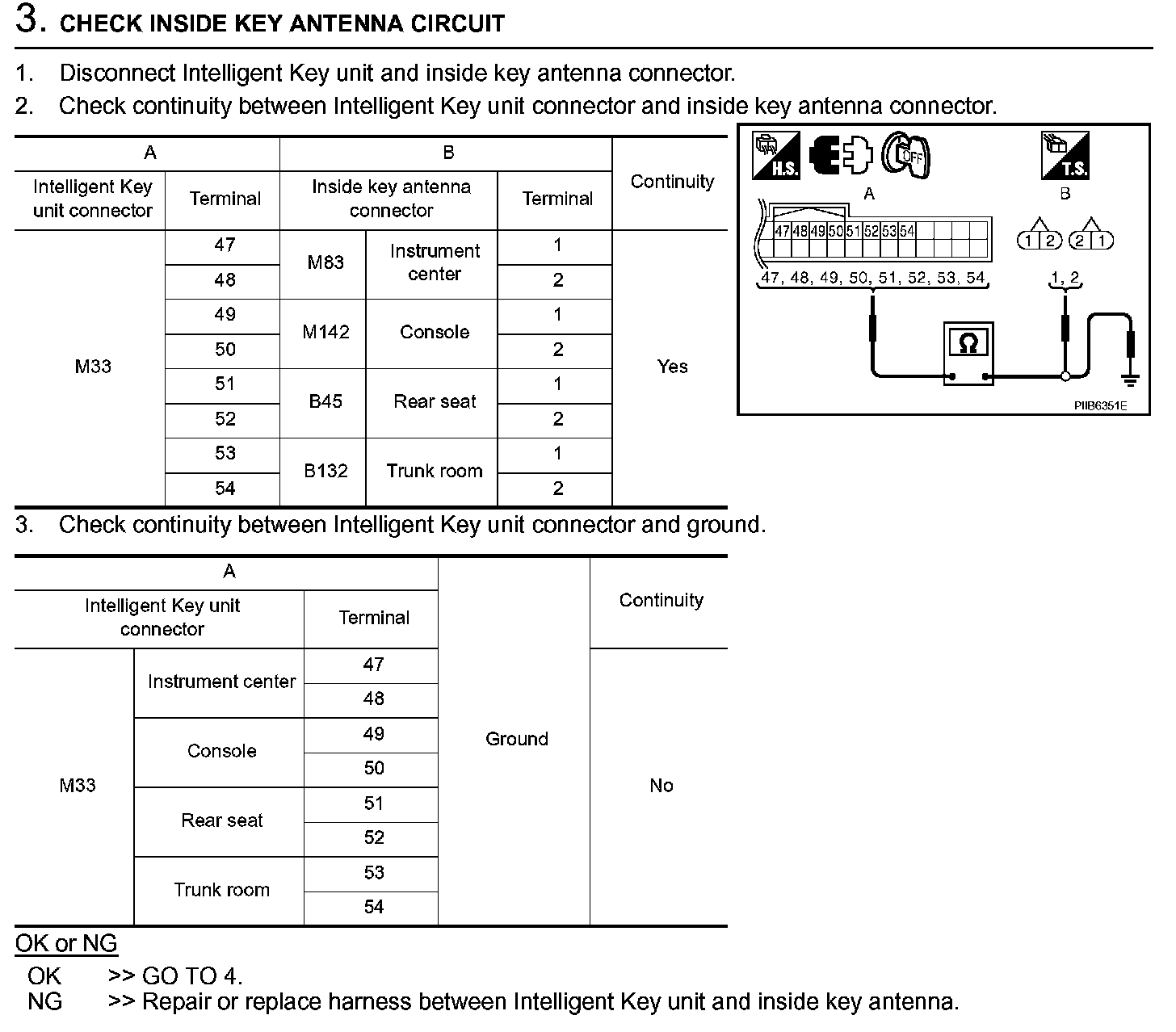

Check Inside Key Antenna (Step 3):

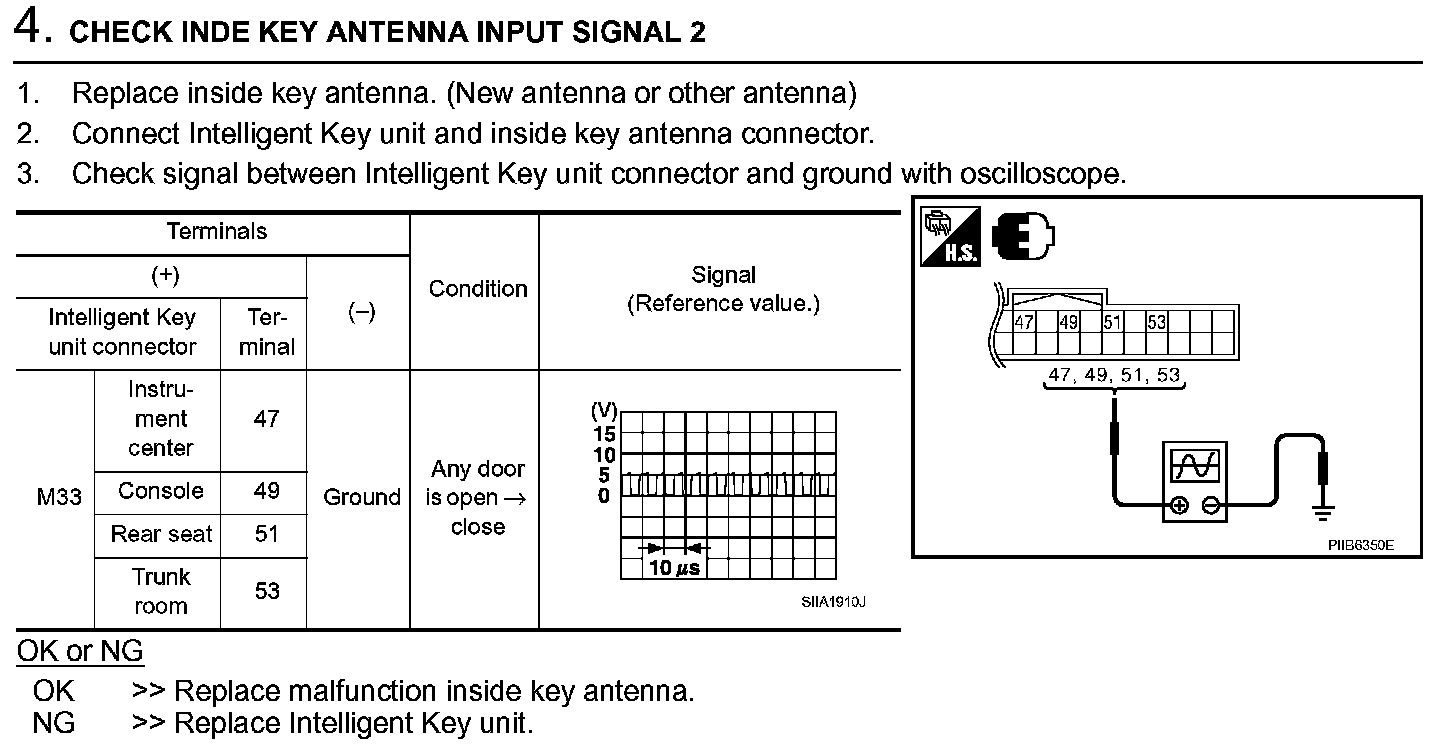

Check Inside Key Antenna (Step 4):
