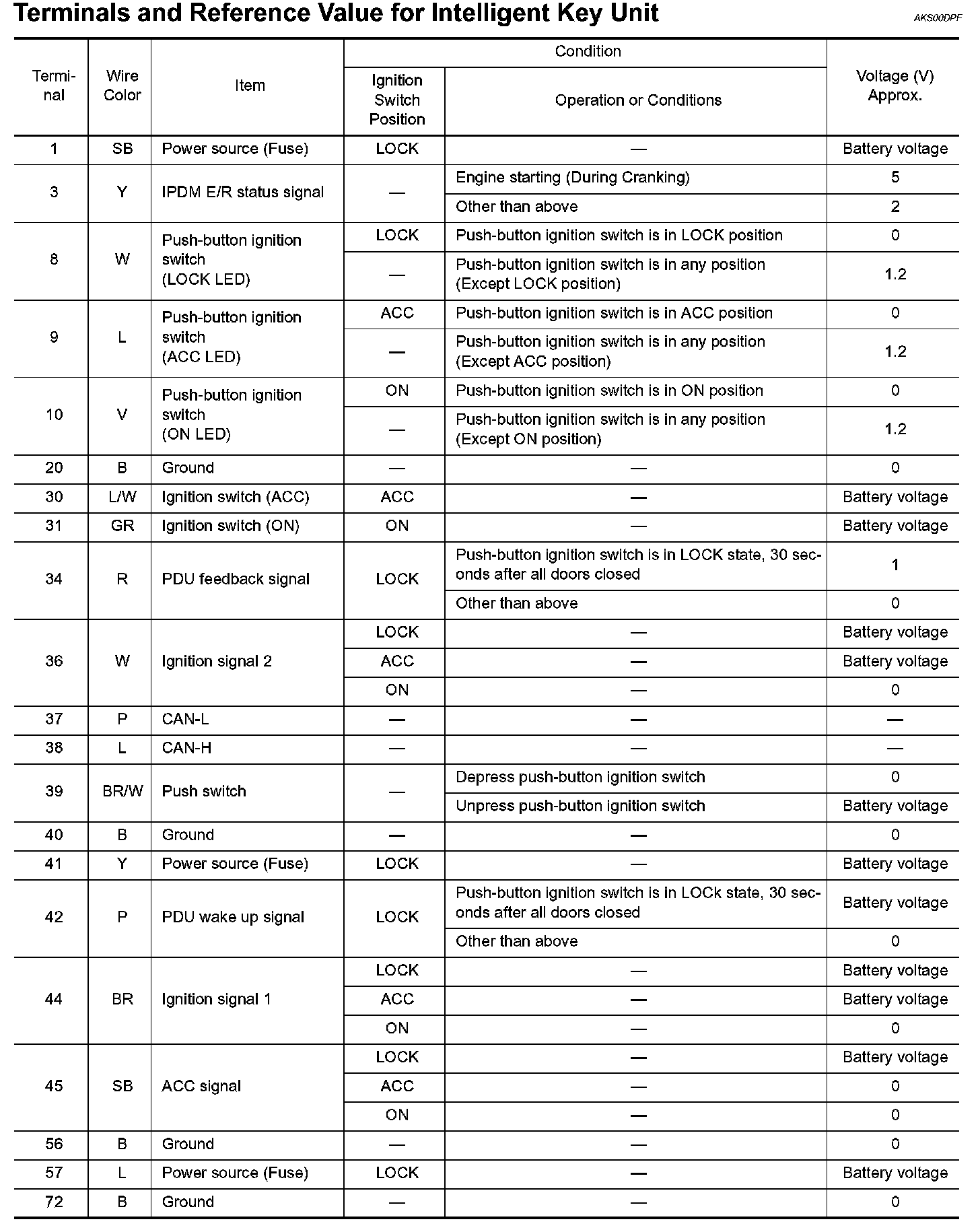

Terminals and Reference Value For Intelligent Key Unit

Terminals And Reference Value For Intelligent Key Unit:
