Home >> Infiniti >> 2006 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Intelligent Key System/Engine Start Function >> Check Remote Keyless Entry Receiver

Check Remote Keyless Entry Receiver

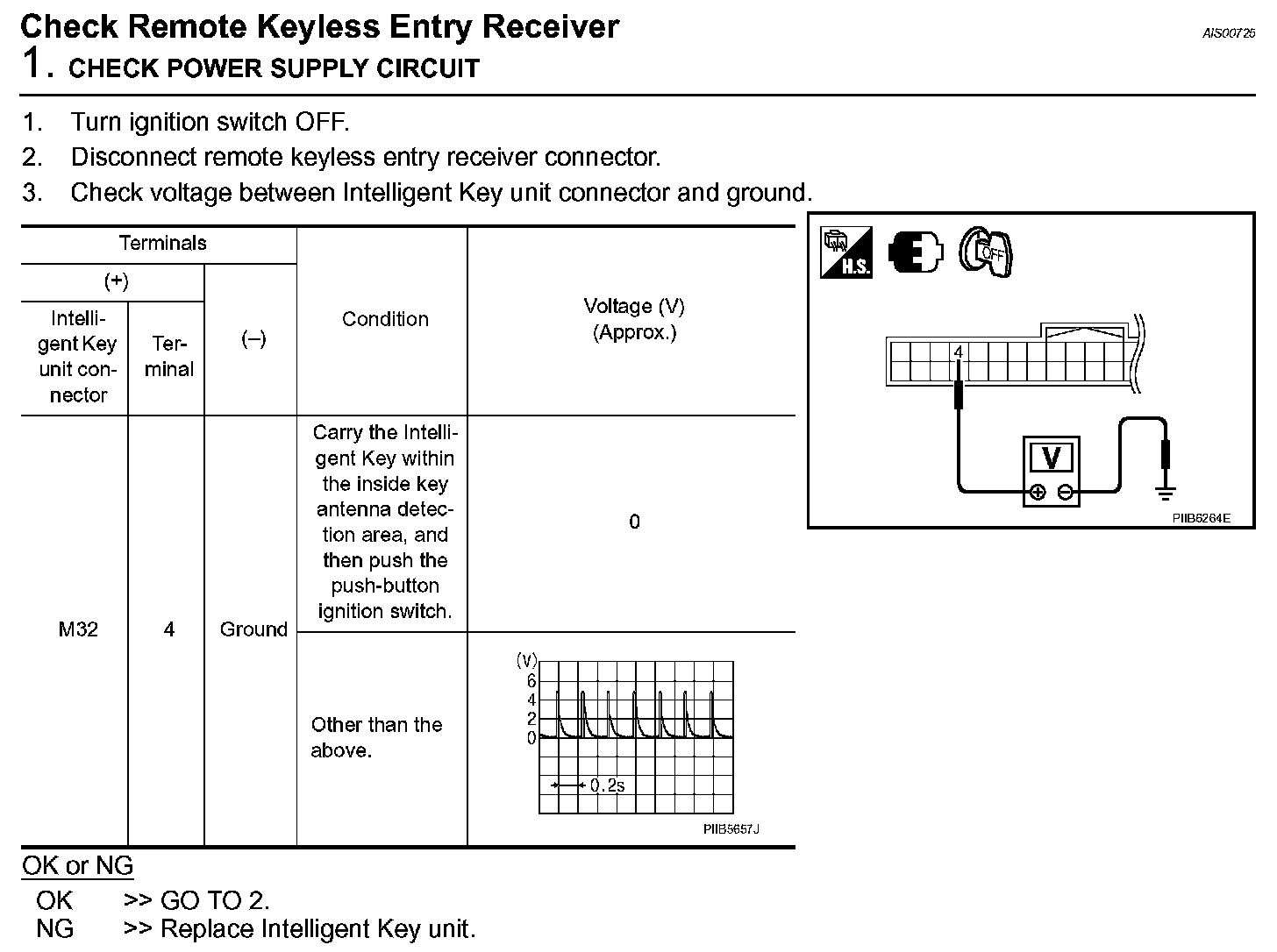

Check Remote Keyless Entry Receiver (Step 1):

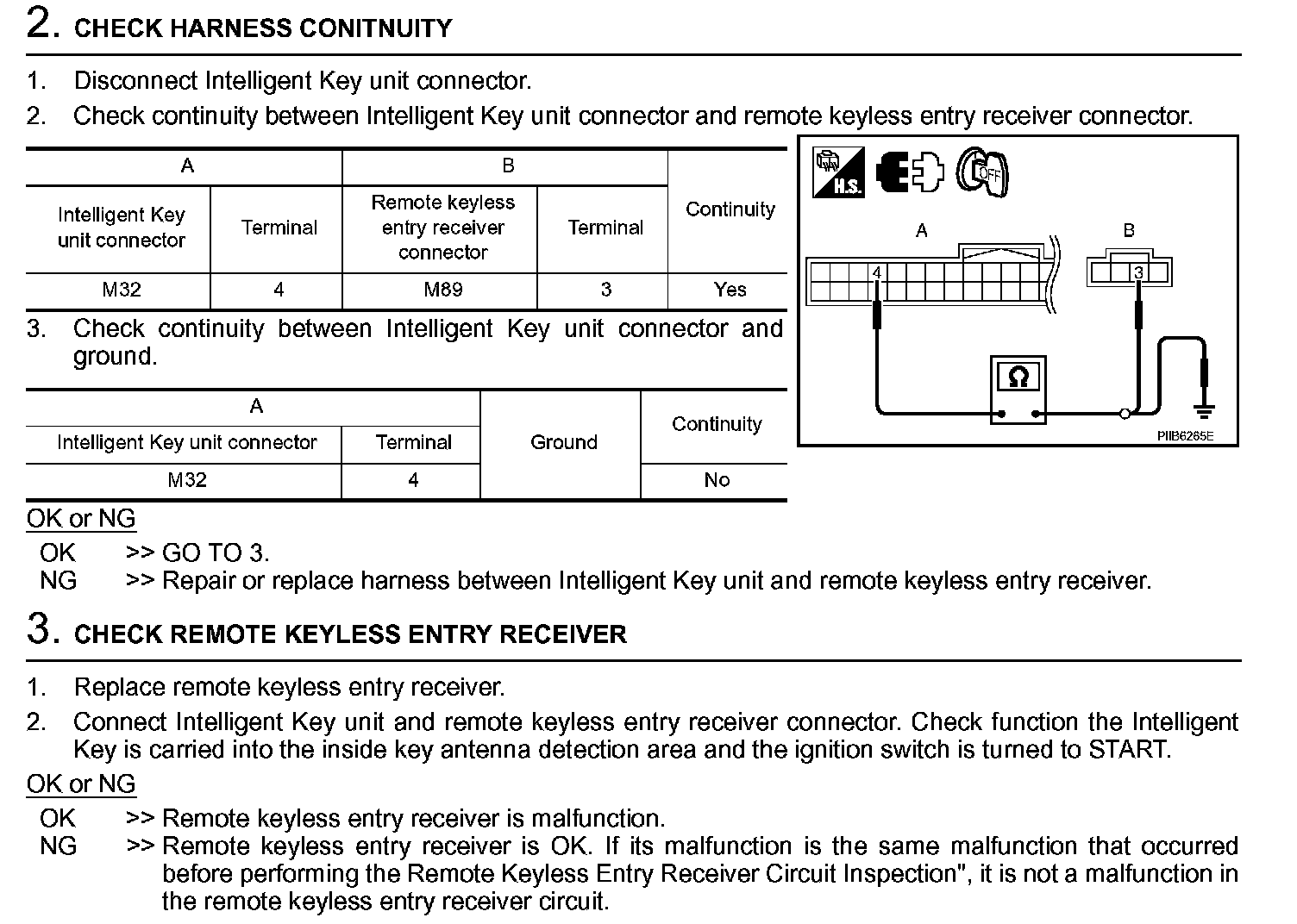

Check Remote Keyless Entry Receiver (Steps 2 - 3):
