Home >> Infiniti >> 2006 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Intelligent Key System/Engine Start Function >> Check Push-Button Ignition Switch

Check Push-Button Ignition Switch

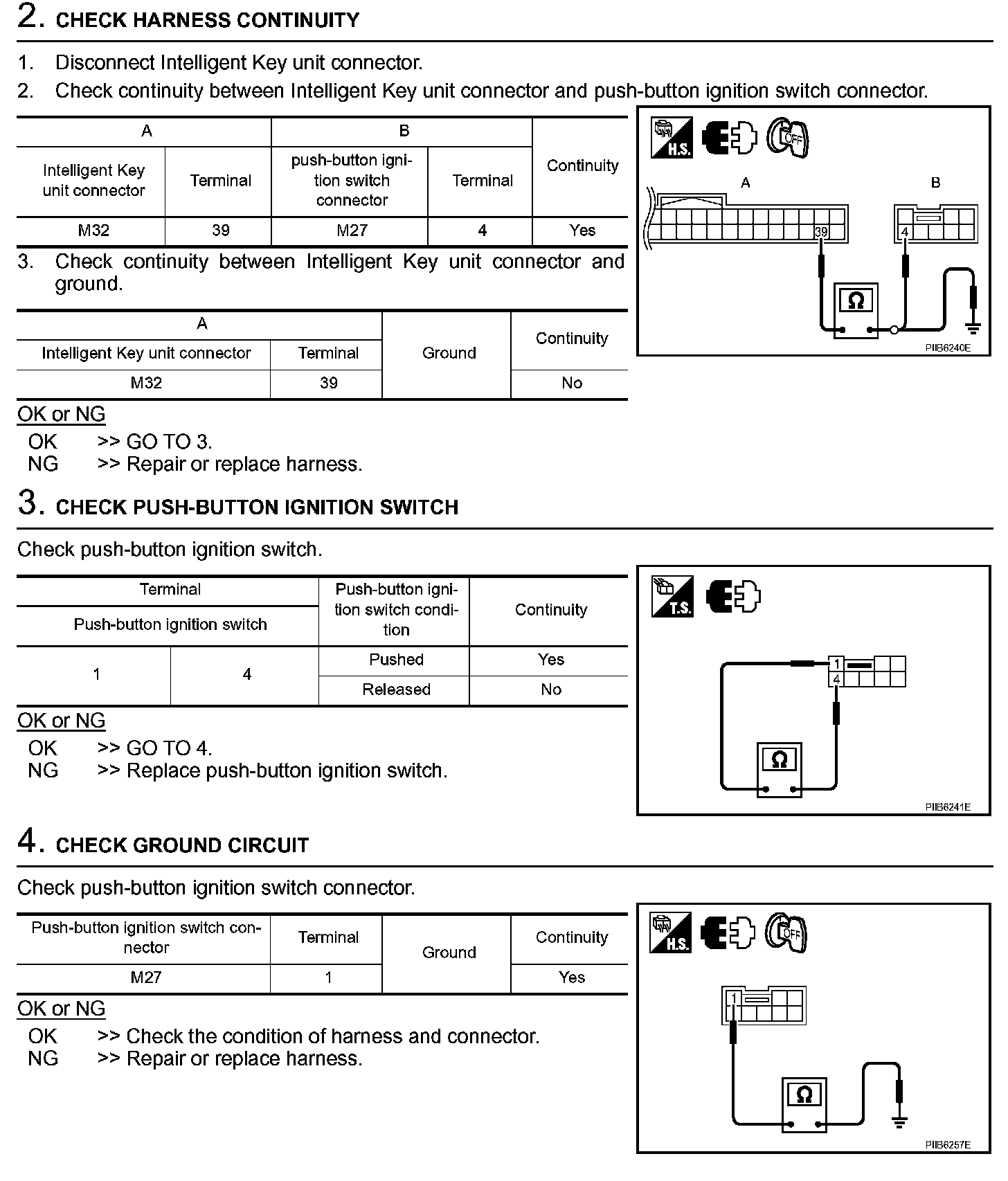

Check Push-Button Ignition Switch (Step 1):



Check Push-Button Ignition Switch (Steps 2 - 4):
