Home >> Infiniti >> 2006 >> G35 Sedan V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Components

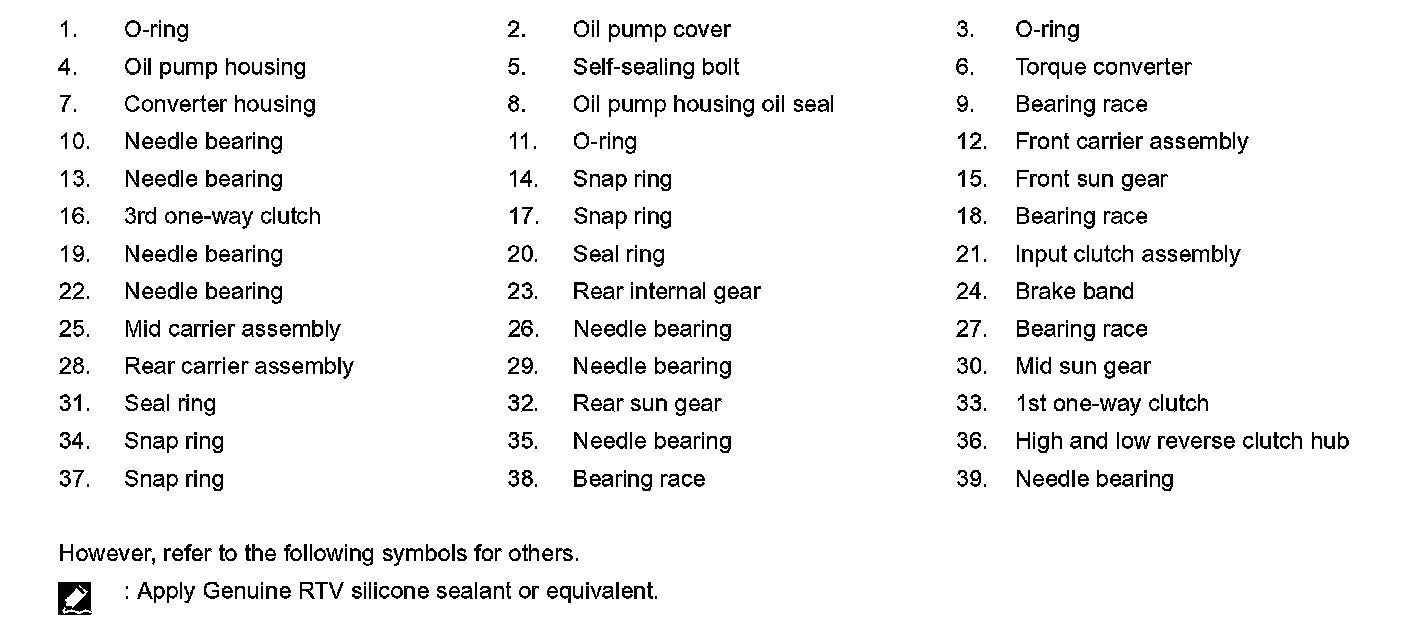

Components

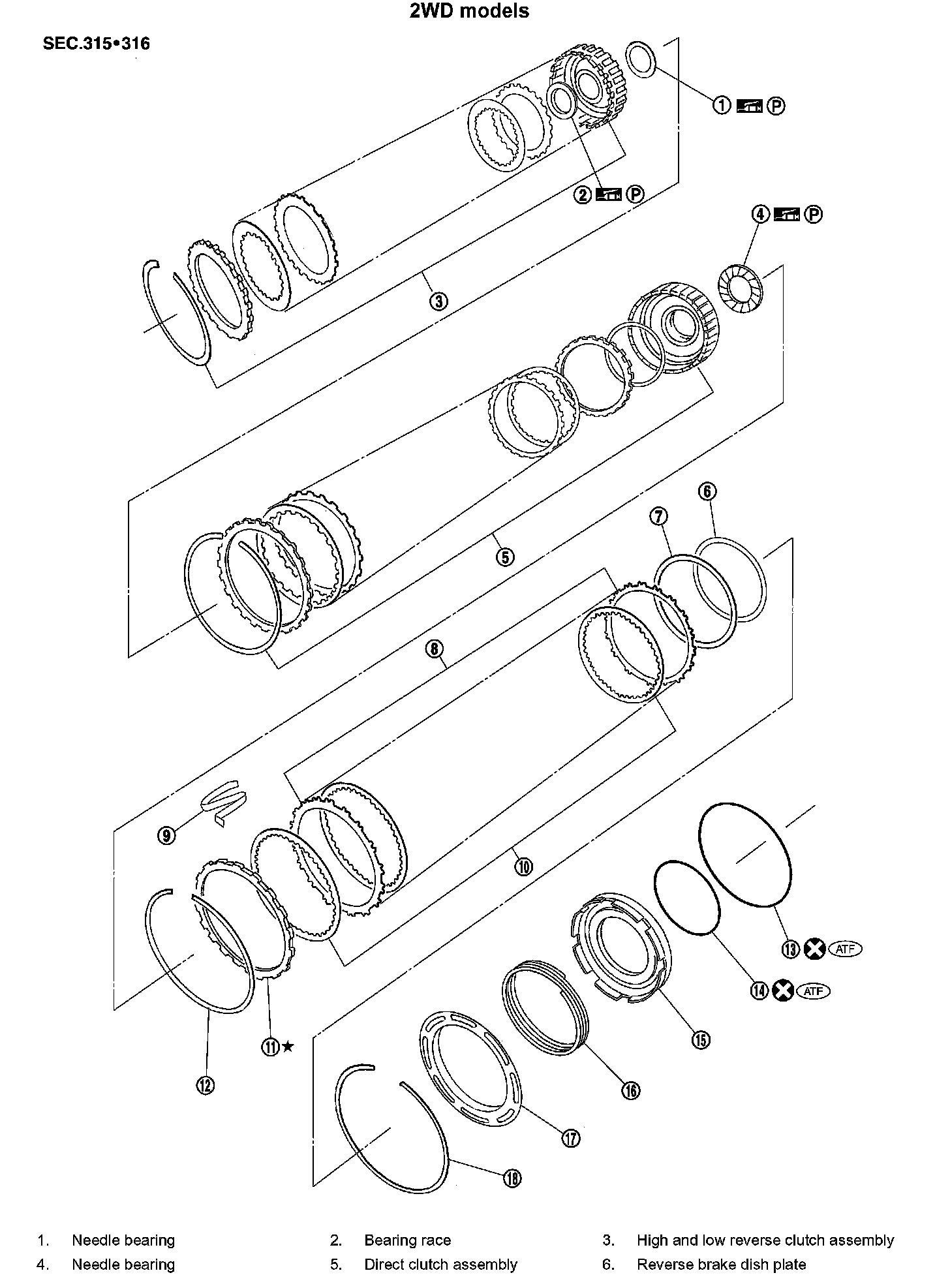

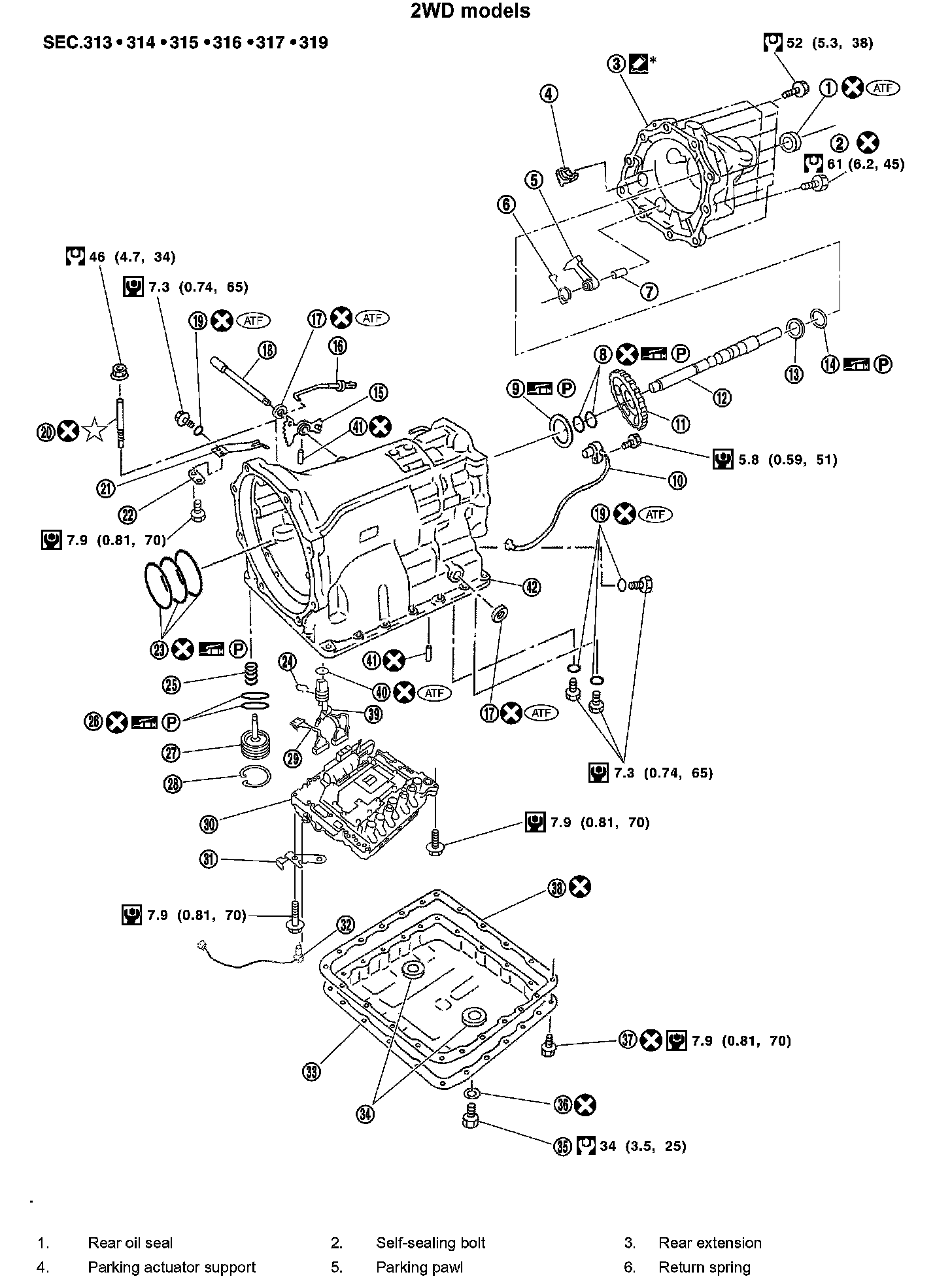

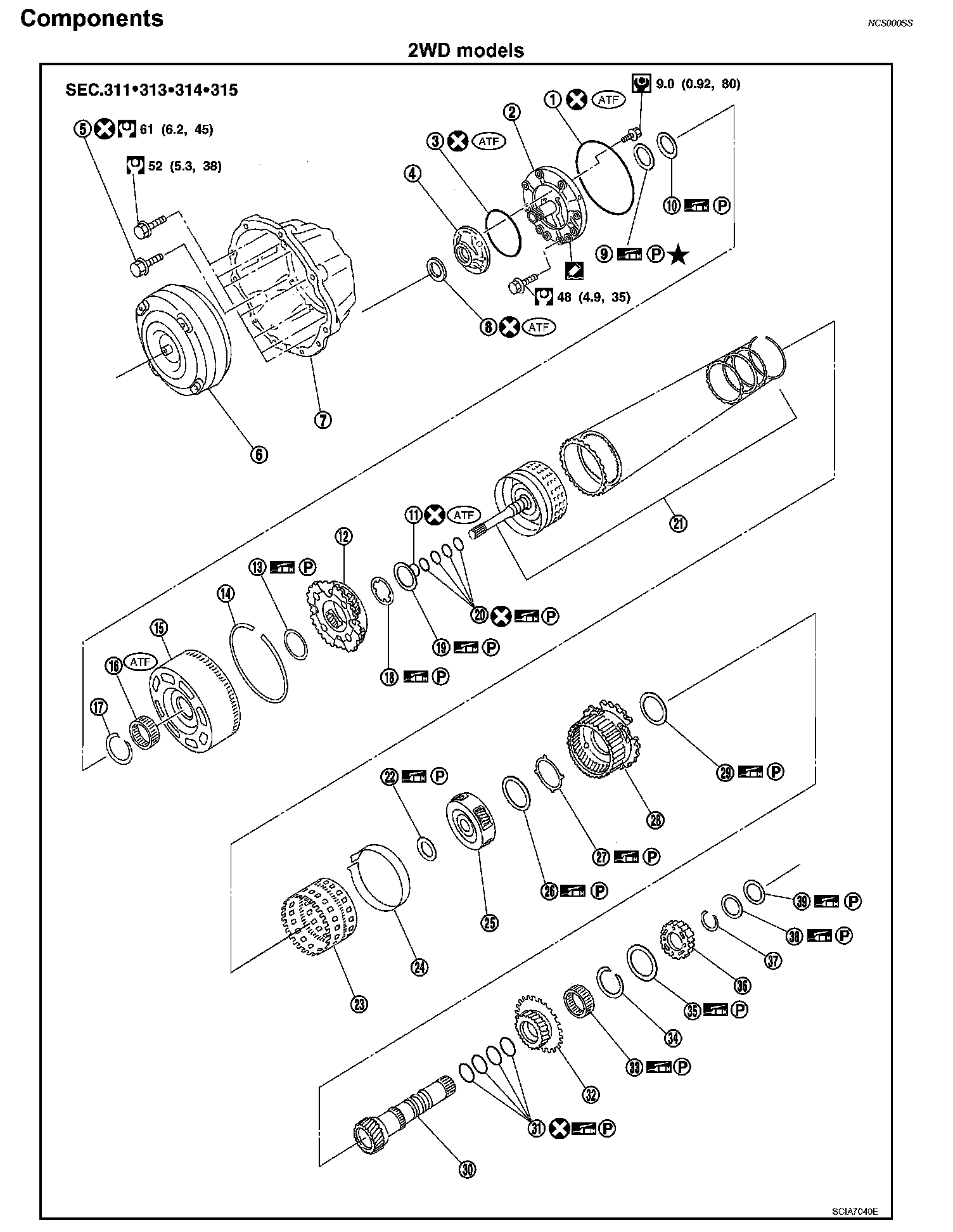

2WD Models:

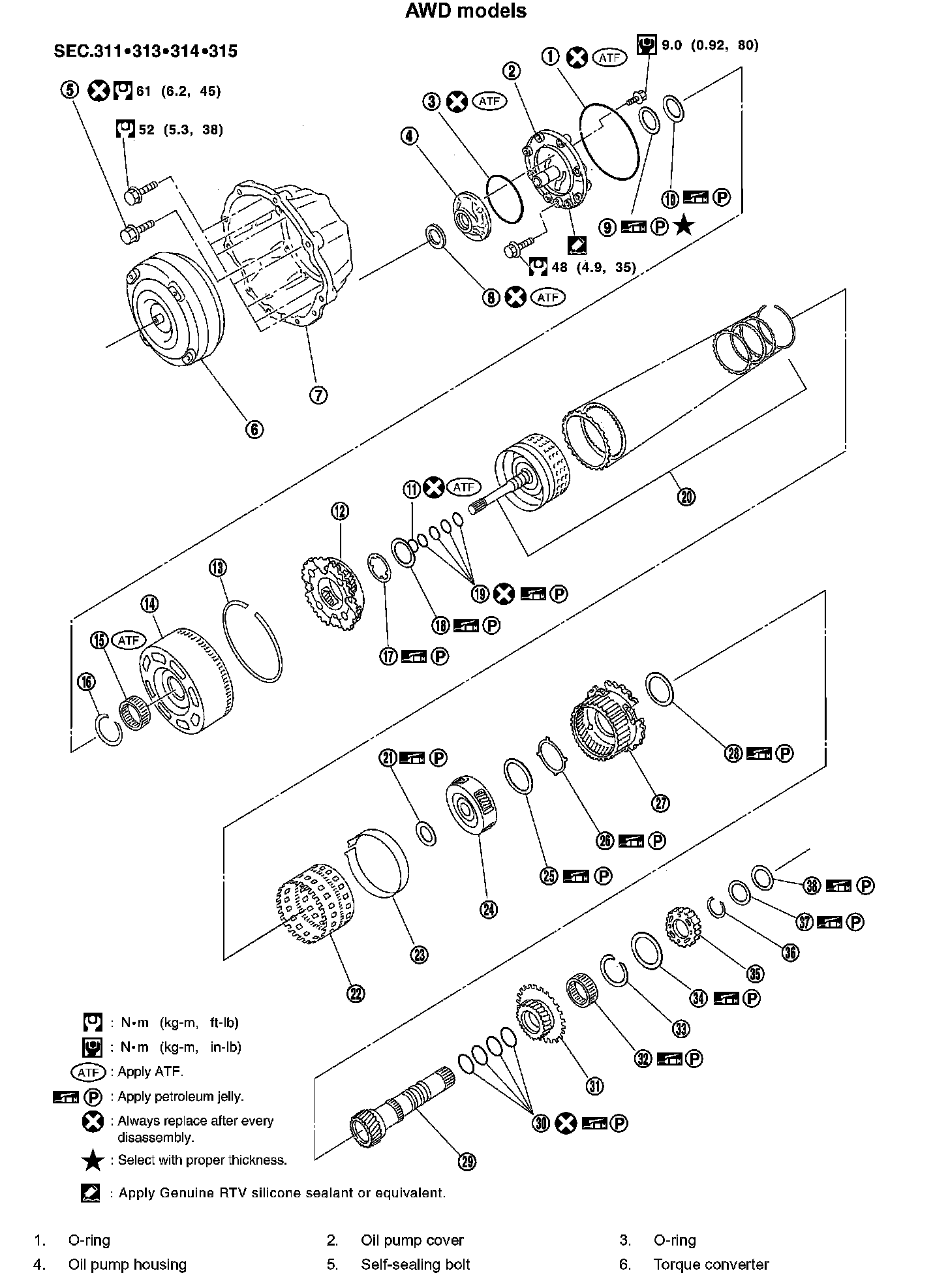

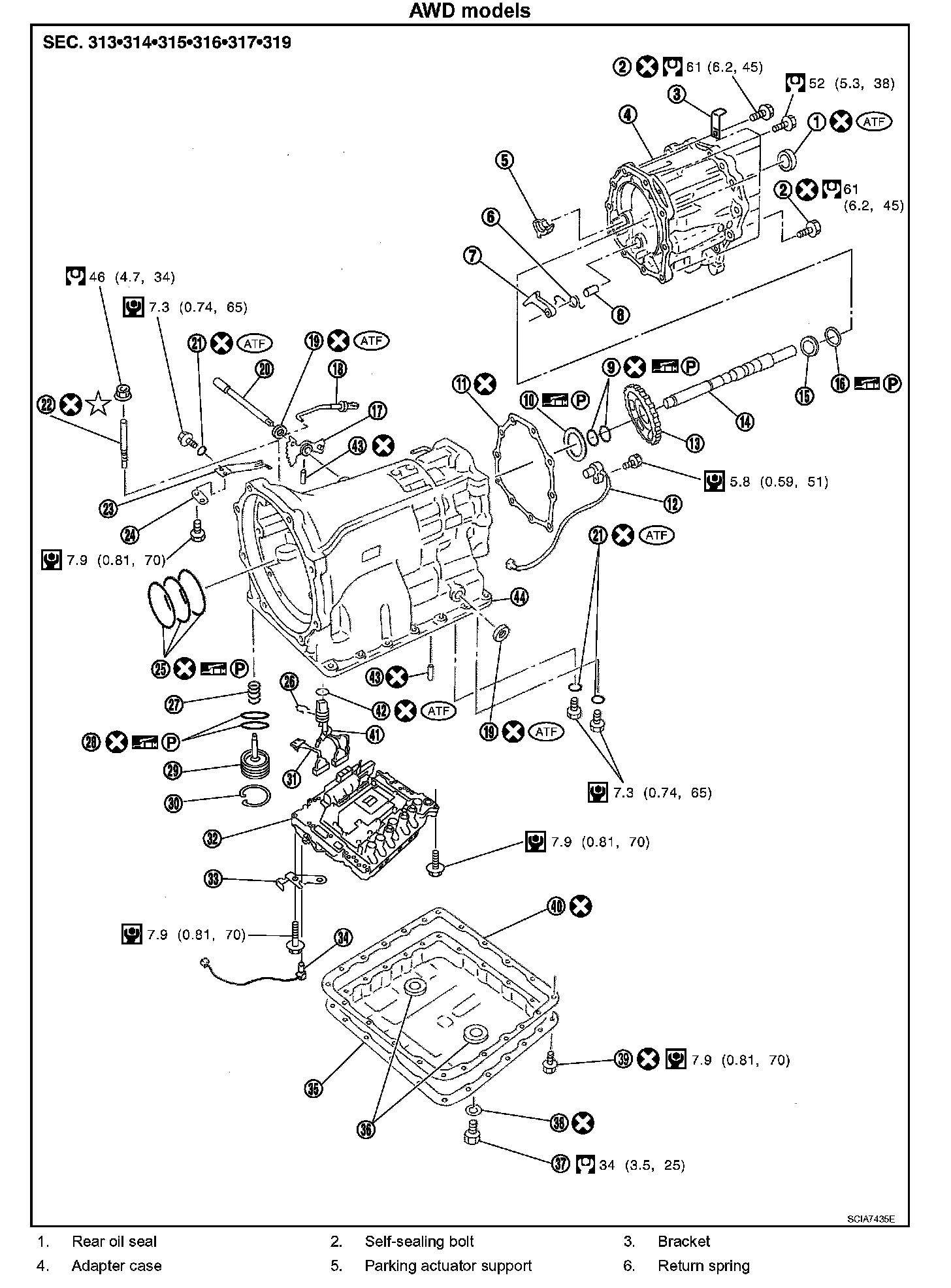

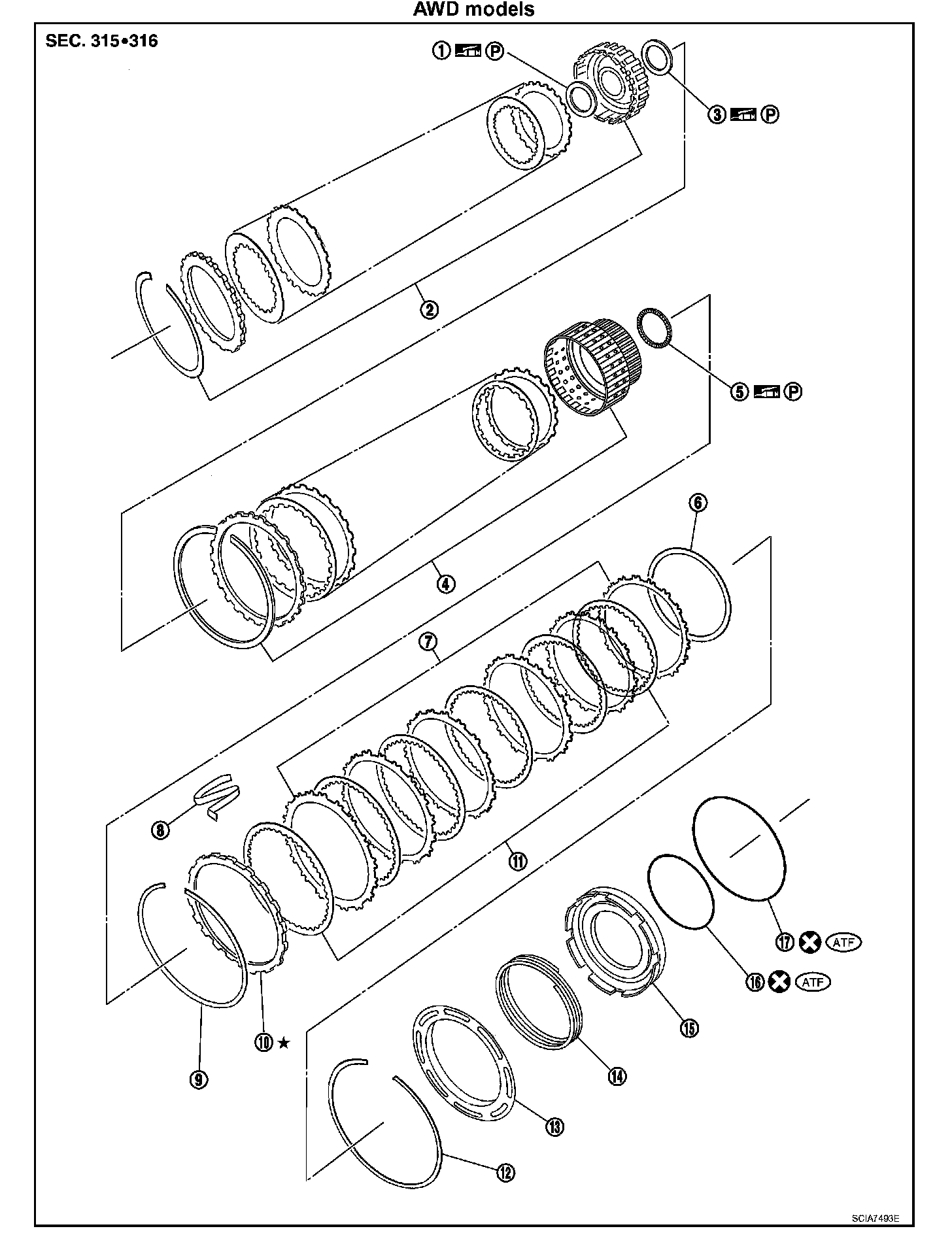

AWD Models:







2WD Models:








AWD Models:





















OVERHAUL
