Infiniti
>>
2006
>>
G35 Sedan V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
>>

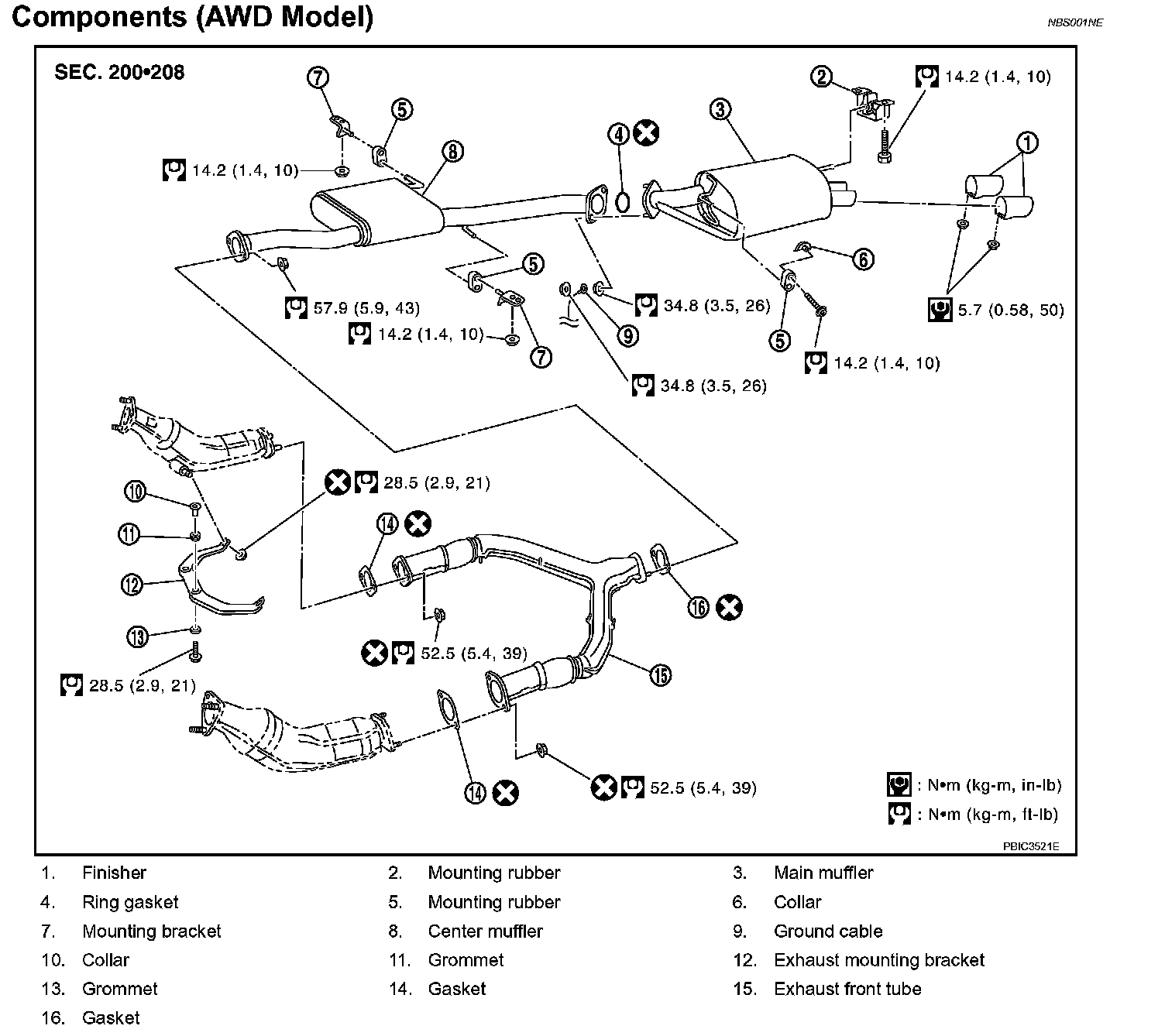

Exploded View AWD
Exploded View AWD
Image Symbols:
