Control Module HVAC: Service and Repair

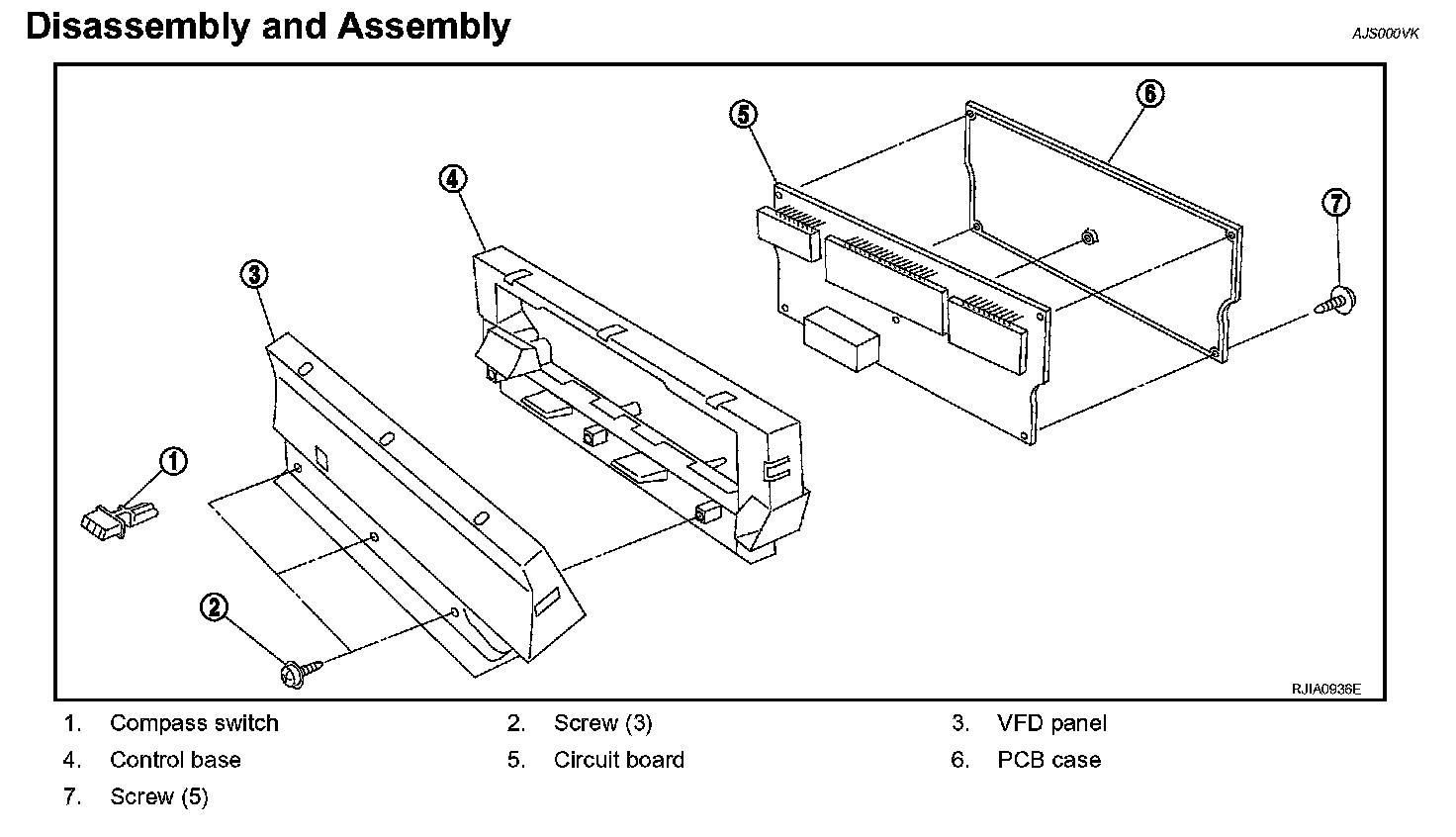

Removal and Installation of Display and A/C Auto Amp


REMOVAL
1. Remove the cluster lid finisher.
2. Remove the fixing screws, then remove the display and A/C auto amp.


INSTALLATION
Installation is basically the reverse order of removal.
