Home >> Infiniti >> 2003 >> M45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Component Tests and General Diagnostics >> Encoder Switch Check (Driver Side)

Encoder Switch Check (Driver Side)

Diagnostic Procedure Step 1:

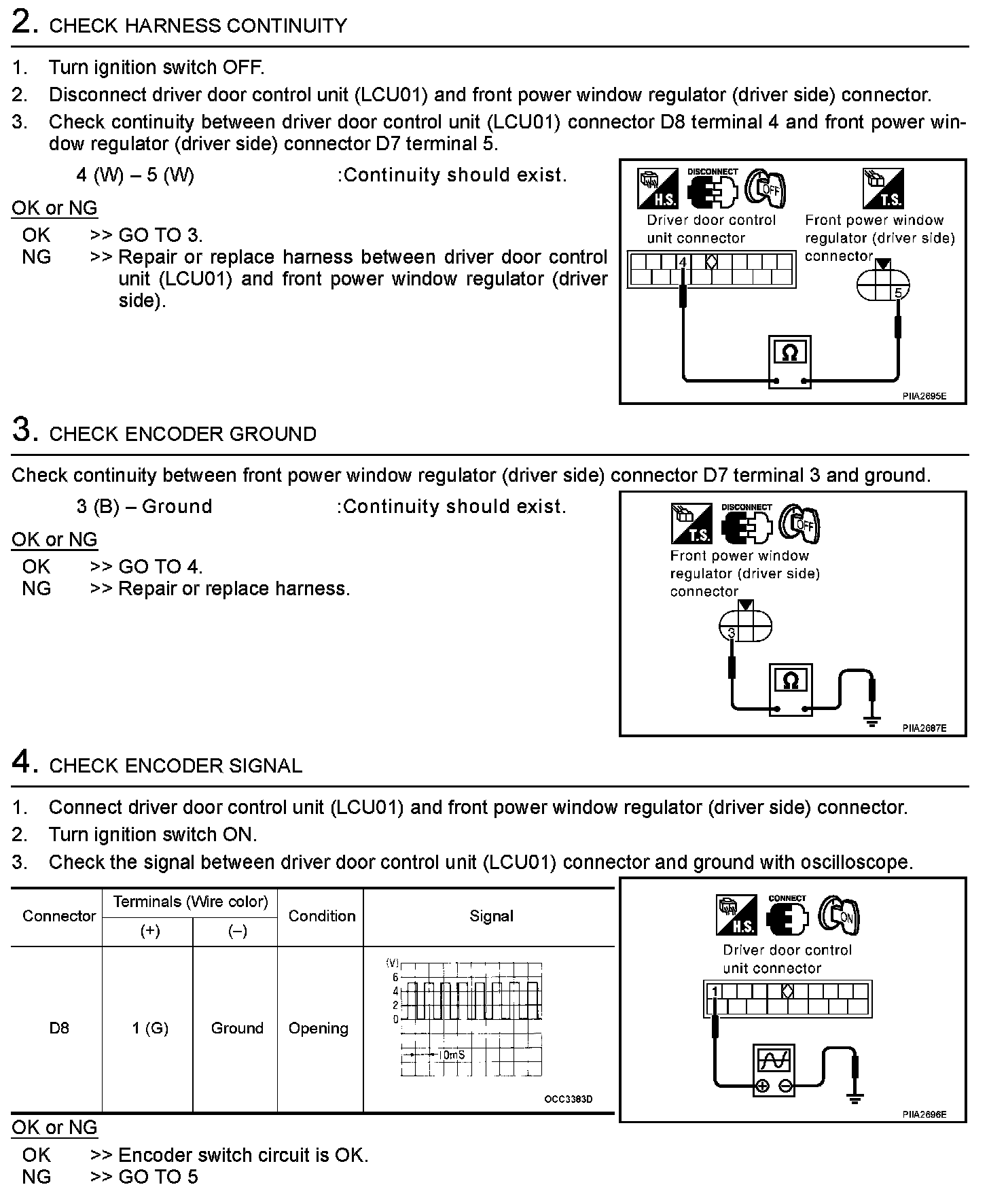

Diagnostic Procedure Step 2 - 4:

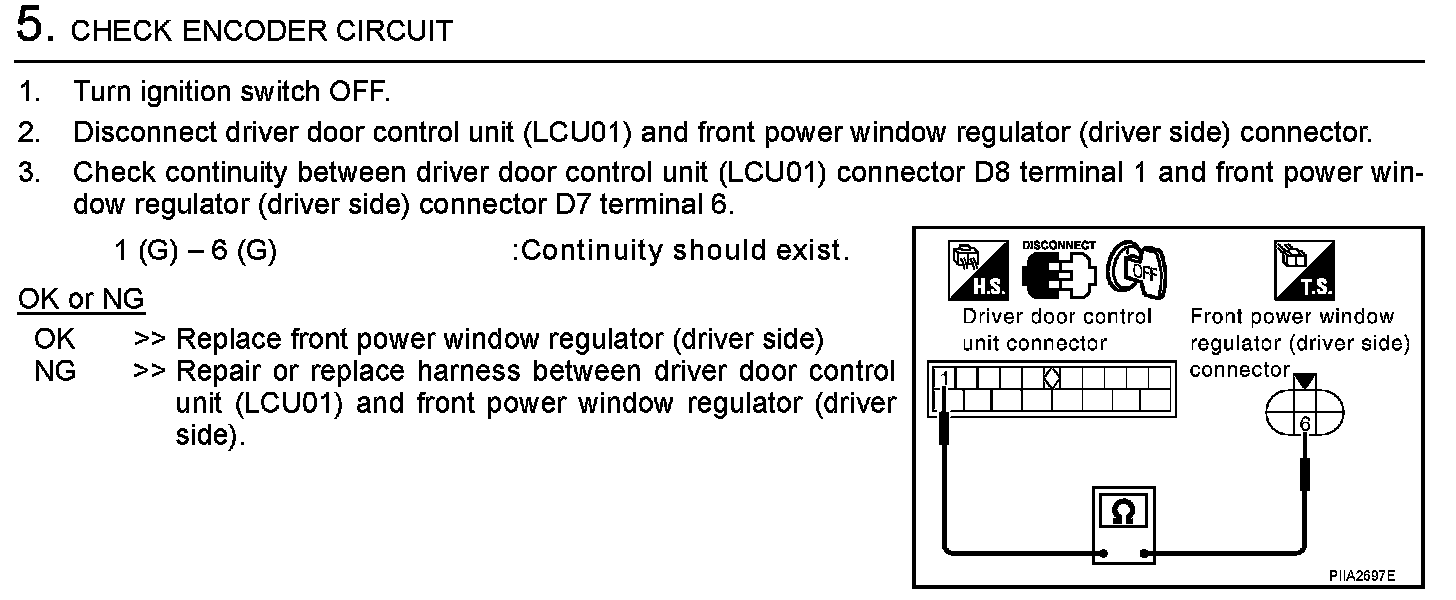

Diagnostic Procedure Step 5:
