Home >> Infiniti >> 2002 >> Q45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications >> Manifold, Intake

Manifold, Intake

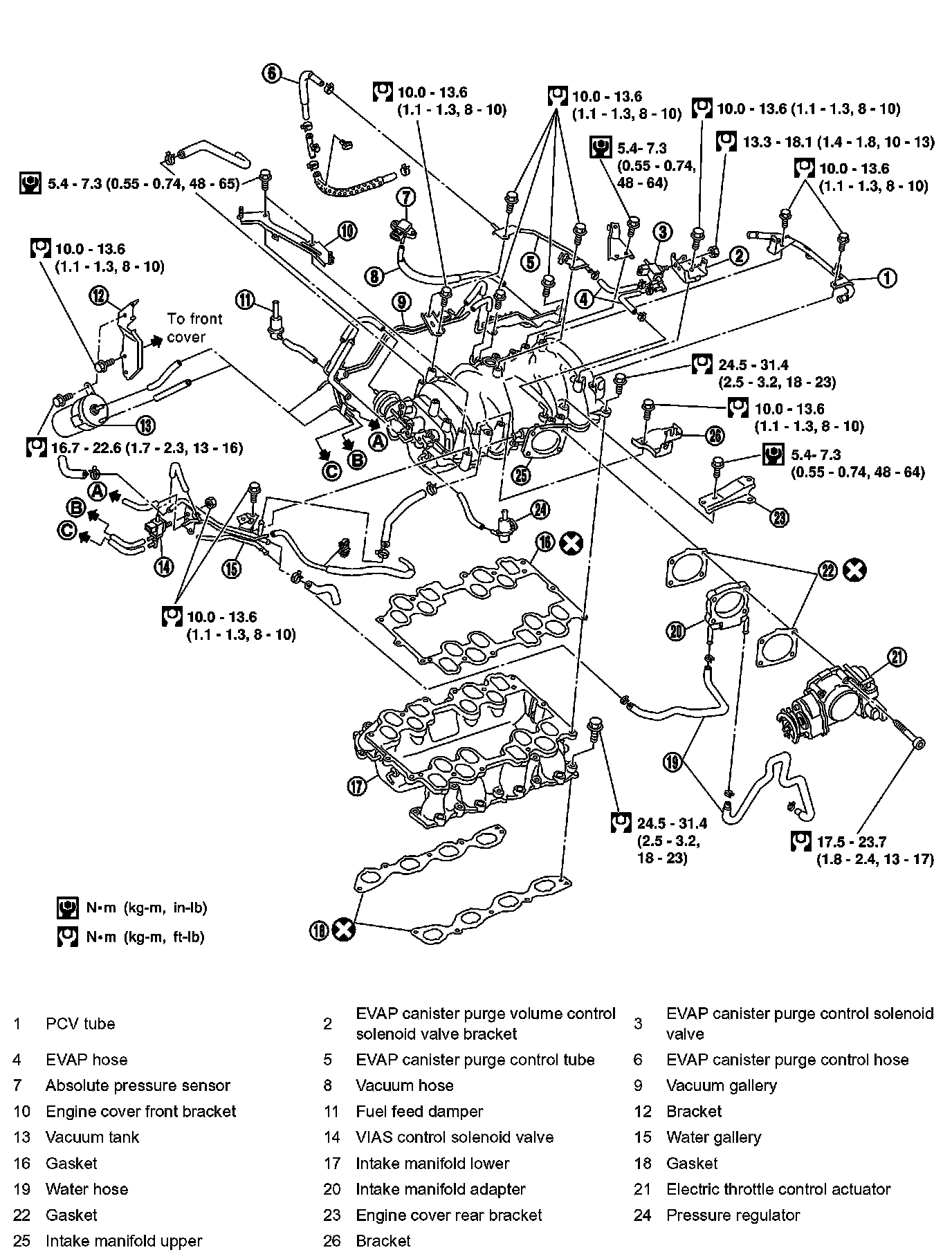

INTAKE MANIFOLD:
