Circuit Check Steering Wheel Angle Sensor and Combination Meter
Circuit Check Steering Wheel Angle Sensor and Combination Meter

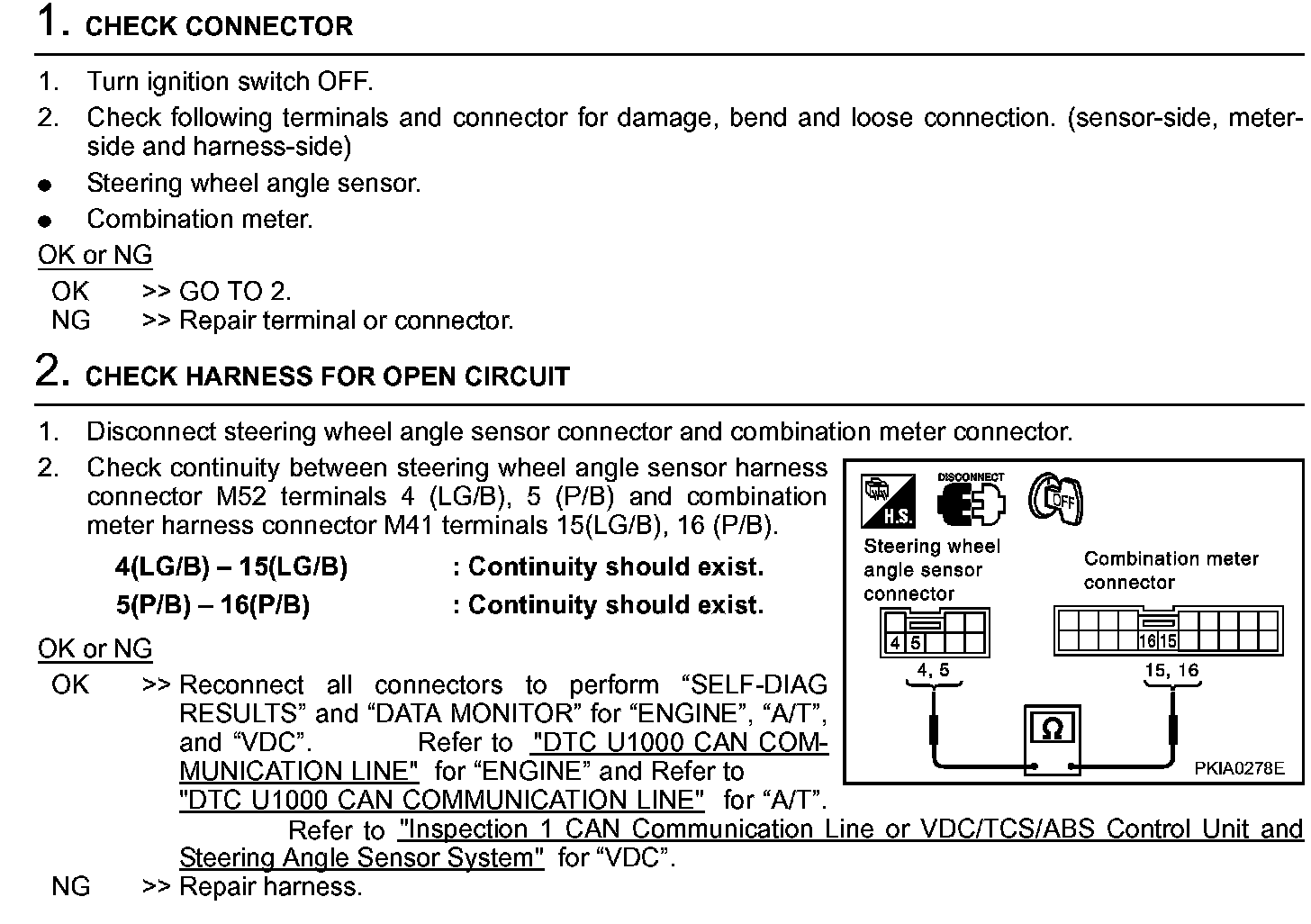

Circuit Check Between Steering Wheel Angle Sensor And Combination Meter Step 1 - 2:
