Automatic Speed Control Device (ASCD)

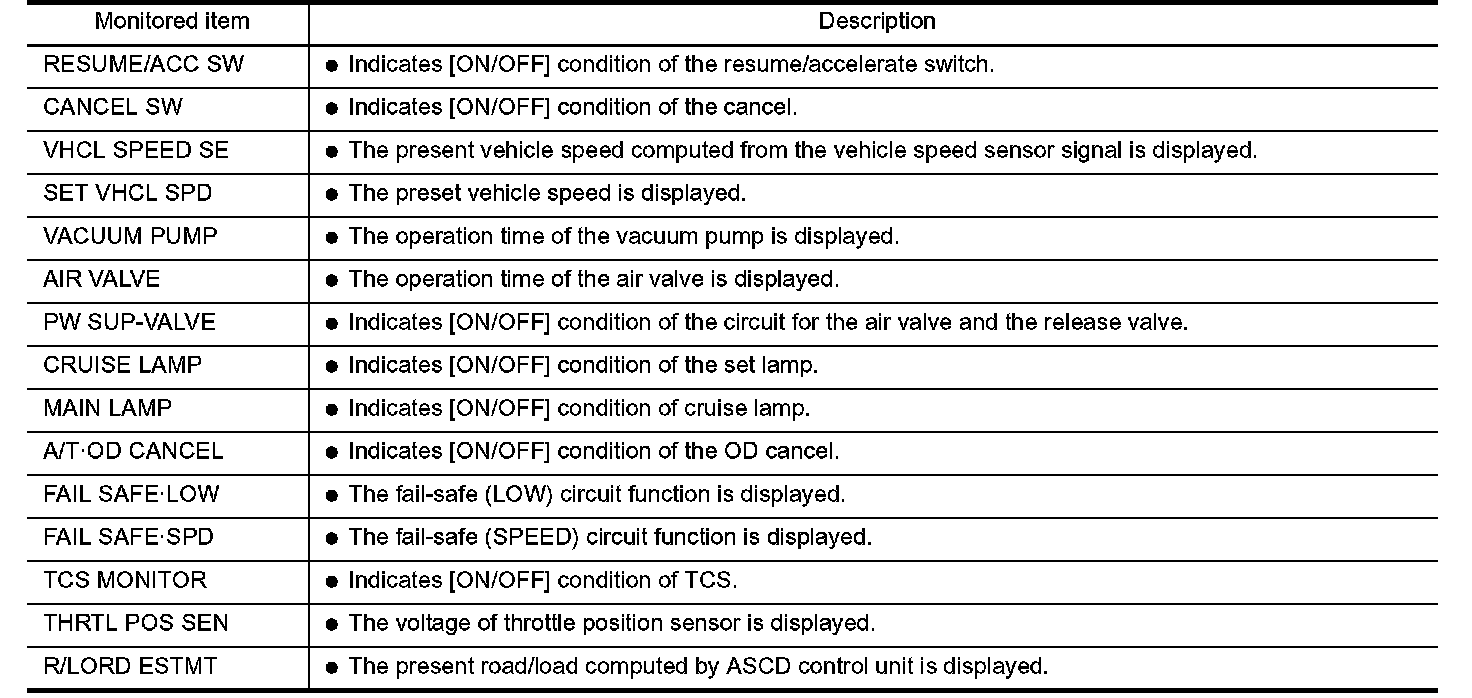

Consult-II Data Monitor Part 1:



Consult-II Data Monitor Part 2:
