Multi-Remote Control Receiver Check

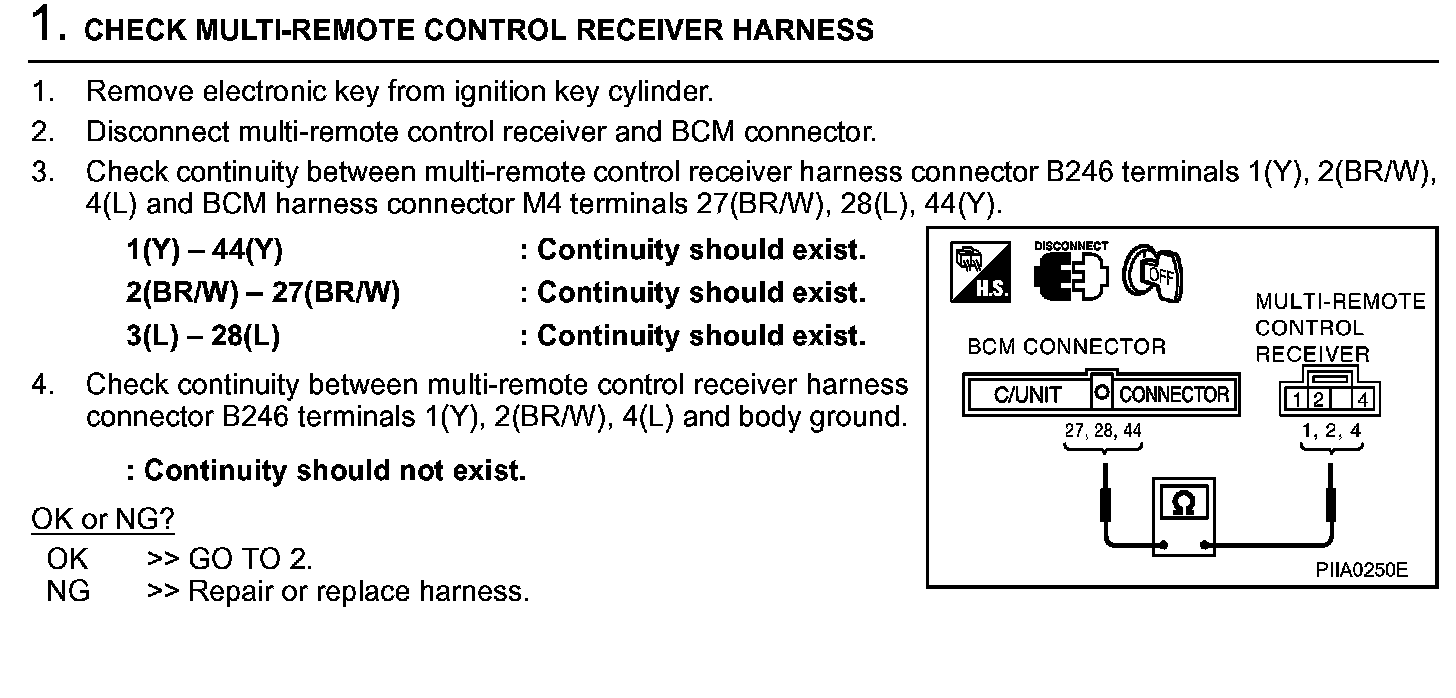

Multi-Remote Control Receiver Check Step 1:

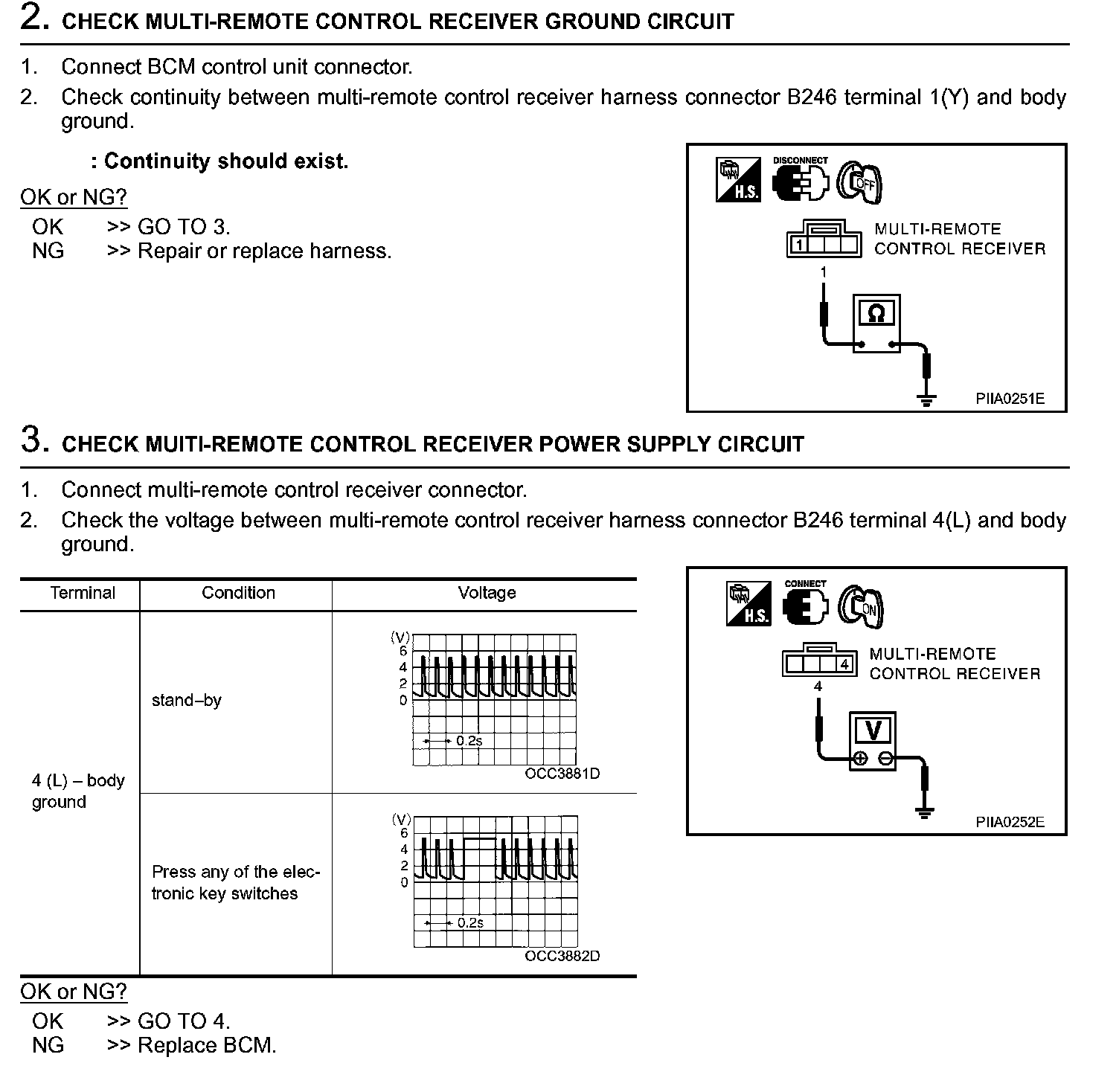

Multi-Remote Control Receiver Check Step 2 - 3:



Multi-Remote Control Receiver Check Step 4:
