FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Infiniti
>>
2002
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
With Manufacturer's Scan Tool (CONSULT-II)
>>
Data Monitor Mode
Data Monitor Mode

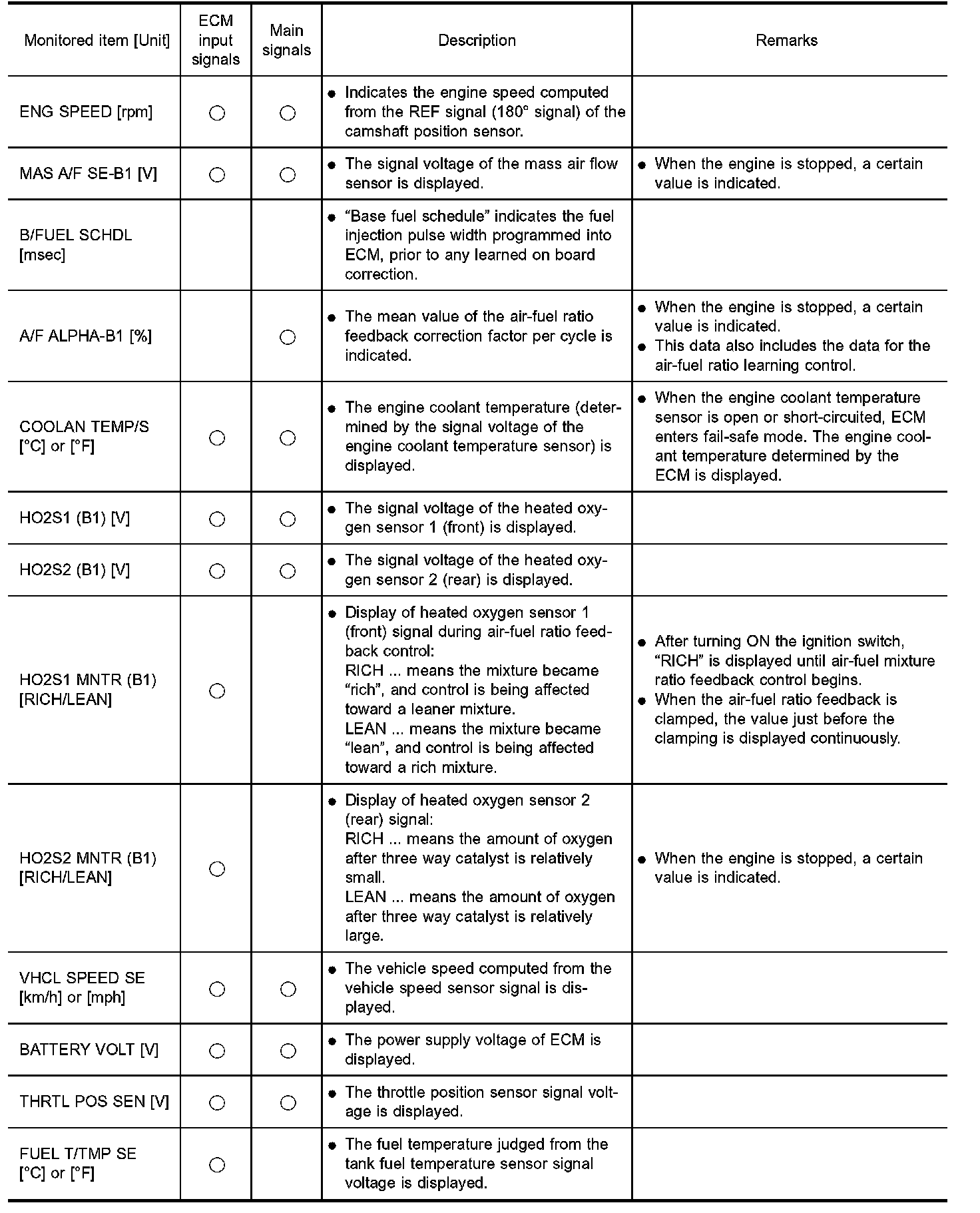

Date Monitor Mode Part 1:

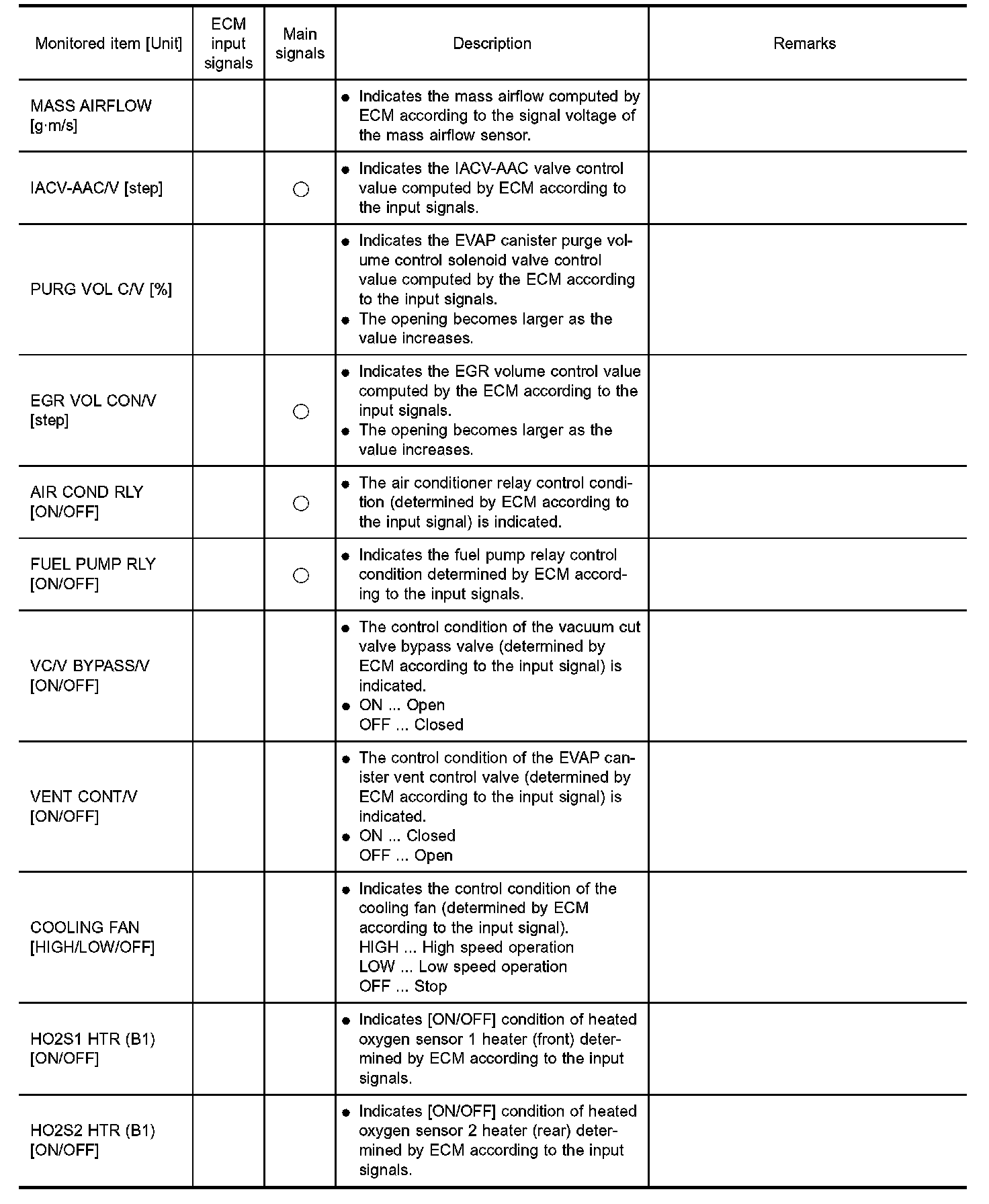

Date Monitor Mode Part 2:

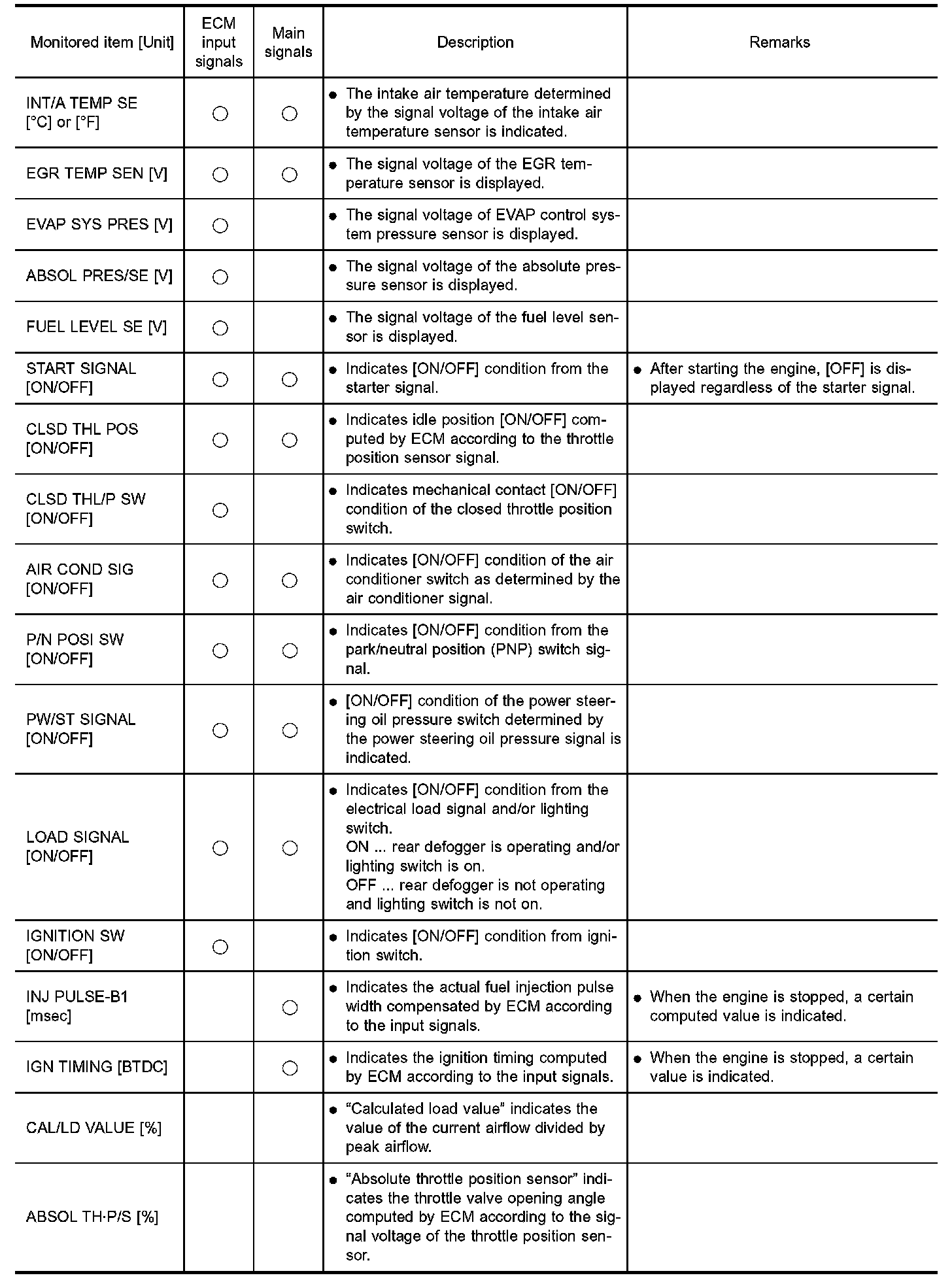

Date Monitor Mode Part 3:

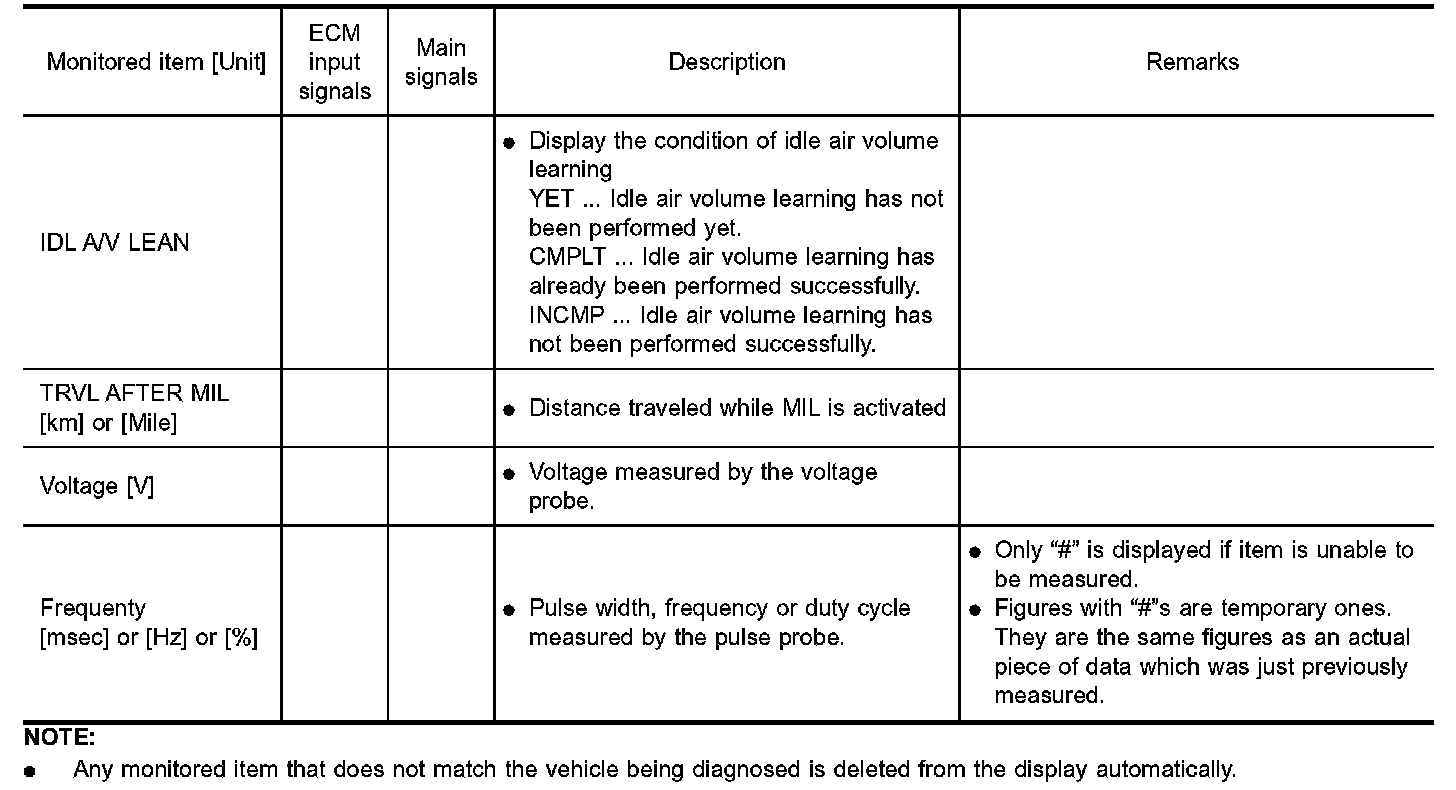

Date Monitor Mode Part 4:
