Control Module Pinout Values

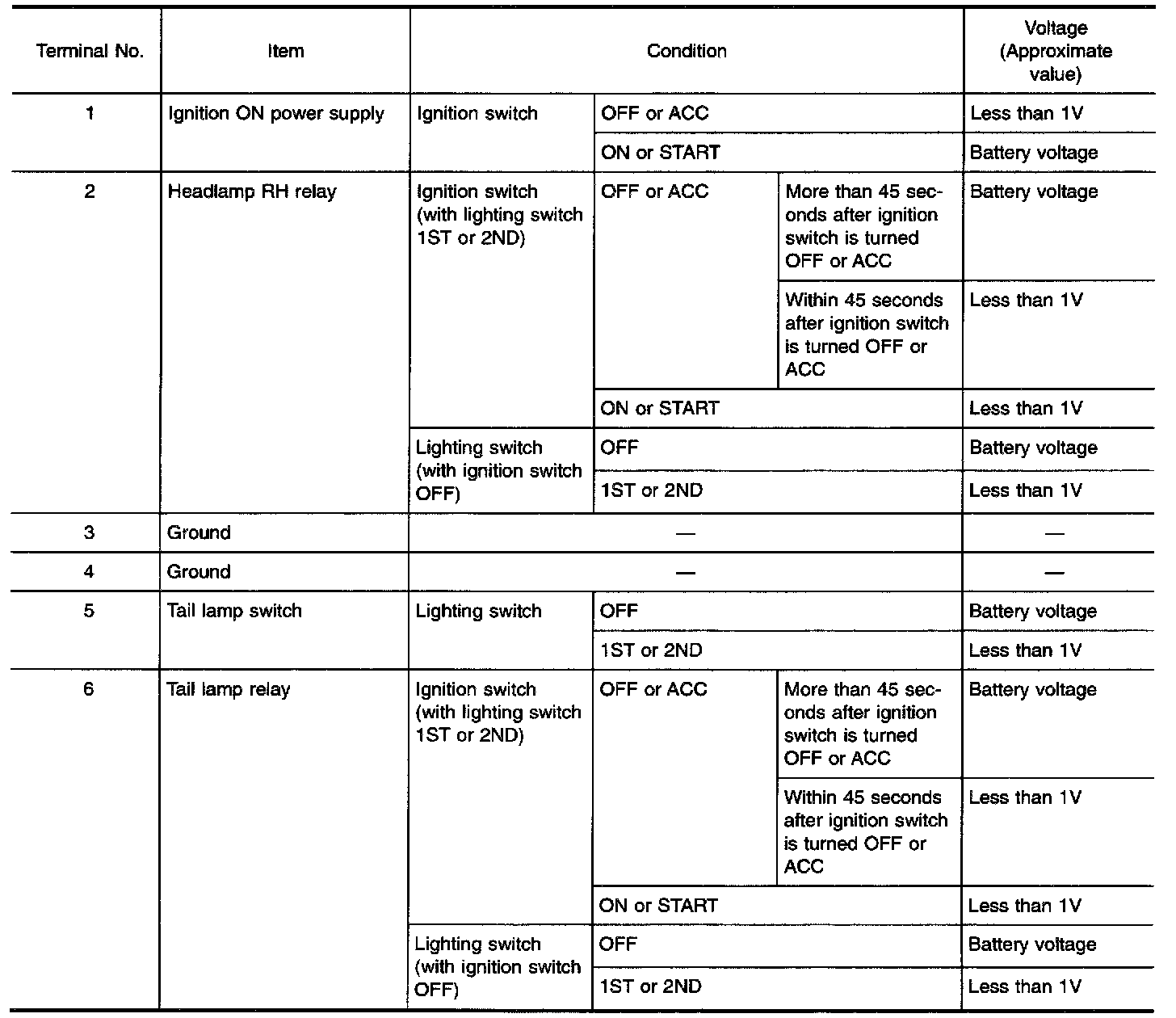

Battery Saver Control Unit Inspection Table (Terminal No. 1 - 6) (USA):

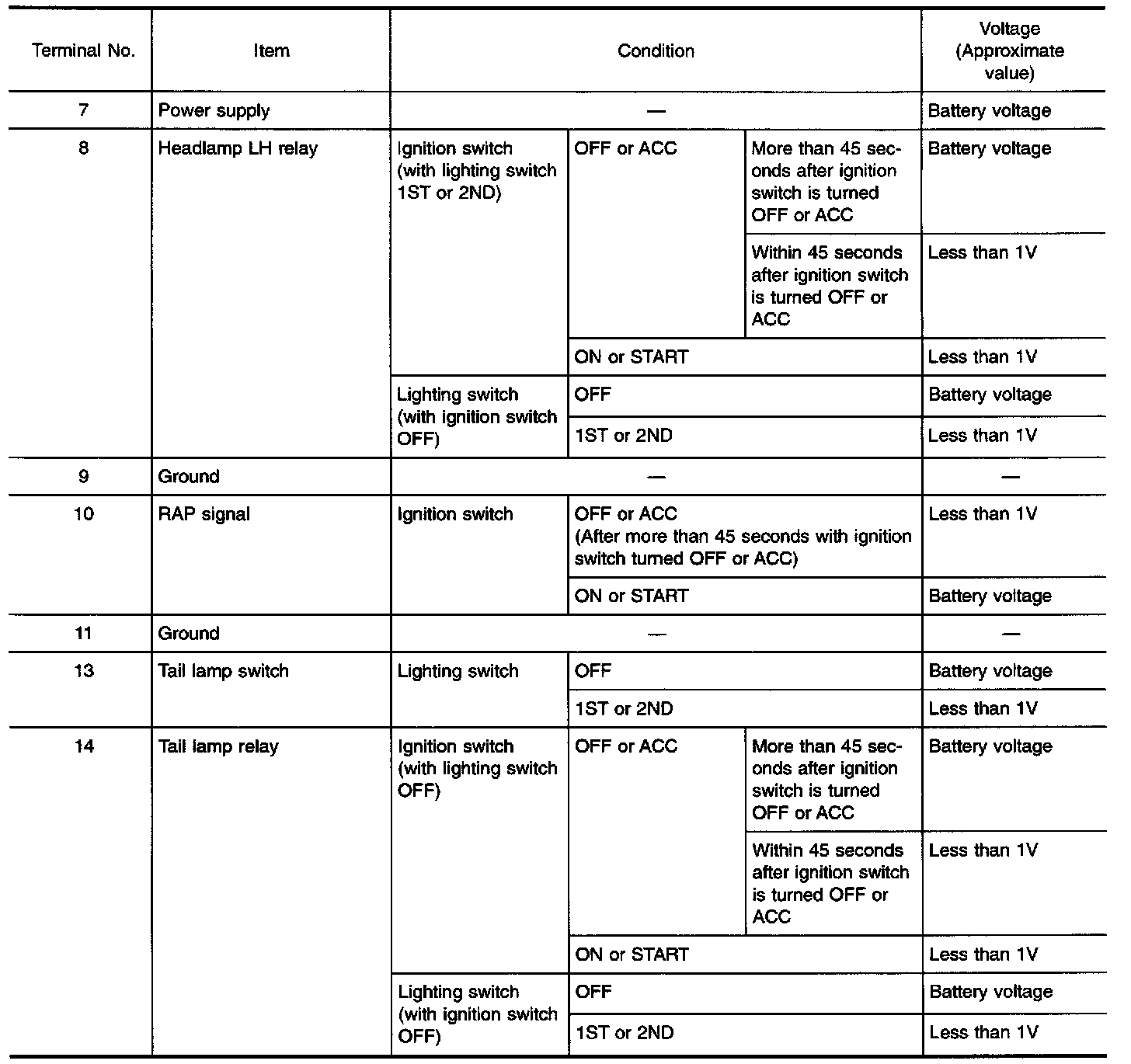

Battery Saver Control Unit Inspection Table (Terminal No. 7 - 14) (USA):
