Home >> Infiniti >> 2001 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Modules

Control Modules

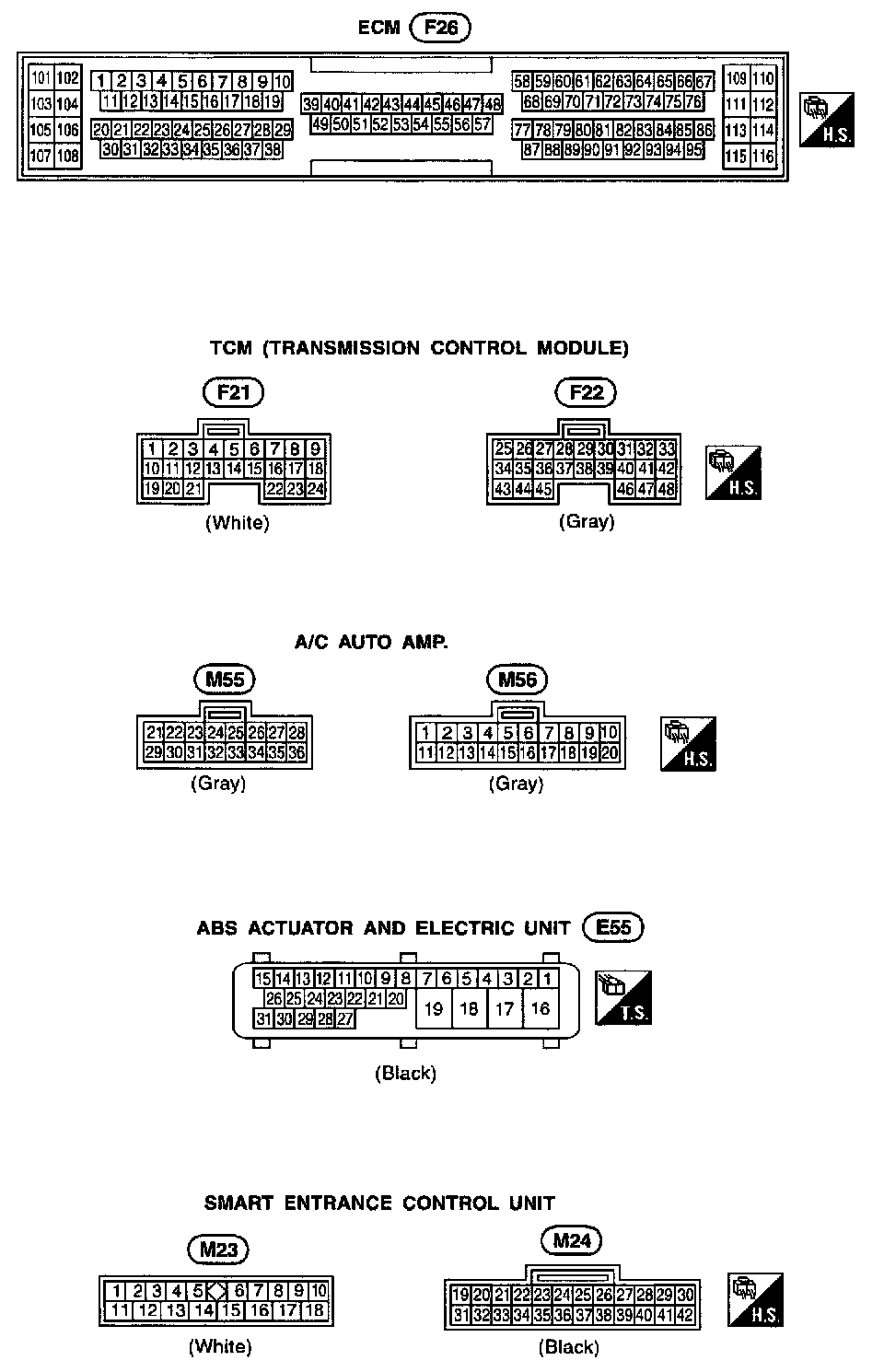

Electrical Units Terminal Arrangement (E55, F21, F22, F26, M23, M24, M55, M56):
