Engine Control System

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

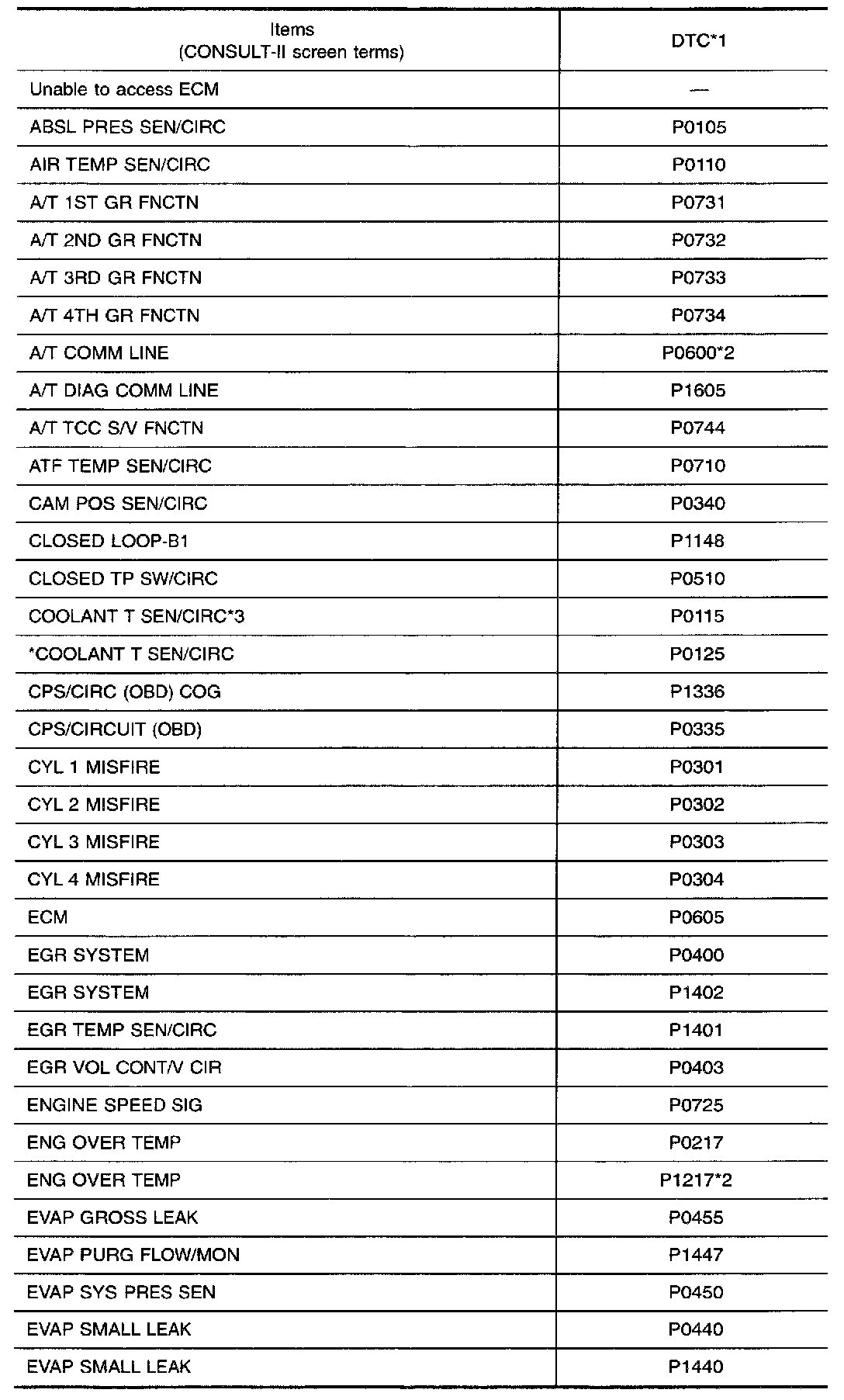

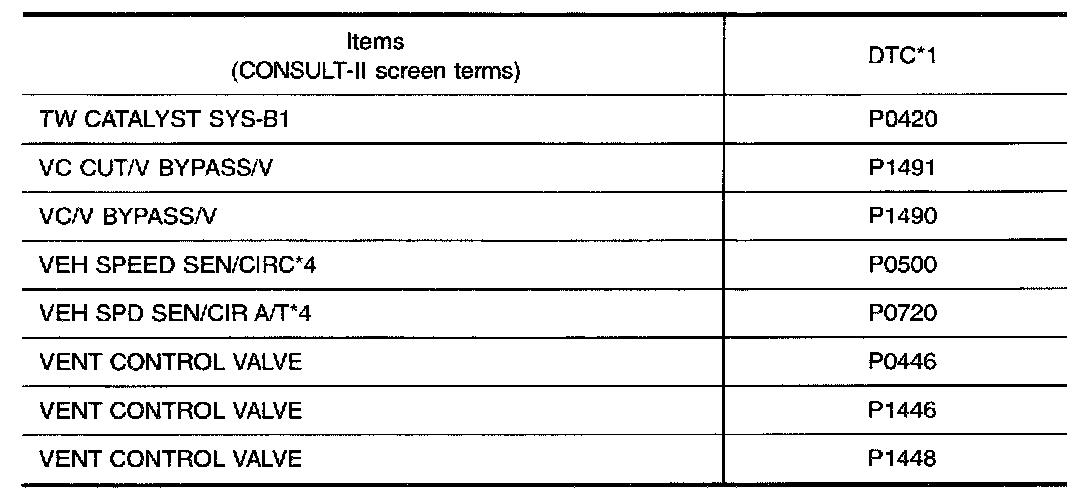

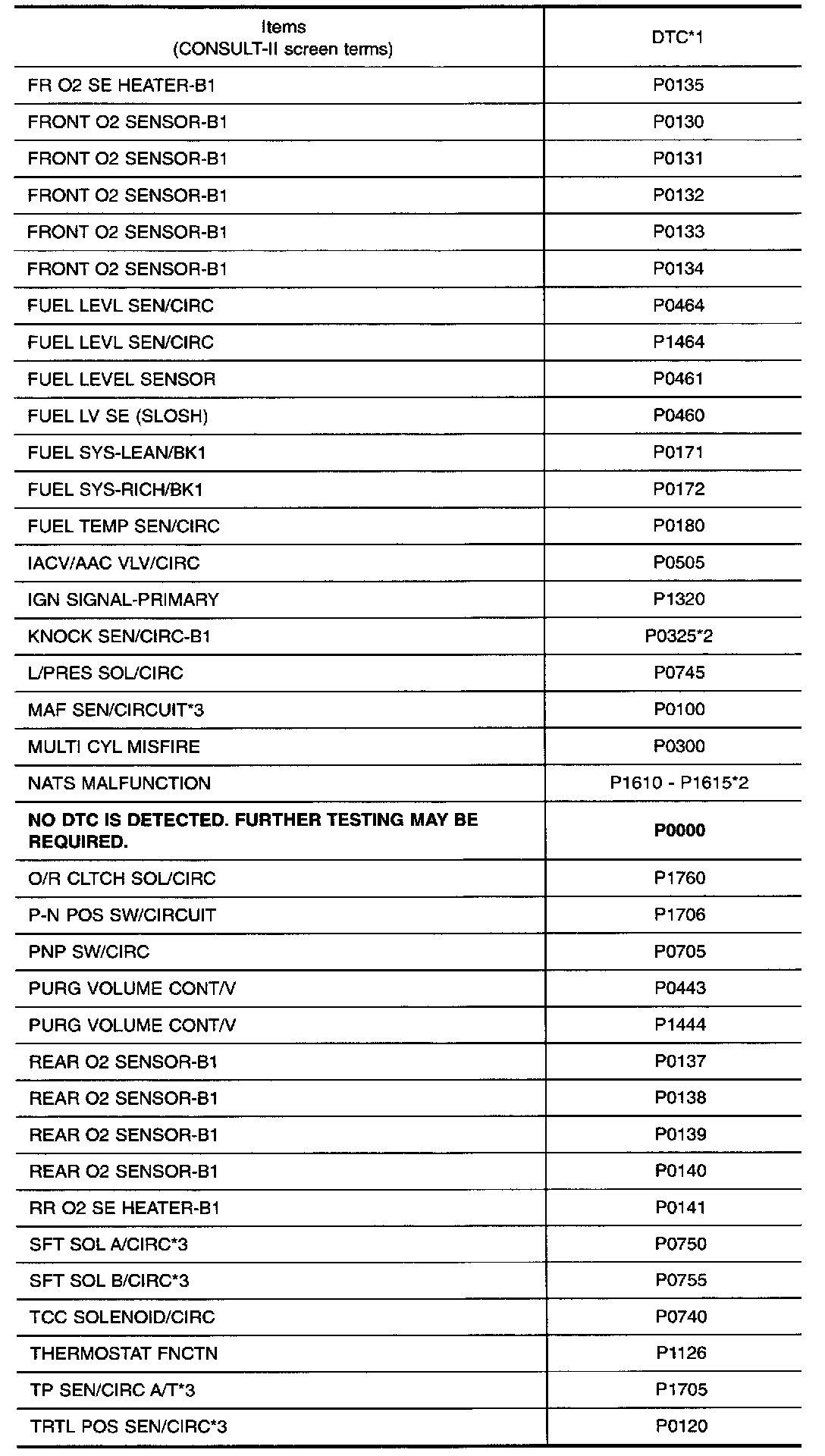

ALPHABETICAL INDEX FOR DTC
*1: 1st trip DTC No. is the same as DTC No.
*2: This DTC is displayed with CONSULT-II only.
*3: When the fail-safe operation occurs, the MIL illuminates.
*4: The MIL illuminates when both the "Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at the same time.

P0000 - P0443:

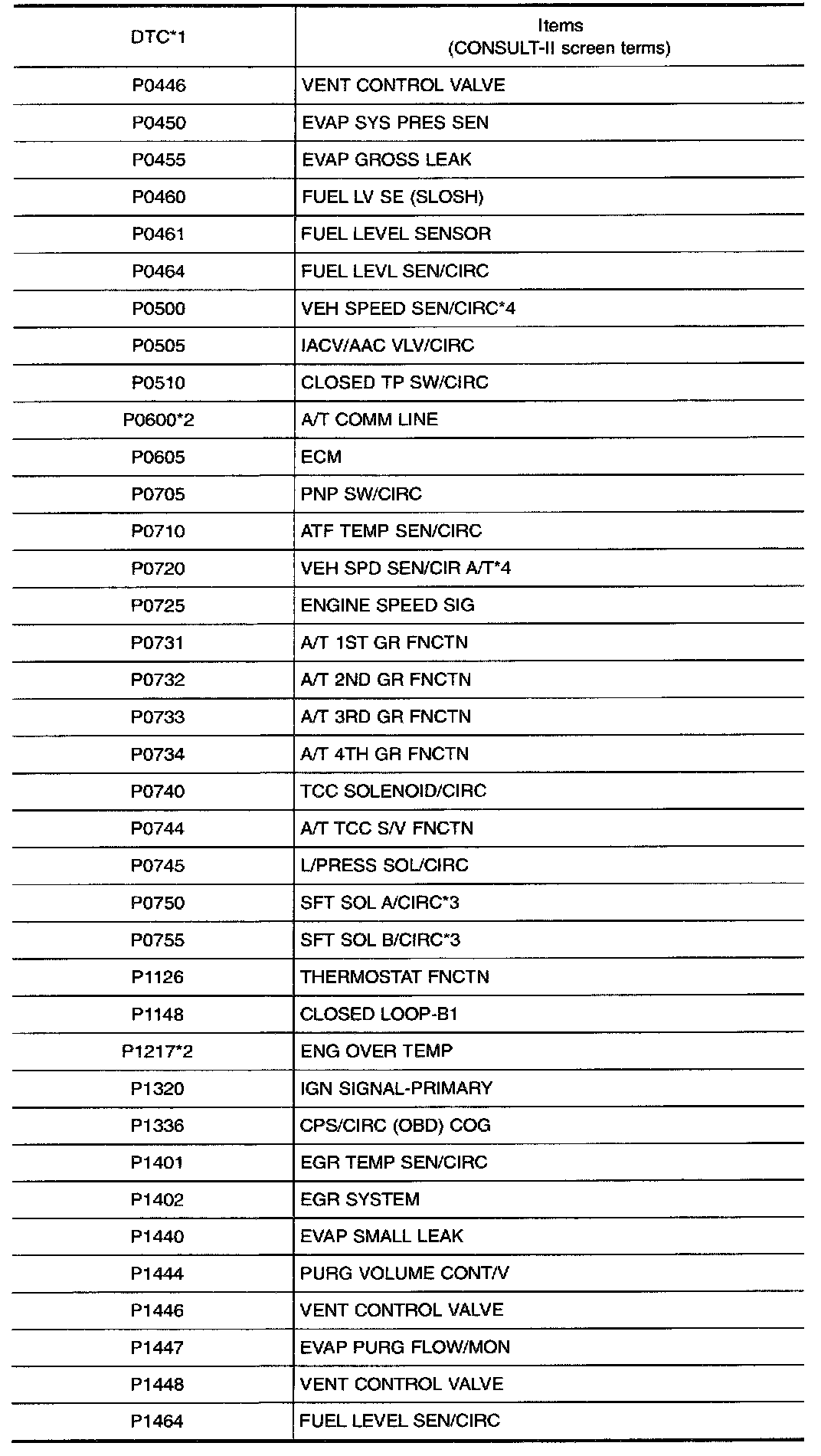

P0446 - P1464:

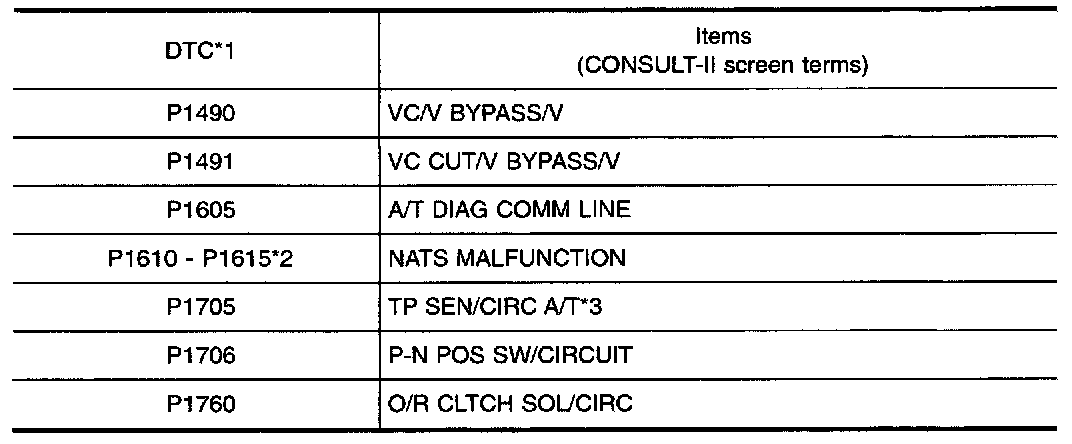

P1490 - P1760:

P.NO INDEX FOR DTC
*1:1st trip DTC No. is the same as DTC No.
*2: This DTC is displayed with CONSULT-II only.
*3: When the fail-safe operation occurs, the MIL illuminates.
*4: The MIL illuminates when both the Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at the same time.
