Auto Amp. Check

INSPECTION OF AUTO AMP.




- Measure voltage between each terminal and body ground by following "AUTO AMP. INSPECTION TABLE".




- Pin connector terminal layout

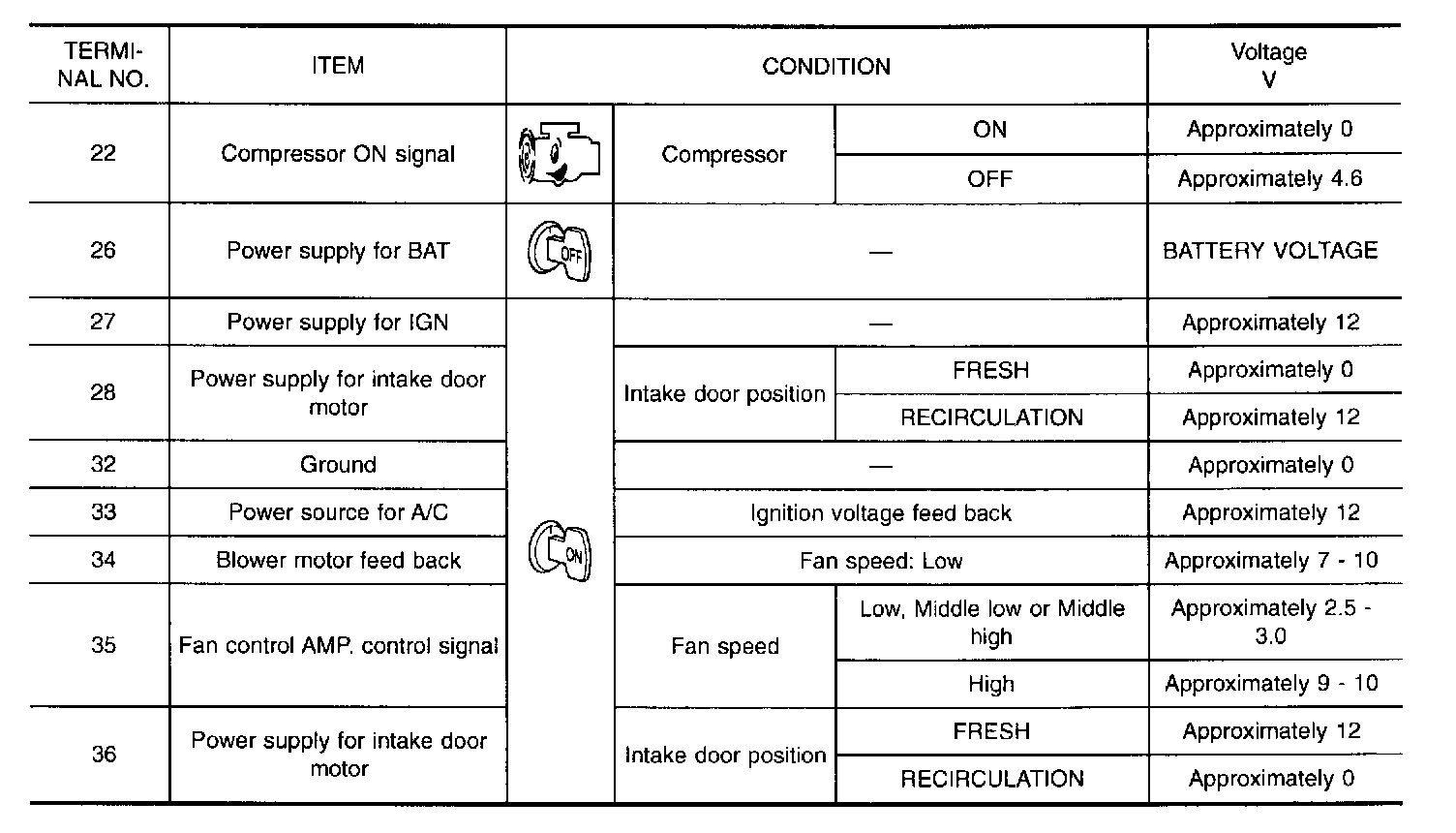

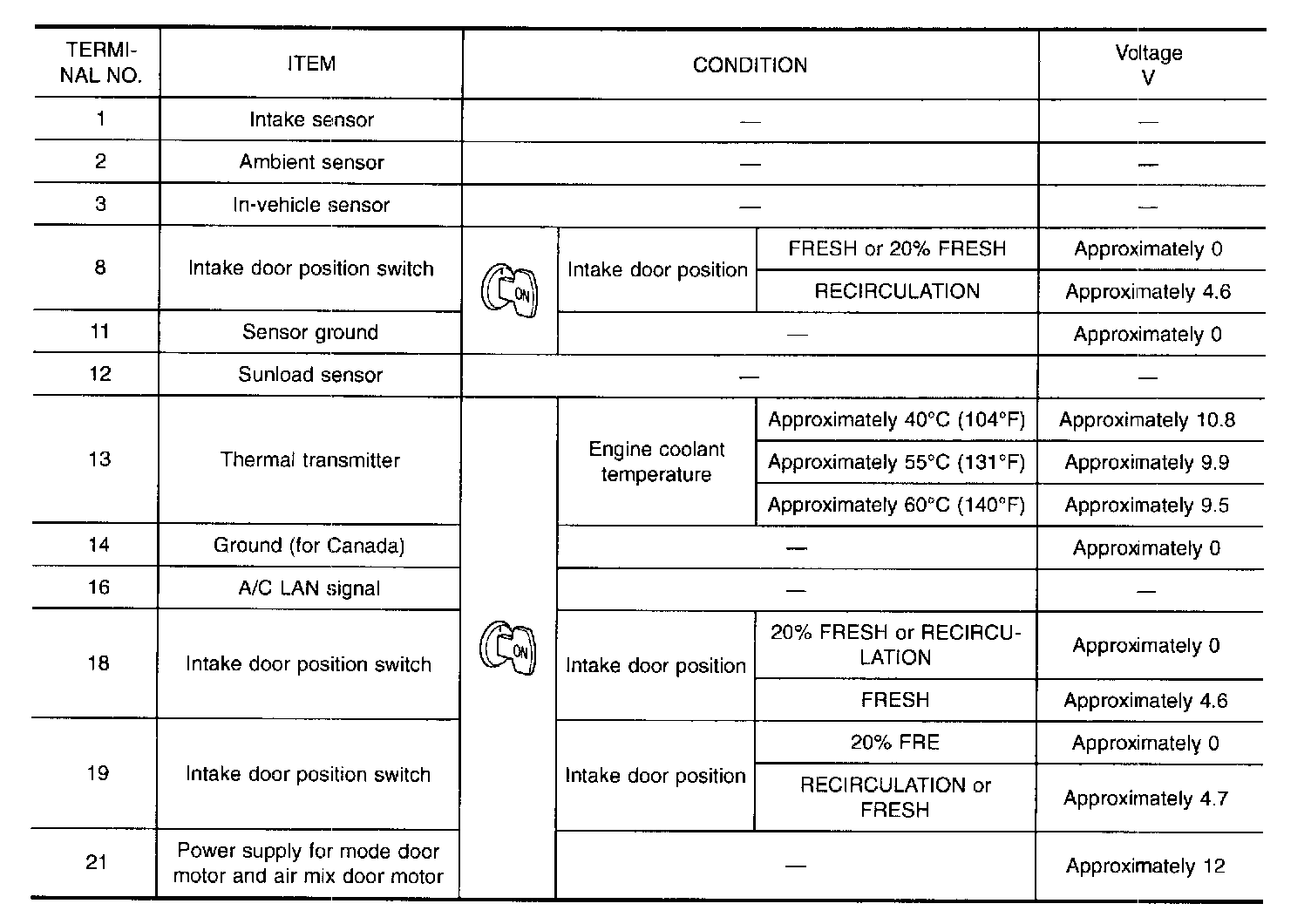

AUTO AMP. INSPECTION TABLE
