Control Module: Description and Operation

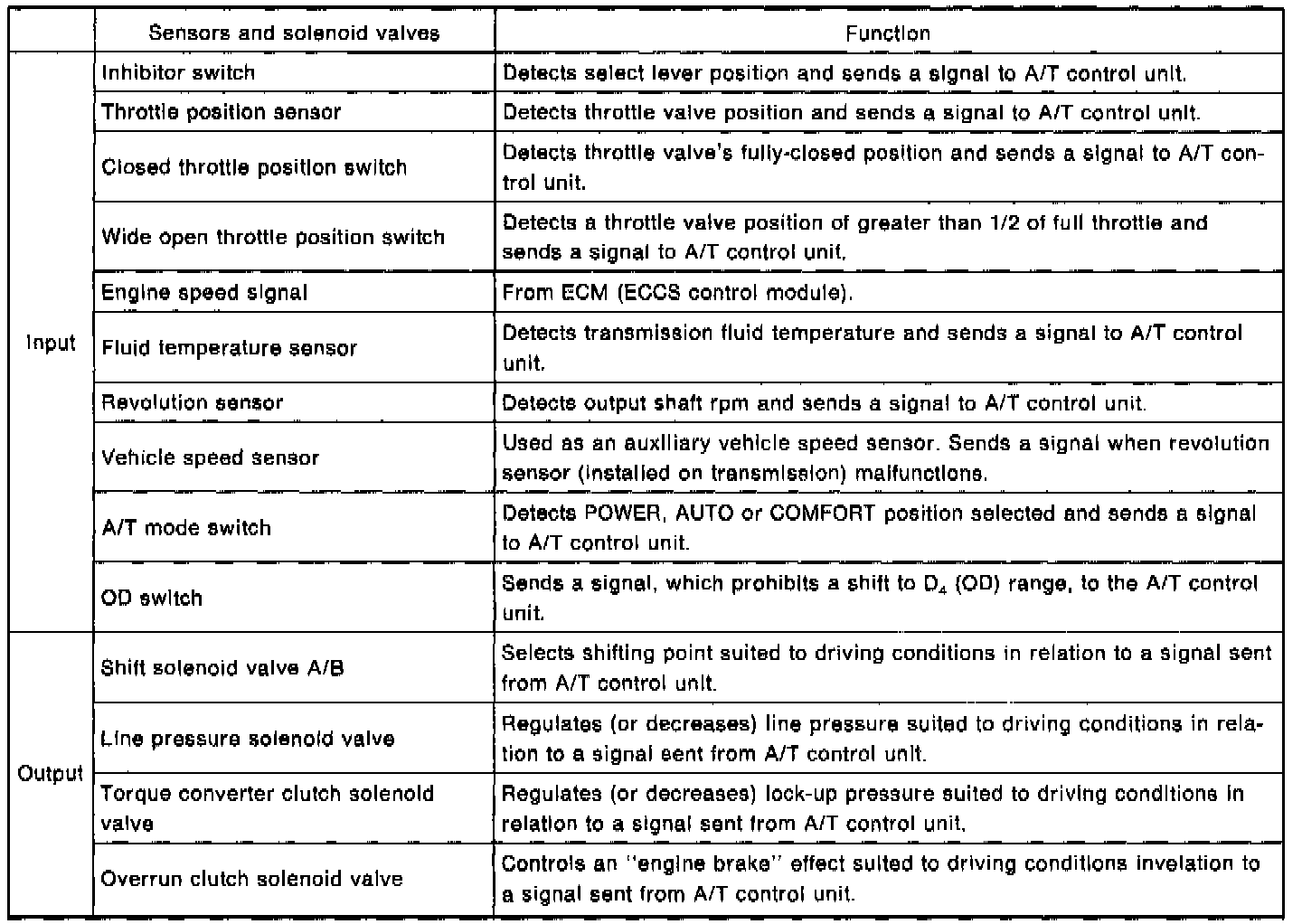

Input/Output Signal Of A/T Control Unit:

OPERATION
The A/T control unit receives signals sent from various switches and sensors. The control unit then determines required line pressure, shifting point, lock-up operation, engine brake operation. The unit sends required signals to the respective solenoids.
