Shift Interlock Control Module: Testing and Inspection

SHIFT LOCK CONTROL UNIT INSPECTION

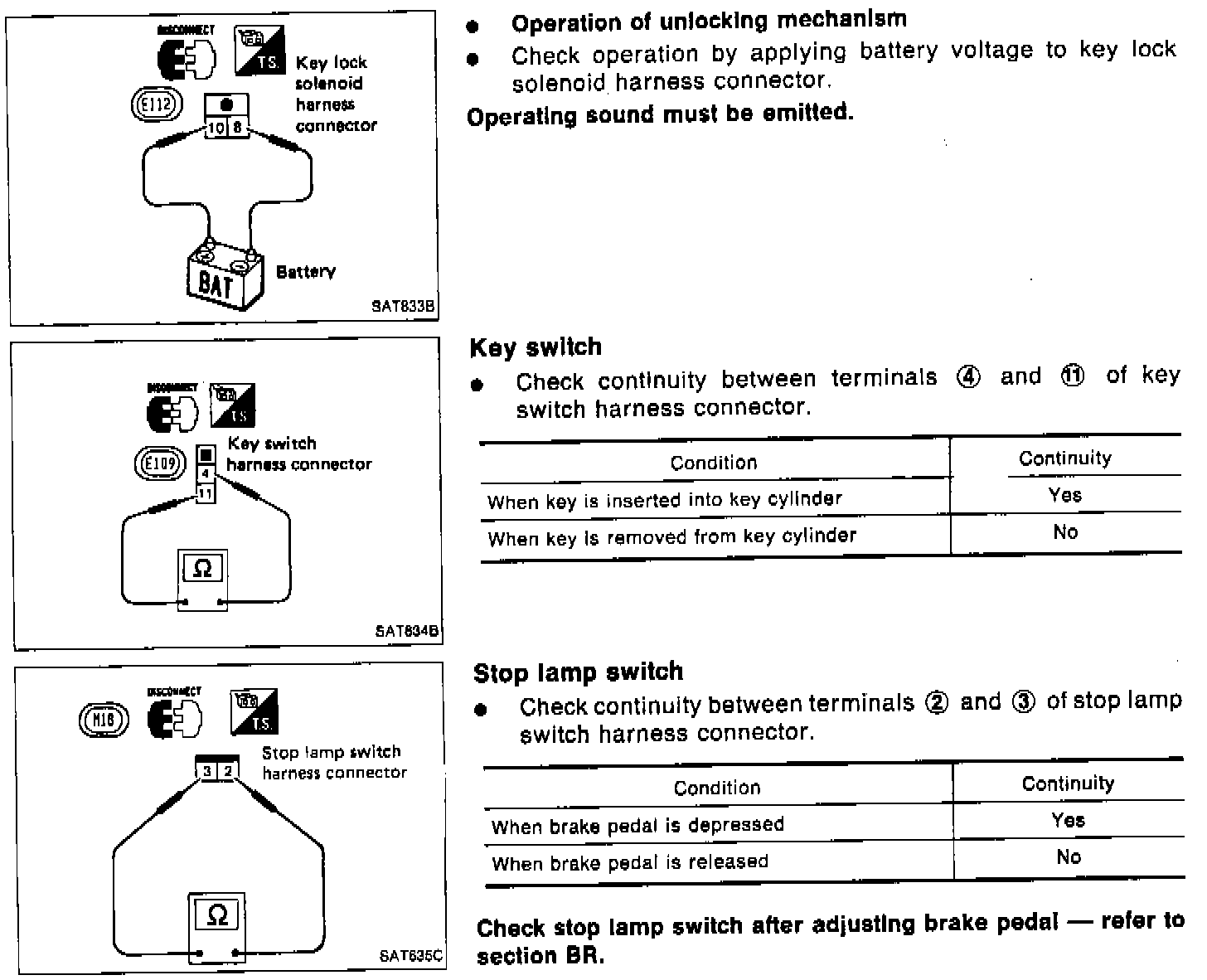

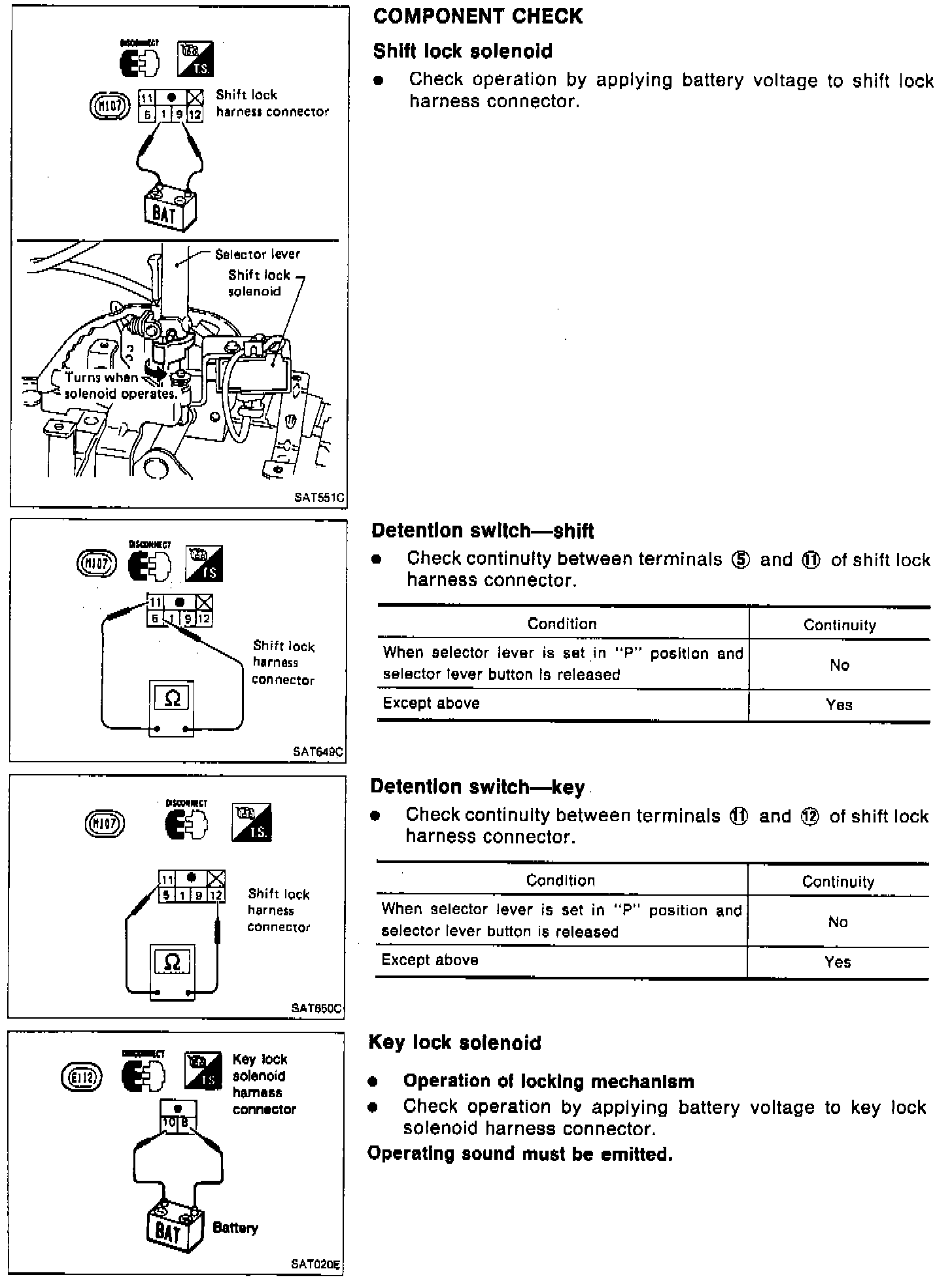

Step 1:





Step 2:





Step 3:

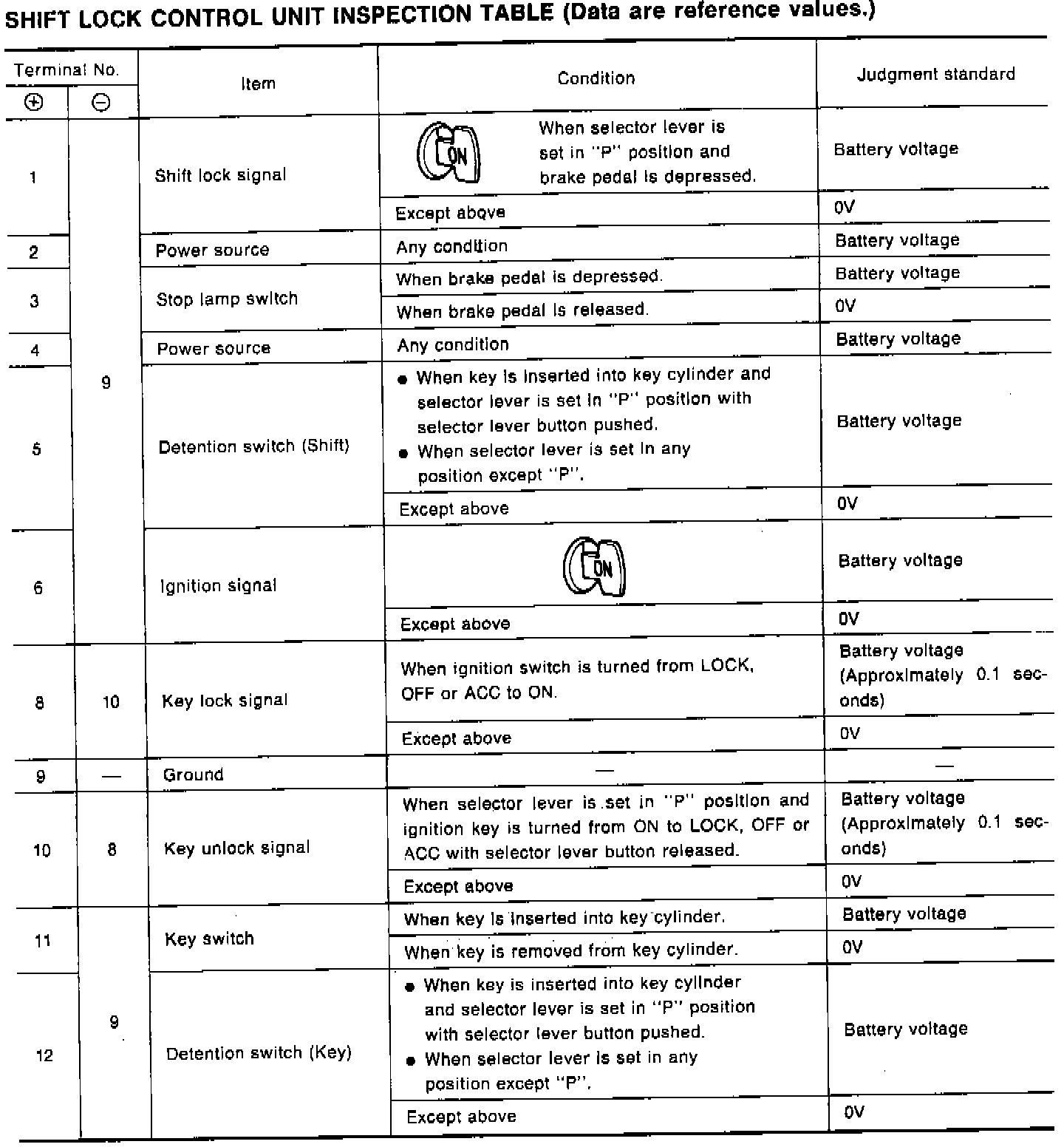

Shift Lock Control Unit Inspection Table:









CIRCUIT DIAGRAM FOR QUICK PINPOINT CHECK
