System Specifications

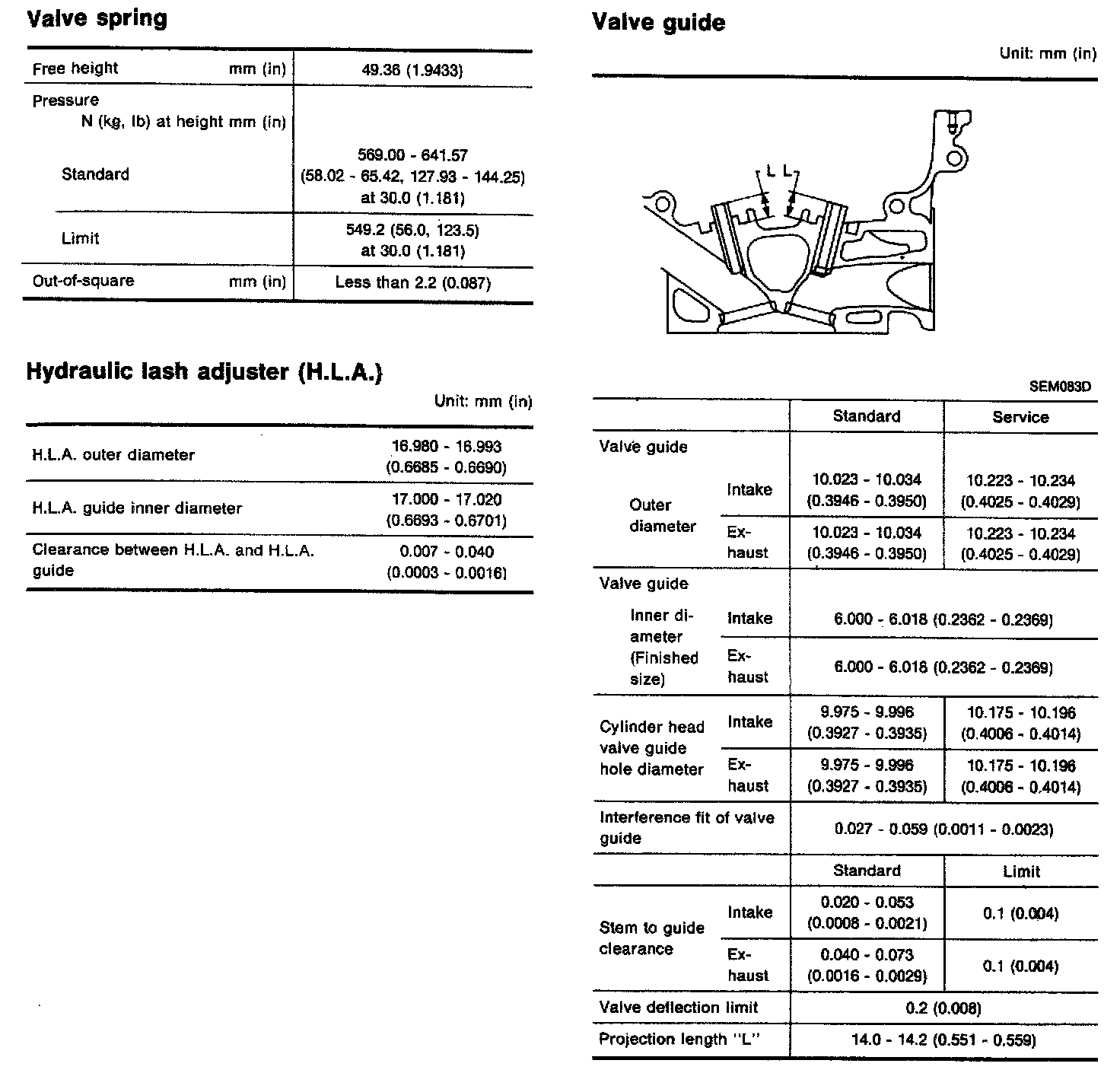

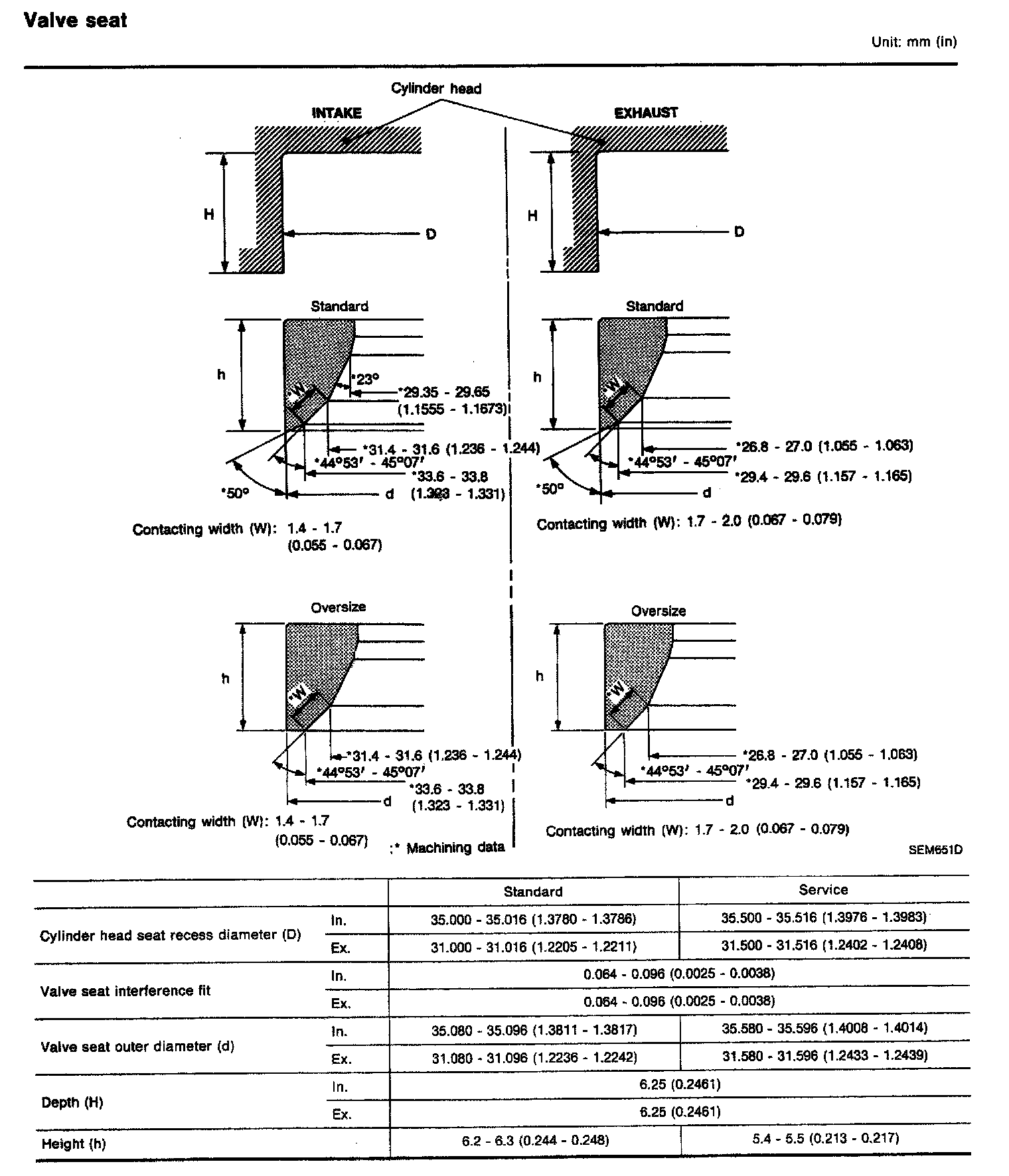

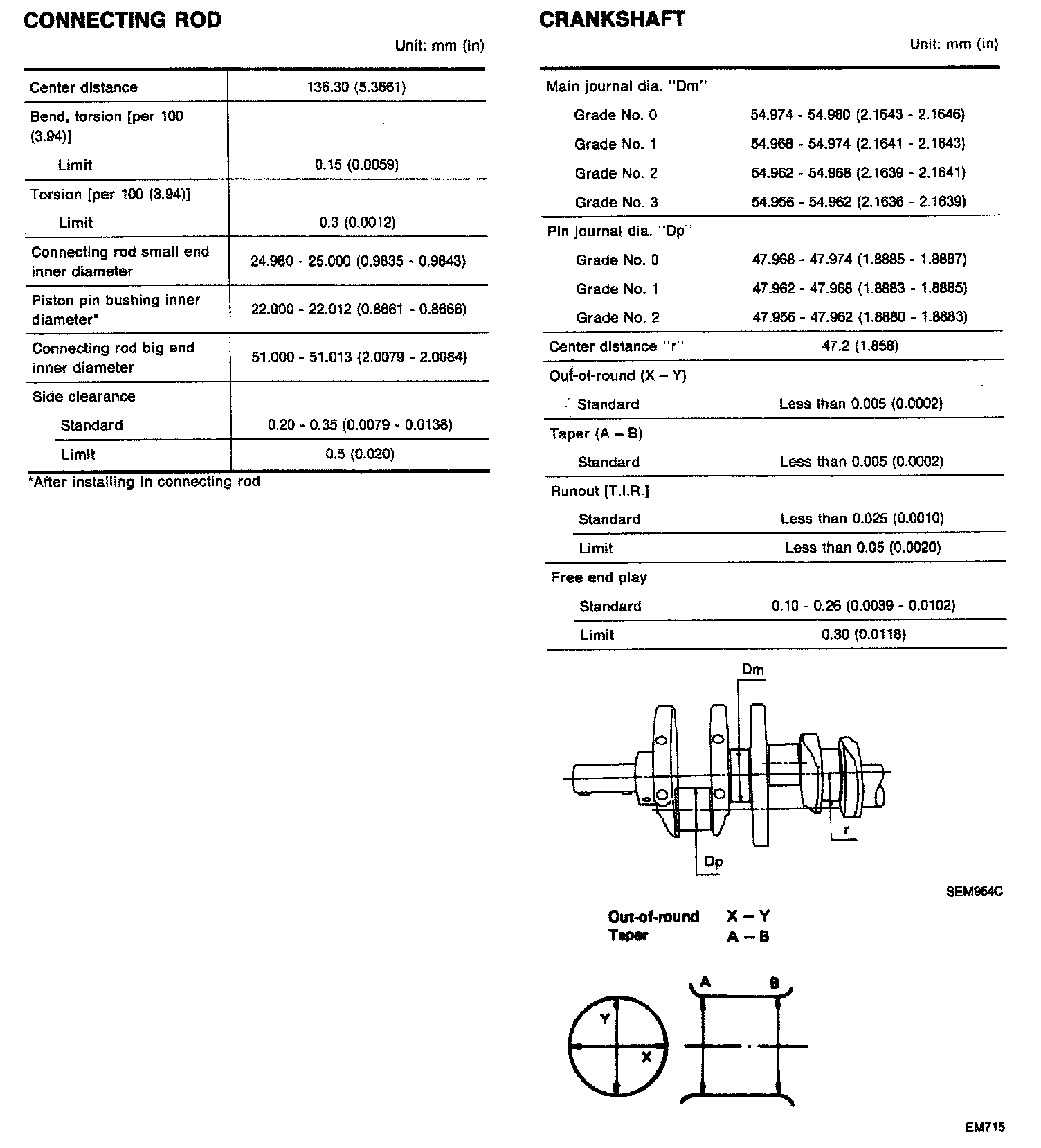

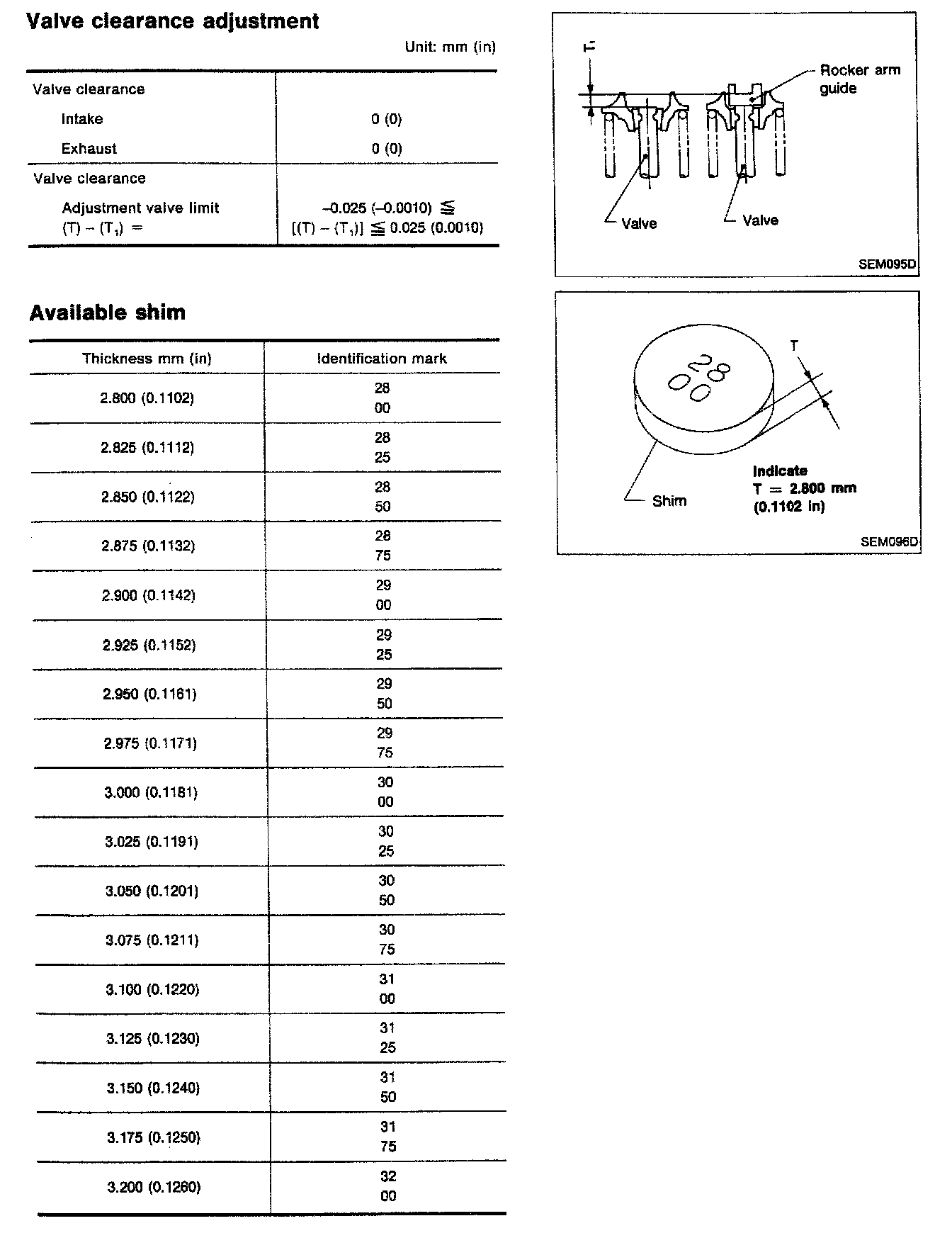

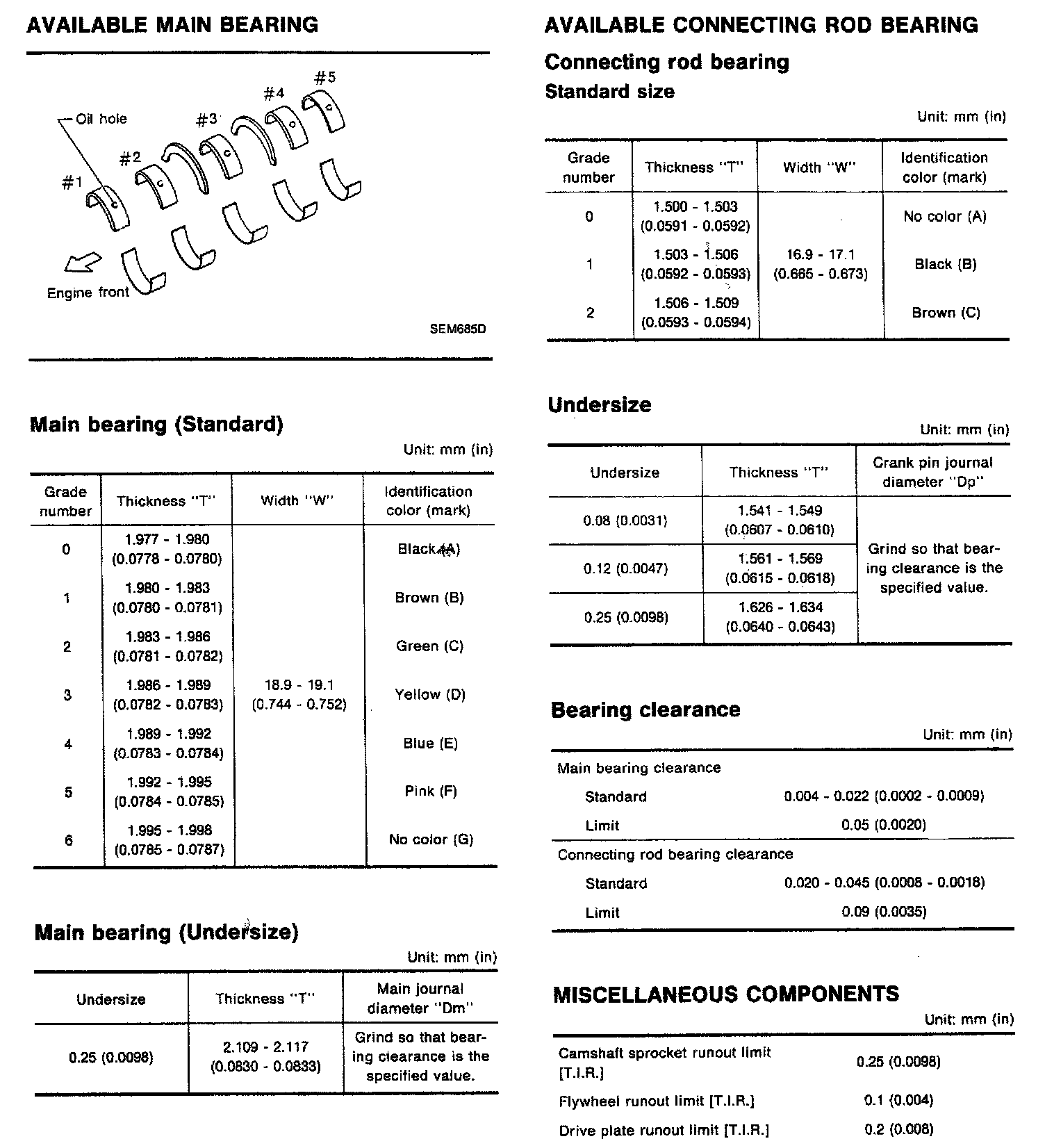

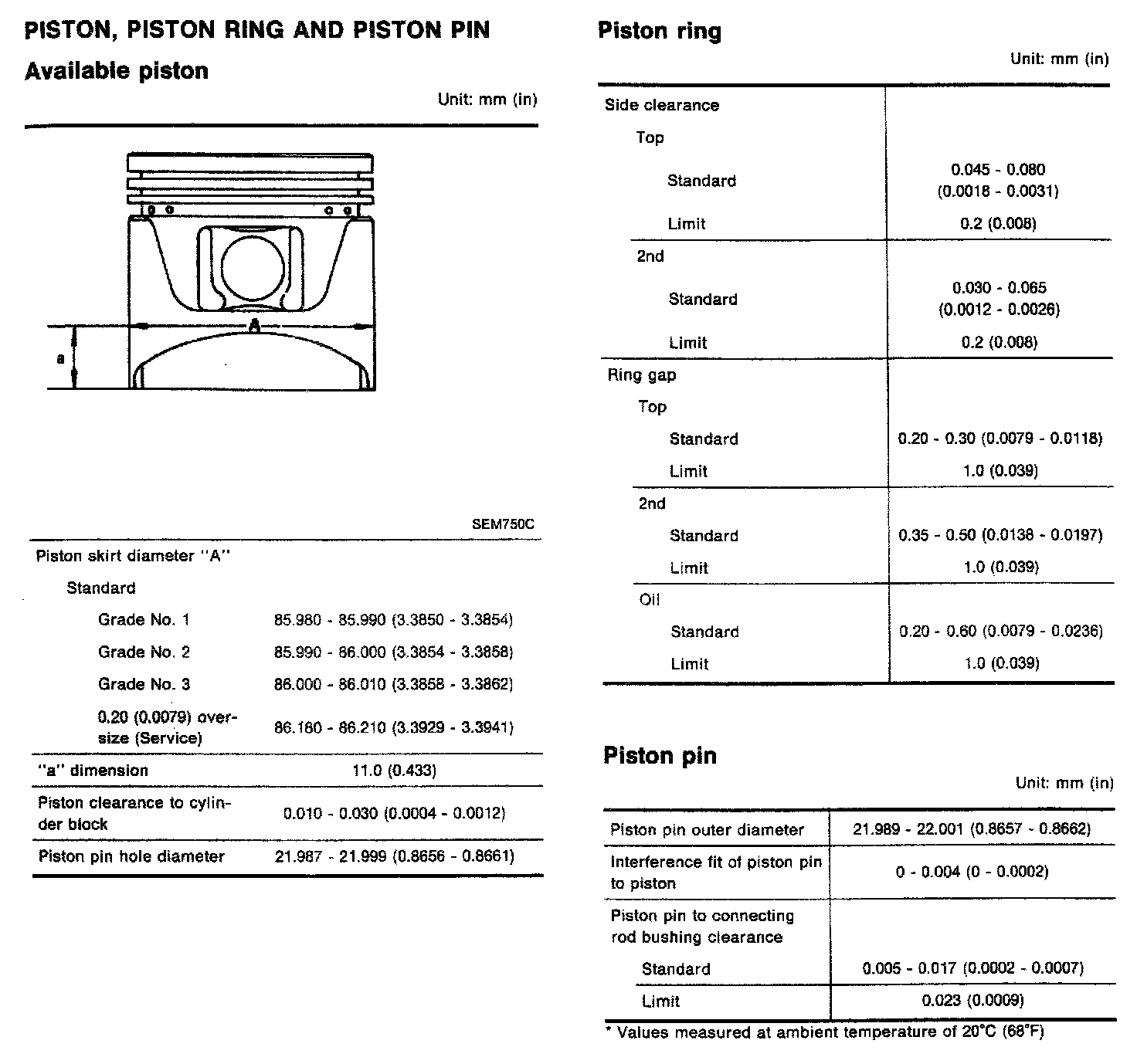

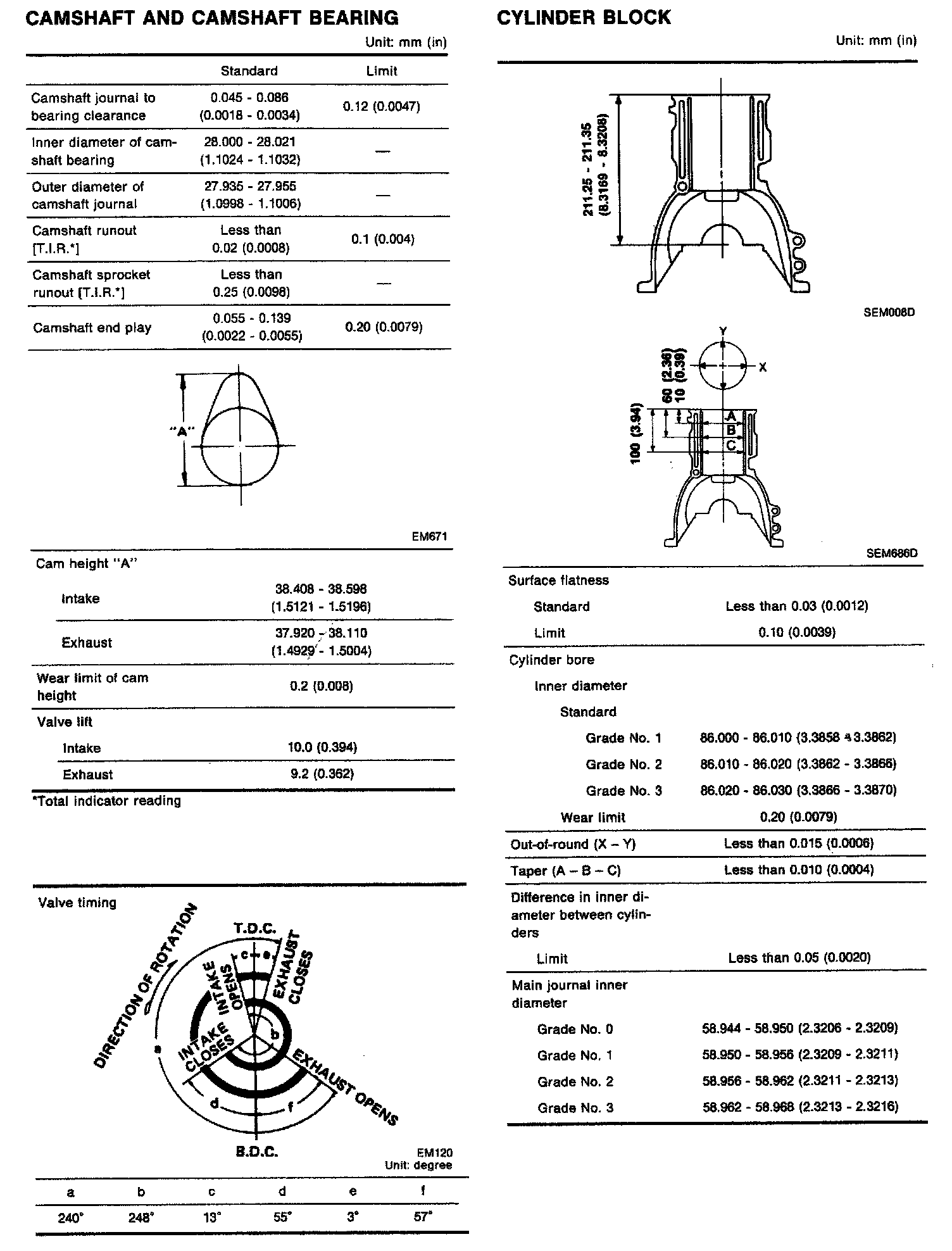

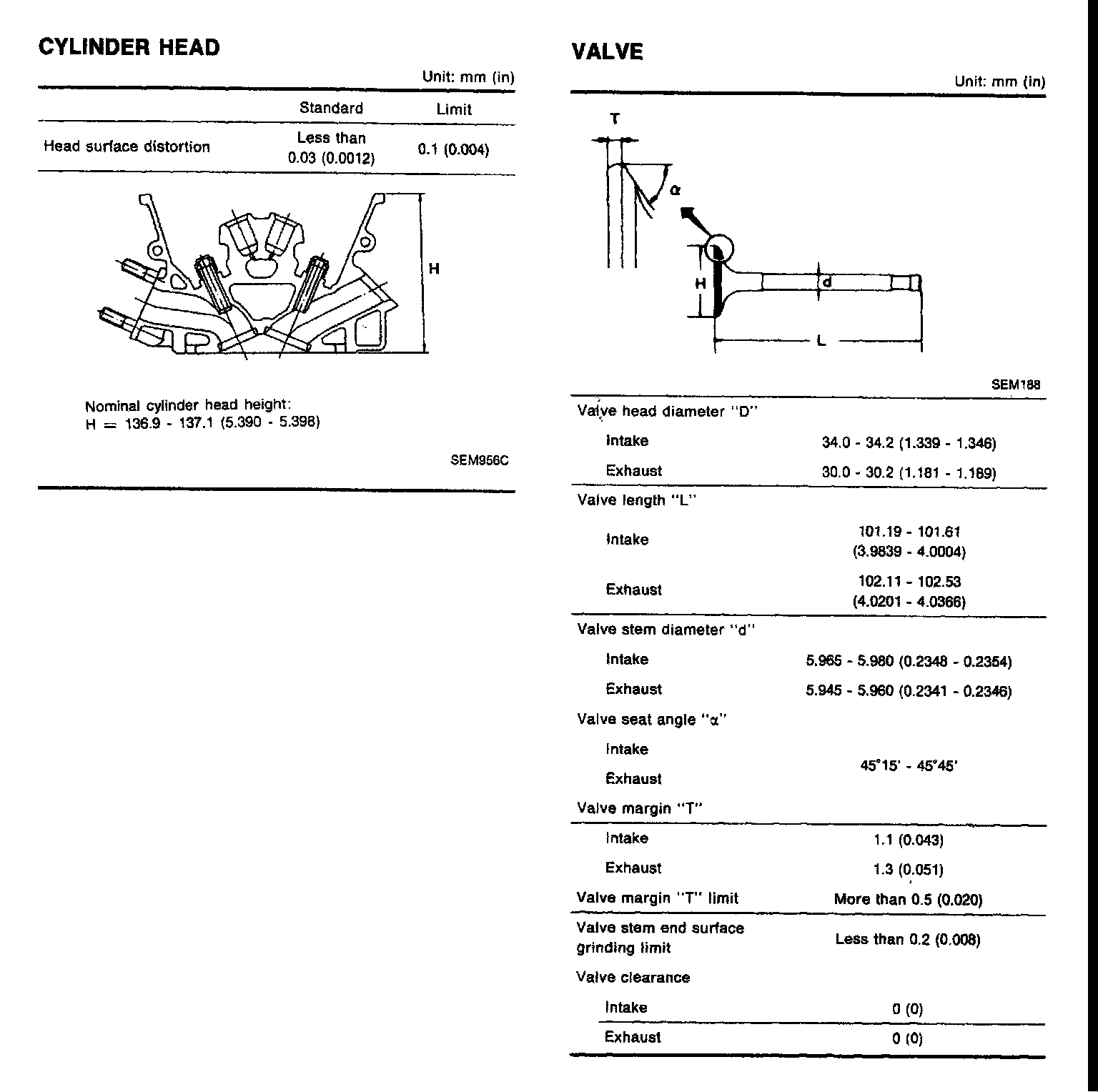

ENGINE SPECIFICATIONS

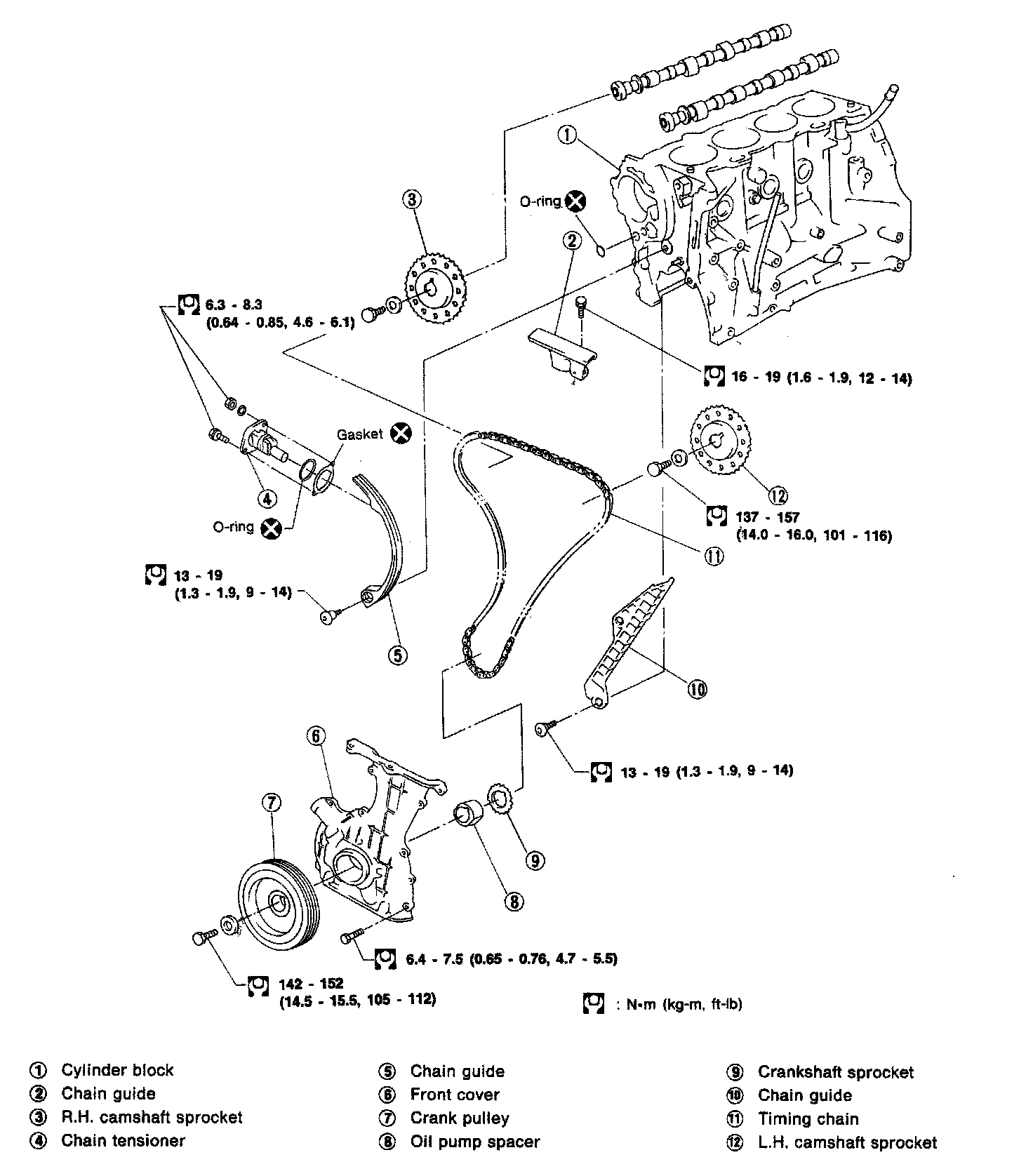

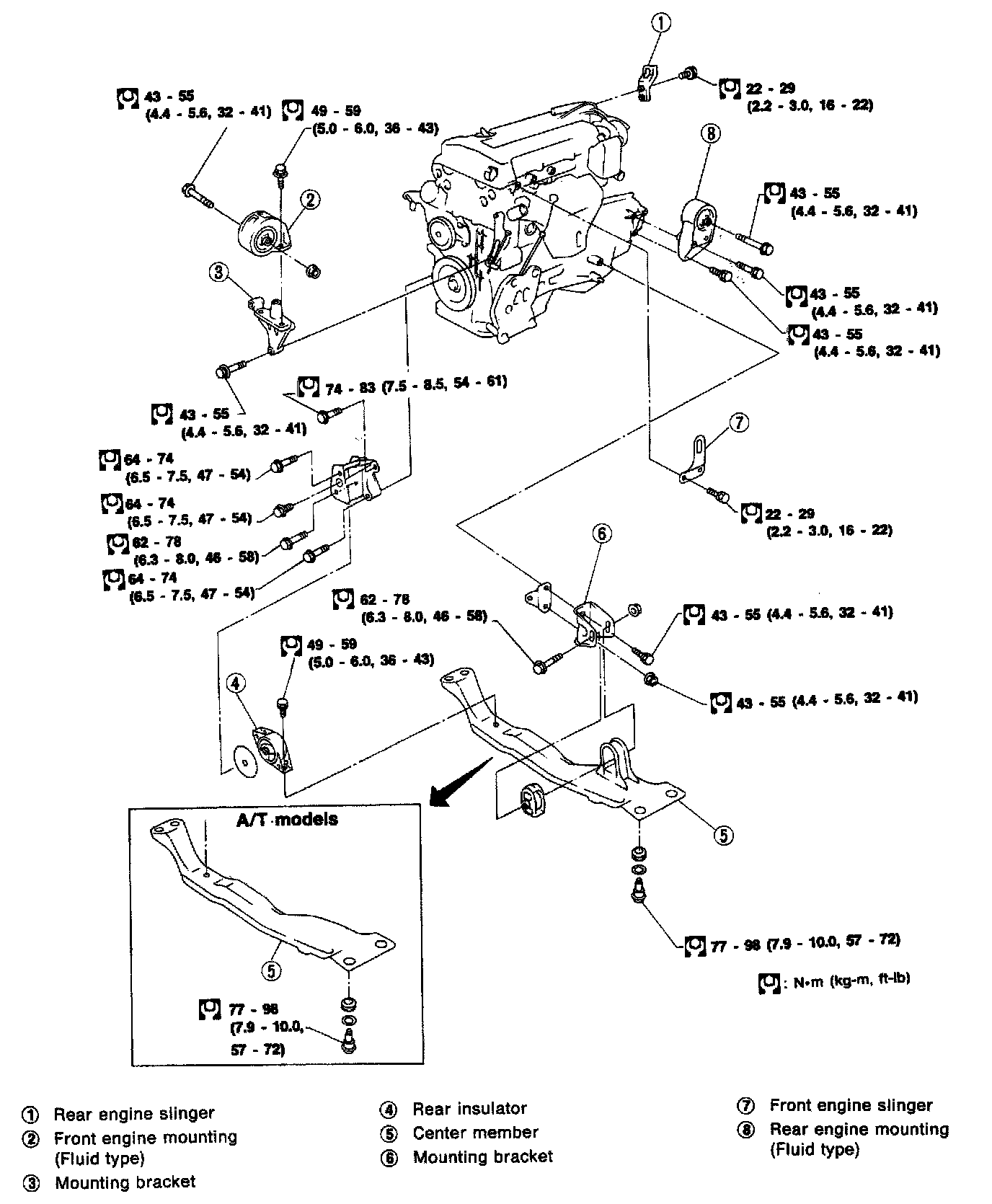

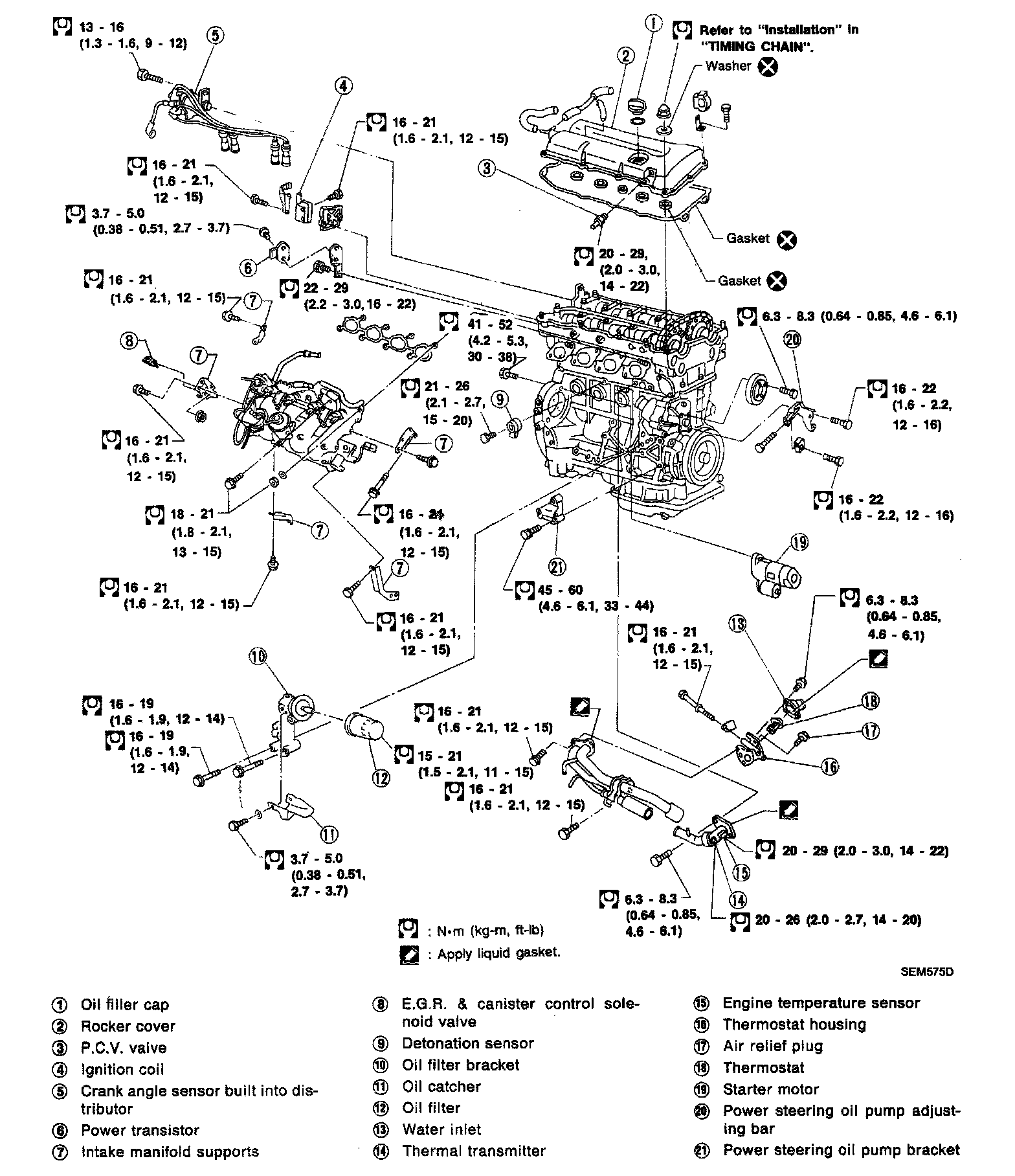

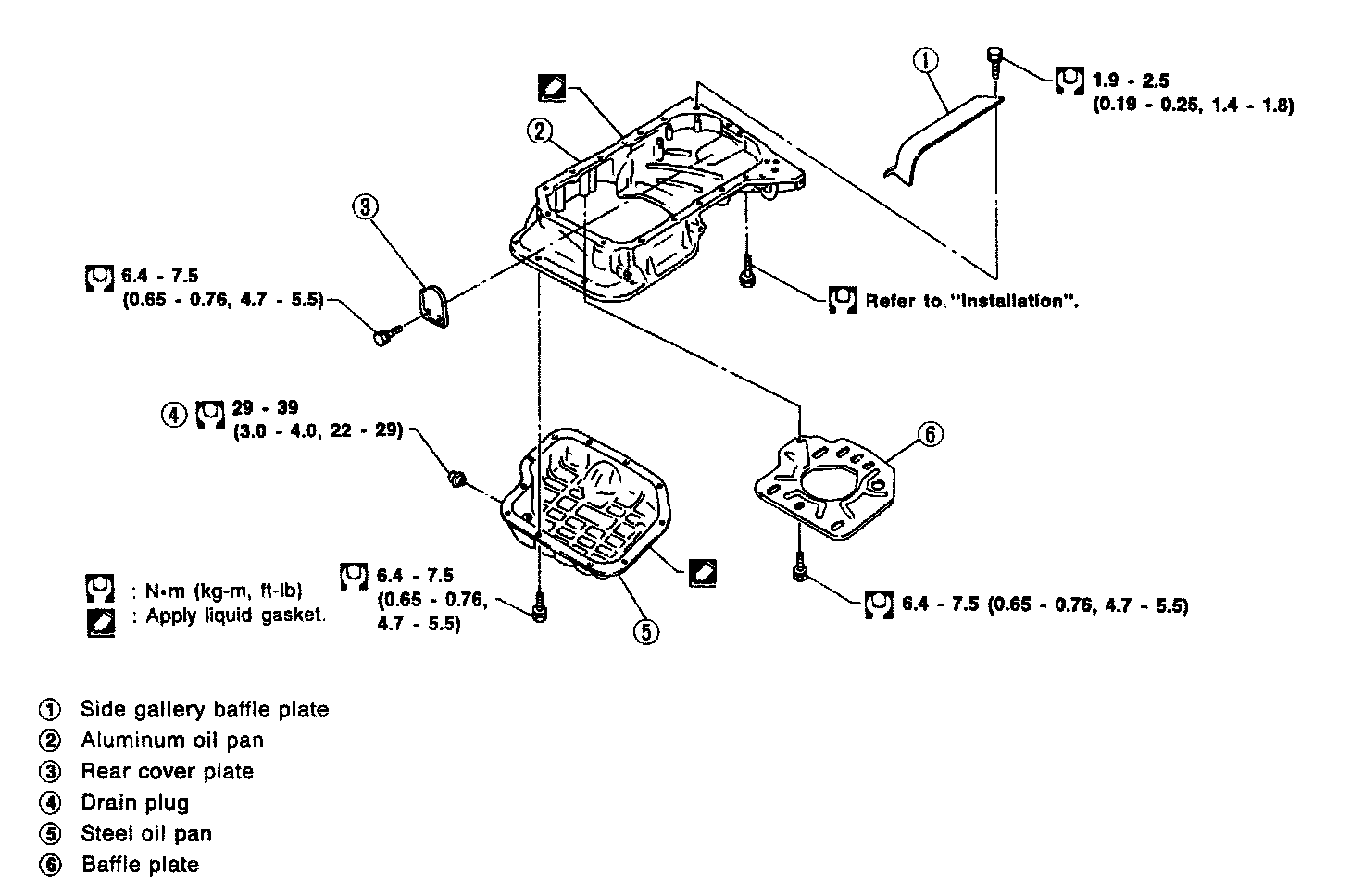

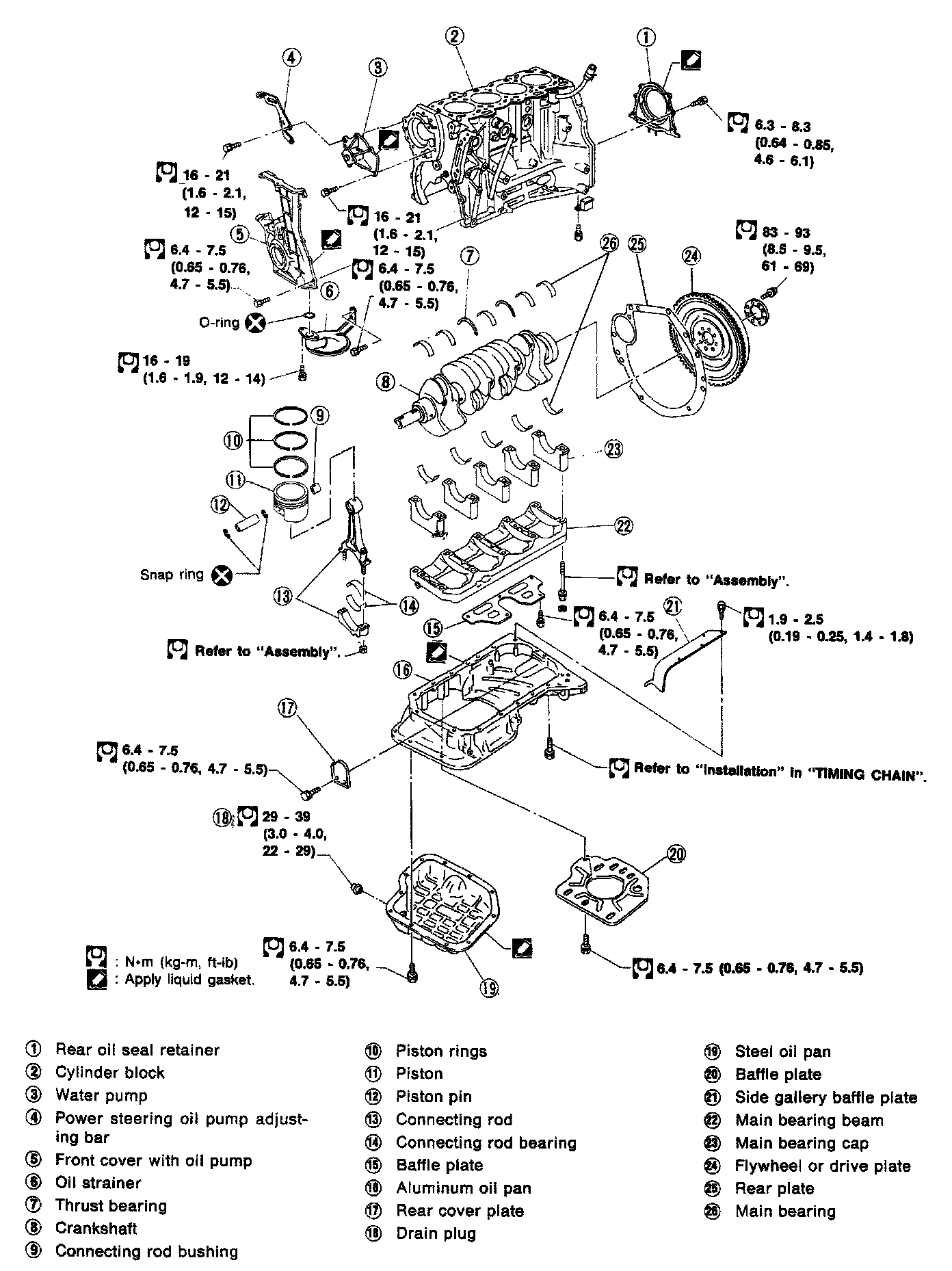

TIGHTENING SPECIFICATIONS

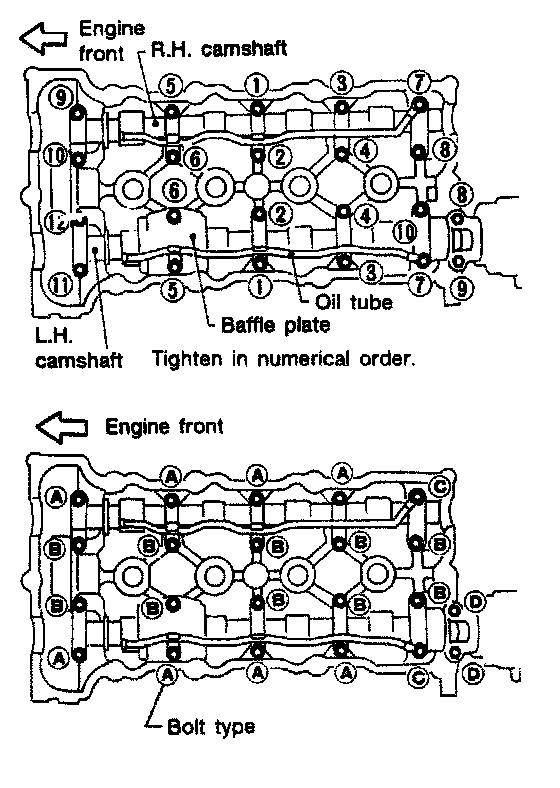

CAMSHAFT TIGHTENING SEQUENCE

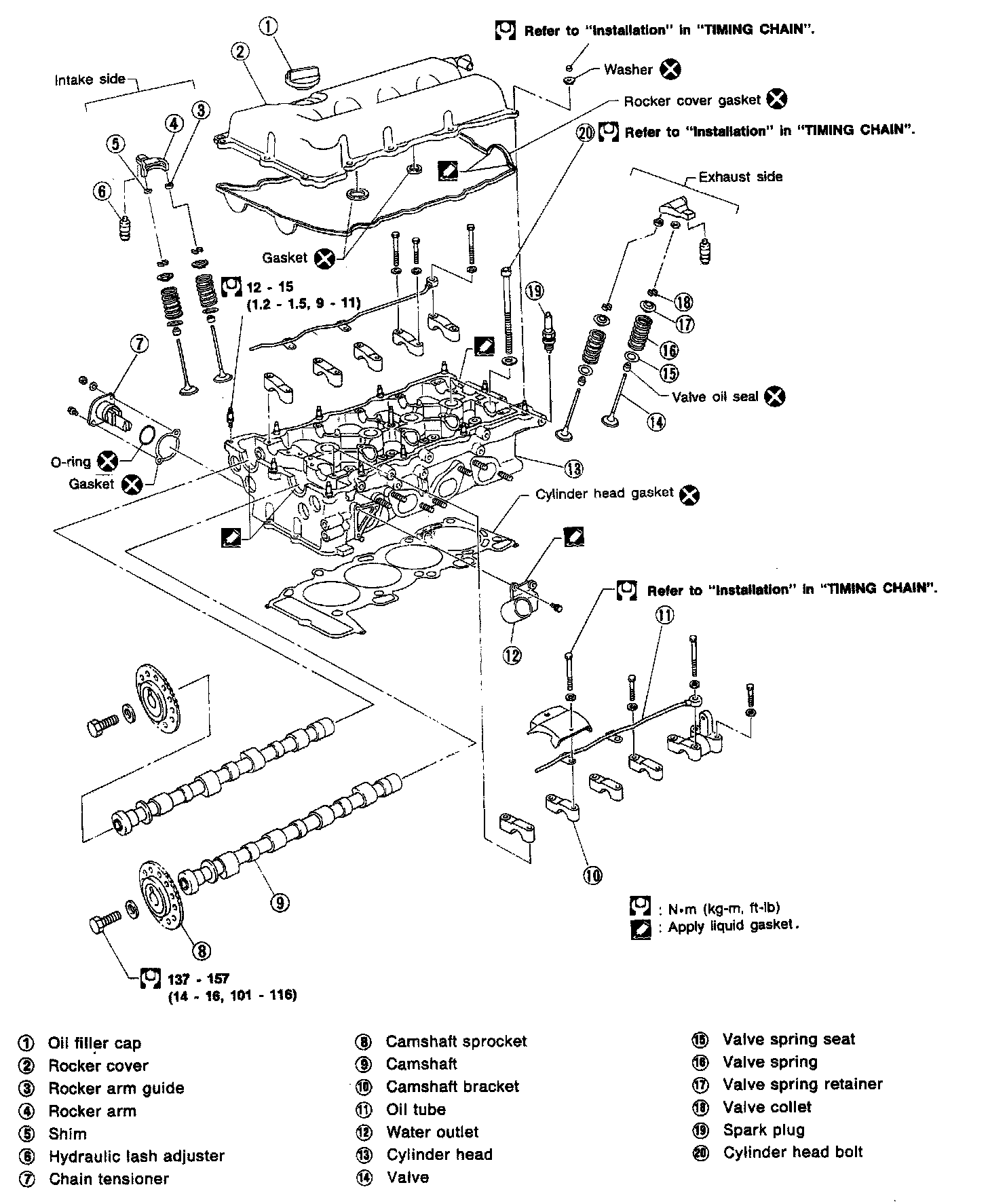

CYLINDER HEAD TIGHTENING SEQUENCE

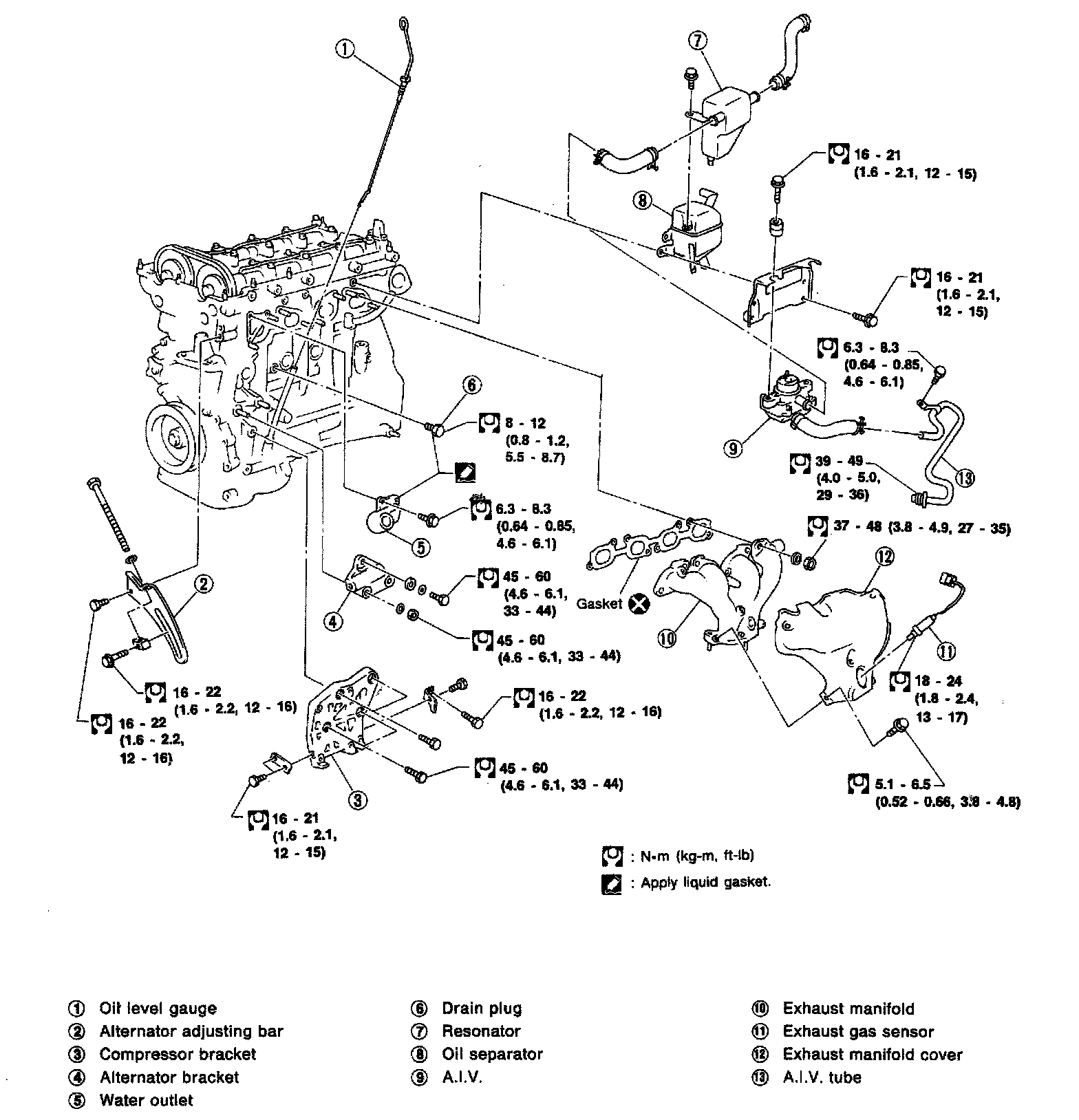

EXHAUST MANIFOLD TIGHTENING SEQUENCE

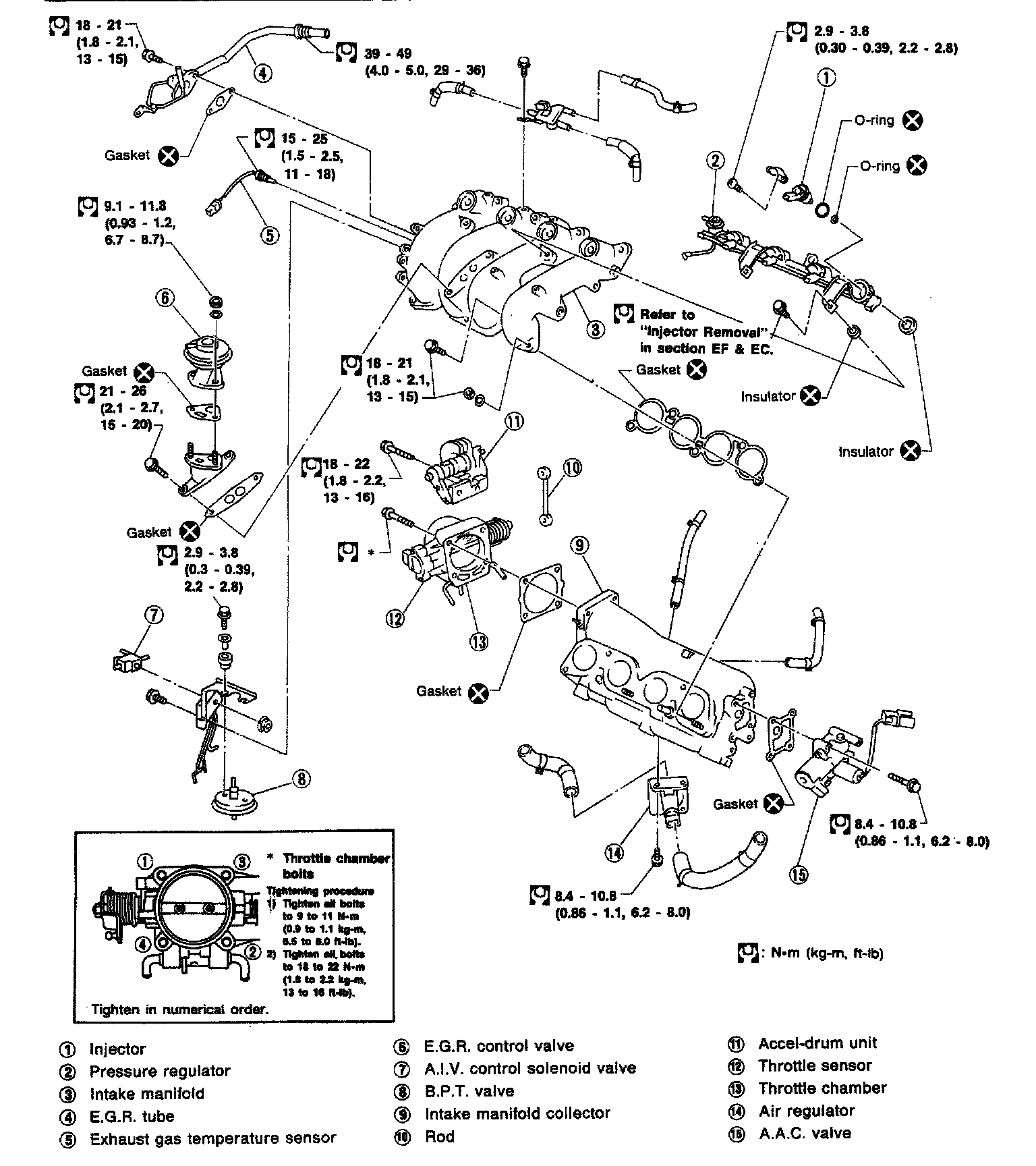

INTAKE MANIFOLD TIGHTENING SEQUENCE









MAIN BEARING TIGHTENING SEQUENCE





VALVE COVER TIGHTENING SEQUENCE
