Home >> Infiniti Truck >> 2012 >> FX50 AWD V8-5.0L (VK50VE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations >> 7AT RE7R01B >> Shift Pattern Control ASC (Adaptive Shift Control)

Shift Pattern Control ASC (Adaptive Shift Control)




SHIFT PATTERN CONTROL

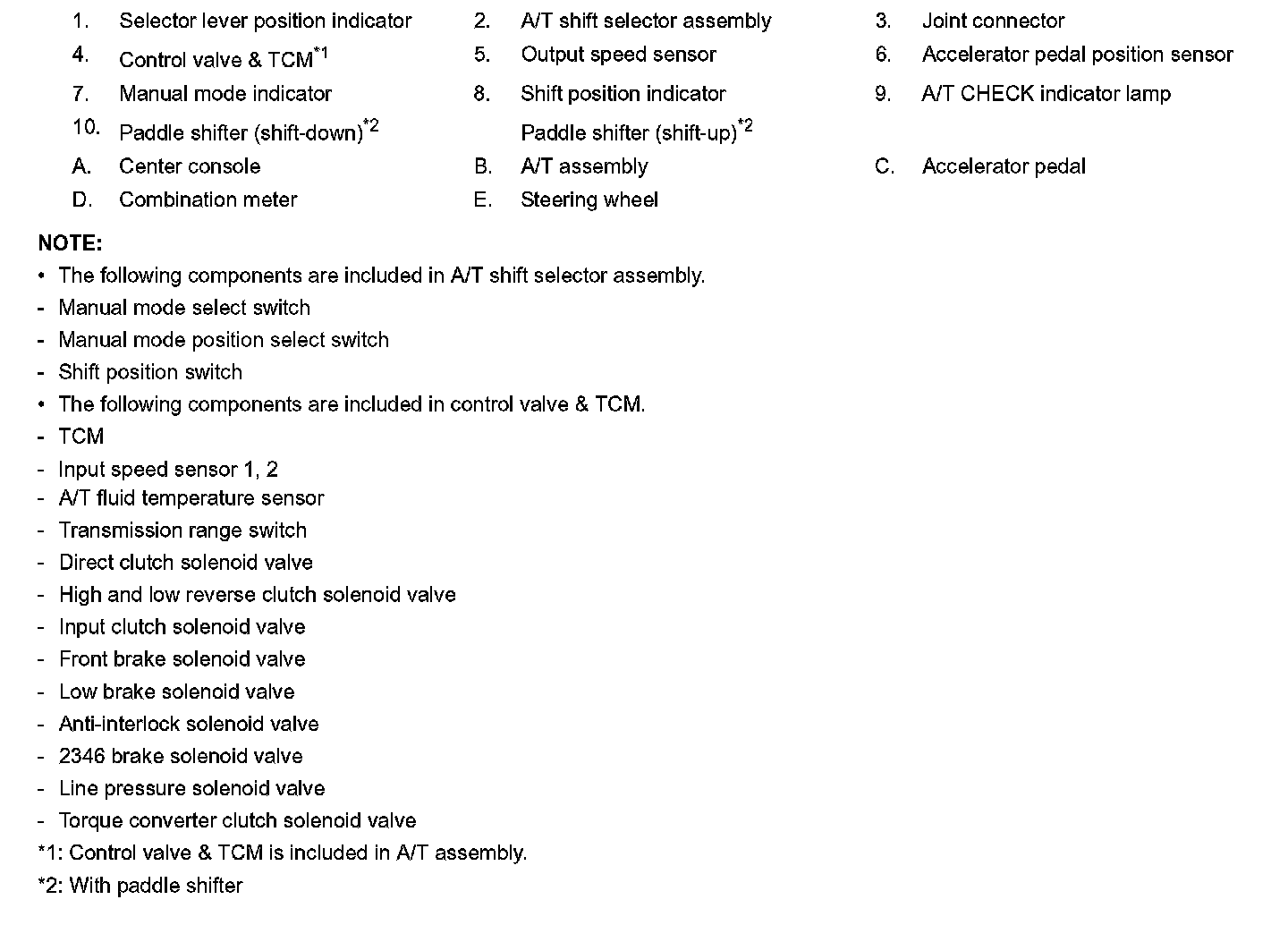

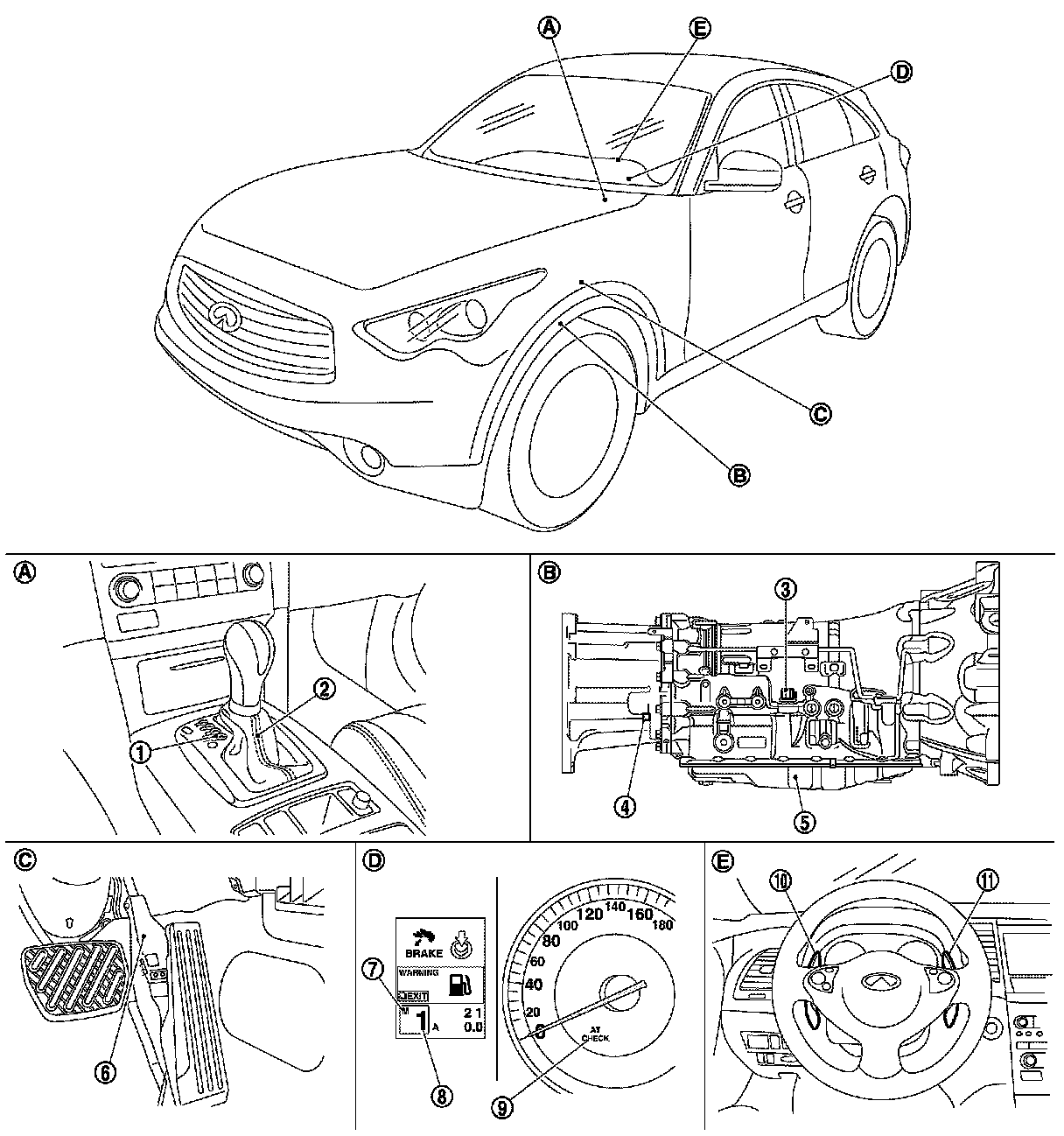

ASC (ADAPTIVE SHIFT CONTROL) : Component Parts Location
