BCM (Body Control Module)




BCM (BODY CONTROL MODULE)

Reference Value

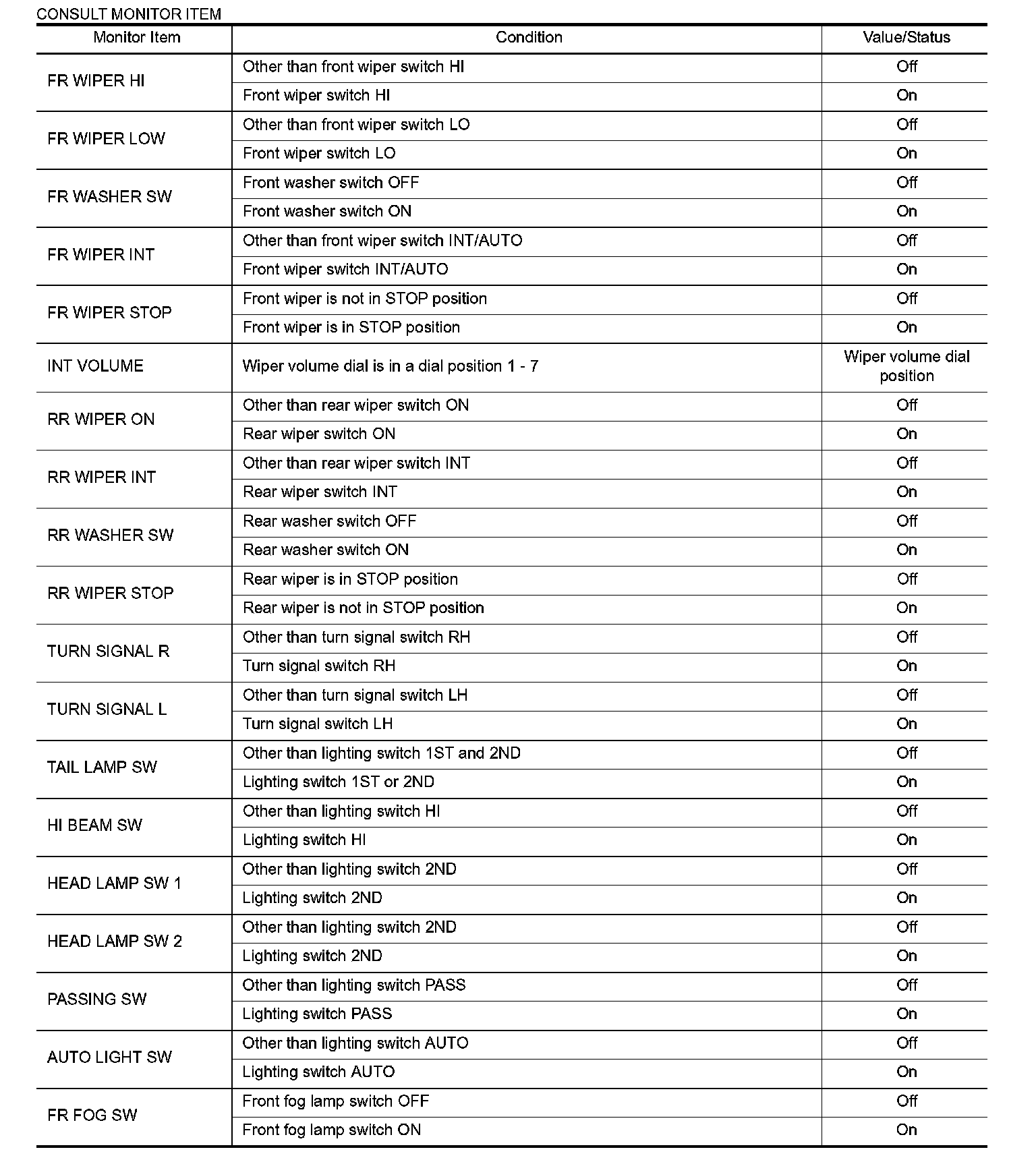

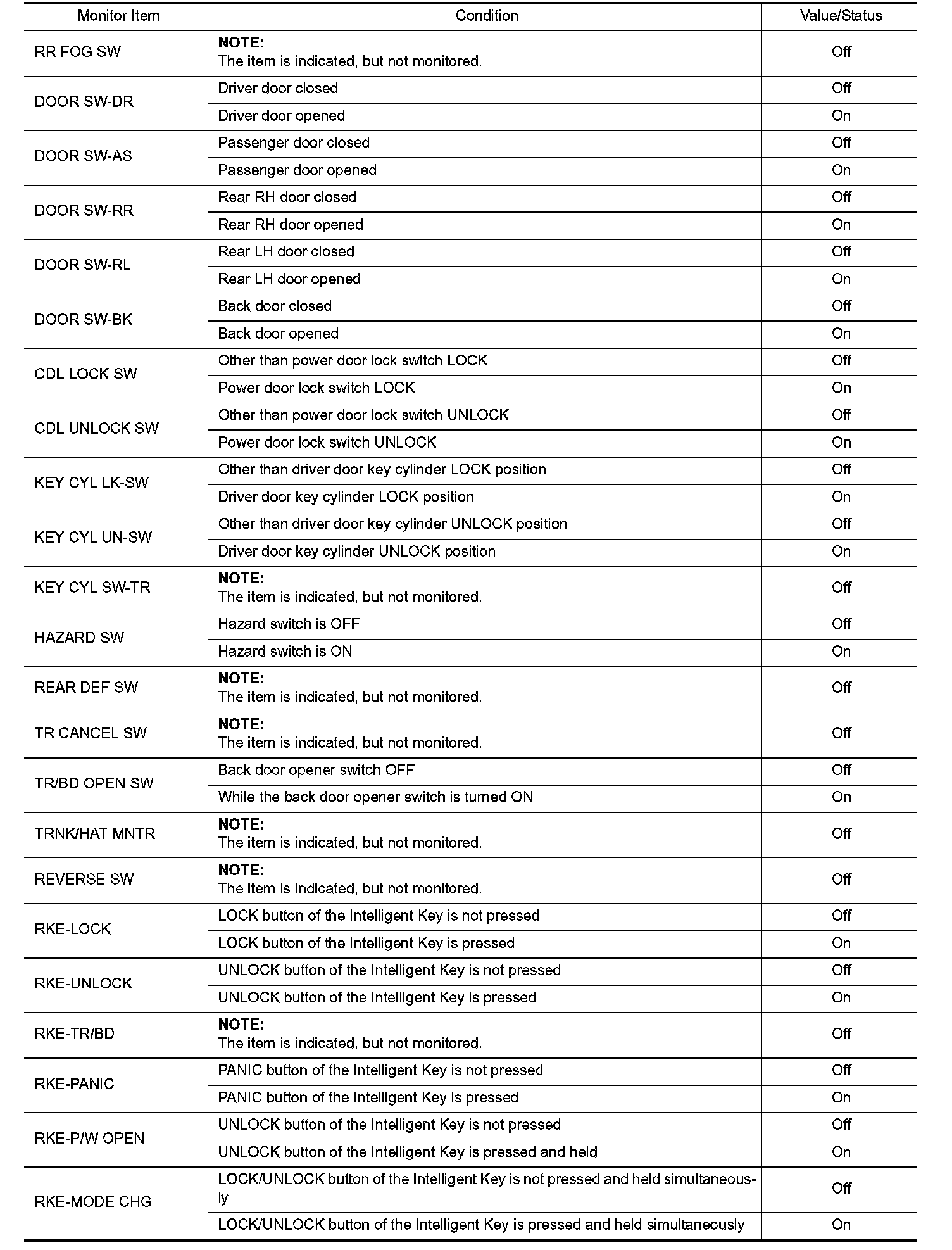

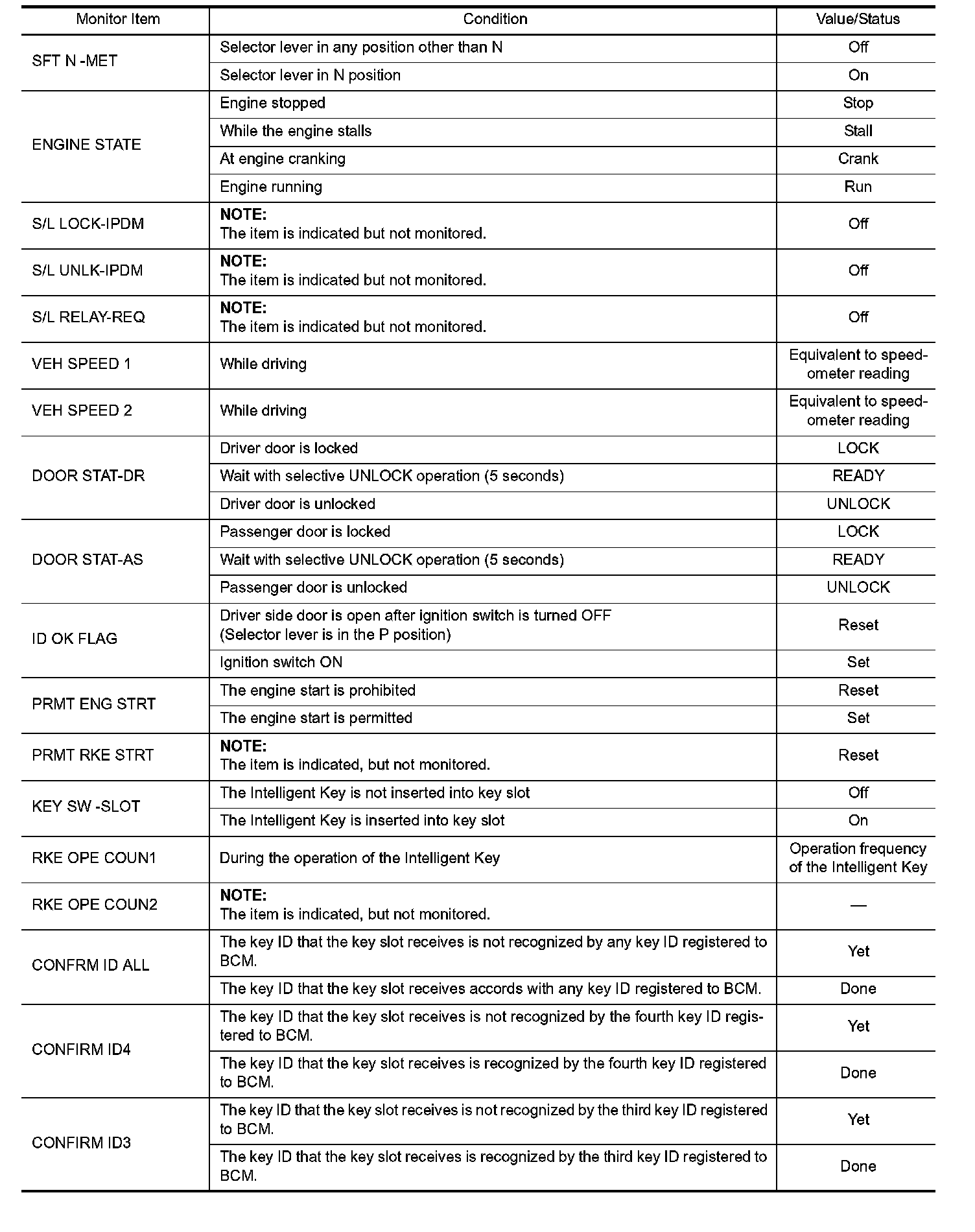

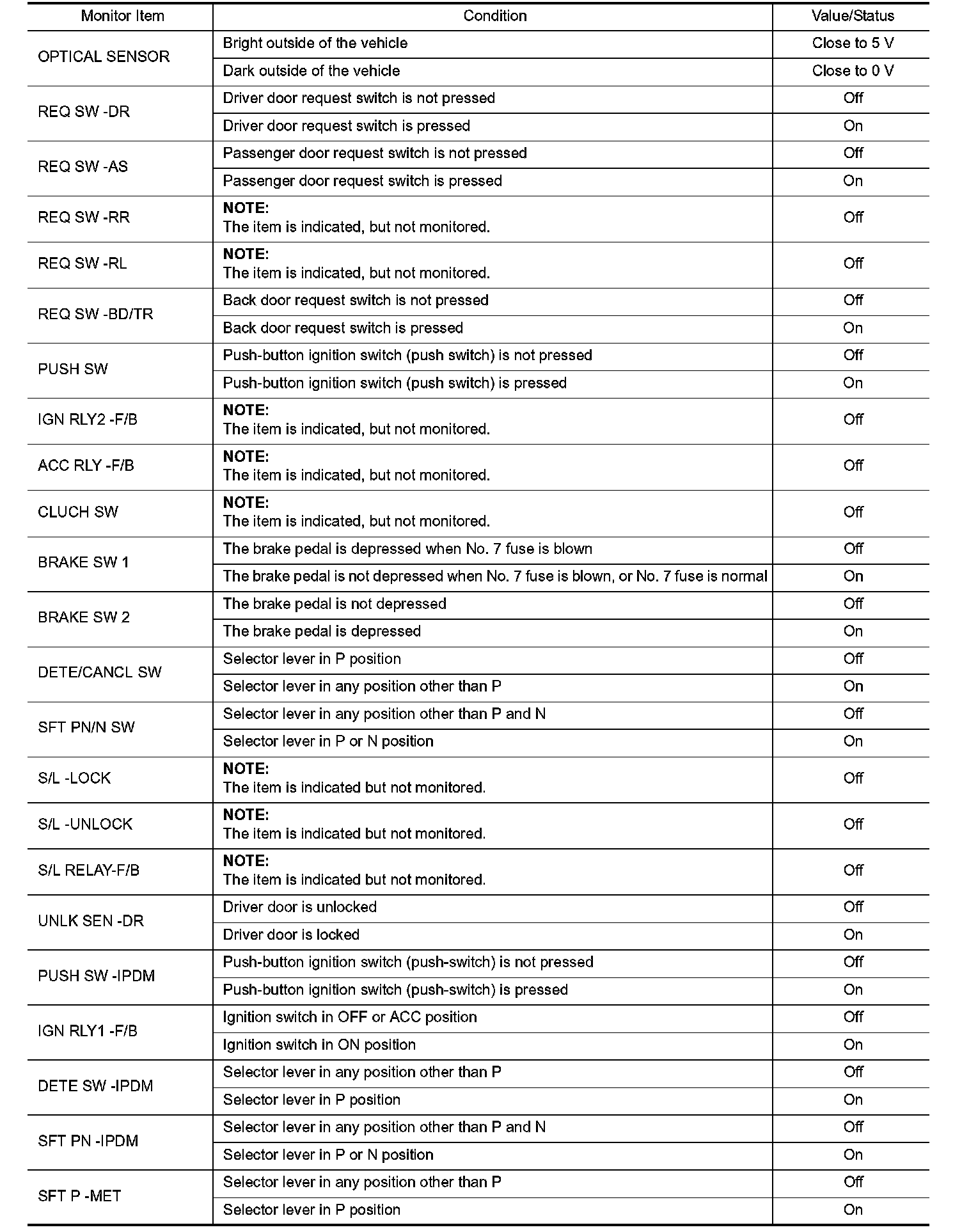

VALUES ON THE DIAGNOSIS TOOL

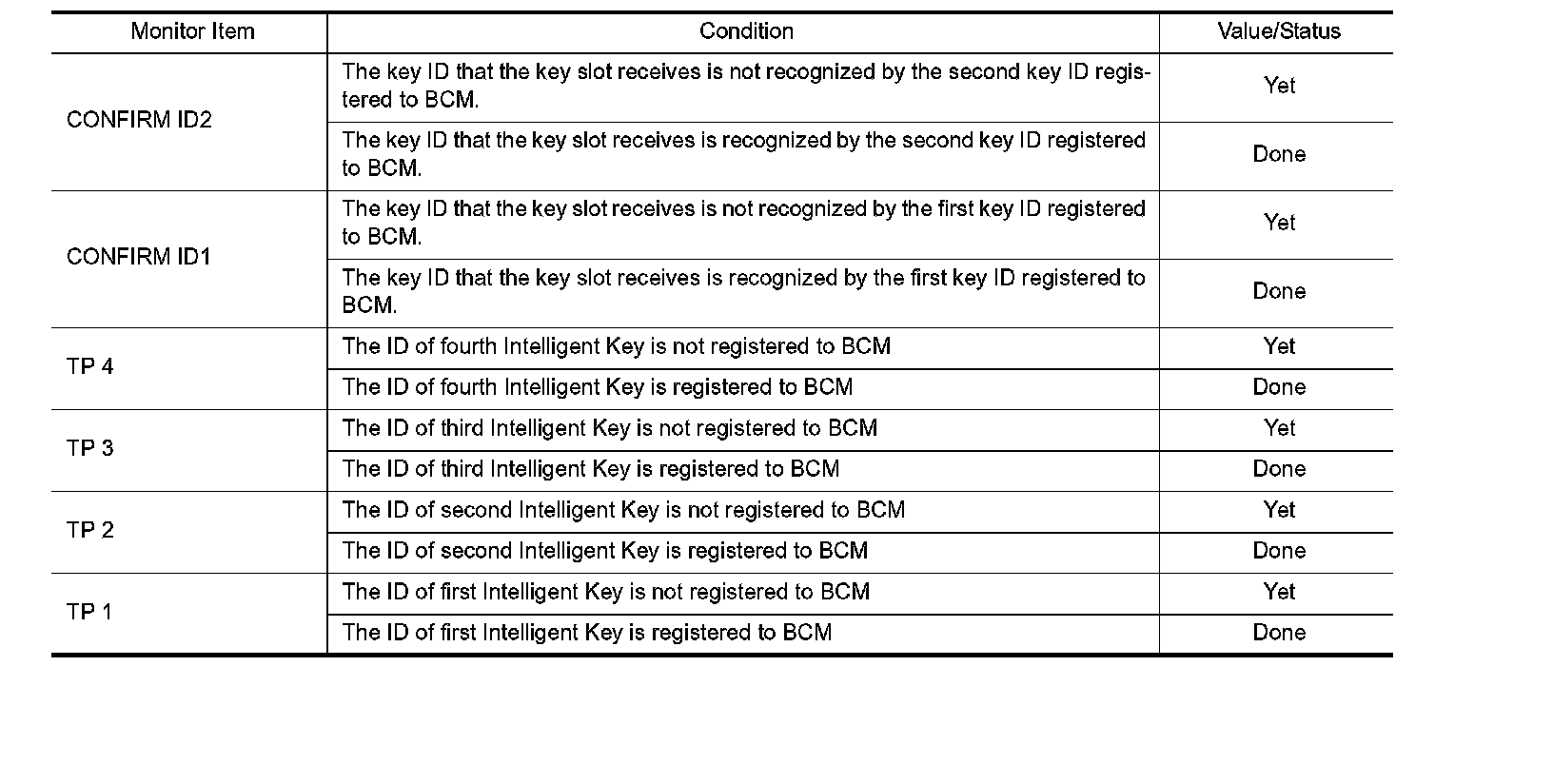

CONSULT MONITOR ITEM

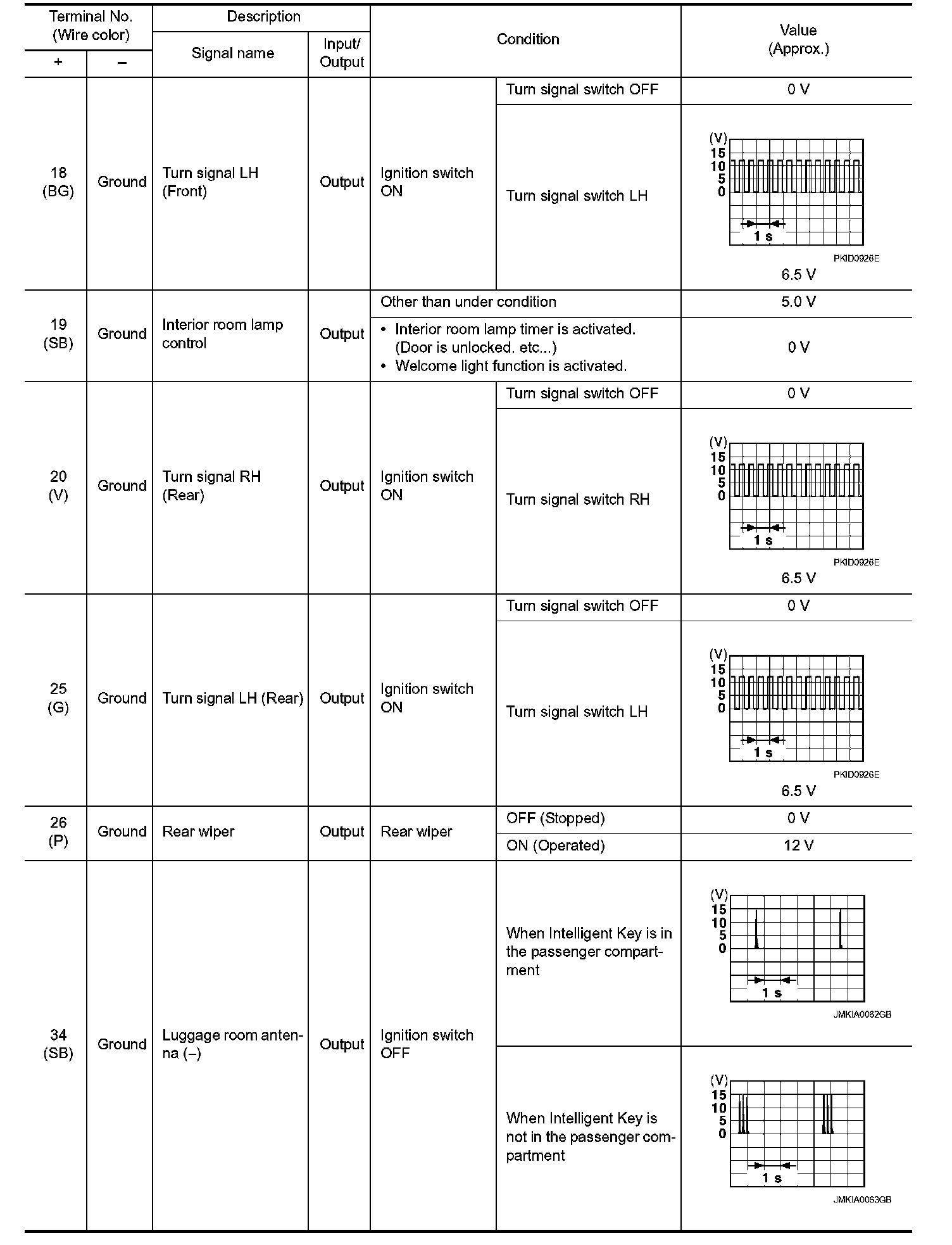

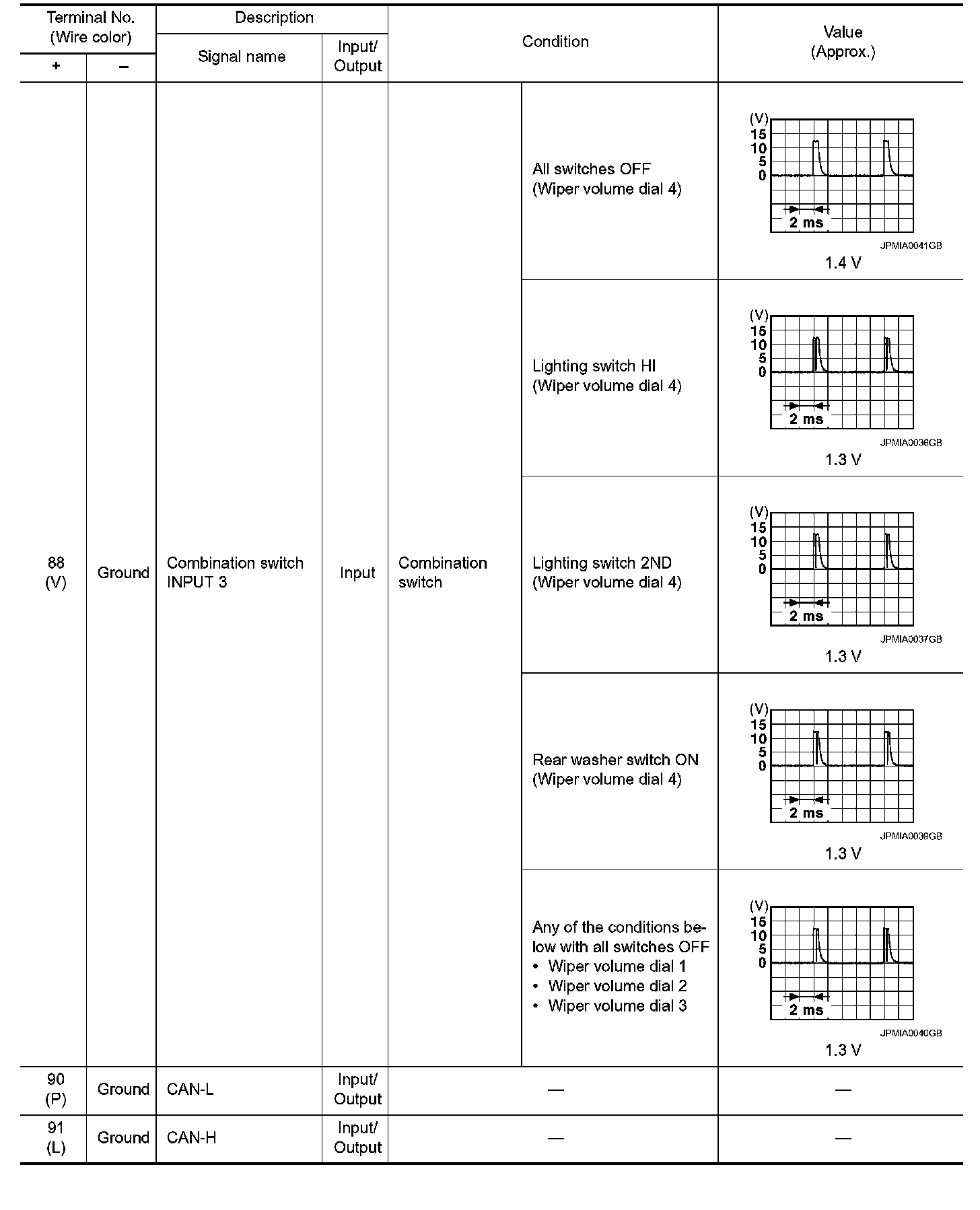

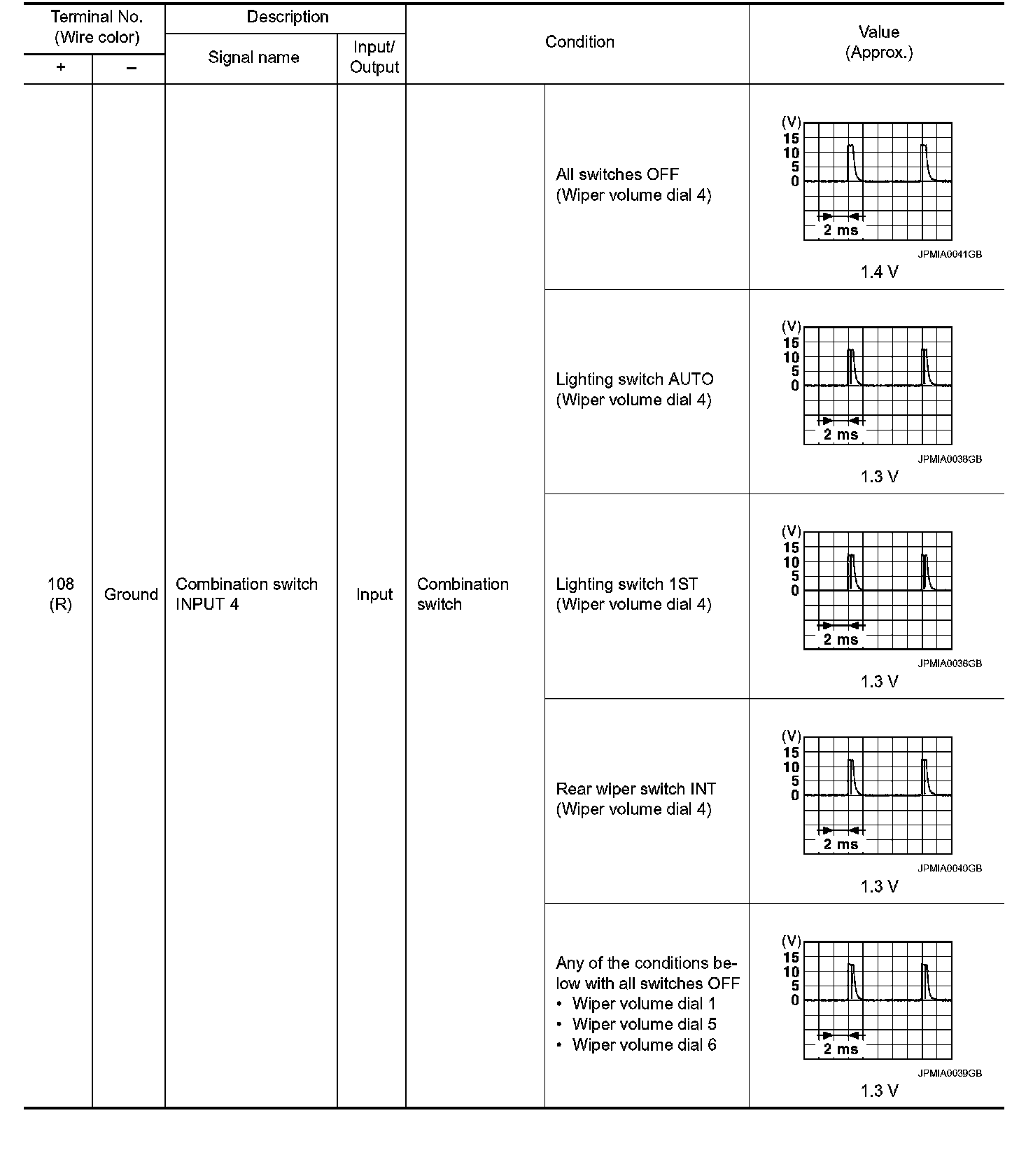

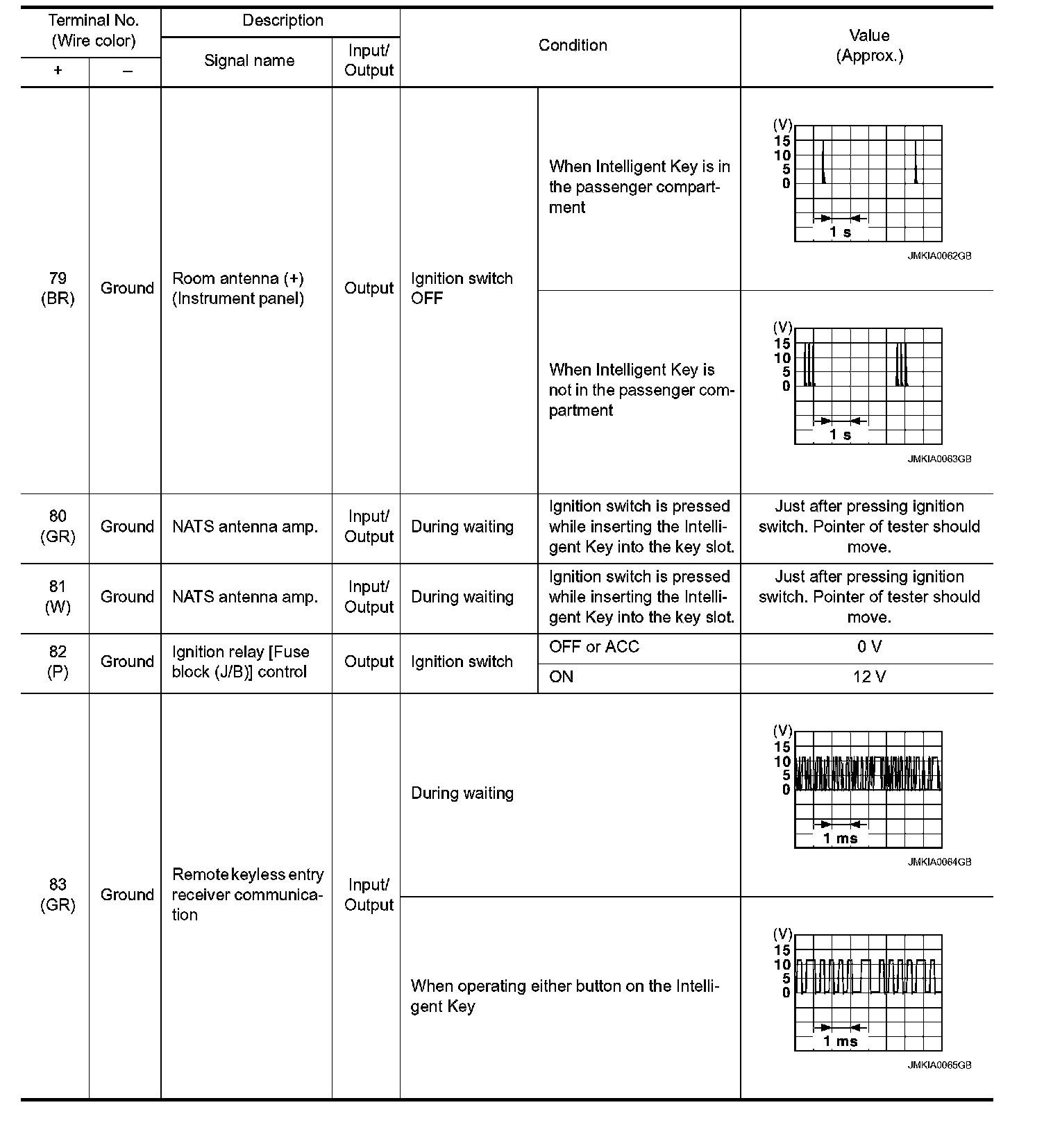

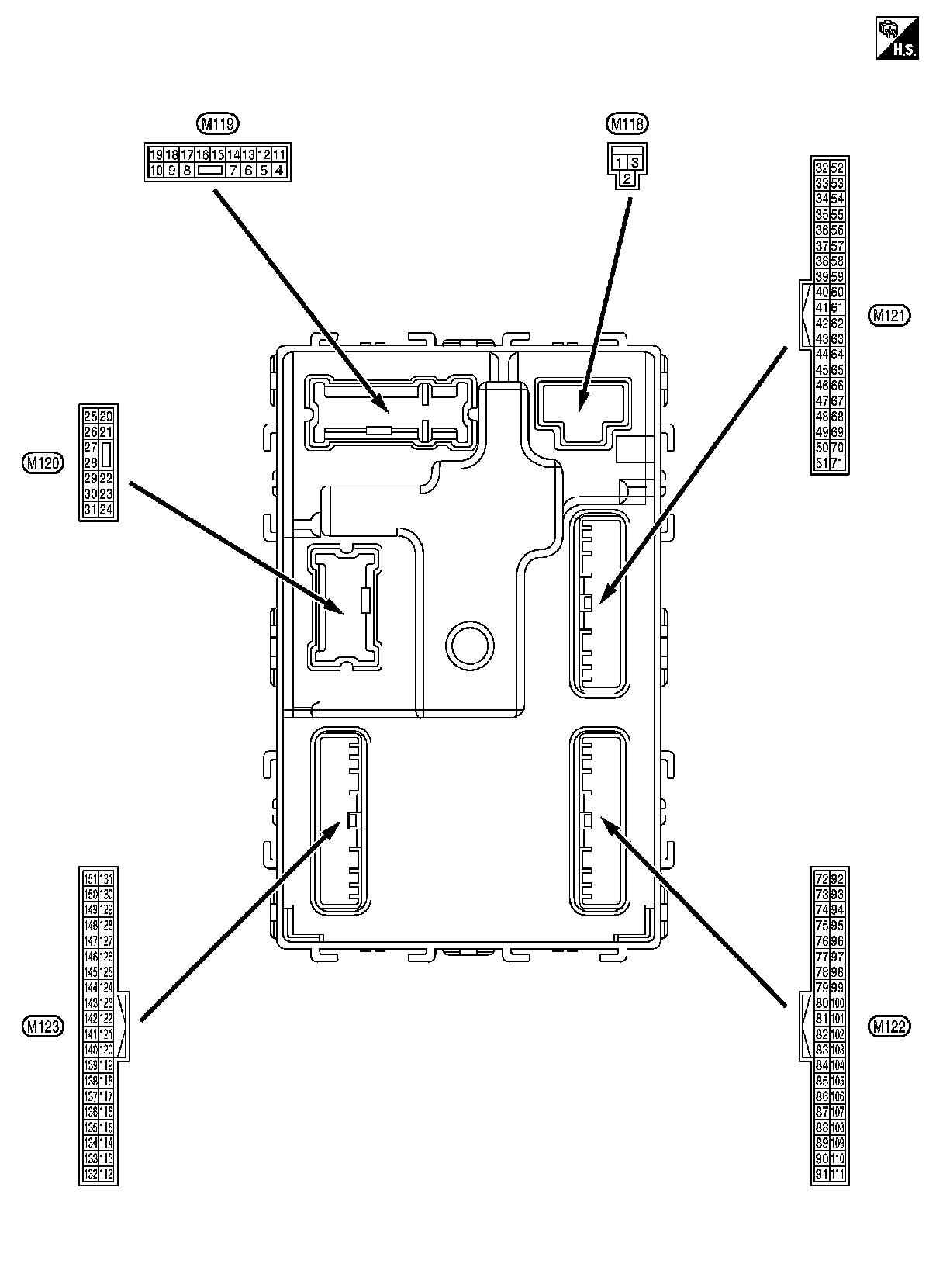

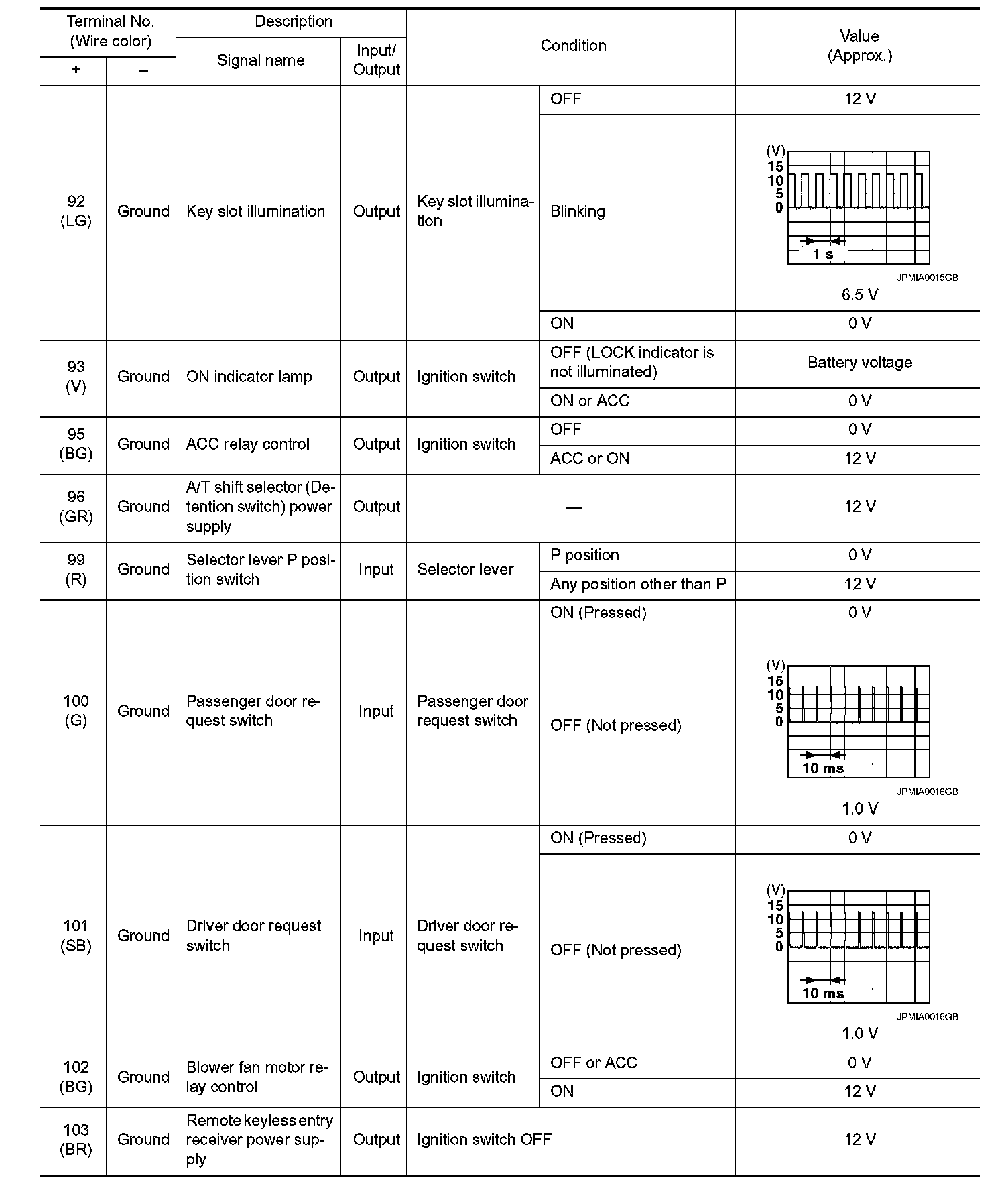

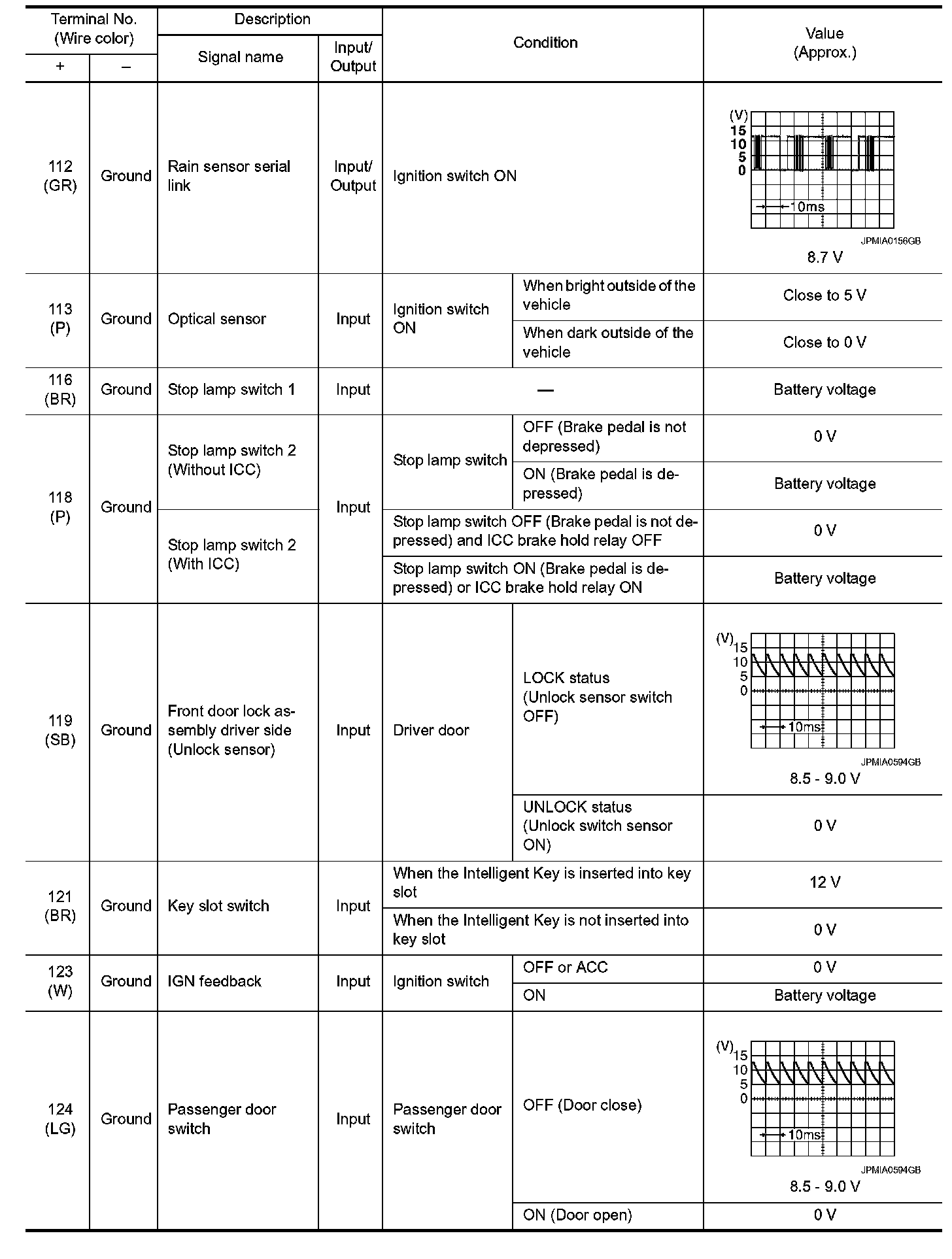

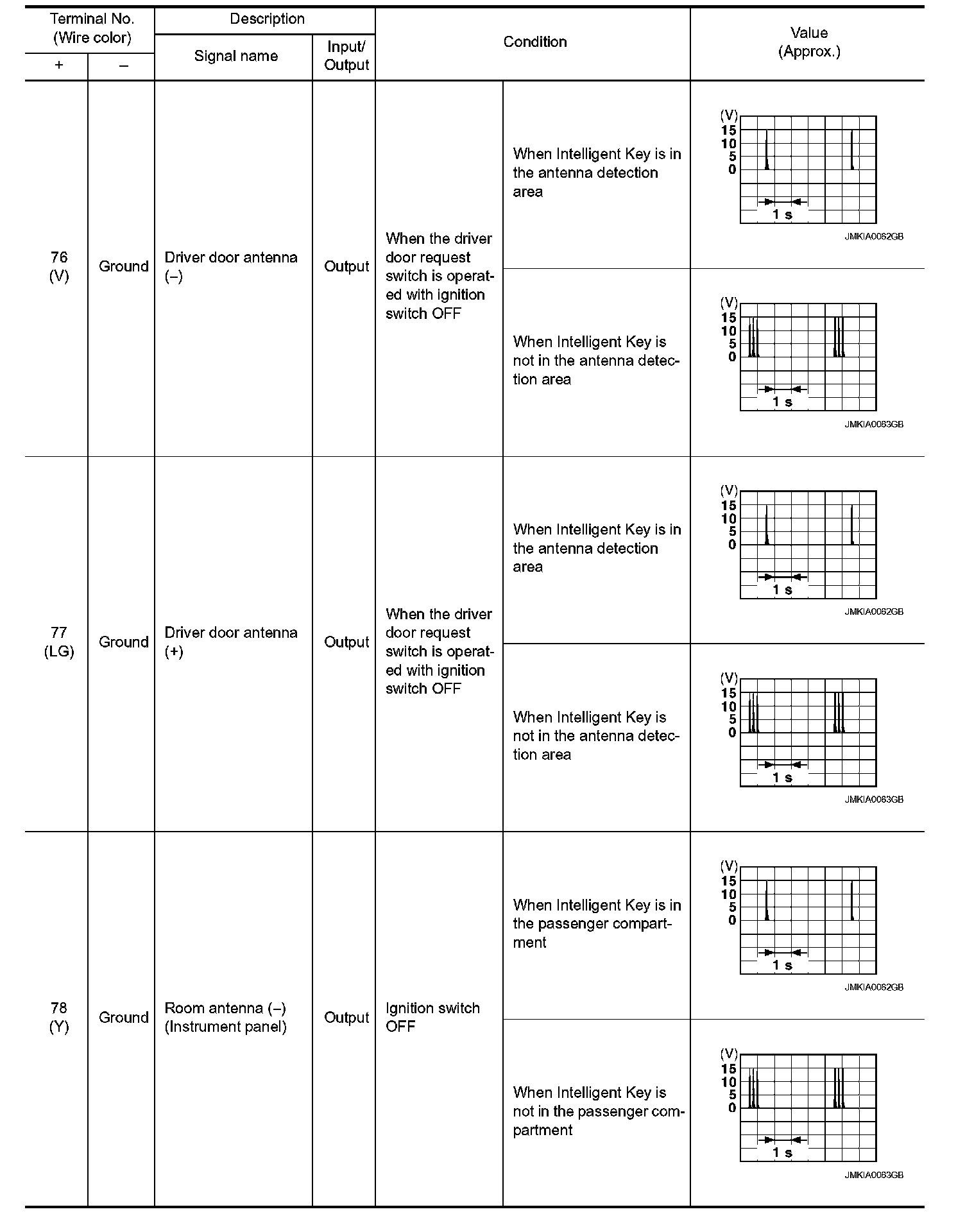

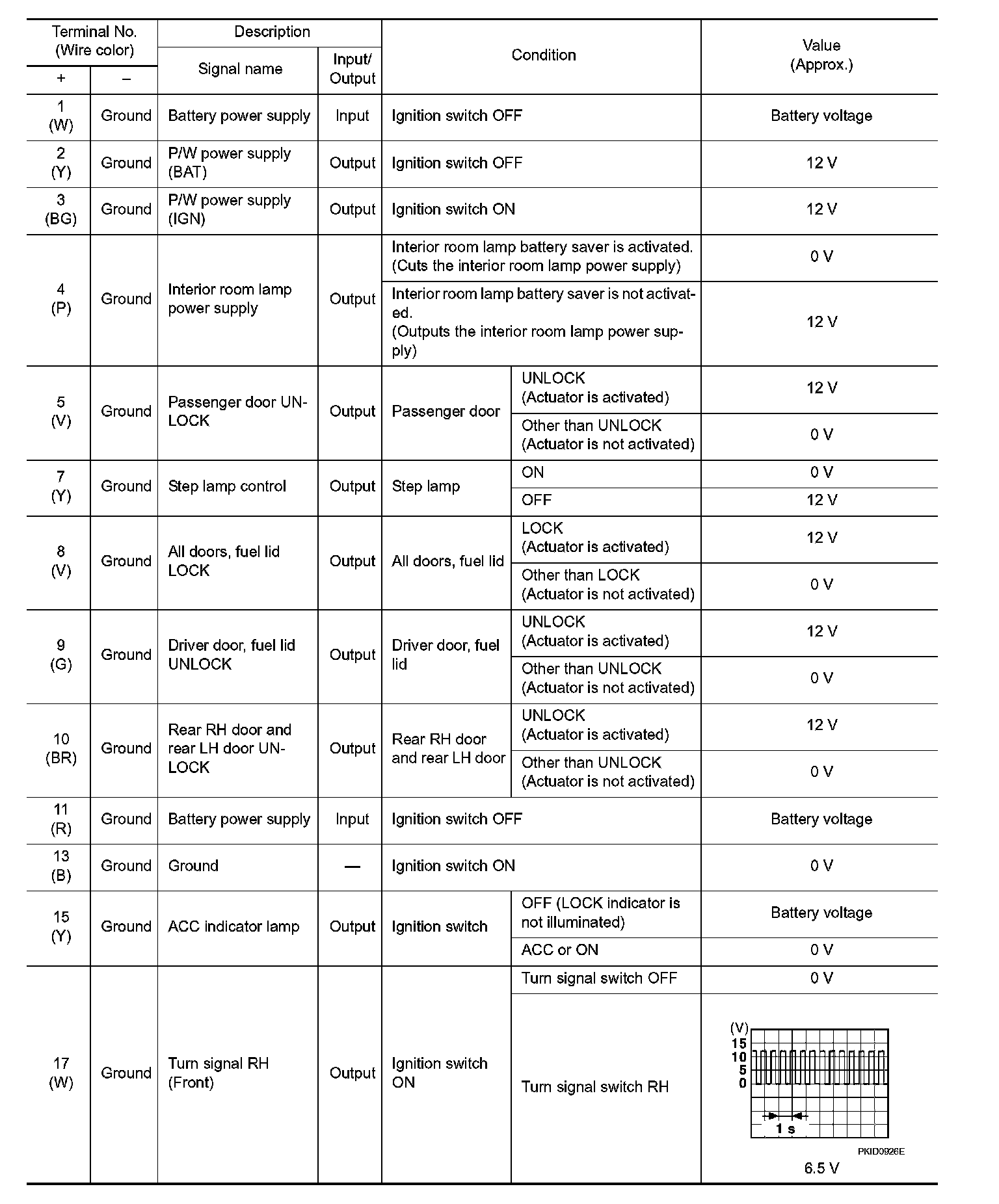

TERMINAL LAYOUT

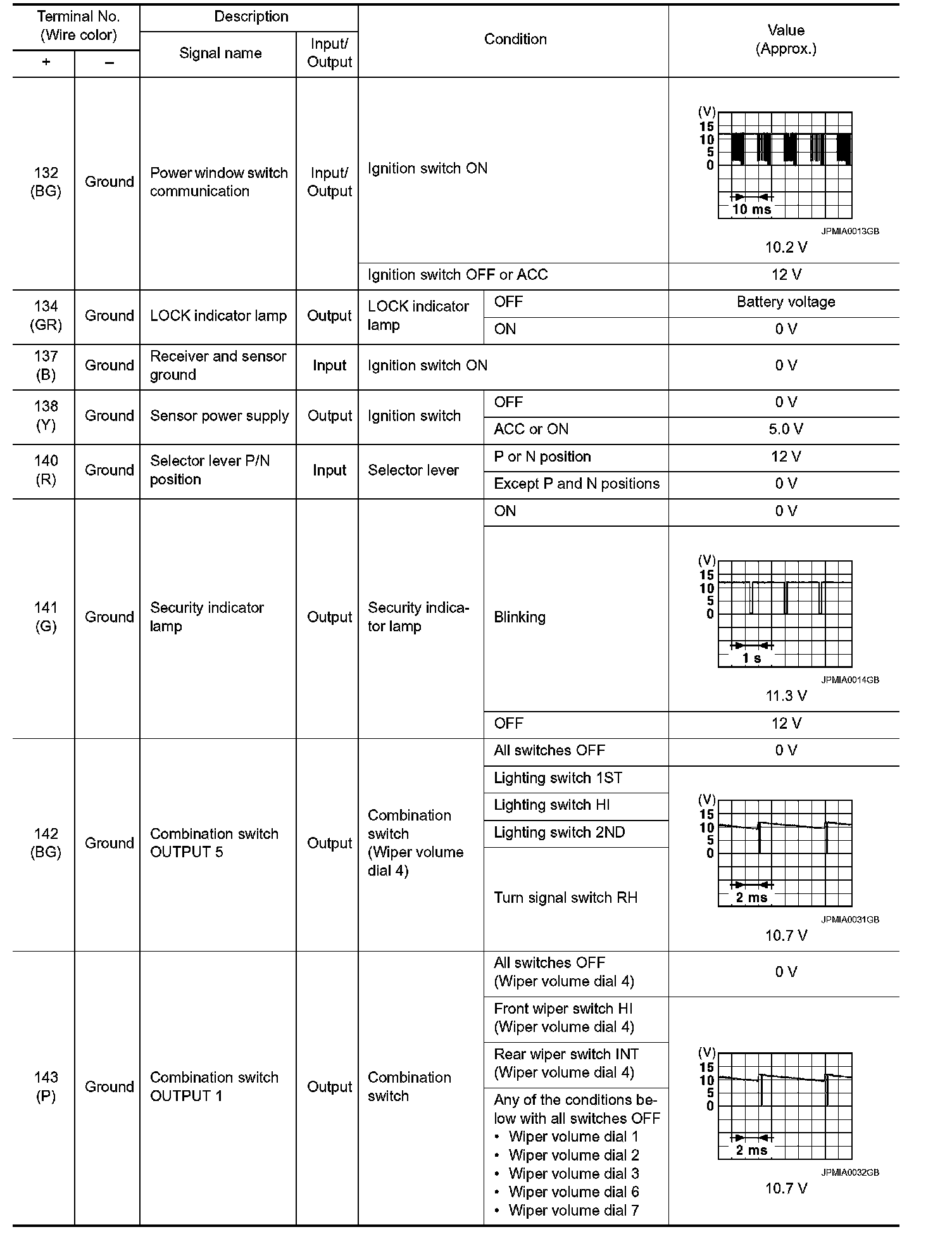

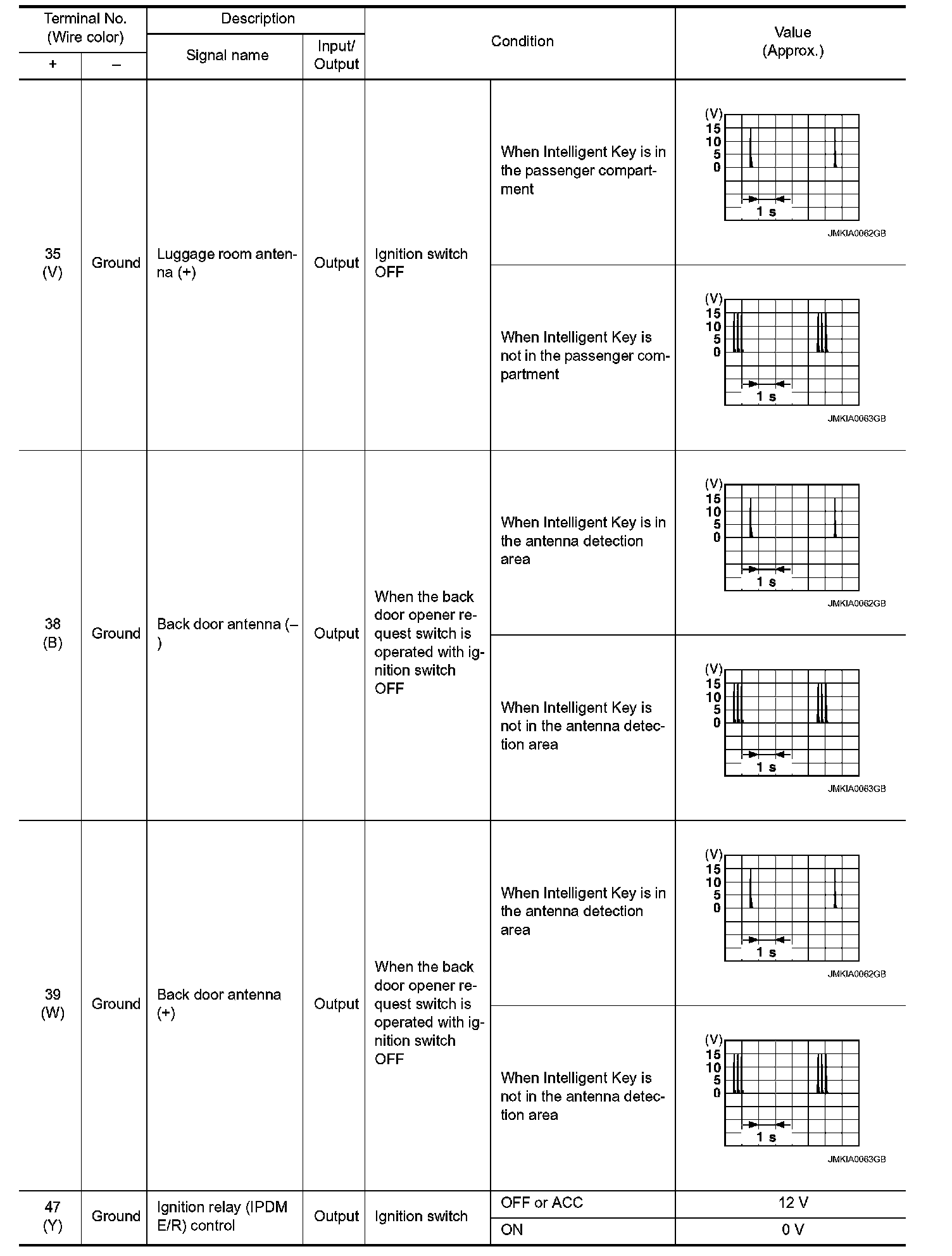

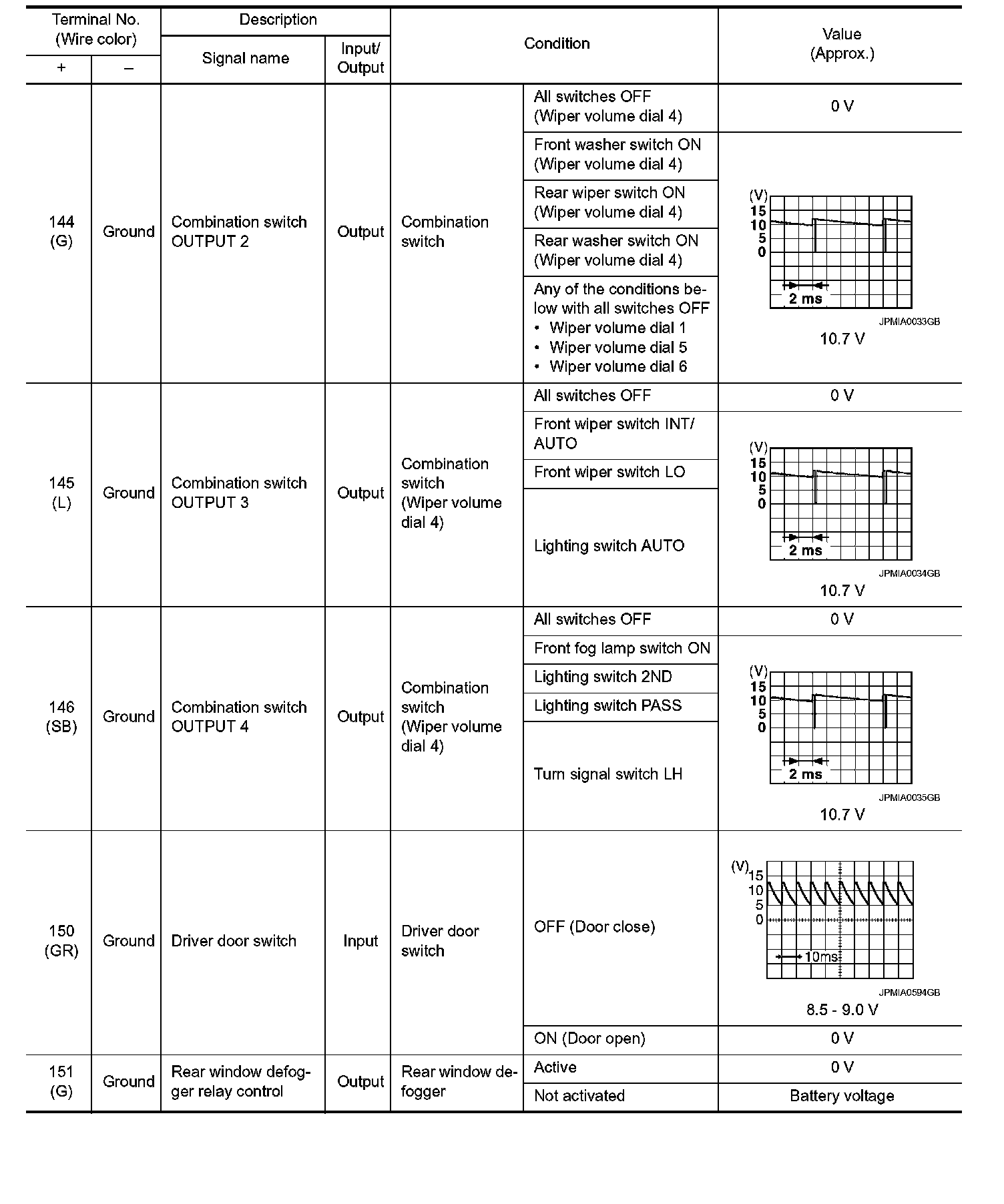

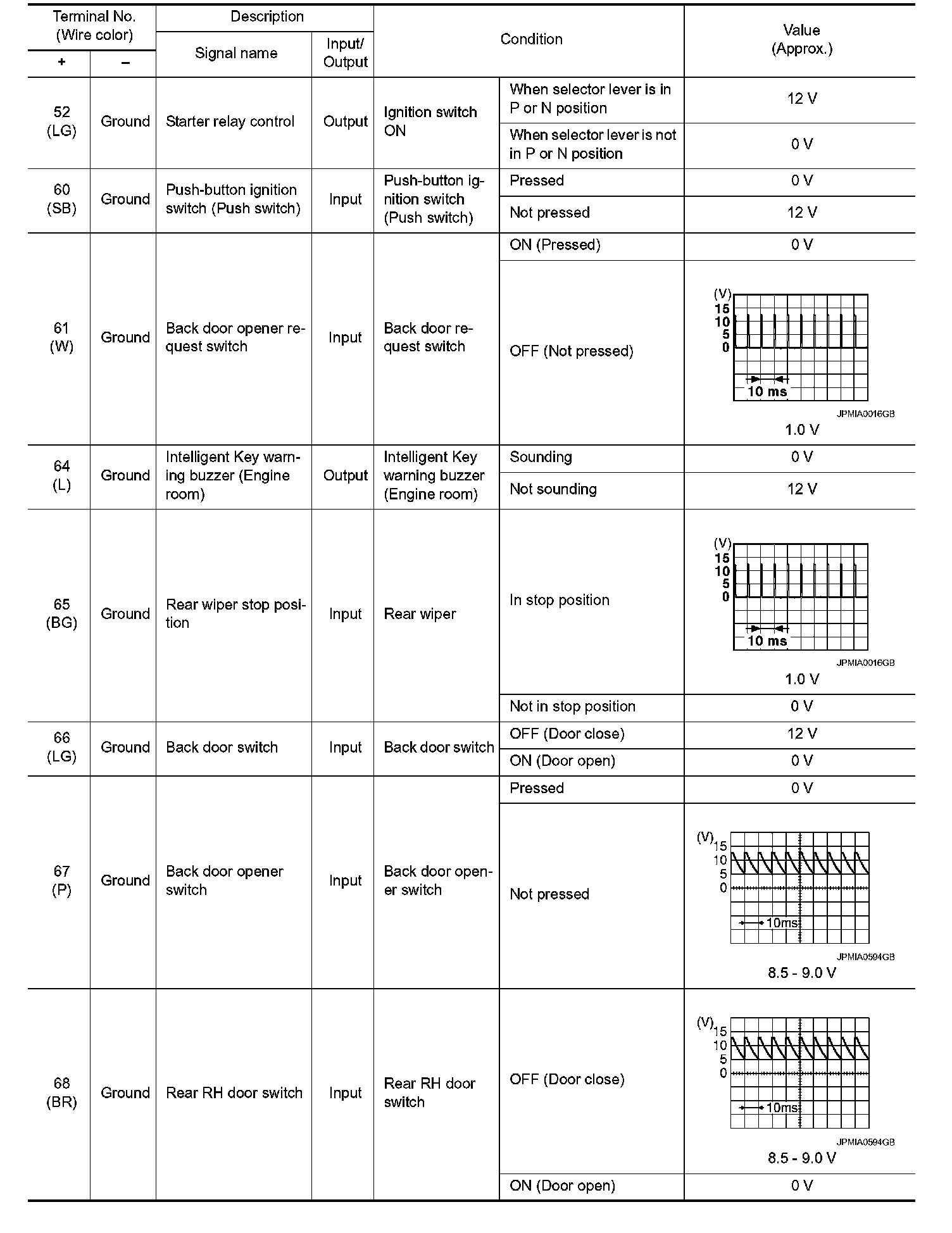

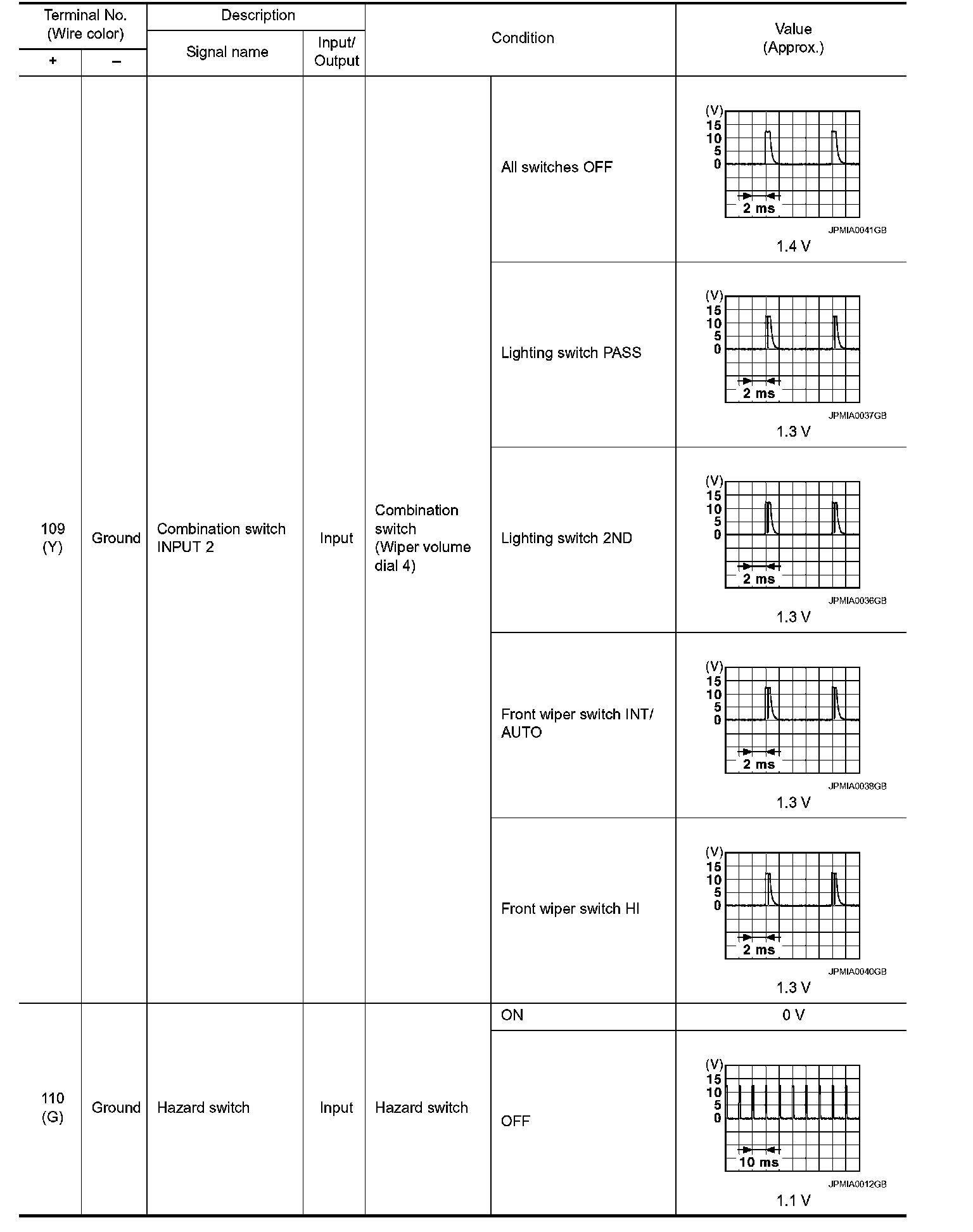

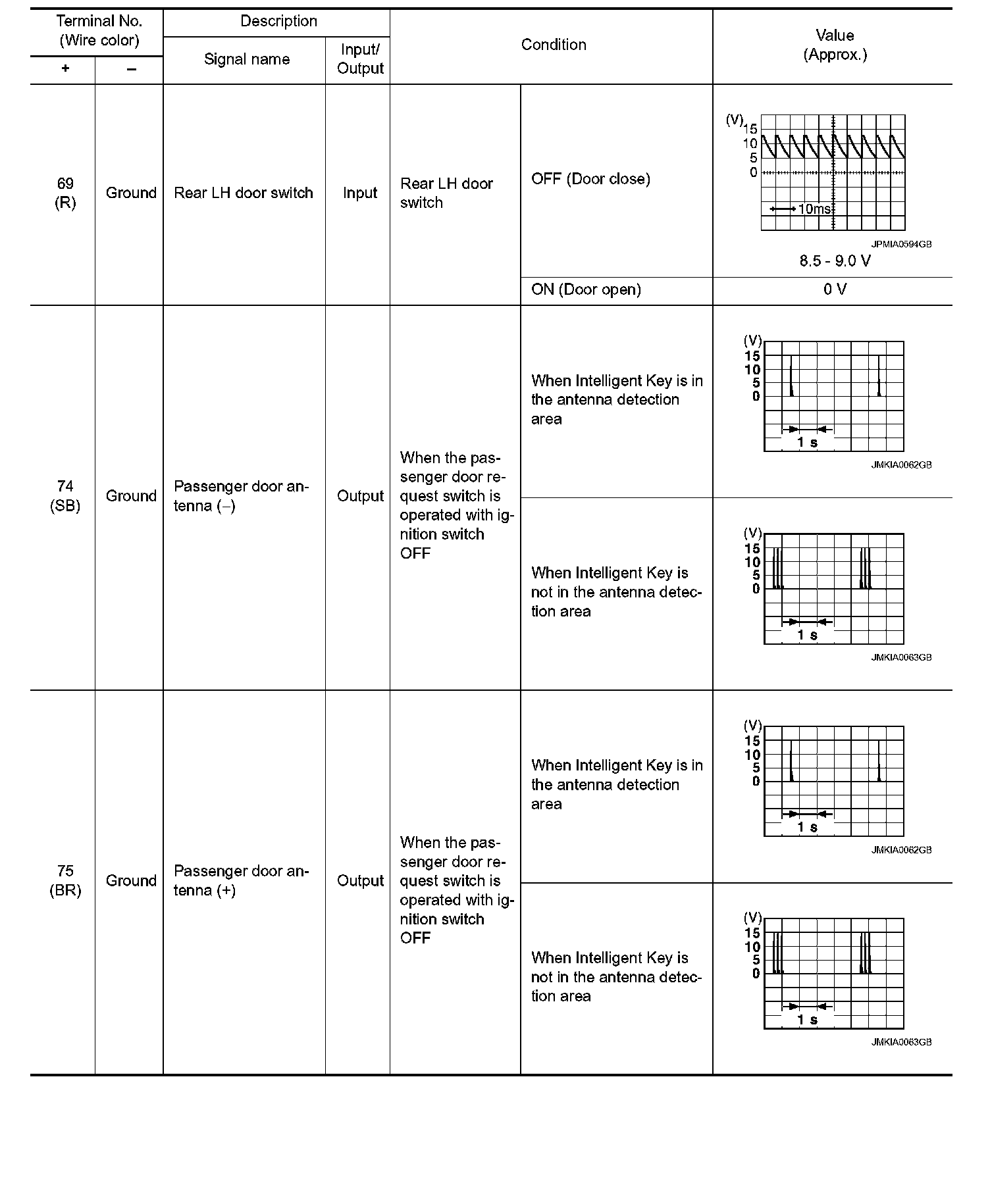

PHYSICAL VALUES
