CONSULT Function And System Application




CONSULT/GST CHECKING SYSTEM

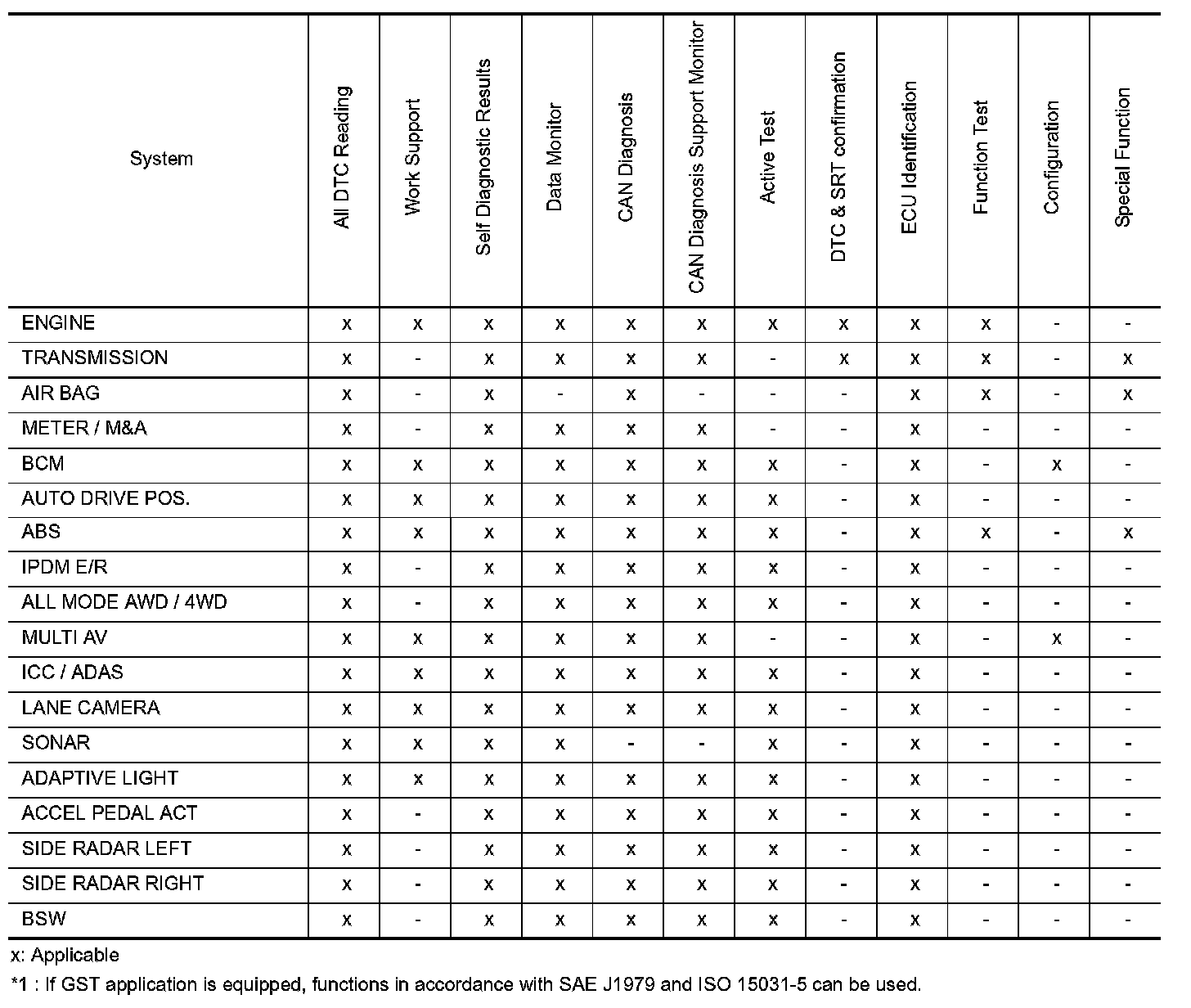

CONSULT Function and System Application*1

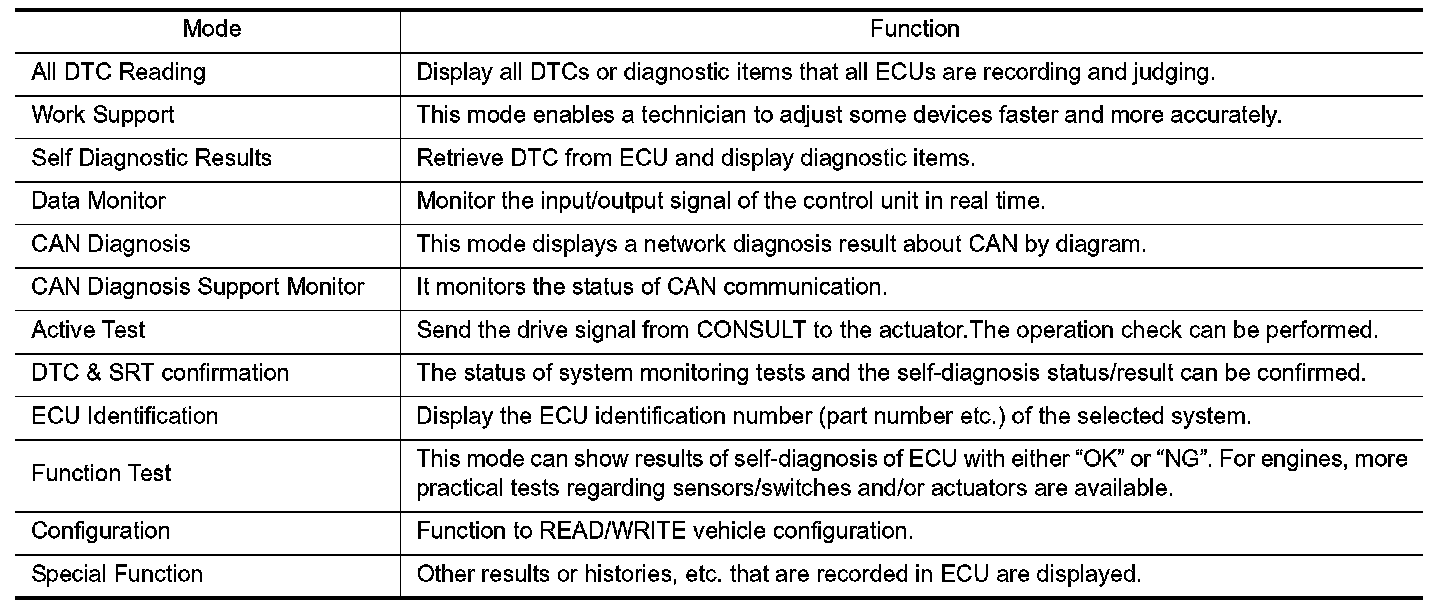

FUNCTION







SYSTEM APPLICATION
