Distance Control Assist System




ICC SENSOR INTEGRATED UNIT

Reference Value

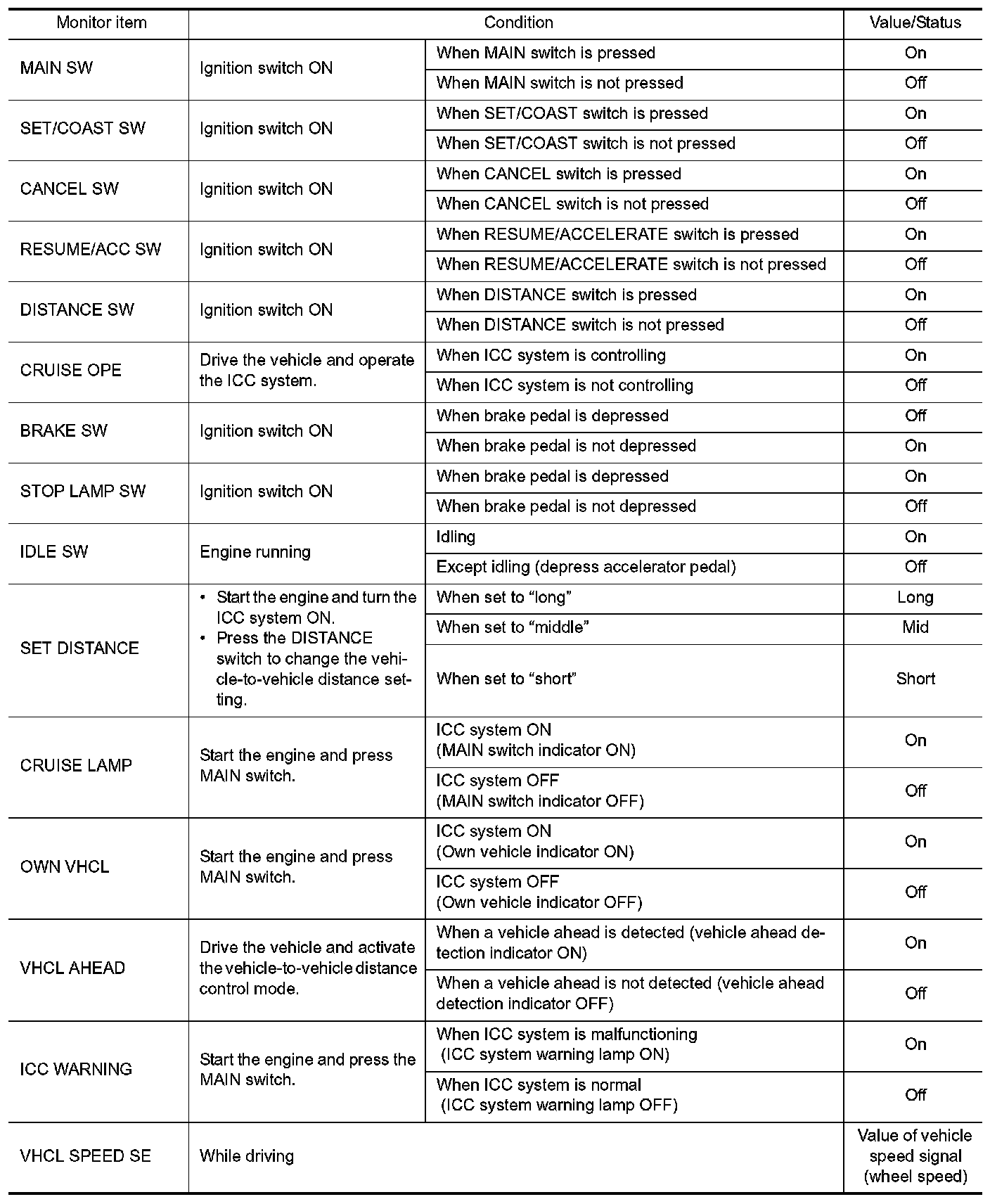

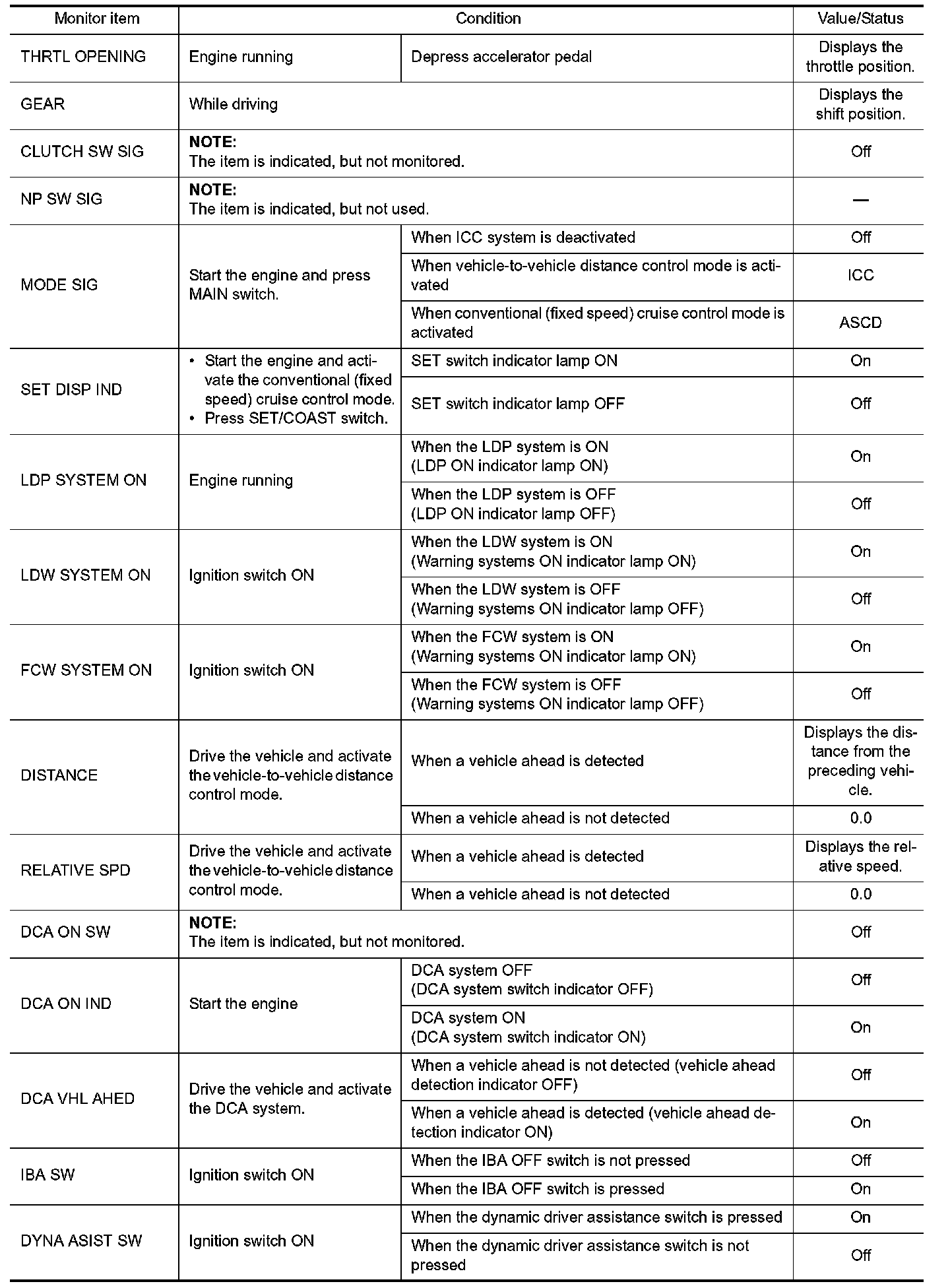

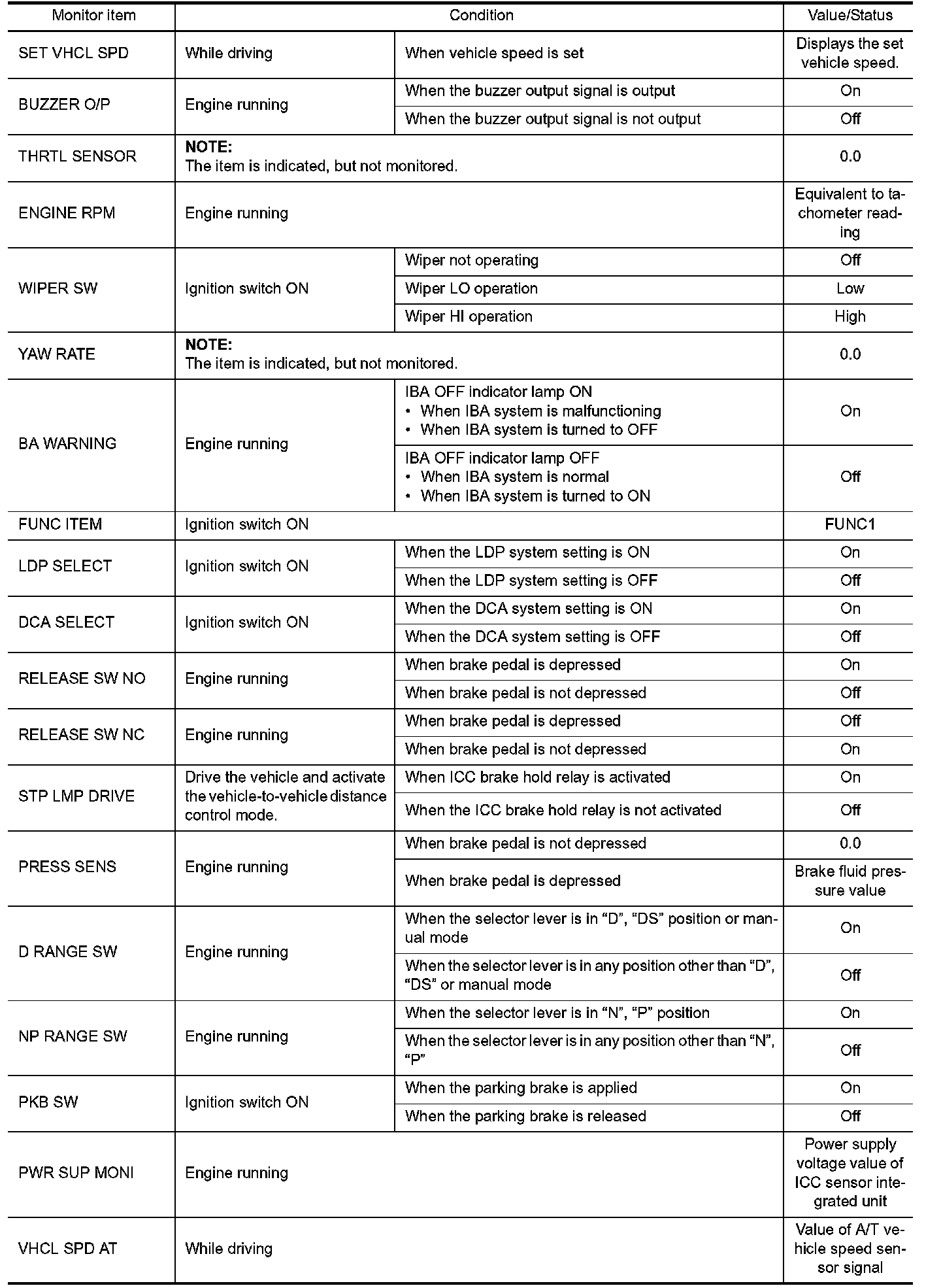

VALUES ON THE DIAGNOSIS TOOL



























TERMINAL LAYOUT


PHYSICAL VALUES
