Without ACCS





COMPRESSOR CONTROL FUNCTION


WITHOUT ACCS : Component Part Location

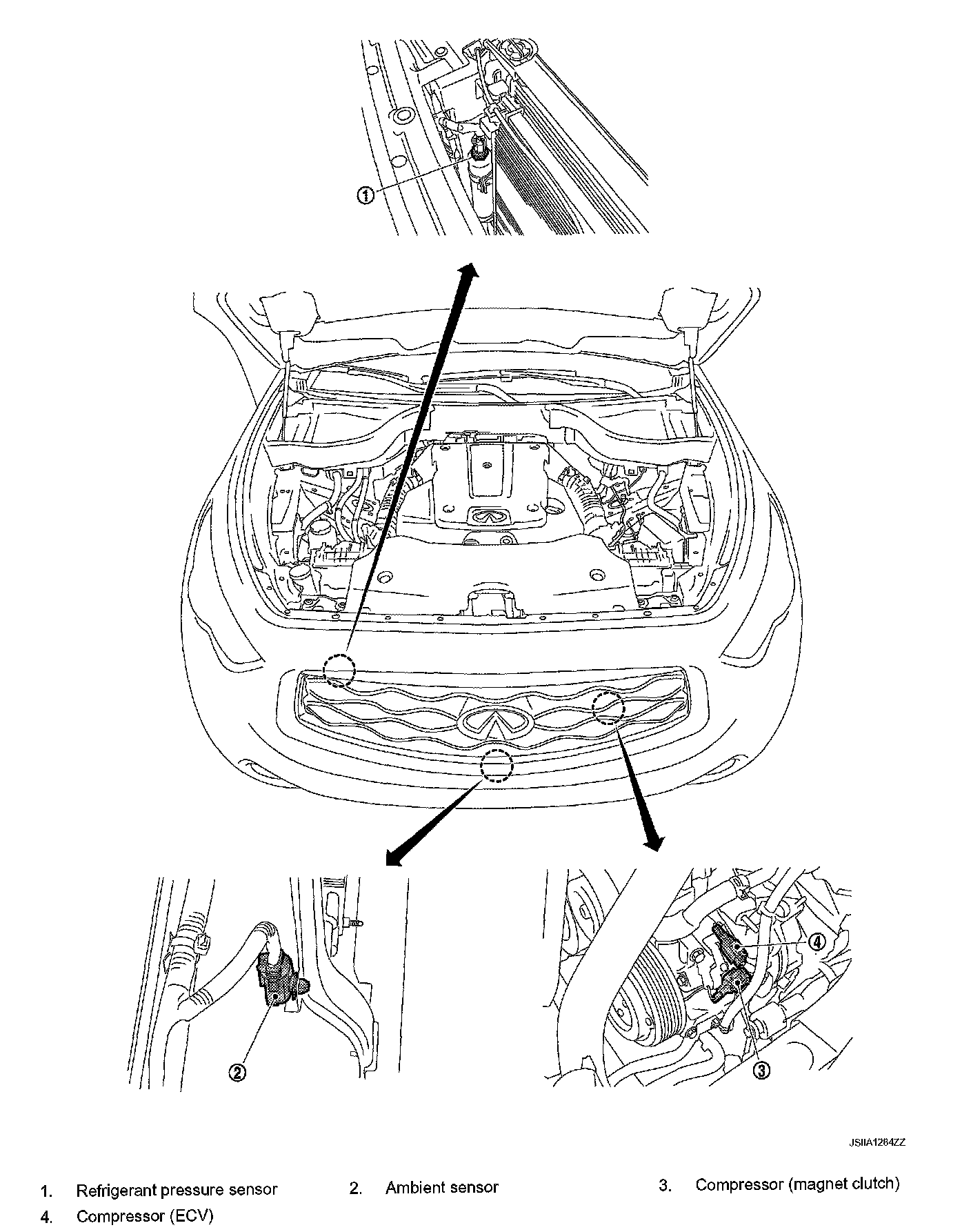

ENGINE COMPARTMENT

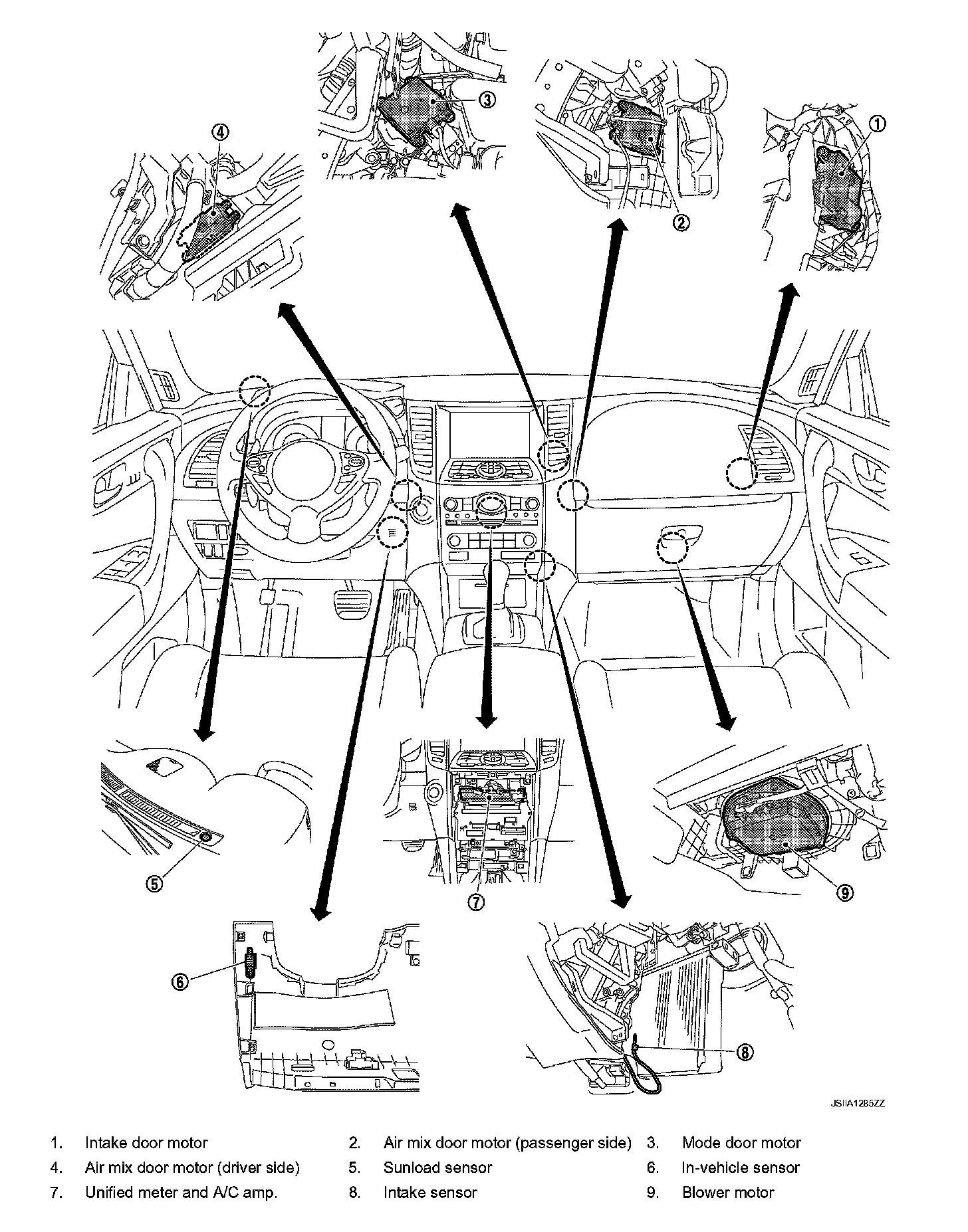

PASSENGER COMPARTMENT
