Infiniti Truck
>>
2009
>>
FX50 AWD V8-5.0L (VK50VE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Distribution Module
Power Distribution Module
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

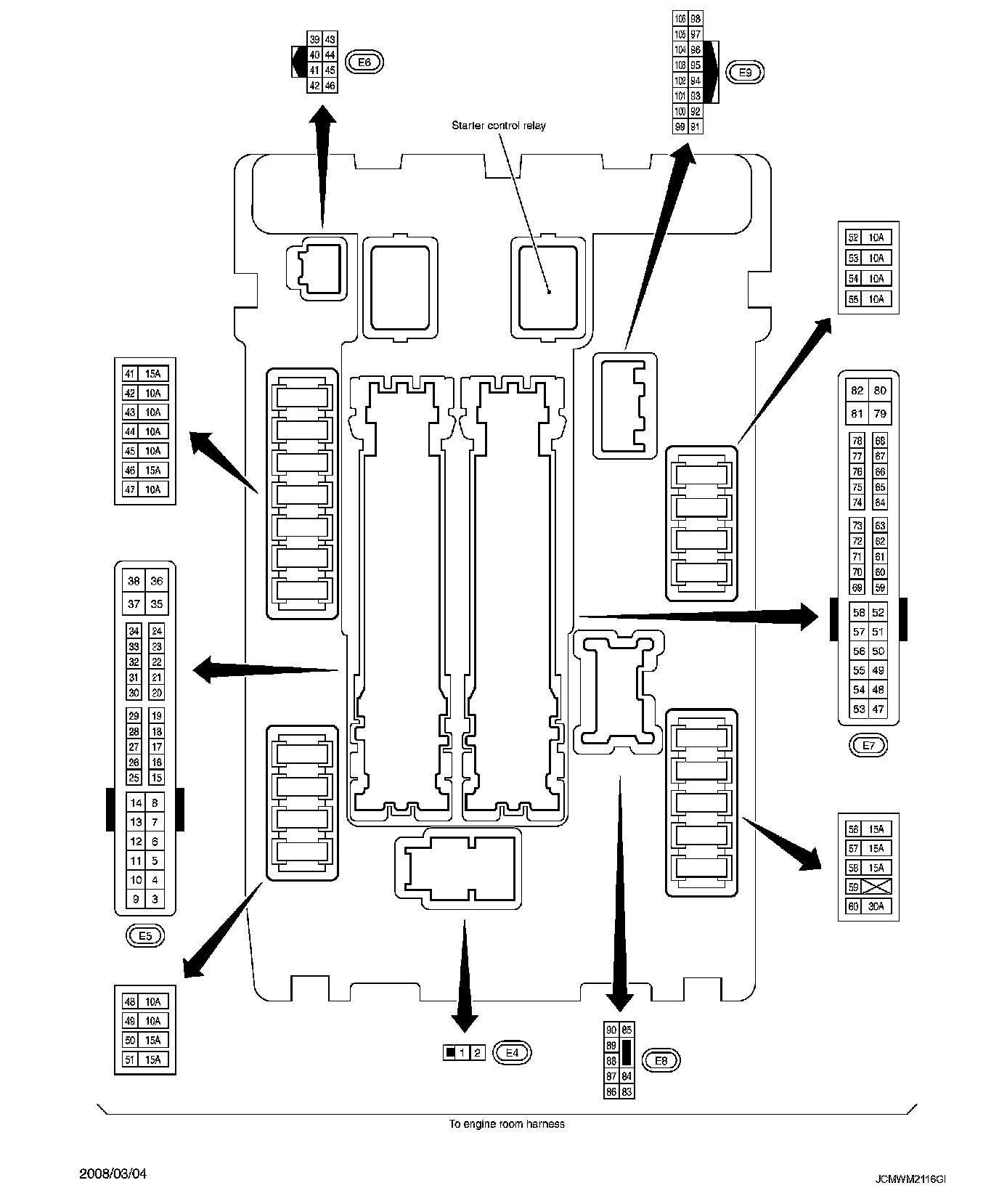

Fuse, Connector and Terminal Arrangement
