Sensor Reference Graphs In Data Monitor Mode

THROTTLE POSITION SENSOR, AB SOLENOID THROTTLE POSITION SENSOR, CLSD THROTTLE POSITION SWITCH
Shown is the data for "THRTL POS SEN", "ABSOL TH.P/S" and "CLSD THL/P SW" when depressing the accelerator pedal with the ignition switch "ON". The signal of "THRTL POS SEN" and "ABSOL TH.P/S" should rise gradually without any intermittent drop or rise after "CLSD THL/P SW" is changed from "ON" to "OFF".







CMPS-RPM (POS), MAS AIR/FL SE, THRTL POS SEN, RR O2 SEN-B1, FR O2 SEN-B1, INJ PULSE-B1

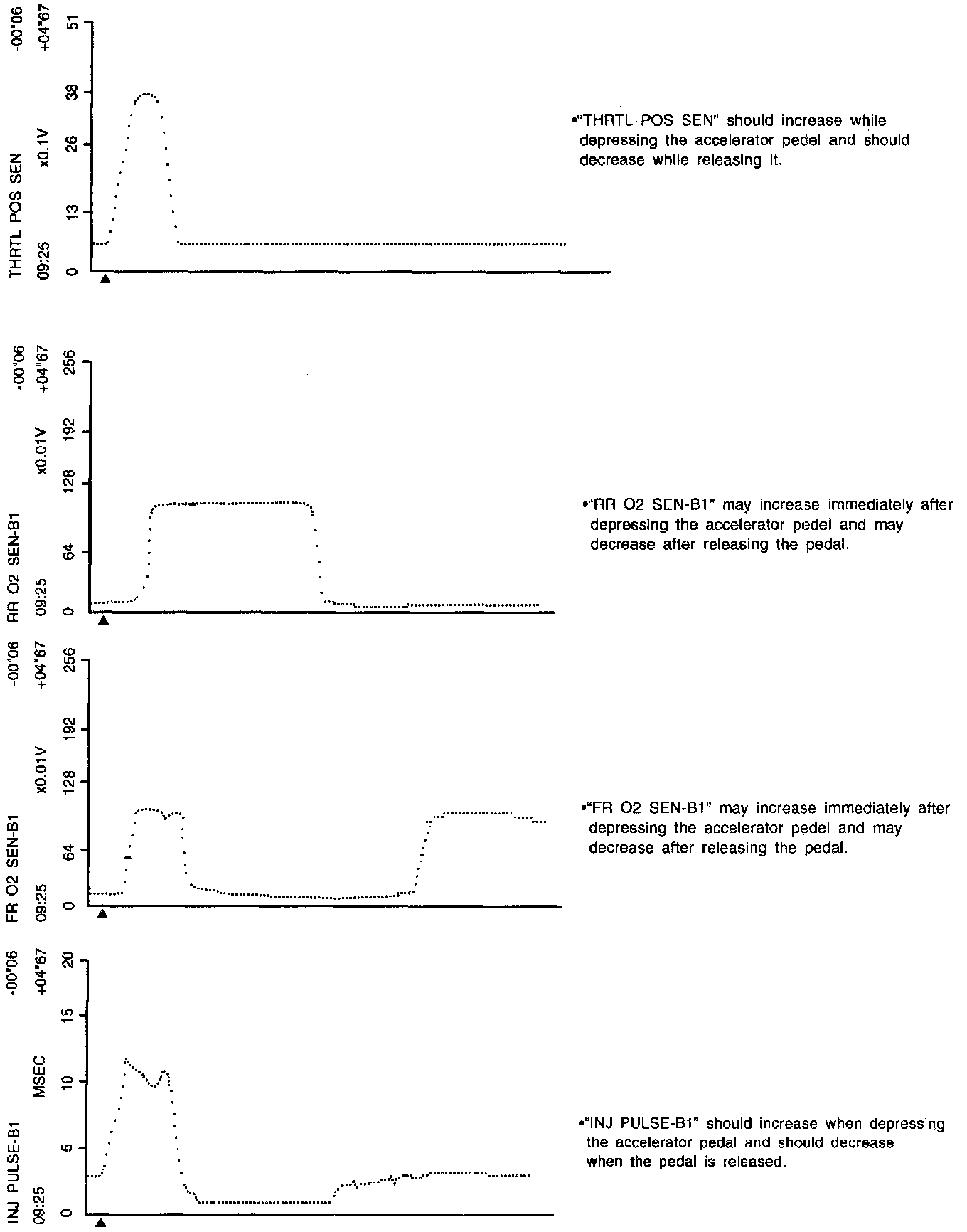

Shown is the data for "CMPS-RPM (POS)", "MAS AIR/FL SE", "THRTL POS SEN", "RR O2 SEN-B1", "FR O2 SEN-B1" and "INJ PULSE-B1" when revving engine quickly up to 4,800 rpm under no load after warming up engine sufficiently.
Each value is for reference, the exact value may vary.
