Home >> Hyundai >> 2012 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M12-A Smart Key Module (With Smart Key)

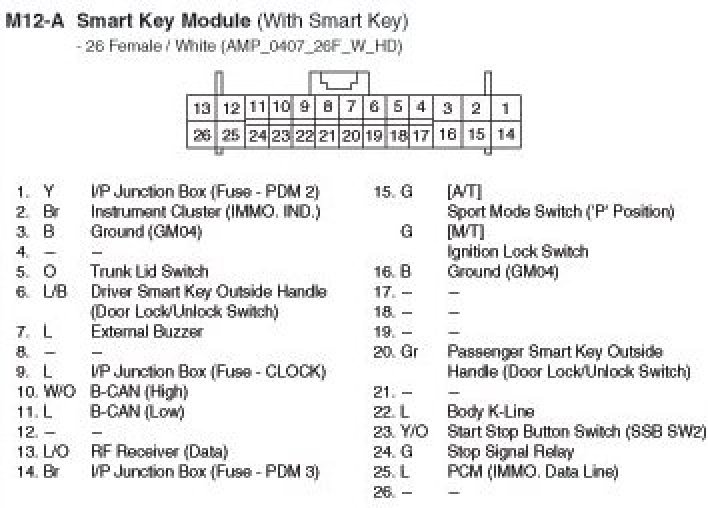

M12-A Smart Key Module (With Smart Key)

M12-A Smart Key Module (With Smart Key):
