Home >> Hyundai >> 2012 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch >> Multifunction Switch (Light)

Multifunction Switch (Light)

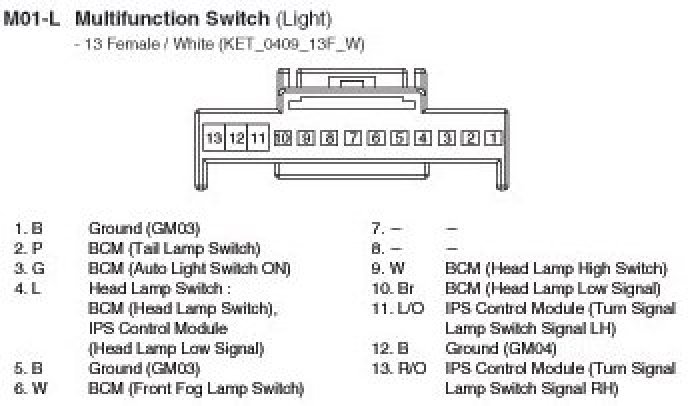

M01-L Multifunction Switch (Light):
