Home
>>
Hyundai
>>
2012
>>
Sonata L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alternator
Alternator

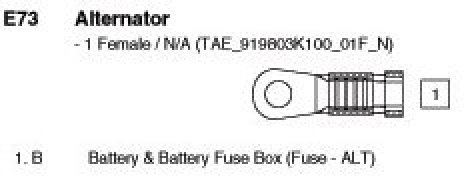

E73 Alternator:

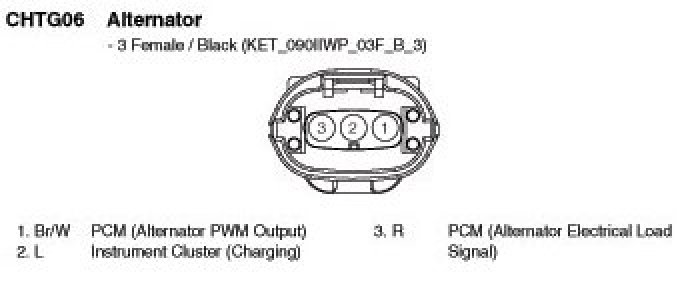

CHTG06 Alternator:
