Home >> Hyundai >> 2011 >> Sonata L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Control Module

Power Window Control Module

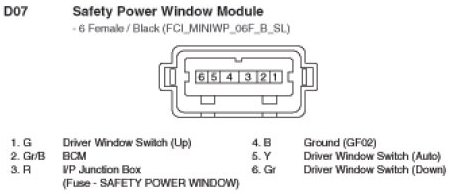

D07 Safety Power Window Module:
